HE3D Ciclop DIY 3D Scanner


The Ciclop 3D scanner is a 100% open source project.All information on the mechanical design, the electronics and the software have been made freely available to the community, to become part of the Technological Heritage of Humanity. Ciclop is an open source 3D laser scanner with a rotative platform. It has been developed from scratch by bq, and now it has been released to the community, under Creative Commons Attribution-ShareAlike 4.0 International License.his 3D Scanner is composed by a structure of 3D printed parts and screws, a web cam, two line lasers and a turntable platform with a stepper motor.

The Scanning accuracy is related to the environment, light, adjust, scanned object shape and many other factors. And the post-processing is needed


MORE INFO:


HE3D Ciclop 3D is a desktop 3D scanner, it works well with simple objects for DIY or simple research purposes. The environment light and its reflexion have a strong importance on the scan result.

This kit contains all components to assemble the 3D scanner, notice that the ciclop 3d scanner is a project under development and will evolve.

Fits for objects bigger than 5x5cm and smaller than 20.3x20.3cm, lighter than 3kg, not moving and opaque.

Plugs and power supply available for 110/220V (US/EU/JP/etc)

For more details : Reprap Ciclop Wiki


  Main Features:


  Open-source desktop laser 3D scanner

   Scanning element: CMOS

  Interface type: USB 2.0

  The scanning accuracy is related to the environment, light, adjust, scanned object shape

  Plastic parts are replaced with Injected Moulding Parts. They are more durable than Plastic parts



DATA SHEET:

Print Size ( X Y Z ) 203mm x 203mm x 203mm
Chassis ABS
Machine Dimensions 390mm x 230mm x 160mm
Shipping Box Weight 3.5 kg
Print Plate Size 203mm x 203mm
AC Input 110V or 220V (switch)
Connectivity USB
3D Printing Software Horus
CAD Input data file format supported .stl and .gcode
Client Operating System Windows, Mac OS and Linux


Shipment info:


  Dispatch Time:1-3 Business days from the Order placed date


  Buyer Protection Policies


      Safe Payment

                 PayPal-the most reliable payment method.Credit/Debit cards processed by PayPal

      DHL Express Insured Shipment

                 High Quality Express Transport without damage.

         1 Year Warranty

                 Just in case. Of course we only ship out perfect products.

      Technical Support Service

                 Experiencing trouble? Feel free to contact us!


  Package Contents


S.No Components Qty Unit
1 Arduino uno controller 1 PCS
2 ZUM Scan Expansion board 1 PCS
3 A4988 stepper drive chip 1 PCS
4 USB wires 1 PCS
5 C270 HD webcam 1 PCS
6 42 stepper motor 1 PCS
7 Laser 2 PCS
8 12V1.5A Power supply 1 SET
9 8mm Bobbin 1 PCS
10 M3*10 screw 10 PCS
11 M3 NUT 6 PCS
12 M8 NUT 28 PCS
13 M8 washer 18 PCS
14 Hexagon wrench 2.5mm 1 PCS
15 M8*30 screw 3 PCS
16 16014 bearing 1 PCS
17 M8*382mm Screw 2 PCS
18 M8*302mm Screw 1 PCS
19 M8*152mm Screw 4 PCS
20 Injecting Moulding Parts(Red Color) 11 PCS
21 Calibration checkered paper 1 PCS
22 Calibration board (3mm acrylic sheet) 1 PCS
23 Countertop ( 7mm acrylic sheet) 1 PCS
24 M3 X 12 Self tapping Screw 4 PCS
25 M3 X 20 Self tapping Screw 2 PCS

Ciclop



























  After Assembled




  Shipment Package






All sources are hosted in GitHub:


Product Condition
Item Condition New(BRAND)
HE3D Ciclop DIY 3D Scanner
HE3D 3D scanner is hugely impressive. It’s cheap but surprisingly effective at picking out detail in objects, if not exceptional, 3D scans. For under $150, that’s really amazing
HE3D Ciclop DIY 3D Scanner
It is an outstanding product. It works as advertised, and while it’s not perfect, gets the job done. It’s difficult enough to find a reliable 3D scanner today that’s affordable, but this one is and easy to use at that. For those reasons we give it our highest recommendation.
HE3D Ciclop DIY 3D Scanner
The build quality and injected red molded parts are solid and sturdy. I was happy to receive the unit in time and at an amazing speed. Best price in the market as well. Coming to the 3D scanner, it is an open source unit and therefore, it’s useful in many ways. Biggest pros of this printer are printing speed, accuracy
HE3D Ciclop DIY 3D Scanner
At an incredible price of $140, I find the HE3D Ciclop DIY 3D Scanner as the most efficient machine. In fact, this machine can easily examine (Ø) 250 x (H) 205 mm. The most essential highlight that I found about this 3D Scanner is that it does not put any holes in your pocket as it is a open source scanner. Therefore, there is no need to buy any expensive checking programming for preparing the sweeps.
HE3D Ciclop DIY 3D Scanner
I am a device lover and this 3D scanner was precisely what I was searching for recent months. The machine conveys amazing nature of print outputs and individuals can utilize its open-source stage to seek online and speak with different clients. This Cyclop Scanner gives plastic projection shaping that does not require settling and is relatively sturdy than different parts. It deals with every working framework making it an overwhelming scanner in business sector!

Write a review

Note: HTML is not translated!
    Bad           Good

HE3D Ciclop DIY 3D Scanner

$99.00 $200.00
Special price valid


    Credit Cards processed by PayPal

  • Order Fulfillment by : HE3D
  • Product Code: HE3D-BAY-0080
  • Availability: In Stock

More Features



PayPal Acceptance Mark

Vendor Profile

  • HE3D  Verified Vendor
  • Company: HOYI SUNWAY LIMITED
  • Total Orders: 17034
  • Total Products: 6

Rating: 5/5.
Based on 12 reviews / Write a review


Related Products

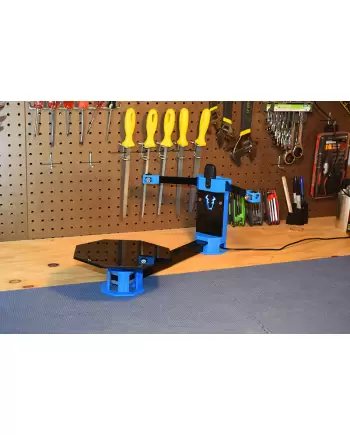

Cowtech Standard Ciclop 3D Scanner
