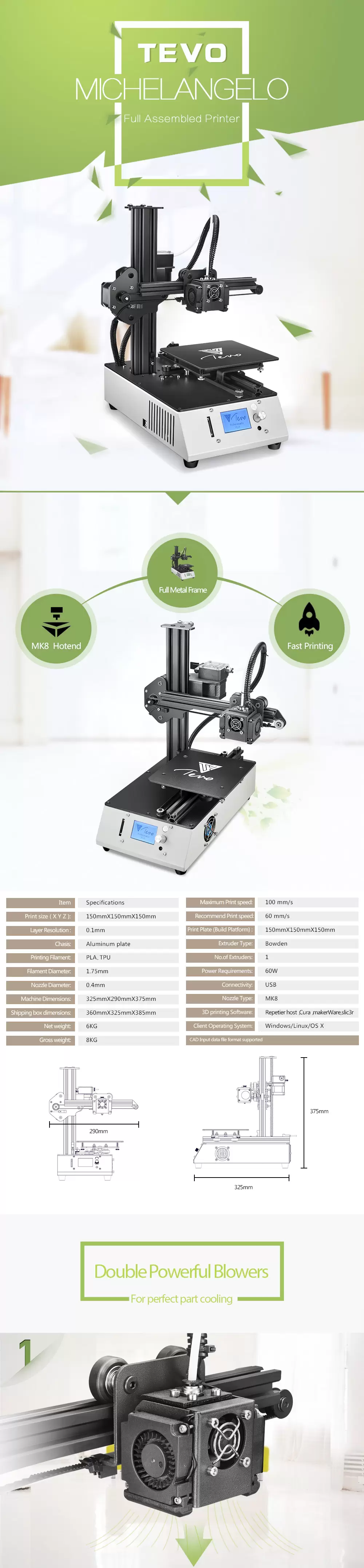

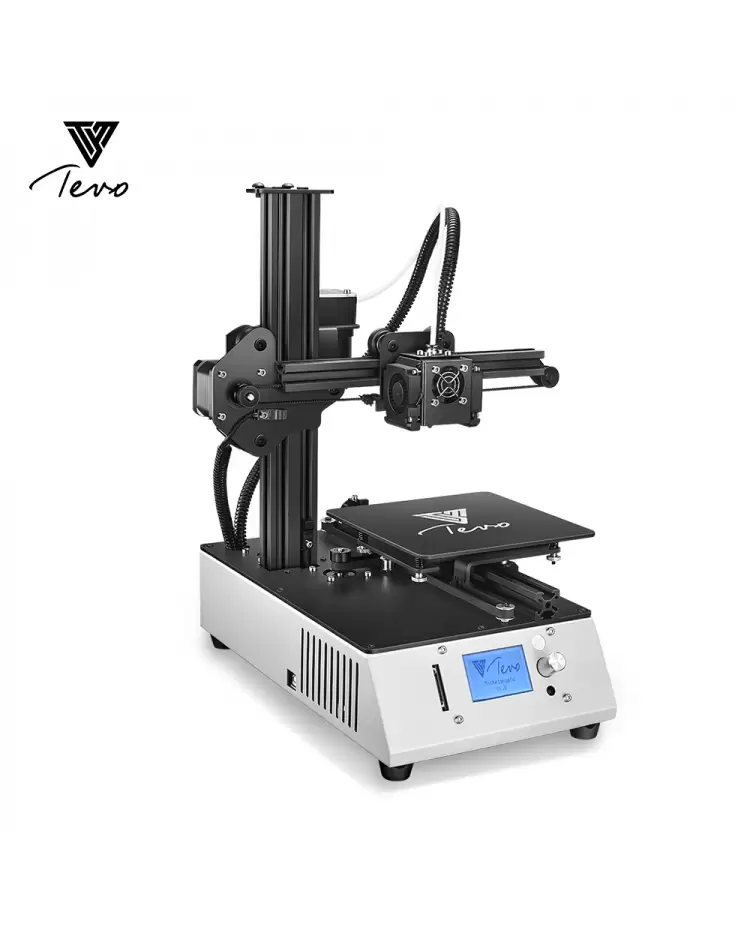

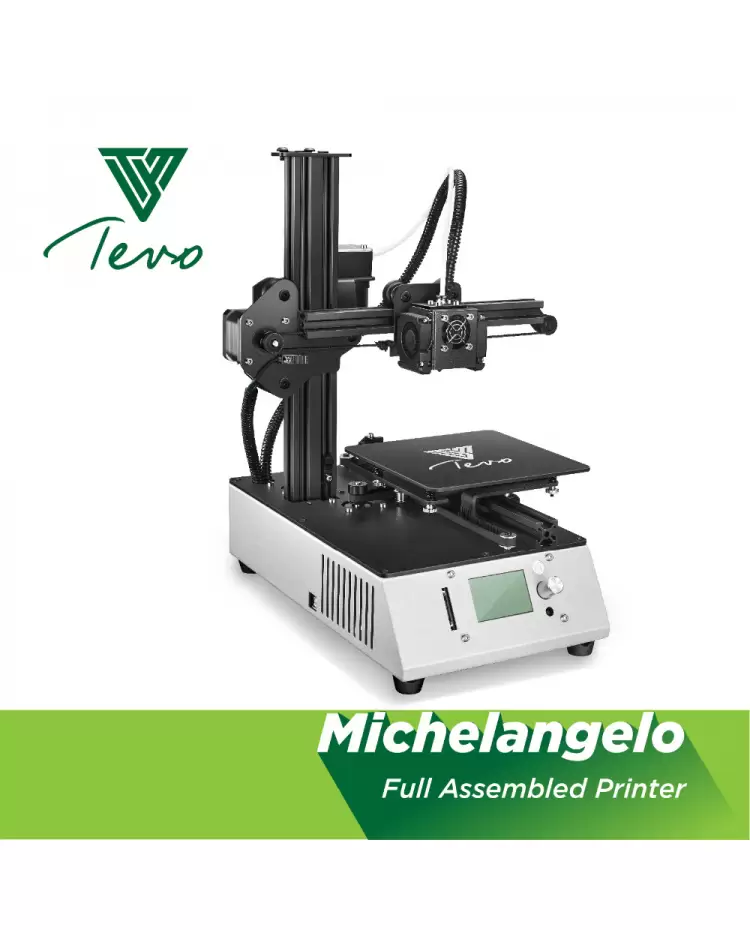

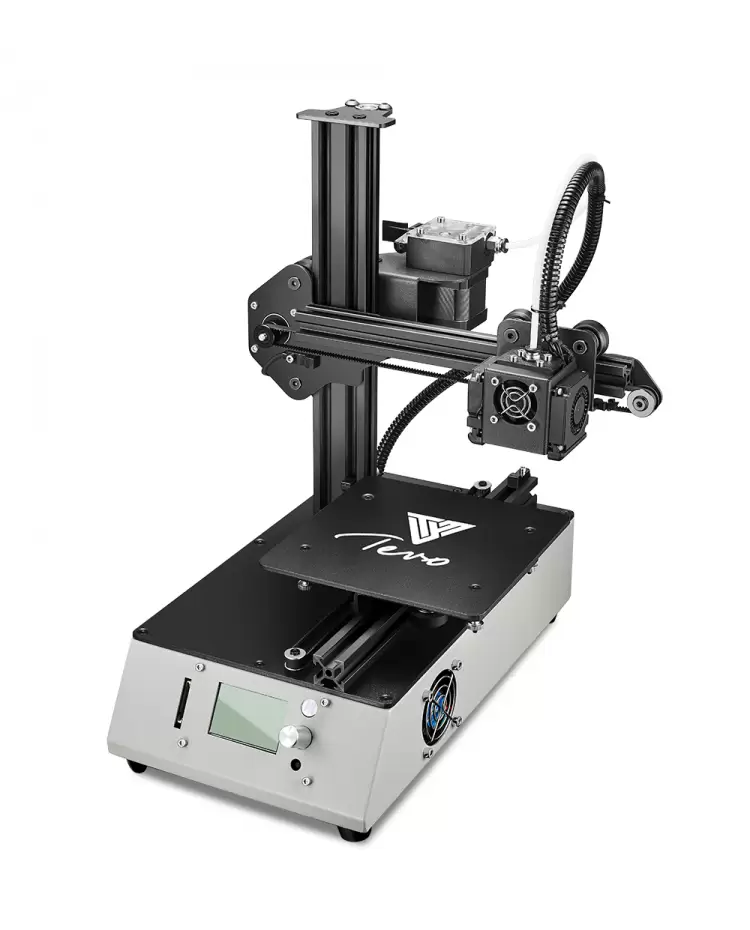

Tevo Michelangelo Cantilever 3D Printer
The Tevo Michelangelo is similar to the Creality Ender 2, with a cantilever design FDM 3D Printer that was made popular by the Ender 2 and Monoprice Select Mini. Tevo Michelangelo comes fully assembled with a build volume of 150 x 150 x 150mm, includes full aluminium frame, Titan Bowden Extruder & integrated control box.
Tevo Michelangelo 3D Printer Highlights
Compact and Slick/Robust design, Fully Assembled(Portable)
Single extrusion

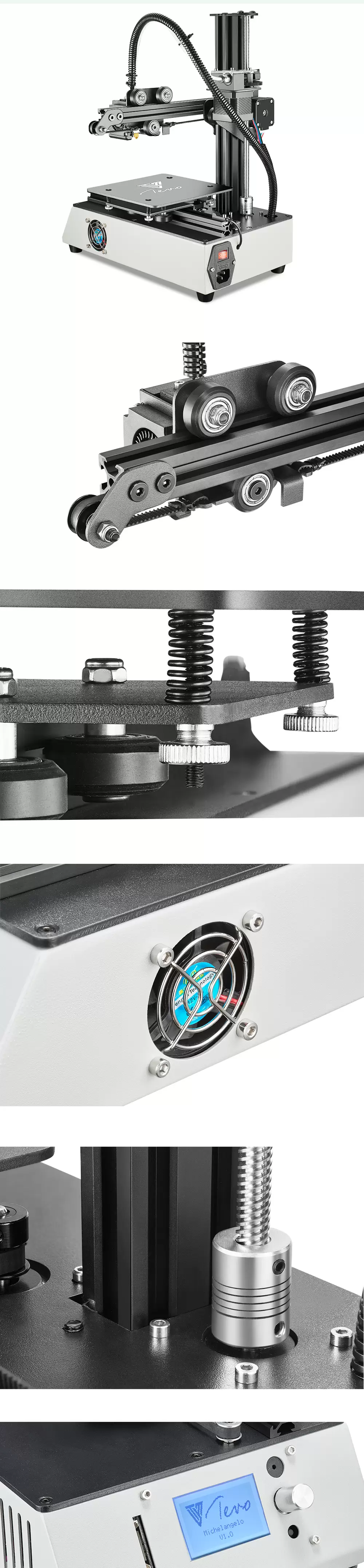

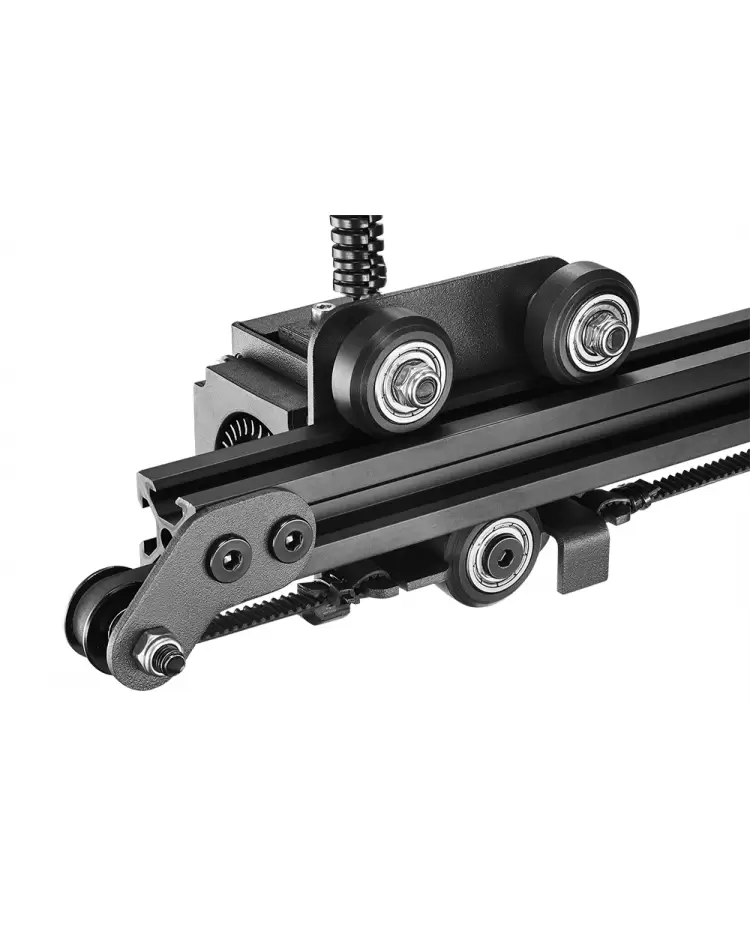

Z axis uses 2040 V Slot Extrusion whereas X,Y Axis uses V-Slot 2020 Extrusion frame for better motion & stability in printing.
0.1mm max. Layer resolution
Swappable MK8 nozzle: users can switch between 0.2, 0.3 or 0.4 mm hot-ends.
Dual part-cooling(Blower) fans: allows the 3D printer to 3D print lengthier or more complex parts without overheating.

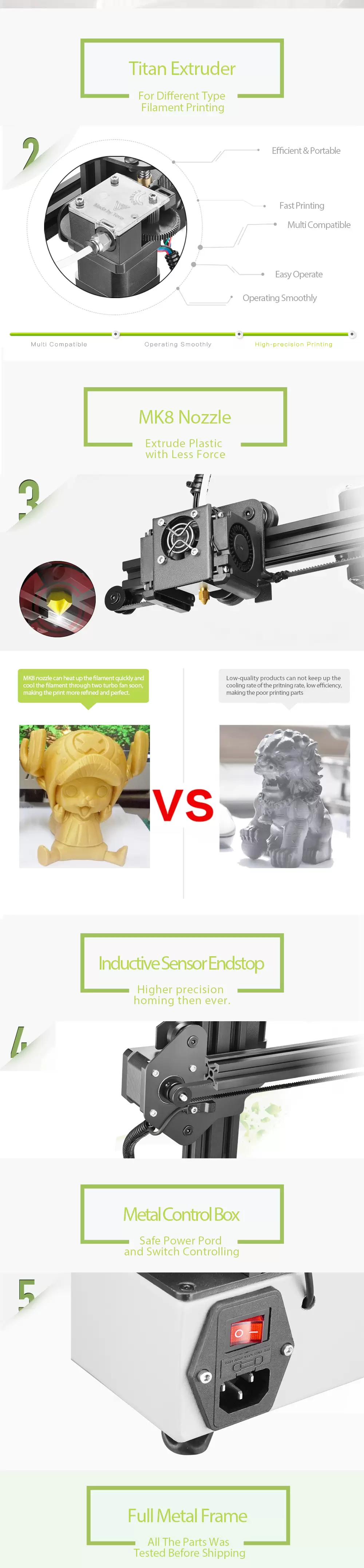

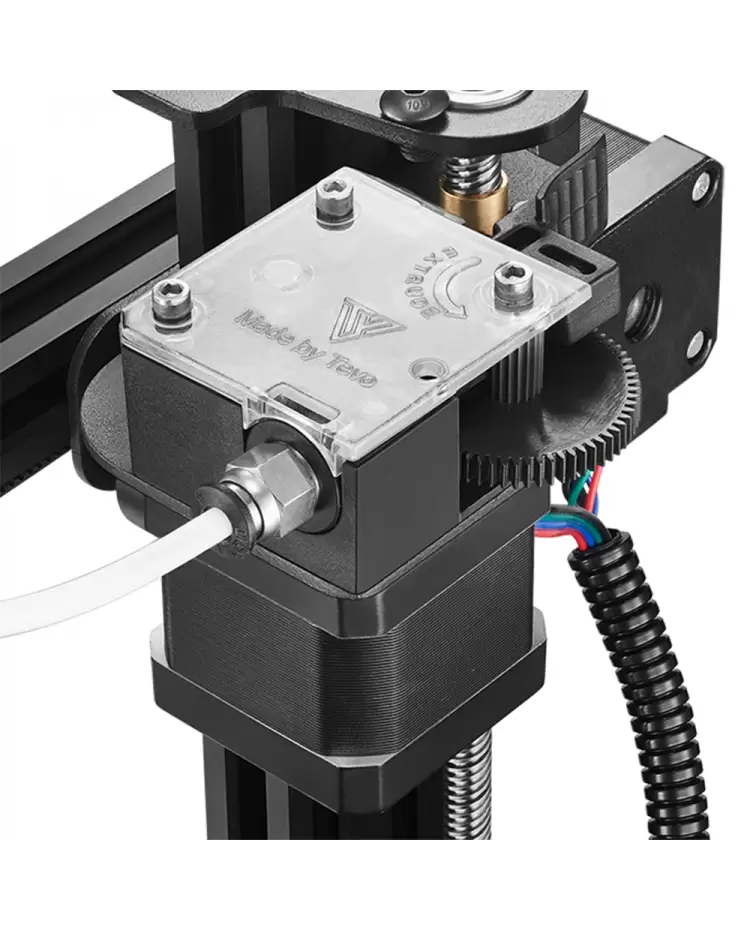

Titan Bowden extruder
150 x 150 x 150mm Build size
Full aluminum frame: for more resistance and durability.
Accepts 1.75mm filament (PLA, TPU)
SD card reader
USB connectivity
MKS Gen L V1.0 motherboard
Tevo Michelangelo 3D Printer Technical specifications
| Technology | FFF FDM |
|---|---|
| Type | Material extrusion |
| Launched in | 2018 |
| Assembly | Fully-assembled |
| Mechanical arrangement | Cartesian-XZ-Head |
| Manufacturer | TEVO |
| Printable materials | PLA, TPU |
| Filameter diameter | 1.75 mm |
| Compatible with 3rd party filaments? | Yes an open material system |
| Print size millimeters (xyz) | 150 x 150 x 150 mm |
| Print size inches (xyz) | 5.9 x 5.9 x 5.9 inches |
| Accuracy | 10 x 10 x 2 Microns |
| Layer resolution | 100 - 300 Microns |
| Feeder system | Bowden |
| Extruder type | Single |
| Nozzle size | 0.4 mm |
| Max extruder temperature | 500 °F / 260 °C |
| Max print speed | 60 mm/s |
| Frame | Aluminum |

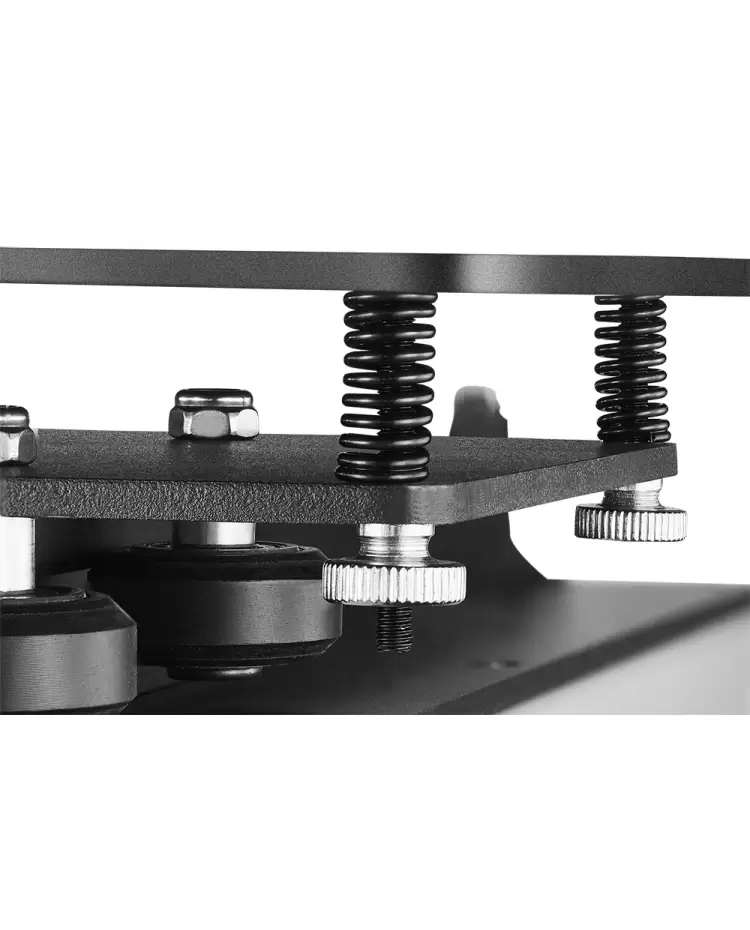

| Bed leveling | Manual |
| Print bed details | Non-heated, Aluminum surface |

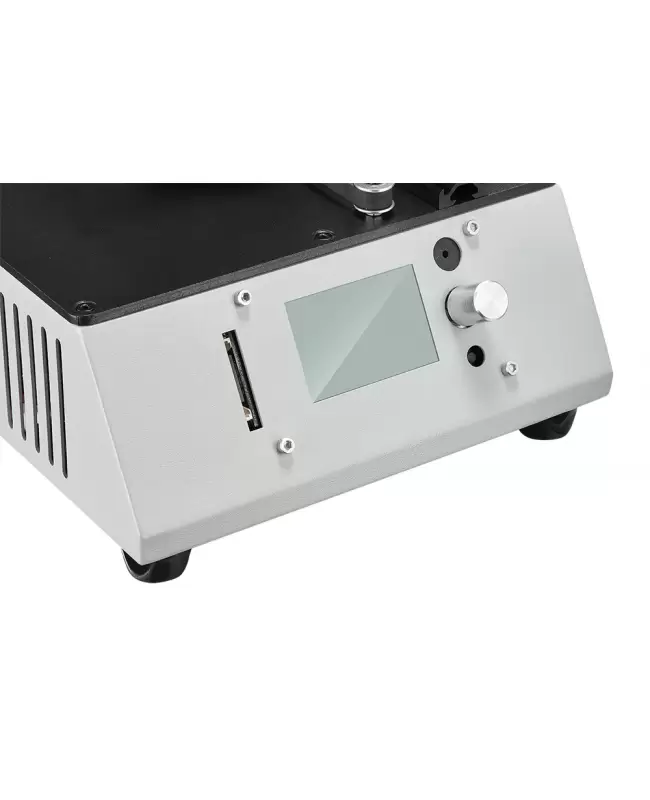

| Display | LCD |
| Board | MKS Gen L V1.0 |
| Connectivity | SD, USB cable |
| Slicing | Cura, Repetier-Host, Slic3r |
| Operating systems | Linux Mac OS X Windows |
| Outer dimensions inches (xyz) | 12.8 x 11.42 x 14.76 inches |
| Outer dimensions millimeters (xyz) | 325 x 290 x 375 mm |
| Weight lb | 15.4 pounds |
| Weight kg | 7 kg |
