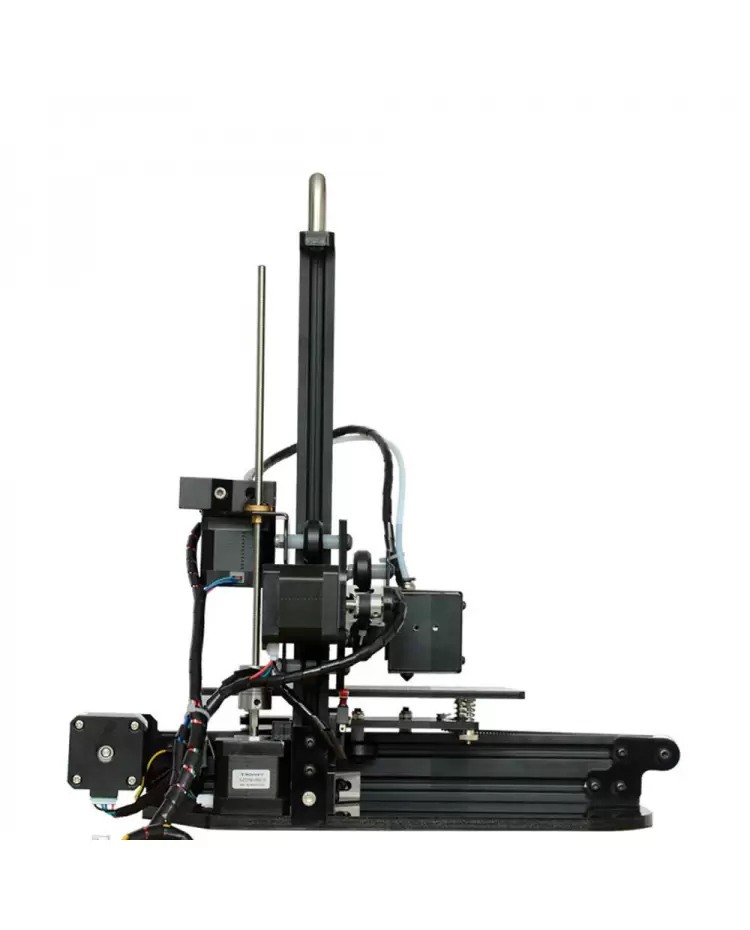

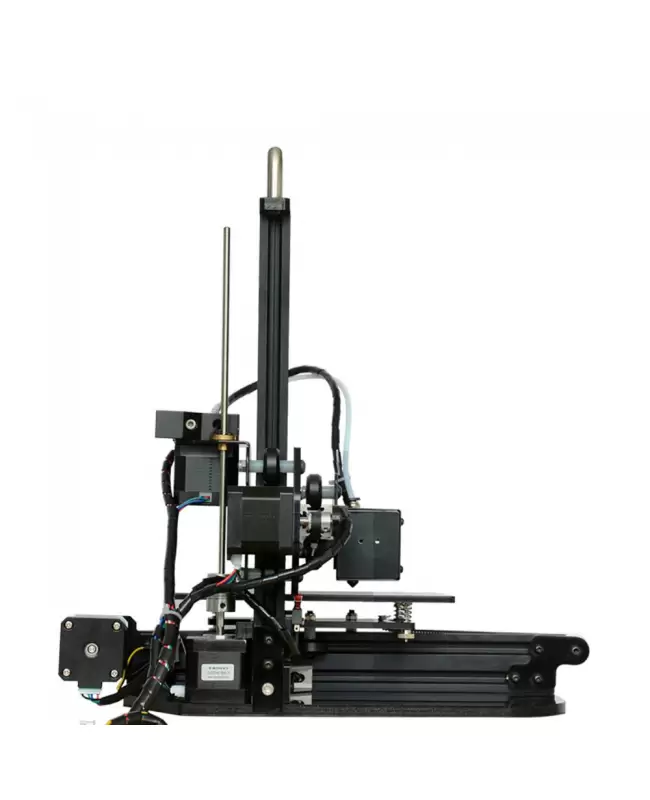

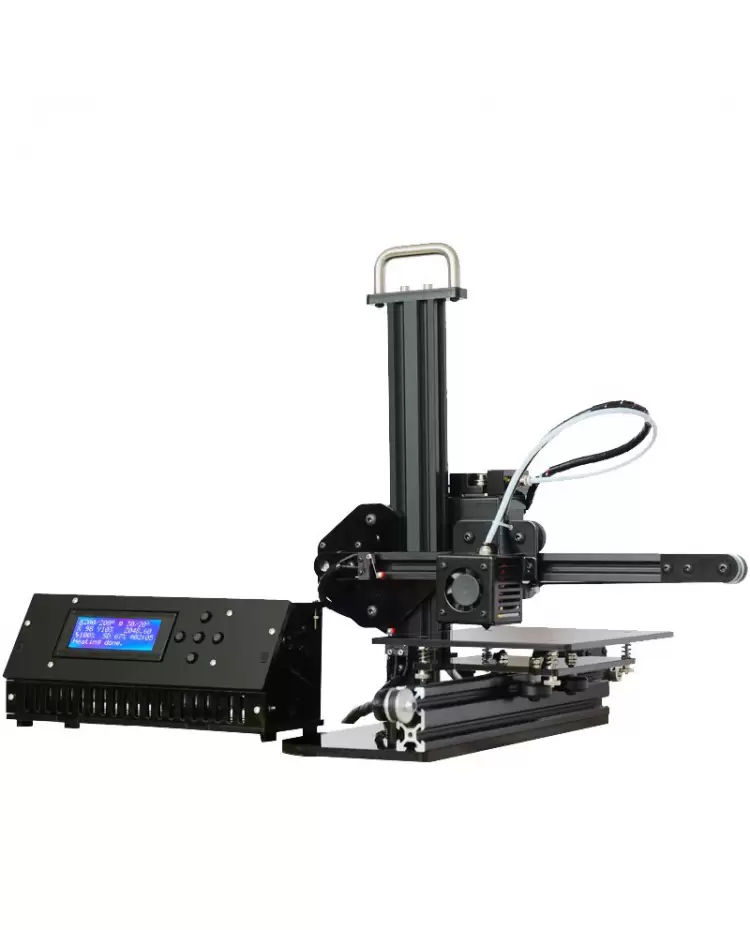

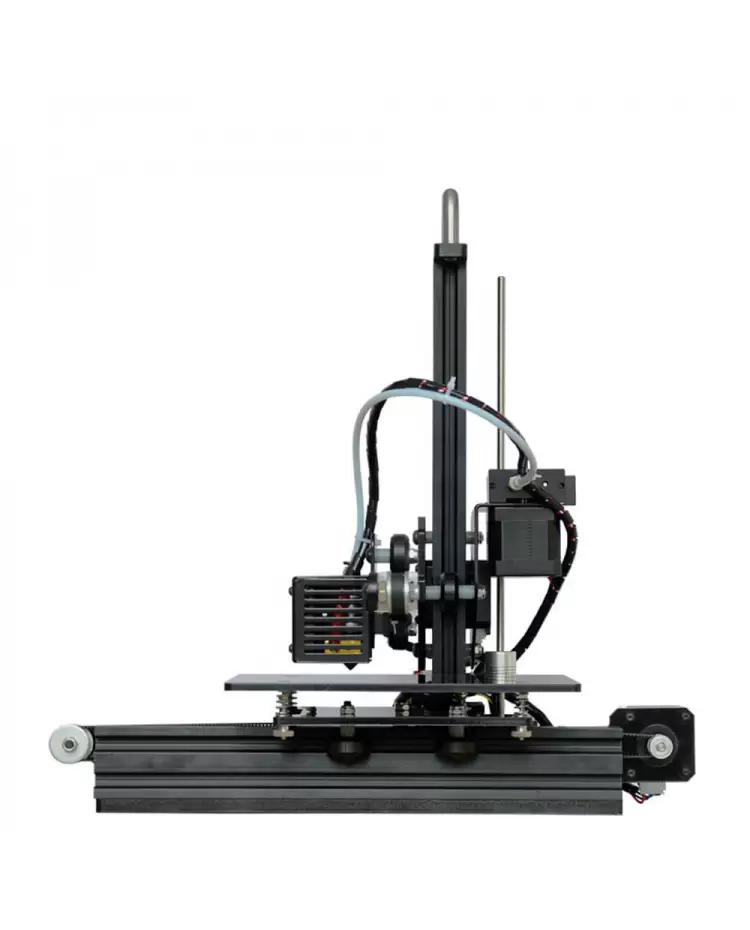

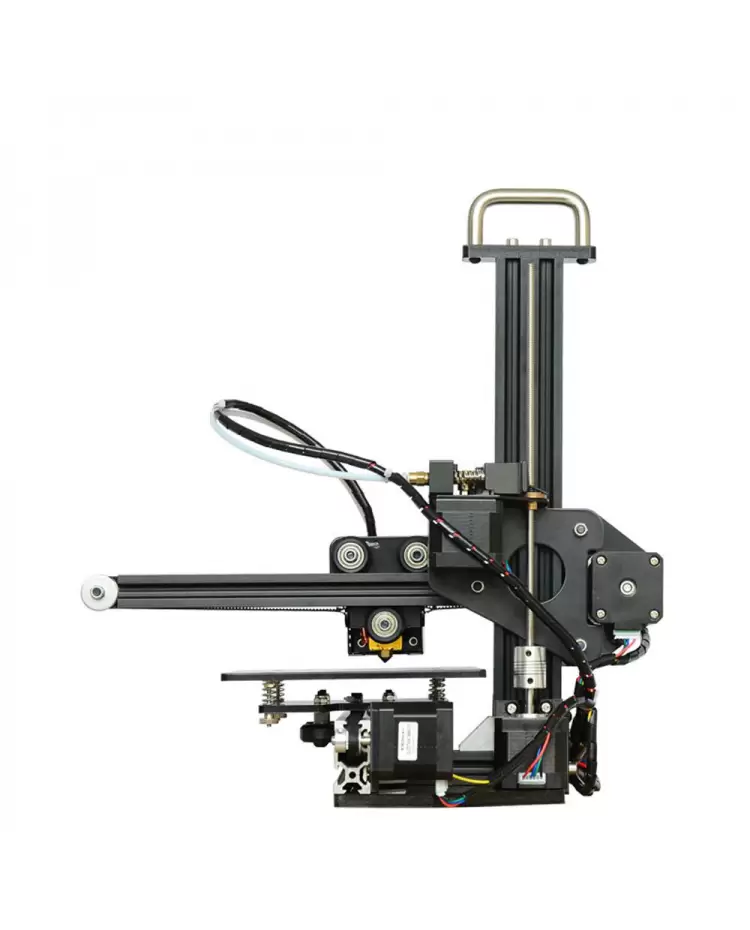

Tronxy X1 3D Printer
Highlights
- Best for beginners or educational use
- Cantilever style
- Hackable & upgradable
- Flexible and detachable Fiberglass print platform best suited for PLA.
- Easy to assemble, Well documented instruction for set up.
- 150 x 150 x 150 mm build area, 100 micron resolution. External Control box with SD card slot in it.deliver quality prints for the price point.
- The print head is a standard single extrusion with just the hotend and fan mounted on the X-axis
- The Hotend with a single fan cooling the heatsink around the heat break
- LCD display for easy navigation with five keys.
- Supports Offline print
- Integrated Melzi 2.0 V5 board
What's in the Box
- Laser-cut acrylic parts
- All the electronics
- All the necessary tools to assemble Tronxy X1
- Pre-assembled LCD display
- Fiberglass print bed
- A small coil of PLA filament
- Power brick
- Power cable
- USB cable
- Filament spool holders
- Micro SD card with USB reader
- Instruction manual
| PRINTING SPECIFICATIONS | |
| Printing Technology | FDM |
|---|---|
| Build Volume | 150 x 150mm x 150mm |
| Number of Extruders | Single |
| Print Speed | 130 mm/s(Max) |
| Nozzle Diameter | 0.4mm |
| Max Nozzle Temperature | 275C |
| Layer Thickness | 100 Microns |
| FILAMENT/MATERIAL SPECIFICATIONS | |
| Compatible with 3rd party materials? | Yes |
| Filament Diameter | 1.75mm |
| Material Type | PLA |
| CONNECTIVITY(INTERFACE) | |
| SD Card Reader | Yes |
| USB Port | Yes |
| Display | LCD |
| HARDWARE | |
| Controller | Integrated Melzi 2.0 V5 board |
| SOFTWARE SPECIFICATIONS | |
| Supported Software/Slicing | Repetier Host,Cura |
| Supported OS | Windows / Mac |
| Supported File Formats | STL,G-CODE |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 110V/240V 60W |
| DIMENSIONS & WEIGHT | |
| Product Dimensions | 340*365*350m |
| Package Dimensions | 327*297*152mm |
| Product Weight | 4Kg |
| Gross Weight | 5Kg |

+
+
