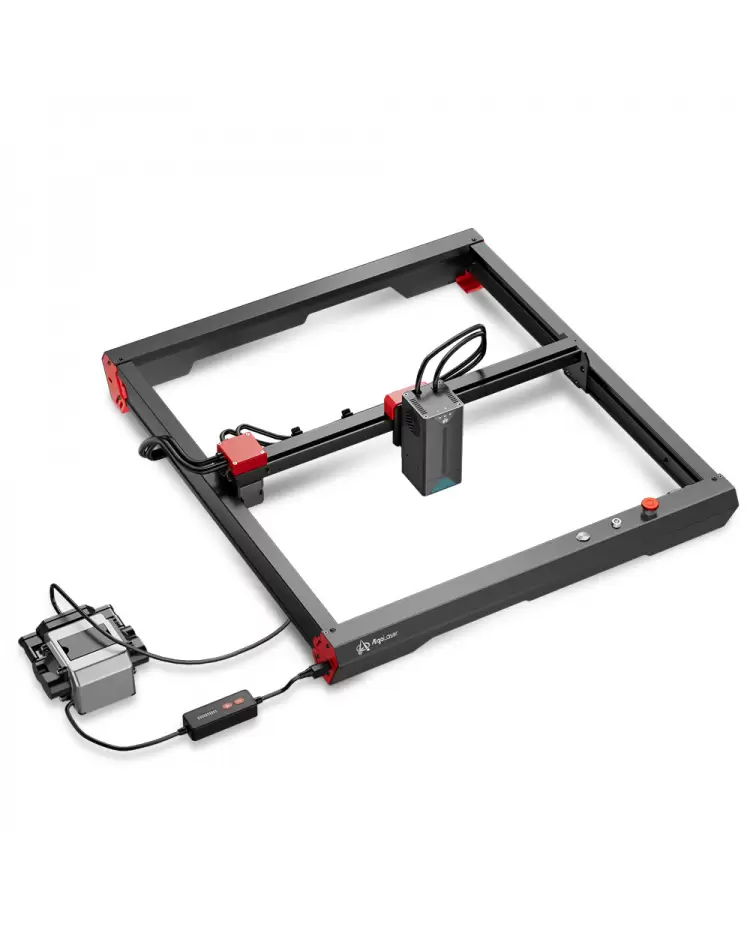

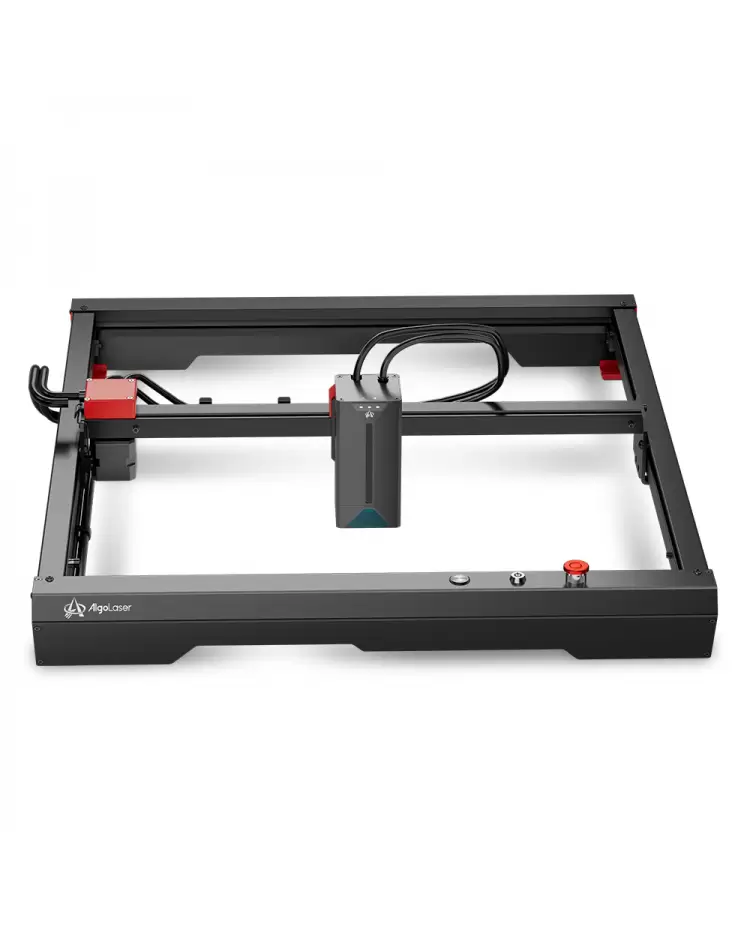

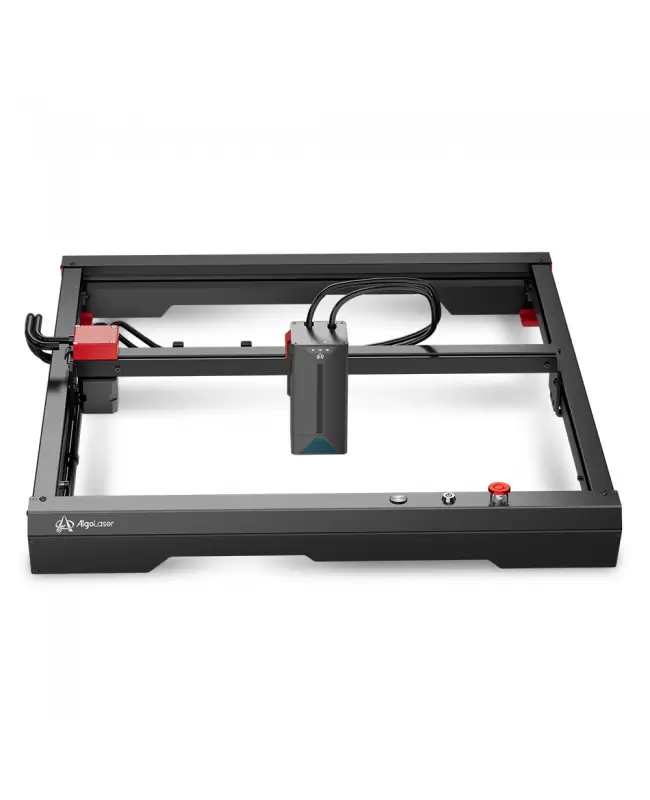

ALGOLASER ALPHA 22W LASER ENGRAVER - PRECISION ENGRAVING CRAFTSMANSHIP
Claim an extra 5% OFF using code 'ALPHA' at checkout and enjoy free fast shipping from USA & EU Warehouses - Shop now and save big!
Introducing the Algolaser Alpha, a formidable 22W cutting titan, armed with the innovative 2nd Generation COS Technology. This superior laser engraving solution artfully merges breakthrough technology with uncomplicated usability, providing unparalleled precision and productivity in both engraving and cutting operations.
ALGOLASER ALPHA 22W KEY FEATURES & HIGHLIGHTS
- ALGOLASER ALPHA 22W - INCREDIBLE CUTTING ABILITY
- Advanced second-generation COS technology
- BUILT FOR DURABILITY
- Heavy-duty Metal Frame
- 2 Fixed Limited Switch
- and 4 Mechanical Limited Position
- Integrated Air Assist - Plug & Play
- Enrich your Artwork with 500+ Shades of Color
- Up to 400mm/s Engraving Speed, 10X Faster Performance
- DUAL CORE CPU
- 50% improved energy efficiency
- Loads files 80% faster than others via 2.4G Wi-Fi.
- Algolaser firmware supports upgrades by both OTA and SD card.
- TRIPLE MONITORING SYSTEM
- Airflow Monitoring
- Flame Monitoring
- Lens dirt Monitoring
- 7 SAFETY PROTECTIONS
- Machine Offset Detection and Protection
- Machine Tilt Detection and Protection
- USB Connection Detection and Protection
- Beam detection and protection
- Current and Voltage Detection and Protection
- Emergency Stop Switch
- Key Lock
- REFINE EVERY DETAIL
- Magnetic and Detachable Laser Metal Cover
- Laser Protective Lens Integrated within Air Assist Nozzle
- Semi-Automatic Focus
- Dual-Side Fixture Structure
- Pre-installed Belts
- Tidy Cable Management
- MORE FUNCTIONS
- Power Indicator Light & Laser Indicator Light
- One-step Laser Fixture
- Spring-loaded Mechanical Focus
- Magnetic Laser Shield (Glass)
- Easy to Clean and Replace the Lens.
- Experience the innovation of the Algolaser Motherboard, featuring an advanced 3-axis Gyroscope Sensor that actively safeguards your work by immediately halting the engraver in the face of any unexpected motions or shakes.
ALGOLASER ALPHA 22W - INCREDIBLE CUTTING ABILITY
Experience the Strength of a 22W Cutting Powerhouse
The Alpha 22W laser engraver is endowed with a potent 22W output laser module that makes use of the 2nd Generation COS Optical Technology. This advanced technology converts the laser spots from a rectangular form into a precise square (0.05*0.06mm). It allows for seamless engraving and single-pass cuts on a variety of materials including 15mm Paulownia Plank, 12mm Basswood Plywood, and 10mm Black Acrylic Sheet. If cutting prowess is a high-priority for you, the Alpha 22W is an essential choice.
30MM PINEBOARD
10MM BLACK ACRYLIC
0.1MM STAINLESS STEEL PLATE

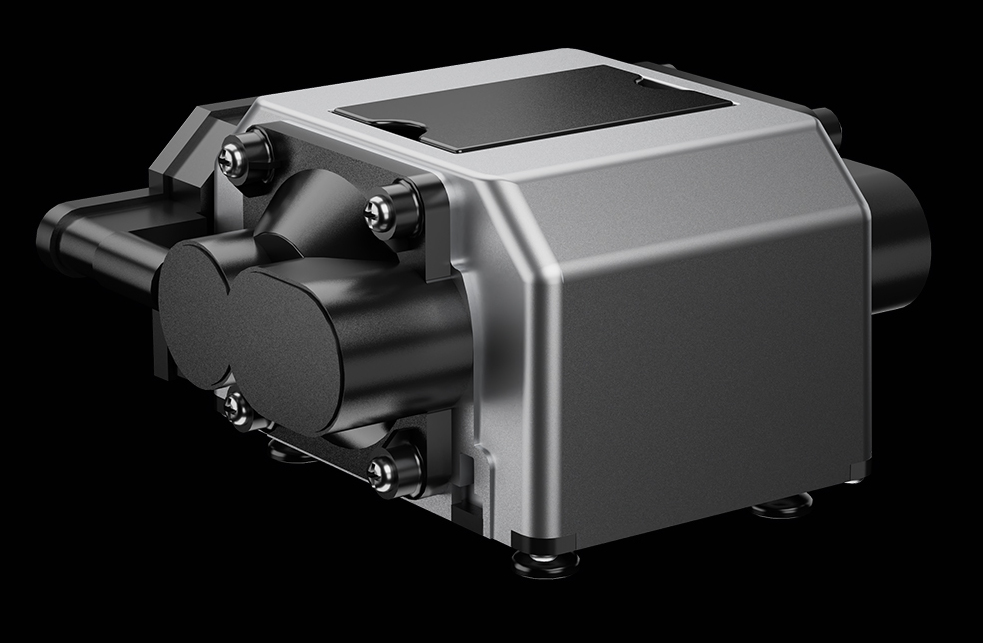

DISCOVER THE INNOVATION OF INTEGRATED AIR ASSIST
Elevating the Standards of Cutting & Carving
Offering the flexibility to manually adjust the speed or to automatically modify the airflow size via LightBurn, LaserGRBL, or the AlgoLaser App, this system caters to diverse cutting and carving needs. The integrated air assist function within the laser effectively lowers the surface temperature of objects throughout the engraving and cutting process. The outcome? Remarkably cleaner and sharper edges. Unleash the power of groundbreaking technology with our integrated air assist.
ARTWORK WITH 500+ SHADES OF COLOR
Unleash Your Creativity with Algolaser Alpha
Equipped with an ultra-powerful laser beam, this exceptional device unlocks over 500+ color choices on stainless steel by forming a thin oxide layer through a chemical reaction. Take your work to new heights with a brilliant array of colors, making your creations truly unique and eye-catching. Explore the vibrant potential of the Algolaser Alpha and stand out in the world of engraving.
INTRODUCING THE TRIPLE MONITORING SYSTEM
Meet the Alpha 22W Laser Engraver with Pioneering Technology
The cutting-edge AlgoLaser Alpha 22W laser engraver features three advanced monitoring systems to optimize your engraving and cutting experience.
1. Airflow Monitoring - Assists users in fine-tuning the optimal airflow size to fit their engraving and cutting needs.
2. Flame Monitoring - A safety feature designed to detect the presence of flames and alert the user by flashing a red warning light on the machine's body.
3. Lens Dirt Monitoring - Proactively monitors lens cleanliness and issues an alarm when a certain level of dirt is detected, effectively reducing the risk of lens damage and premature replacement.
These three integrated systems enhance your engraving and cutting precision while offering crucial safeguards for a smooth and worry-free operation.
ALGOLASER ALPHA ENGRAVING SPEED 20000MM/MIN 400MM/S
Experience Unrivaled Speed at 20000mm/min
Boasting an impressive 20000mm per minute, the AlgoLaser Alpha 22W laser engraver dramatically enhances your production efficiency. With this astonishing speed, you can tackle more projects and meet a greater volume of orders in a limited time frame. The Alpha 22W laser engraver empowers you to elevate your productivity and steer your business toward greater overall profitability.
SUPER STRONG WHEES
The laser slide is very smooth and doesn't get stuck
VERSATILE ACCESSORY FAMILY
Risers, Rotary Chuck, Rotary Roller
FOCUS MODE
semi-auto focus
ALGOLASER ALPHA 22W TECHNICAL SPECIFICATIONS
| Laser Power | 22W |
| Laser Spot Size | 0.16*0.14mm 100% Power 0.06*0.05mm 30% Power |
| Laser Wavelength | 455±5nm |
| Focal Length | 55mm |
| Laser Head Life Expectancy | >10000 hours |
| Max Engraving Speed | 20000mm/min |
| Movement Speed | 30000mm/min |
| Focus Mode | Auto/Manual |
| Machine Power | 144W |
| Power Supply | 24V/6A |
| Motherboard Version | ALGO_LASER_V2.1 |
| Working Area | 400*400mm |
| 3.5" IPS Screen | No |
| Offline Engraving | No |
| RGB Indicator LightRGB | No |
| Intergrated Air Pump | Yes |
| Connection Method | TF Card USB C Wifi-2.4G |
| Software Supported | LightBurn LaserGRBL AlgoLaser App |
| File Format Supported | JPG SVG PNG BMP G-code CAD AI CDR DWG etc |
| System Supported | Android iOS Windows Mac OS Web-based |
| Working Temperature | -15°C ~ 30°C |
| Product Weight | 5KG |
| Product Size | X585*Y674*Z200mm |
| Packing Weight | 9.62KG |
| Packing Size | 870*290*280mm（with pump） |
| Certification | FCC CE RoHS FDA |
| Warranty | 12 Months |
ALGOLASER ALPHA 22W CUTTING PERFORMANCE
Best One-Pass Cutting Material and Thickness
10mm Birch Plywood 12mm Basswood Plywood 5mm Eucalyptus plywood 30mm Pine Board 15mm Paulownia Plank 10mm White Oak 5mm MDF 10mm Black Acrylic 3mm Yellow Acrylic 5mm Red Acrylic 3mm Gray Cardboard 0.17mm Stainless Steel Plate 10mm Bamboo |
12mm Birch Plywood 20mm Basswood Plywood 15mm Eucalyptus plywood 20mm Paulownia Plank 45mm Black Acrylic 8mm Green Acrylic 10mm Red Acrylic 12mm MDF 6mm Gray Cardboard 20mm White Oak |
