In Stock
$1,099.00 $899.00 Sale -18% OFF
-
+

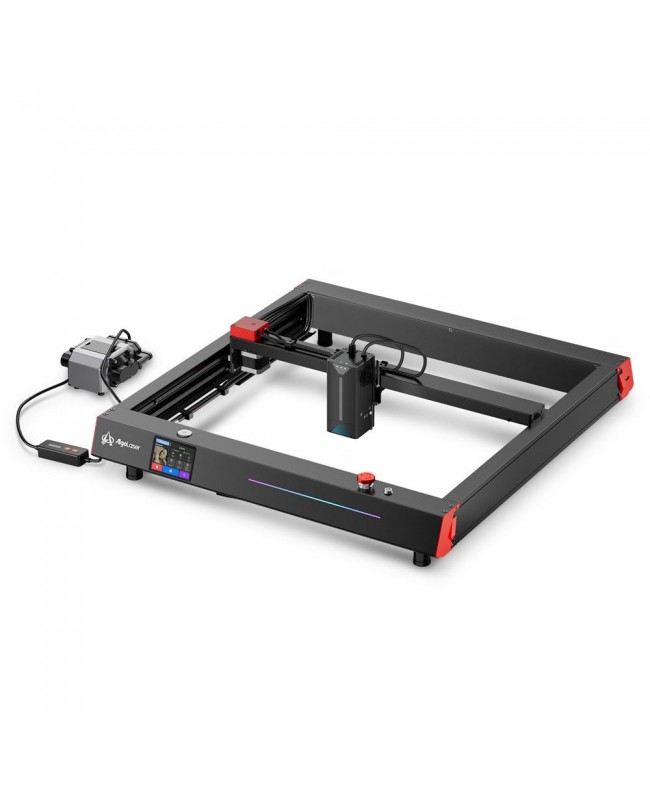

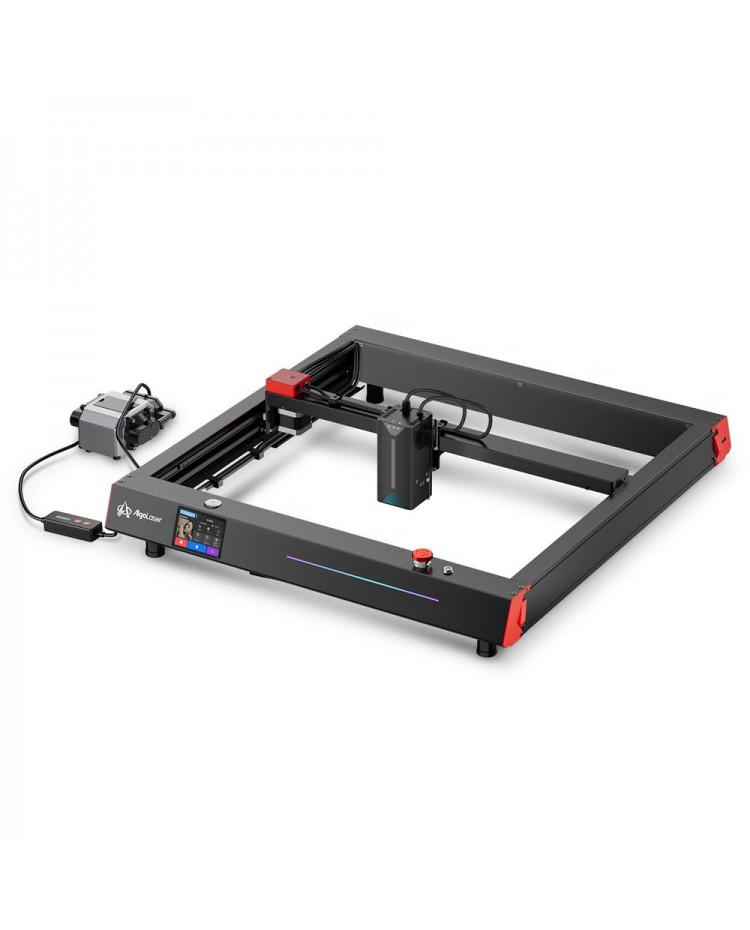

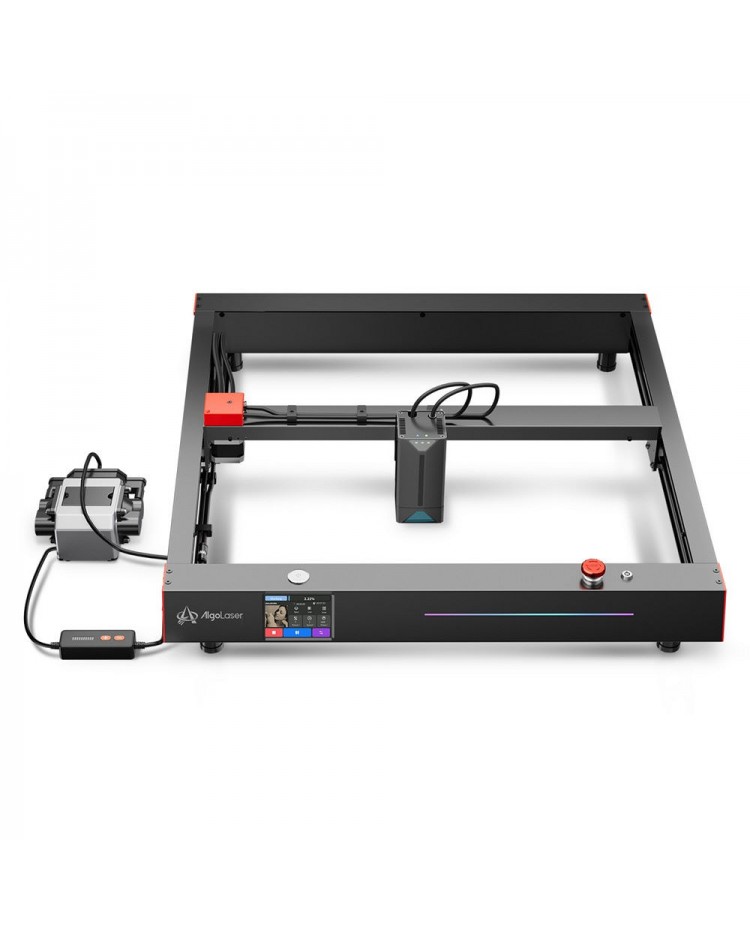

ALGOLASER DELTA 22W DIODE LASER ENGRAVER - SMART LASER ENGRAVER

READY TO SHIP SAME OR NEXT BUSINESS DAY. FREE FAST SHIPPING


Discover the AlgoLaser Delta 22W Laser Engraver, the world's first smart laser engraver boasting a user-friendly 3.5" touch screen and powerful 22W cutting performance. Experience unparalleled convenience, efficiency, and versatility with an intelligent air assist pump and an incredible 500mm/s engraving speed. The triple monitoring system ensures optimal operation while the human-centric design prioritizes safety and ease of use. Elevate your creative projects with the AlgoLaser Delta 22W's dynamic color capabilities and precision engraving.



ALGOLASER DELTA 22W KEY FEATURES & HIGHLIGHTS


  • Introducing the World's First Intelligent Laser Engraver
    • AlgoLaser Delta 22W comes equipped with a 3.5" touch screen for effortless navigation and user-friendly operation, even for beginners. Experience unparalleled convenience with instant engraving that eliminates the need for complex device connections or additional apps. Its pre-assembled structure and straightforward installation allow you to embark on your creative journey with ease.
  • Unleashing 22W of Cutting Power
    • The Algolaser Delta 22W laser engraver boasts a potent 22W output laser module utilizing the 2nd Generation COS Optical Technology. This technology compresses the laser spots from a rectangle to a square (0.05\*0.06mm), providing exceptional engraving capabilities. Effortlessly cut through 15mm Paulownia planks, 12mm Basswood plywood, and 10mm black acrylic sheets in a single pass—perfect for those who demand top-notch cutting performance.
  • Innovative Plug & Play Smart Air Assist Pump
    • The Algolaser Delta 22W laser engraver automatically adjusts airflow based on speed and power settings via LightBurn, LaserGRBL, or the AlgoLaser App to suit various cutting and carving needs. Efficiently reducing the surface temperature during engraving and cutting, the laser air assist ensures crisp, clean edges. Additionally, the module features airflow monitoring, lens monitoring, and flame monitoring.
  • Incredibly Fast at 500mm/s
    • The extraordinary speed of 500mm per second delivered by the AlgoLaser Delta 22W laser engraver substantially enhances your production capabilities. Complete more projects and fulfill increased order volumes within time constraints, maximizing productivity and boosting profitability.
  • Triple Monitoring System for Enhanced Performance
    • (1) Airflow monitoring adjusts appropriate airflow based on engraving and cutting requirements. (2) Flame monitoring signals a red flashing light when a flame is detected. (3) Lens dirt monitoring alerts the user to prevent lens damage and frequent replacement.
  • Experience the Ultimate in Human-Centric Design
    •  Power Indicator Light & Laser Indicator Light/One-step Laser Fixture/Spring-loaded Mechanical Focus/Magnetic Laser Shield (Glass)/7 Advanced Safety Features/Easy Lens Cleaning and Replacement. The innovative design of this laser engraver and cutter delivers a powerful laser capable of producing 500+ color choices on stainless steel through a chemical reaction that forms a thin oxide layer. Make your projects truly stand out with a vibrant touch.


ALGOLASER DELTA 22W DIODE LASER ENGRAVER TECHNICAL SPECIFICATIONS

ManufacturerAlgolaser
Model NameDelta 22W
Optical Power 22W
Machine Power 144W
Power Supply 24V/6A
Maximum Engraving Speed 30,000 mm/min
Maximum Motion Speed 50,000 mm/min
Spot Size 0.16*0.14mm 100% Power / 0.06*0.05mm 3% Power
Product Size X650*Y730*Z175mm
Product Weight 8.5KG
Laser Head Life Expectancy >8000 hours
Certification FCC/CE/RoHS/FDA
Warranty 12 Months
Safety Features Active Power-Out detection and protection, Laser Over-Exposure Time Limit, USB disconnect shutdown, Emergency stop button, Gyroscope detection,Motherboard over-temperature protection
System Supported Android, iOS, Windows, Mac OS, Web-based
Control Software AlgoLaser App / LightBurn/LaserGRBL
Compatible Accessories 22W laser module, Motorized Z-axis, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller
File Format Supported JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.
Laser Module Size132mm x 63mm x 60mm
Laser Module Weight750grams - 1.6 Pounds
Optical Power Output19.5 to 22W, Average 20W, Acceptable Power Output Variation +5%
Laser Output Wavelenght 445nm (+-5nm)
Focal Distance 55 mm (From Module Radiator to Material)
Spot SizeAt 3% power: X 0.06mm - Y 0.05mm, At 100% power: X 0.16mm - Y 0.14mm
Spot Shape Square
Operating Frequency <30KHz
Operating Temperature -10ºC - +40º | 14ºF - 104ºF, Multiple Optical Lens Assembly
Diodes Input Voltage 8.60 Volts
Diodes Inpute Current 3.8 Amps
Harness Specification Data Line 4x 26AWG - 0.14 (mm2 cross-sectional area), Laser Line 4x 22AWG - 0.34 (mm2 cross-sectional area)
Connectors Type Data Line - PHB 2.0 4Pin, Laser Line -
Life Expectancy >10,000 Hours
Optical Lense Material Professional focusing optical glass (quartz glass), Multiple Optical Lens Assembly
Box Size 230mmx250mmx710mm
Net Weight 5.00kg - 11 Pounds
Gross Weight 6.50kg - 14.3 Pounds
