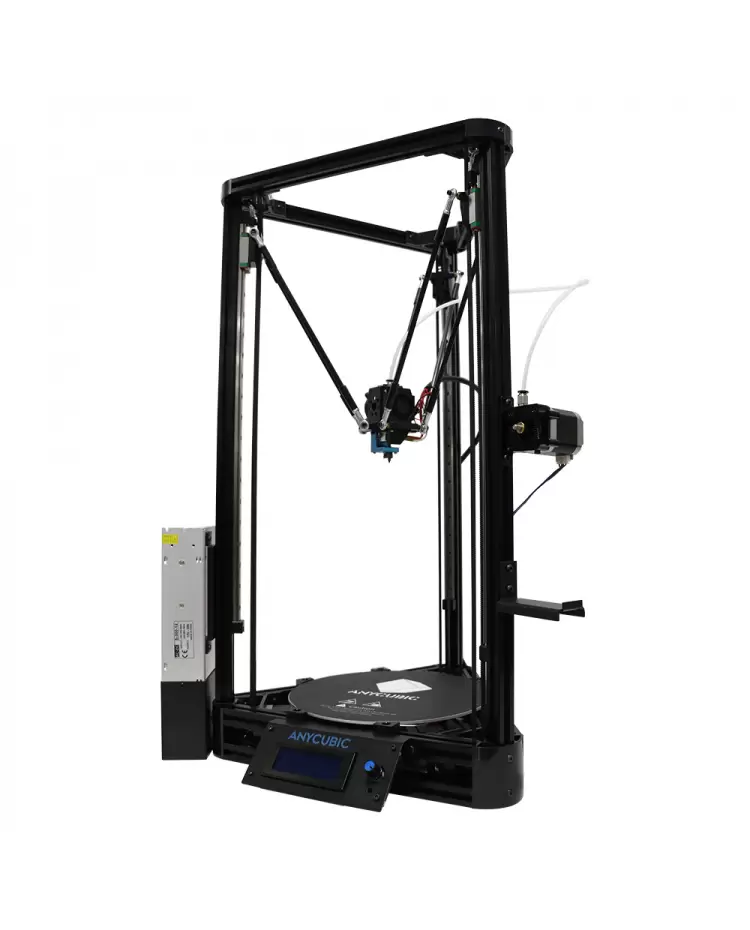

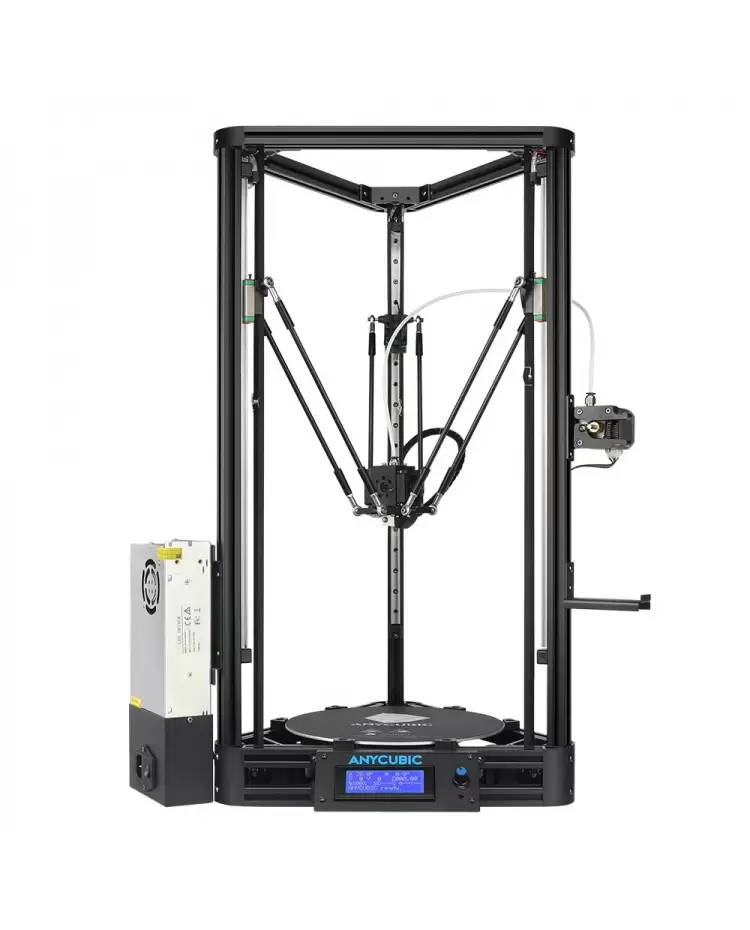

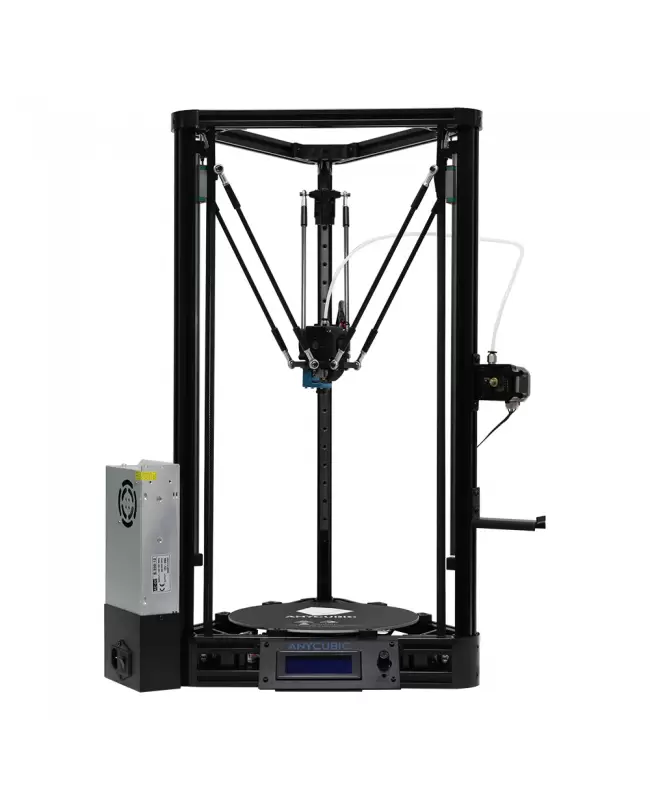

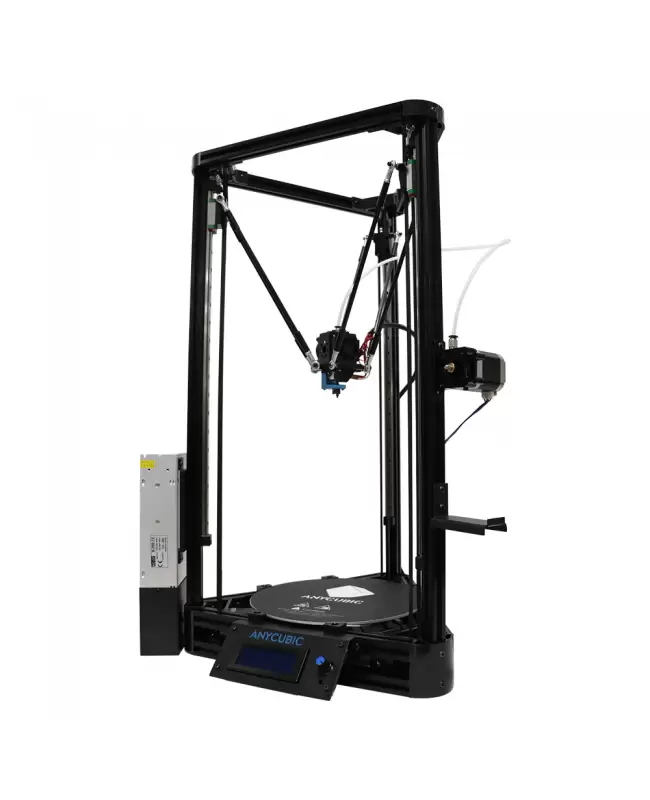

Anycubic Auto leveling Upgraded Kossel Delta Pulley & Linear Plus Variant

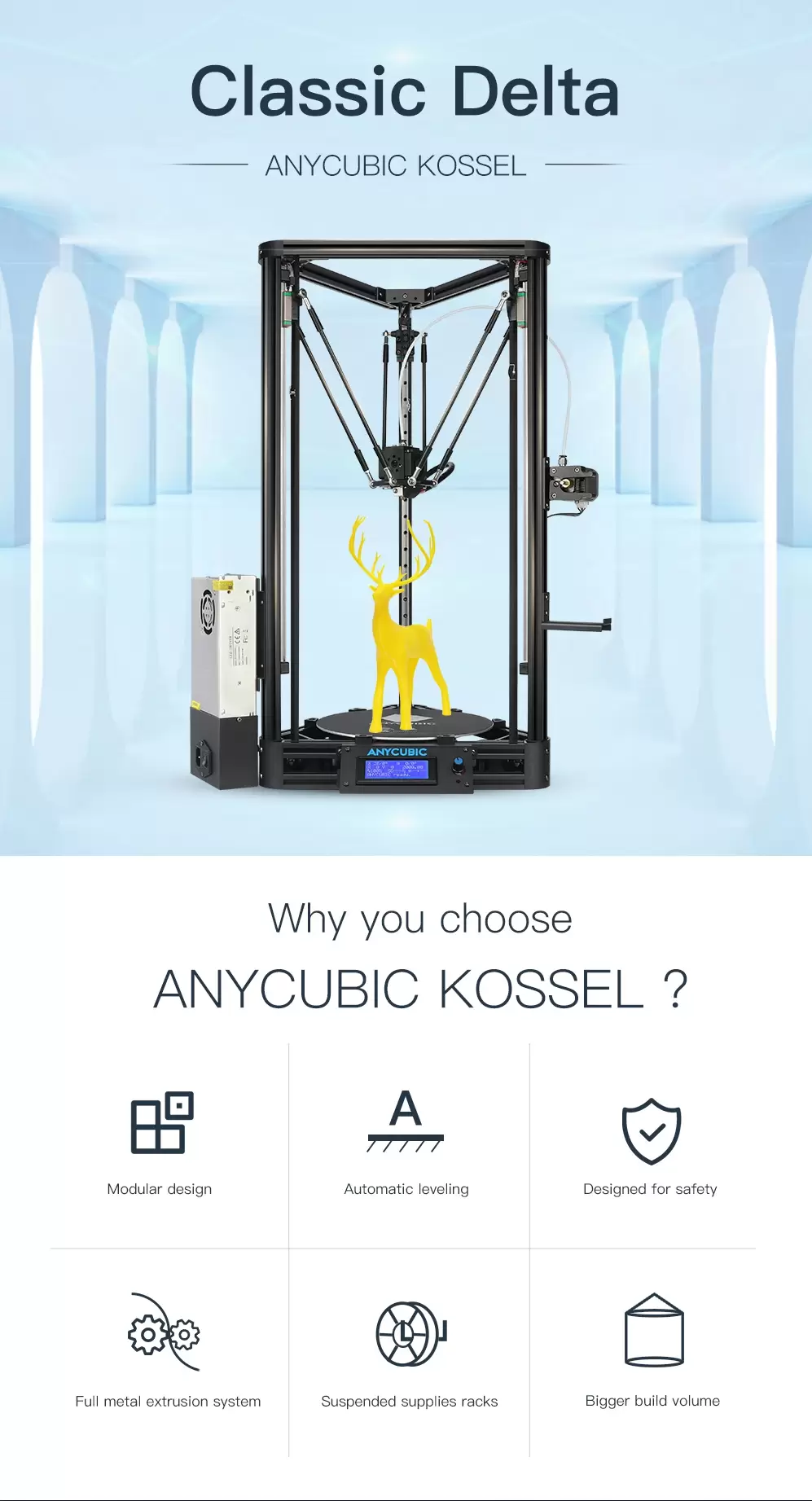

Anycubic Kossel Delta 2018 updated with auto leveling

Basic Breakdown:

  A unique delta printer with quality materials

  Delta structure allows for larger print sizes

  Comes unassembled with detailed instructions

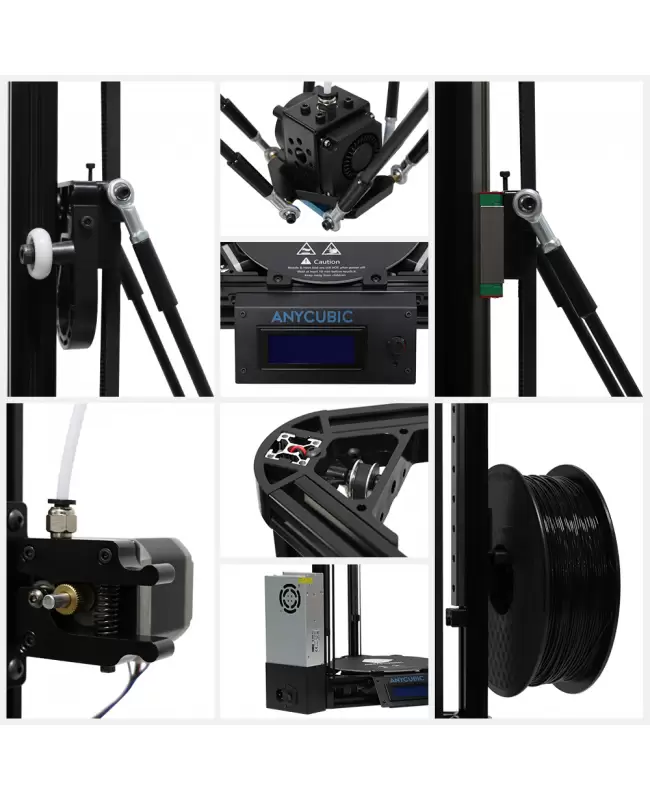

  Multiple options available for stability and larger print size

Detailed overview:

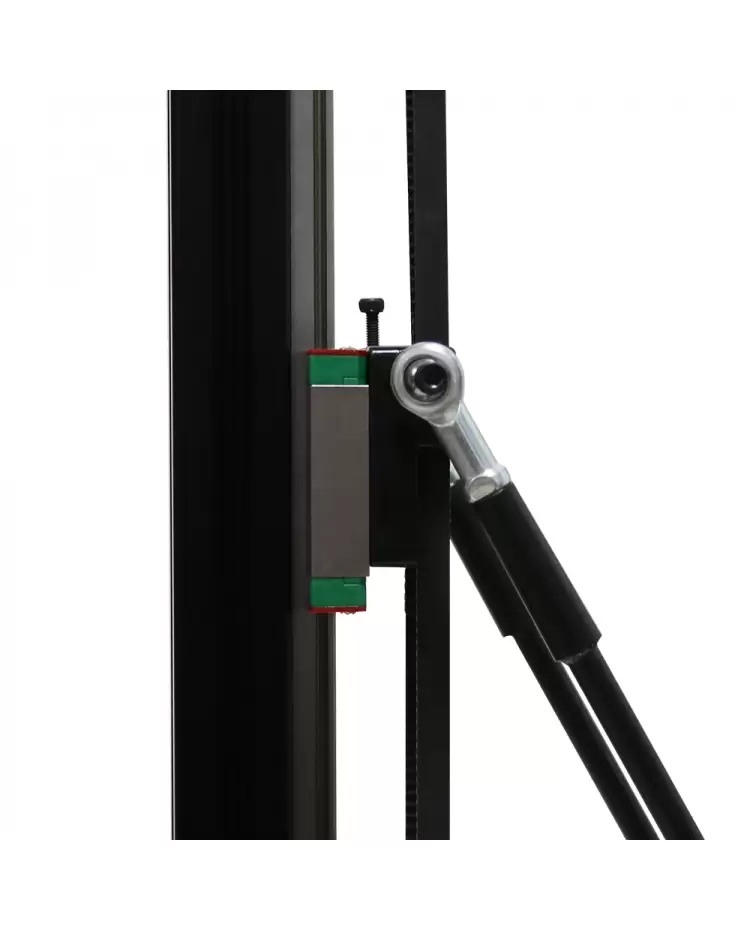

Anycubic’s Kossel Delta series is a well-known line-up of the Delta variant. Aside from FLSUN’s Delta, the Anycubic printers are well-renowned for their capabilities. These machines are composed of quality materials and a competent extruder and hot-bed system. Accuracy is also dead-on with Anycubic’s proven design. Furthermore, Anycubic’s Delta line-up features a linear plus guide version for improved stability at higher print speeds for a larger print size.

This product comes unassembled, but comes with up-to-date instructions.

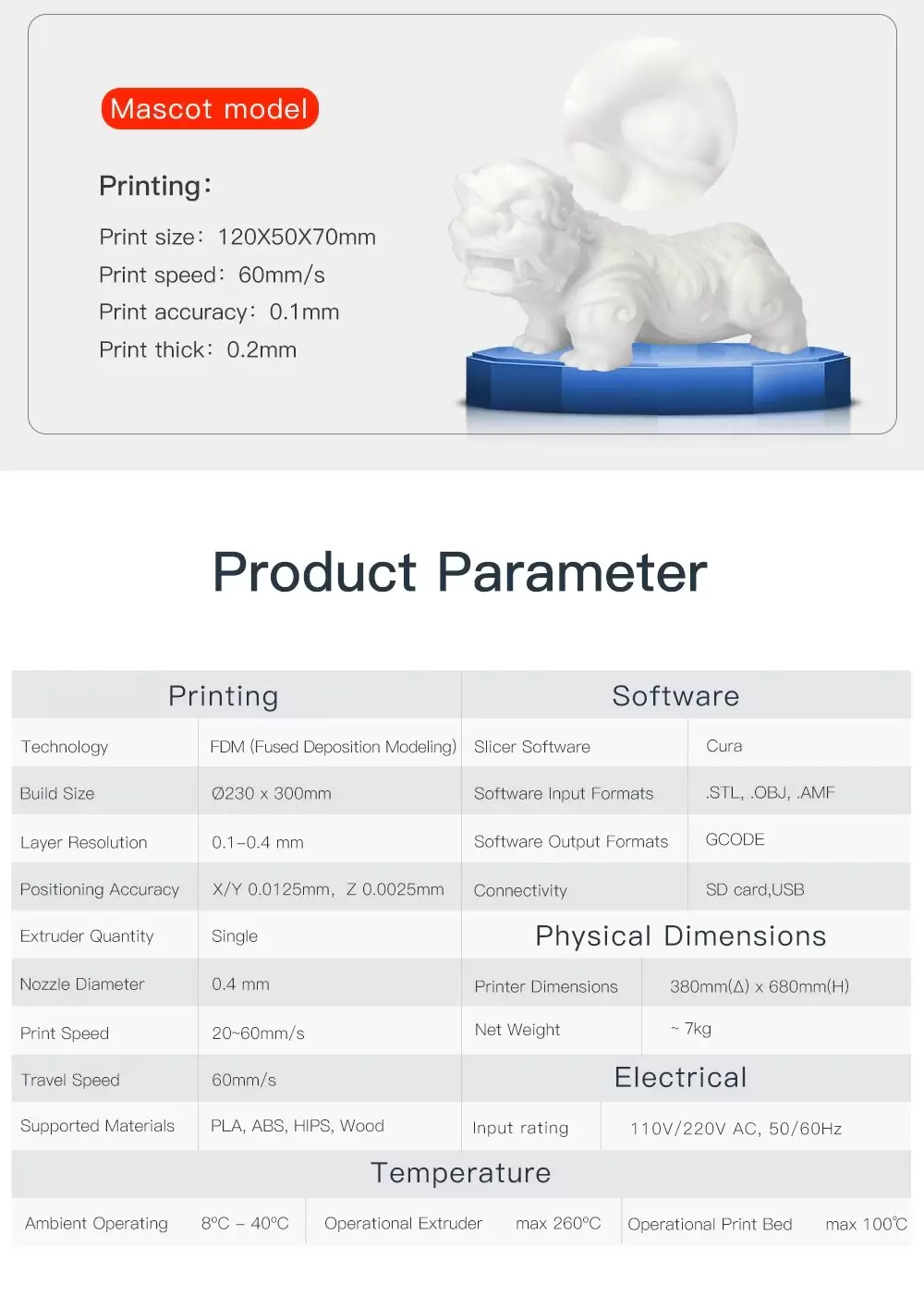

Technical specifications:

Printing Technology FDM (Fused Deposition Modeling)
Layer Resolution 0.1-0.4 mm
Positioning Accuracy X/Y/Z 0.01mm
Supported Print Materials PLA, ABS, HIPS, Wood
Print Speed 20~80mm/s
Travel Speed 150mm/s
Nozzle Diameter 0.4 mm
Extruder Quantity Single
Build SizeØ180×300 mm for Pulley
Ø230×300 mm for Linear Plus​
Operational Print Bed Temperature100ºC
Operational Extruder Temperature 275ºC
Ambient Operating Temperature 8ºC - 40ºC
Input Formats STL, .OBJ, .DAE, .AMF
Slicer Software Cura
Cura Output Formats GCode
Connectivity SD Card, USB Port (expert users only)
Input Rating 110V/220V AC, 50/60Hz
Printer Dimensions 315mm (Δ) × 680mm (Height) for Pulley
380mm (Δ) × 680mm (Height) for Linear Plus
7kg--Linear Plus

Buyer Protection Policies

      Secure Payment

                 PayPal-the most reliable payment method.Credit/Debit cards processed by PayPal

     UPS Insured Shipment

                 High Quality Express Transport without damage.

         1 Year Warranty

                 Just in case. Of course we only ship out perfect products.

      Technical Support Service

                 Experiencing trouble? Feel free to contact us!

Shipping Details

      Processing/Handling(Lead) Time

                  Ships in 2 to 4 Business days

       Delivery Time to Doorstep (Transit)

                  4 to 5 days via UPS


Anycubic Kossel Delta DIY 3D Printer Pulley,Linear and Linear Plus

Anycubic Auto leveling Upgraded Kossel Delta
Purchased Anycubic Kossel Linear Plus with linear rails and absolutely love it. The prints that it produces for the price are pretty hard to beat
Anycubic Auto leveling Upgraded Kossel Delta
Pretty easy to put together, prints are OK (spend the $200 on an ender 3 if you want great prints,) visually interesting (delta's make for cool timelapses) and the auto bed leveling is a nice feature to have.
Anycubic Auto leveling Upgraded Kossel Delta
The printer is great. It was my first time assembling anything like this, but I was able to do it. The SD card with the cura program and the test STL file seemed corrupted because these things did not work from the SD card, so I had to find them myself through the internet. These things were not too difficult to find, so it was not a huge setback. The next challenge is finding the correct settings for the best prints, but from my research that seems to be a fairly constant development cycle for new 3D printer owners.
Anycubic Auto leveling Upgraded Kossel Delta
Easy as pie to put together! do your research before you buy and you wont have problems. Instructions were just as good as legos. Getting good prints for only having it a couple days and not too much tweaking. There is are alot of help out there. Machine review:4/5, great prints. Only thing i dont like too much is the bed leveling. The tools measures and then I assume adjusts itself to the bed. I printed out and made my own levelers to physically level the bed and then use the autoleveler to complete. Been perfect since. Site review: 5/5 From order time to delivery was about two weeks. Not as fast as what I like or prefer, the order is placed with manufacturer. (Use to amazon shipping and this seems like the standard in the 3d printer world. Friend had similair times with two other store fronts.). Service reps responded decently fast to in queries I had (made through their Facebook page) Would order from these guys again for sure.
Anycubic Auto leveling Upgraded Kossel Delta
The assembly went great and compared to other kits that have poor instructions, this was a breeze. Calibration/Leveling: I thought this was going to be a nightmare after looking at videos of automatic calibration and how many points it uses. Luckily, once I dialed in the proper height, the calibration was easy. I used the recommended cura settings from the instructions and printed out a benchy and surprisingly it printed twice as fast as my i3 mega printer. Some details were better and some were not. Overall, this is a great printer and I have to also give a thumbs up to ANYCUBIC. Their printers seem well built with good support . I have been using the I3 Mega and it really is a great printer, The Linear Plus Kossel might have even trumped my feelings for the I3 Mega but time will tell.

Write a review

Note: HTML is not translated!
    Bad           Good

Anycubic Auto leveling Upgraded Kossel Delta

$159.00 $346.00
Special price valid

    Credit Cards processed by PayPal

  • Order Fulfillment by : ANYCUBIC
  • Product Code: ANYCUBIC-BAY-0182
  • Availability: In Stock

More Features

PayPal Acceptance Mark

Vendor Profile

  • Anycubic  Verified Vendor
  • Company: Anycubic Technology
  • Total Orders: 6038
  • Total Products: 7

Rating: 5/5.
Based on 8 reviews / Write a review

Related Products

FLSUN Kossel Delta w/ Auto leveling

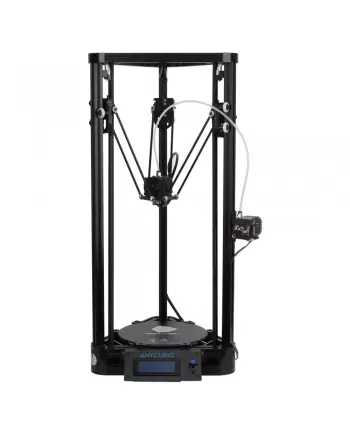

Anycubic Kossel Delta
