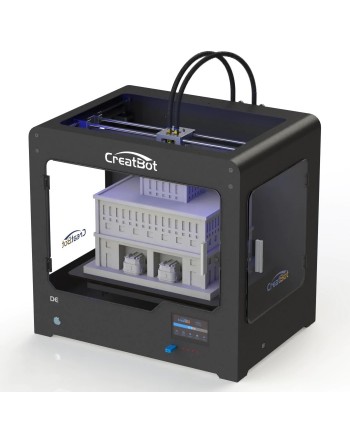

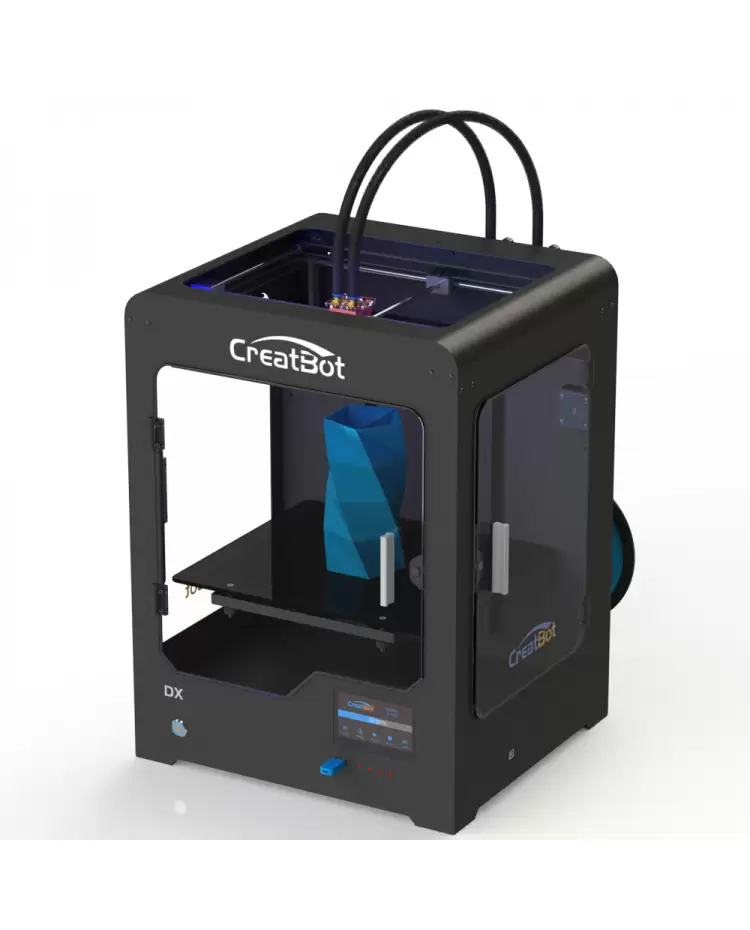

CreatBot DX | DX Plus Large format 3D Printer
Supports up to Triple Head , Up to 260°C High temperature printing
The CreatBot DX | CreatBot DX Plus 3D printer is a high-speed printer with a 300*250*300mm (DX) | 300mm x 250mm x 520mm(DX Plus) build volume and 0.04mm print resolution. The see through walls mean you can watch as your printer creates your 3D models. The CreatBot DX series has height adjustable nozzles, allowing you to manually align the nozzles quickly and efficiently. This ensures the quality of your prints by creating perfect coordination between the nozzles. This solid constructed 3D Printer supports up to triple print heads, semi enclosed chamber with see through walls, a heated glass print bed and a Bowden style extruder. The extruder has the stepper motors positioned at the back of the machine which results in a light weight print head assembly enabling high speed 3D Printing.
All metal chassisA 3D printer requires a certain weight to insure stable operation. This is why a all metal chassis is the best way to go when it comes to 3D printing. All enclosed build spaceOn the CreatBot you have a totally enclosed build space which prevents large prints from being cracked or warped. In the box |
 |
Smart adjustable extruderCreatBot extruders have an intelligent cooling system, this ensures that the filament is feeding at the optimal temperature all the time. The height adjustable nozzles allows you to align your two nozzles very quick and easy. Perfect when you want to print with support, different material or just two colors. All CreatBots from 3D Prima comes with dual extruders as standard. High temperature prints
The nozzles can operate in temperatures up to 260 degrees Celsius. This means that you can use a wide range of different filaments. It also provides you with a very stable temperature during printing. |
Large build volumeThe DX | DX+ boasts with its impressive build volume of 300 x 250 x 300mm(DX)/520mm(DX Plus), that is more than enough for most makers. This means that you can print your creations in 52 cm height and with a resolution of 0.04 mm. |
|
|
Ceramic panel hot bedOn top of a silica heating plate there is a stunning ceramic hot bed which is more expensive then glass but also provides a better heating distribution and a more even heat. The ceramic plate is very smooth and provides a very good adhesion. Metal hot bed trayAn all metal hot bed tray makes for a very stable print platform which in turn improves stability. |
Automatically shutdown
Your CreatBot is equipped with a power management module. When the print is finished and there is no action taken within 5 minutes the printer will shut down. Very useful and very energy efficient.
Multi-function key pad
CreatBot has a multi-function keyboard. This makes for very easy handling and direct access to many of the most used functions, including Z shaft up/down, heating/cooling of hot bed, pause, resume print, browse the SD card and more.
Gear motors feeder
A gear motor can produce more torque compared to the general stepper motor, this ensures that there is a smooth feeding of the filament at all times and that retraction is perfect.
Filament detection system
If you should run out of filament during a print, don’t worry. The printer will go into pause mode and let you change the filament – then you just hit resume, easy!
Continued print
If you should have an unexpected power loss the printer remembers the last known position, stores it, lowers and retract the filament. When the power comes back on you can continue to print.
Printing Samples
.
Technical Specifications
| Technical attribute | Values |
|---|---|
| Product name | Creatbot DX | DX Plus |
| Build size (LDH) | 300*250*300mm DX|300*250*520mm DX Plus |
| Nozzle diameter | 0.4, 0.5, 0.8, 1.0mm |
| Minimum thickness | 0.04 mm |
| Positioning accuracy | XYZ Axis 0.01 mm, Z 0.015 mm |
| Max Printing speed | 180 mm/s |
| Max Traveling speed | 250 mm/s |
| Nozzle temperature | Max. 260 Degree (250 degreee opt.) |
| Hot bed temperature | Max. 120 Degree |
| Filament materials | PLA / ABS / PVA / Nylon / HIPS /FLEX/PETG etc |
| Filament diameter | 3.0 mm (1.75 mm optional) |
| OS platform | Windows, Linux, Mac OS, OSX |
| Language | English, Multi-language |
| Software | CreatBot multi-language version |
| Slicer | Cura, Slic3r Print |
| Software | Cura, Printrun, RepetierHost |
| File format | STL, OBJ, GCode, Amf |
| Control chip | Arduino ATmega2560 R3Micro Controller |
| LCD Size | 128*64 monochrome multi-language |
| Power supply | 110~220V 360W |
| Stepper Motor | X, Y 42*48, 1.3A Z 42*42, Ratio 1:10 |
| Power Input | 110 -220V, 1.5 A |
| Power Output | 24V, 10.5A |
| Machine dimensions weight | 420*380*570mm 28Kg DX | 420*380*790mm 35Kg DX Plus |
| Packaging dimensions weight | 560*520*710mm 42Kg DX | 560*520*930mm 55Kg DX Plus |
