In Stock
$489.00 USD $419.00 USD Sale -14% OFF
-
+

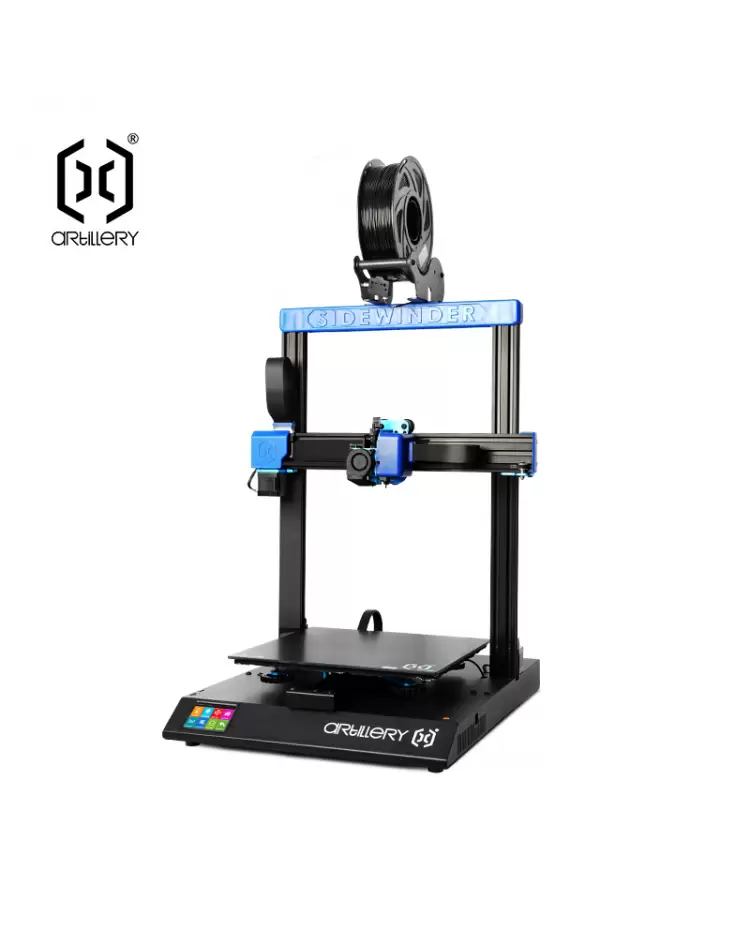

Artillery Sidewinder X2 (SW X2) 3D Printer

US & EU Stock Ready to ship in 2 to 4 business days


The successor to the much sought-after Sidewinder X1 with innovative, new features


Artillery Sidewinder X2 Key features

  • Titan Direct Drive with Volcano Hot End
    • Sidewinder X2 uses direct feed with force multiplier extruder and high flow rate volcano hot end for fast and flexible print.
  • Large installation space (300 x 300 x 400 mm)
    • With an installation space of 300 x 300 x 400 mm, larger projects can also be implemented.
  • Automatic bed leveling
    • The automatic bed leveling is a further smart development of the previous model Sidewinder X1.
    • With the Sidewinder X2, manual leveling of the print bed is no longer necessary. The 3D printer does it quickly by itself, which avoids leveling errors and saves time.
  • Exclusive heated bed protection
    • With protection against overcurrent, overvoltage, excessive temperature, short circuit, and other safety risks, the Sidewinder X2 is a trustworthy partner
  • 32-bit motherboard upgrade
    • Artillery developed a 32-bit mainboard characterized by its high stability, strong computing power, and excellent expandability.
  • Synchronized design with two Z axes
    • A synchronized, dual Z-axis, double lead screw, and a closed synchronous belt ensure good performance. The exclusive Z-axis coupler avoids layer problems and gives the print a certain sophistication and better quality.
  • Tempered glass bed & Rapid heating AC heated bed.
    • The tempered glass print platform ensures excellent adhesion and smooth printing. Thanks to its excellent thermal conductivity, the AC heated bed can be heated to 110 ° C in just 2 minutes; the maximum heating bed temperature is 130 ° C.
  • Filament sensor
    • triggers an alarm if the filament runs out
  • Resume print function
    • Sidewinder X2 resumes the printing process without any problems after a power failure.
  • Integrated cable design
    • With its integrated cable design, the visual look is refined, and maintenance is significantly simplified.
  • Ultra-quiet stepper driver
    • There are hardly any unpleasant noises when printing, thanks to the low-noise system and the ultra-quiet stepper driver.
  • Colour touchscreen
    • A high-resolution color touchscreen with a simple and easy-to-understand user interface makes operation convenient and convenient.


Artillery Sidewinder X2 Technical specifications


Print TechnologyFDM
Mechanical arrangementCartesian XY Head
ManufacturerArtillery
BrandArtillery
ModelSidewinder X2
Build volume

-300 x 300 x 400 mm

-11.81 x11.81x15.75 inches

Layer resolution0.1 mm - 0.35mm
Print speed60mm/s - 150mm/s(Max)
Feeder system/Extruder typeTitan Direct Drive
Print head/Nozzle typeVolcano - 1
Nozzle size0.4mm
Max. hot end temperature240C
Nozzle heat-up time< 3 minutes
Max. heated bed temperature130C
Build plate heat-up time 80C in less than 2 minutes
Operating sound < 70dBA
Print surface Tempered glass with ceramic coating
Heated bed typeAC Heated bed
FrameAluminum Extrusion
CalibrationAutomatic Bed leveling system
ConnectivityUSB, TF Card, USB Stick
Print recoveryYes
Filament sensorYes
CameraNo
Filament diameter1.75mm
Third-party filamentYes
Filament materialsPLA, ABS, Flexible Materials, Wood, PVA, HIPS
Recommender slicer softwareCura,Slic3r,S3D(Simplify3D)
OSWindows, Mac, Linux
File typesSTL, OBJ
Power consumption100-240V 700W(w/ heated bed turned ON)
Control boardArtillery Ruby 32 bit mainboard
DisplayColor touch screen
Product weight12.9 Kg
Product dimension

550x405x640mm

550x405x870mm(with Spool holder)

21.65x15.94x25.20 in

21.65x15.94x34.25 in(with Spool holder)

Shipping box weight16 Kg
Shipping box dimension668x508x310mm
Distinct features

Large build volume

Auto bed leveling

Titan Direct drive set up

32-bit motherboard

Ultra-quiet stepper drivers

Synchronized Dual-Driven Z-Axis Leadscrews

High Definition Digital User Interface


What's in the Box


  • 1x Artillery Sidewinder X2 kit(Top Gantry, Mount base)
  • 0.4mm Spare Nozzle
  • Set of Basic assembly tools
  • Collections of Nuts, bolts, screws, and washers
  • Spool holder assembly
  • Power cable
  • USB Cable
  • USB Stick
  • Artillery Sidewinder X2 Installation Manual


Documentation


Artillery Sidewinder X2 - User guide
