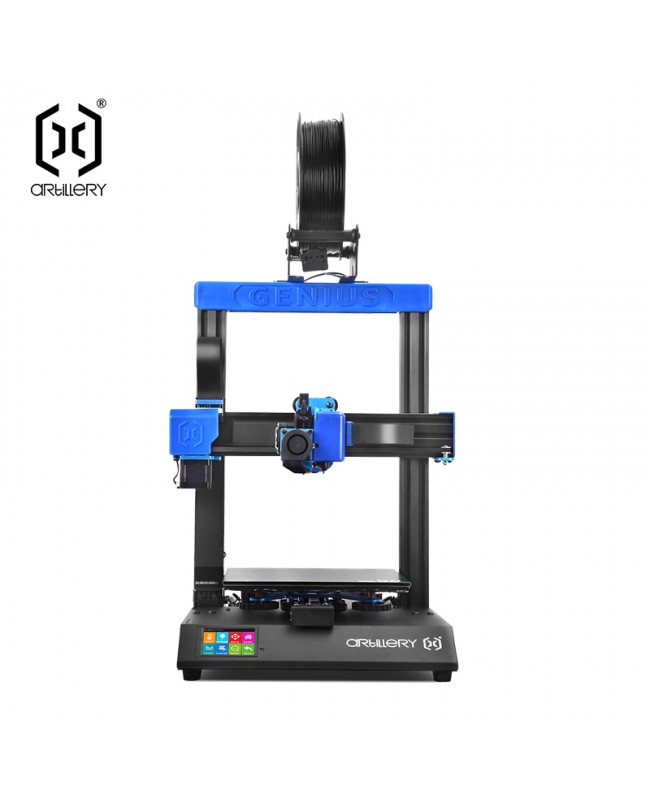

Artillery Genius Pro 3D Printer
The Artillery Genius Pro 3D Printer now featuring a 32-bit motherboard and an auto bed leveling inspired by the famous BLTouch originally from Antclabs. The Genius Pro is the same as its predecessor Genius, which has 220 x 220 x 250mm print size, equipped with Titan Direct Drive, Dual Z-axis, Ultra-Quiet Stepper Motor, Rapid-Heat Bed, TFT Touch Screen, Fast Printing, Filament Sensor, USB Slot, but should be more stable theoretically when the 32-bit motherboard would certainly do a better job with more functions on the Marlin 2.0.x. (Genius was 8 bit / Marlin 1.1.9)
Artillery Genius Pro Key features
- Titan Direct Drive with Volcano Hot End
- Genius Pro uses direct feed with force multiplier extruder and high flow rate volcano hot end for fast and flexible print.
- Rapid AC Heat Bed
- Rapid heating up to over 80°C in 2 minutes
- Synchronized Dual Z-axis
- High speed and stable movement
- Auto Bed Leveling – leveling sensor preinstalled
- Quiet Stepper Driver
- Exclusive stepper driver provide silent printing (you can change to an even quieter stepper driver)
- High-Speed Printing – Up to 150mm/s
- Easy Assembly – Only 3 parts and 4 screws then good to go
- USB Drive Slot – A feature that most entry-level printer does not have
- TFT Colour Touch Screen – Clear and intuitive UI
- 32-bit motherboard – More capacity to handle more process
- Failure Detection – Filament Run-out Sensor for recovery and Resume Printing Function to resume printing in a short power outage
- Larger Rotary Knob – Easier to do the leveling
- Clean Cable Management – Looks tidier
- Carborundum glass platform – Steadier temperature
Artillery Genius Pro Technical specifications
| Print Technology | FDM/FFF |
|---|---|
| Mechanical arrangement | Cartesian XY Head |
| Manufacturer | Artillery |
| Brand | Artillery |
| Model | Genius Pro |
| Build volume | 220x220x250mm 8.66x8.66x9.84 inches |
| Layer resolution | 0.1 mm - 0.35mm |
| Print speed | 60mm/s - 150mm/s(Max) |
| Feeder system/Extruder type | Titan Direct Drive |
| Print head/Nozzle type | Volcano - 1 |
| Nozzle size | 0.4mm |
| Max. hot end temperature | 240C |
| Nozzle heat-up time | < 3 minutes |
| Max. heated bed temperature | 130C |
| Build plate heat-up time | 80C in less than 2 minutes |
| Operating sound | < 70dBA |
| Print surface | Tempered glass with ceramic coating |
| Heated bed type | AC Heated bed |
| Frame | Aluminum Extrusion |
| Calibration | Automatic Bed leveling system |
| Connectivity | USB,TF Card, USB Stick |
| Print recovery | Yes |
| Filament sensor | Yes |
| Camera | No |
| Filament diameter | 1.75mm |
| Third-party filament | Yes |
| Filament materials | PLA, ABS, Flexible Materials, Wood, PVA, HIPS |
| Recommender slicer software | Cura,Slic3r,S3D(Simplify3D) |
| OS | Windows,Mac,Linux |
| File types | STL,OBJ |
| Power consumption | 100-240V 500W(w/ heated bed turned ON) |
| Control board | Artillery Ruby 32 bit mainboard |
| Display | Color touch screen |
| Product weight | 9.6 Kg |
| Product dimension | 430x390x590mm 16.92x15.35x23.22 inches |
| Shipping box weight | 11.7 Kg |
| Shipping box dimension | 528x428x310mm 20.78x16.85x12.20 inches |
| Distinct features | Auto bed leveling Titan Direct drive set up 32-bit motherboard Ultra-quiet stepper drivers Synchronized Dual-Driven Z-Axis Leadscrews High Definition Digital User Interface |
What's in the box
- 1x Artillery Genius pro (Top Gantry, Mount base)
- 0.4mm Spare Nozzle
- Set of Basic assembly tools
- Collections of Nuts, bolts, screws, and washers
- Spool holder assembly
- Power cable
- USB Cable
- USB Stick
- Artillery Genius pro Installation Manual
Documentation
Artillery Genius pro - User guide
