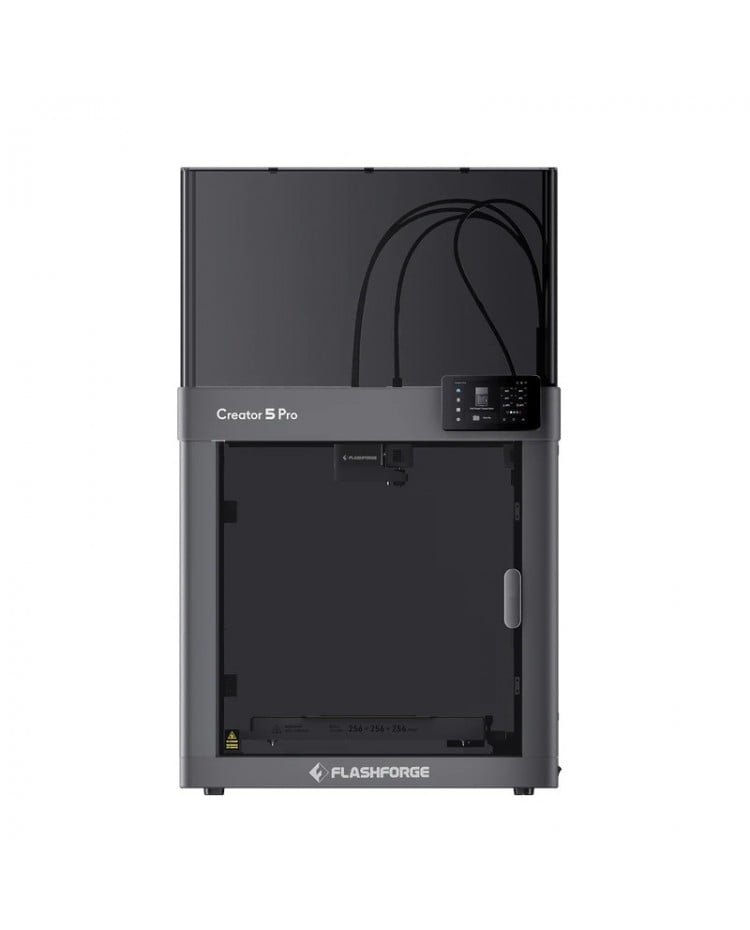

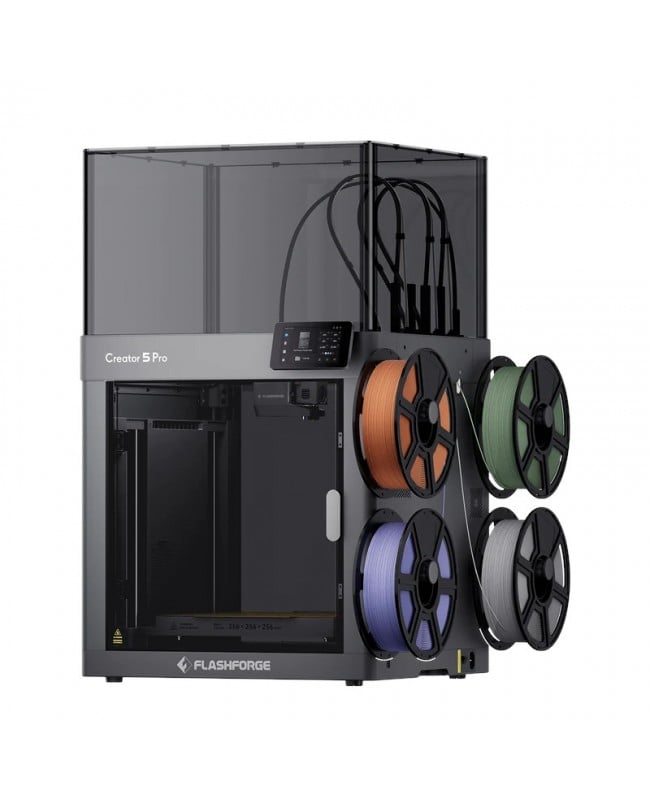

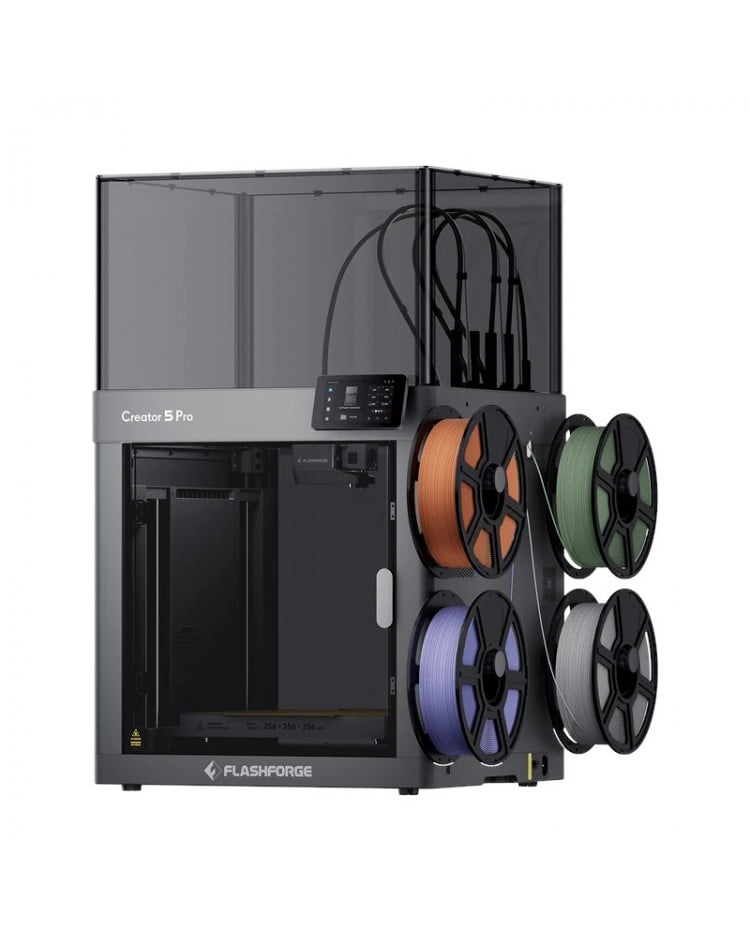

Flashforge Creator 5 Pro – 4-Toolhead Enclosed Multi-Color 3D Printer

The Flashforge Creator 5 Pro is a flagship multi-toolhead 3D printer built for makers, engineers, and small businesses who need true multi-color and multi-material output without the mess. Four fully independent toolheads swap in and out with zero purge waste, while a fully enclosed, actively heated chamber keeps ABS, ASA, PA, and PC prints flat, strong, and dimensionally accurate. Whether you're prototyping functional parts or producing detailed multicolor models, the Creator 5 Pro delivers industrial-grade reliability in a footprint that fits on a desktop.

Key Features at a Glance

• 4 independent, fully interchangeable toolheads for true multi-color and multi-material printing
• Up to 500% faster multicolor printing compared to single-nozzle multi-material setups
• Zero purge waste during material and color switching via FlashSwap™ nozzle-swap technology
• High-speed performance: up to 600 mm/s travel speed and 30,000 mm/s² acceleration
• Fully automatic multi-toolhead offset calibration and auto bed leveling
• Dynamic Flow Calibration (auto pressure advance) and Active Vibration Compensation for flawless surfaces
• Fully enclosed, rigid frame with an actively heated chamber up to 65°C
• H13 medical-grade HEPA filtration plus activated carbon for dust and VOC control
• Continuous dual-mode airflow system: heating mode for engineering filaments, cooling mode for PLA/TPU/PETG
• 256 × 256 × 256 mm build volume with a textured PEI flexible steel build plate
• Door and top-cover detection, filament run-out sensing, and power-outage recovery for unattended printing
• Built-in Full HD camera for remote monitoring and multi-printer fleet management
• Quiet operation: enclosure design reduces operating noise from 65 dB down to 55 dB

Why Choose the Creator 5 Pro?

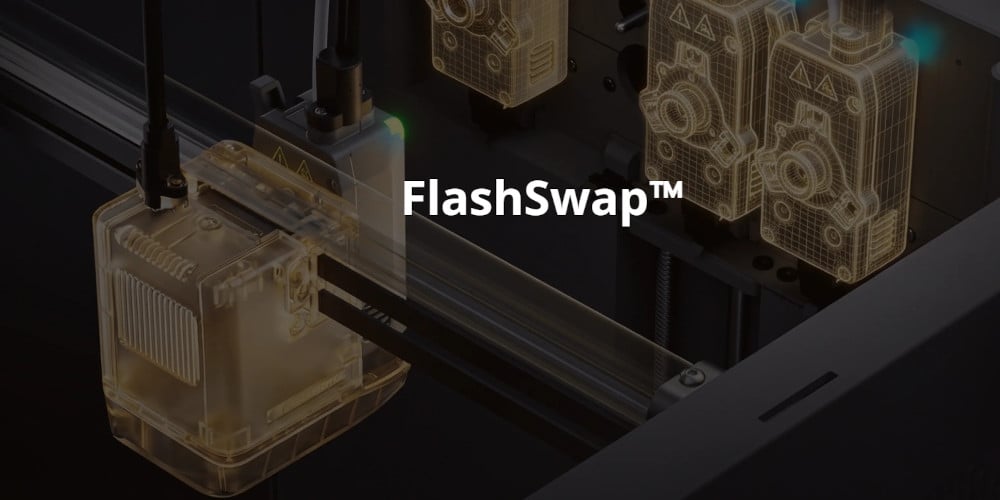

4 Independent Toolheads — True Multi-Color & Multi-Material Printing

At the heart of the Creator 5 Pro is FlashSwap™, Flashforge's next-generation interchangeable multi-nozzle system. Instead of routing multiple filaments through a single hotend, the Creator 5 Pro mounts four completely independent toolheads on a smart docking module. Each toolhead heats, primes, and parks separately, so color and material changes happen through a physical nozzle swap rather than a wasteful purge cycle — eliminating cross-contamination and discoloration for clean, accurate color separation on cosplay props, architectural models, and multicolor signage.

Multicolor Printing Up to 500% Faster

Because each toolhead is pre-loaded and ready to print, the Creator 5 Pro swaps colors and materials in a fraction of the time a single-nozzle AMS-style system needs to purge and reload. Flashforge reports multicolor print jobs completing up to 500% faster than conventional multi-material setups, turning what used to be an overnight print into a same-day job — a direct win for production runs and multicolor batches.

Zero Purge Waste During Material Switching

Traditional multi-material printers rely on purge towers to flush leftover filament every time a color changes, generating large piles of scrap plastic. Because the Creator 5 Pro uses dedicated toolheads instead of a shared nozzle, there is virtually nothing to purge between colors — delivering direct filament savings on every multicolor print and far less post-print cleanup.

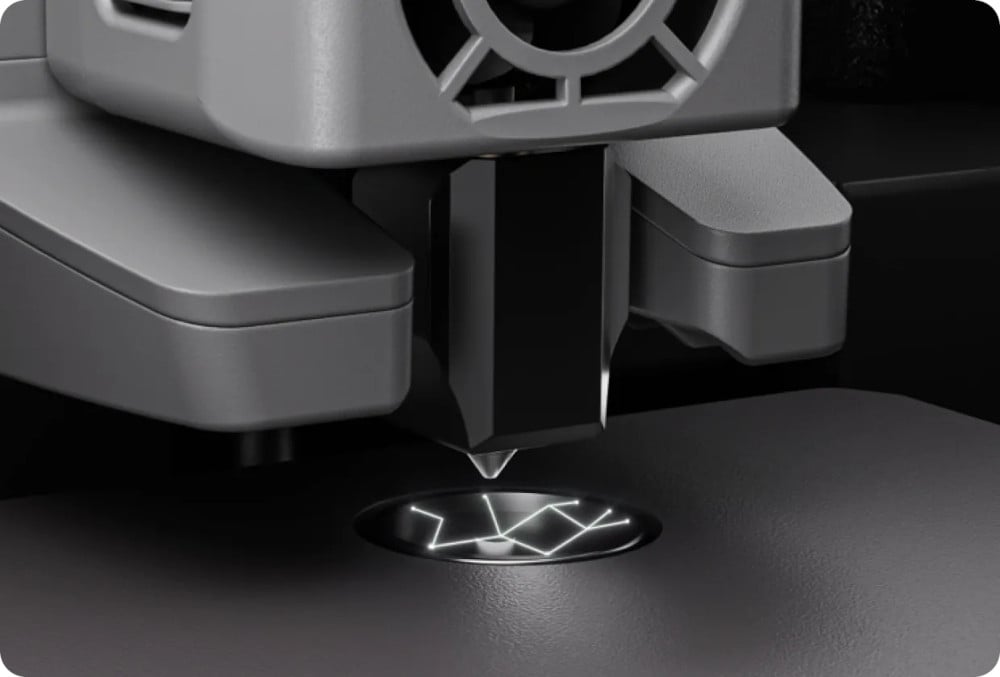

Fully Automatic Calibration & Leveling

Running four toolheads only works if each one is perfectly aligned. The Creator 5 Pro performs fully automatic multi-toolhead offset calibration every print, so every nozzle lays down material in exactly the right position relative to the others — no manual XY offset tuning required. Automatic bed leveling and a first-layer, zero-hassle textured PEI plate round out a setup process that requires no manual intervention.

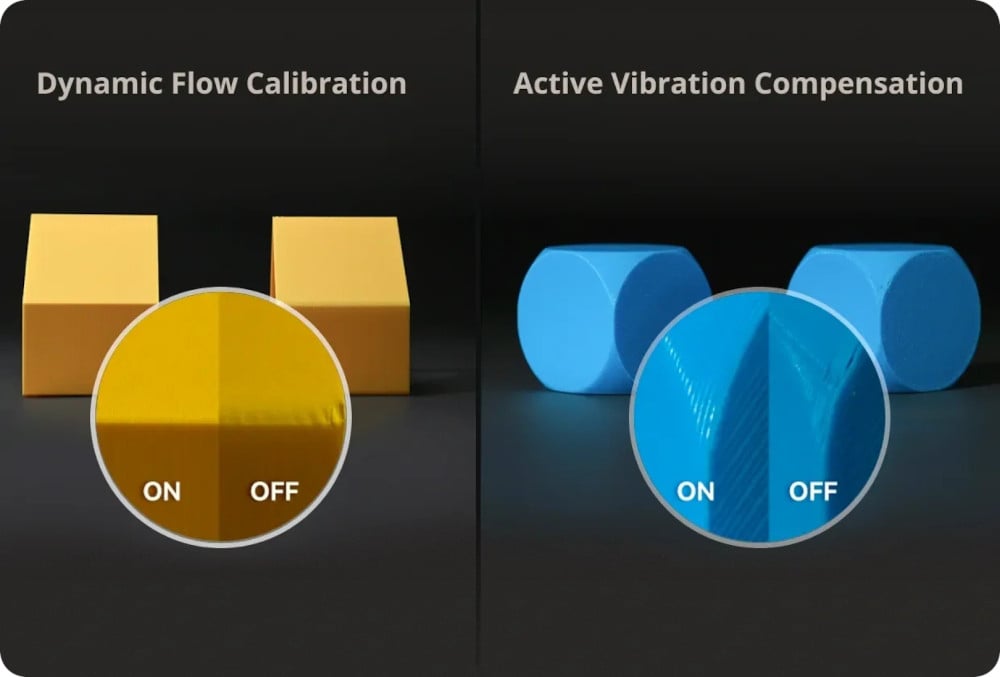

Flawless Print Quality with Smart Compensation

Two onboard smart systems keep surface quality consistent across every print. Dynamic Flow Calibration (automatic pressure advance) removes the blobbing and stringing visible at seams and corners when flow isn't compensated, while Active Vibration Compensation counteracts high-speed ringing and ghosting artifacts on vertical walls, producing noticeably smoother surfaces even at top travel speeds of 600 mm/s.

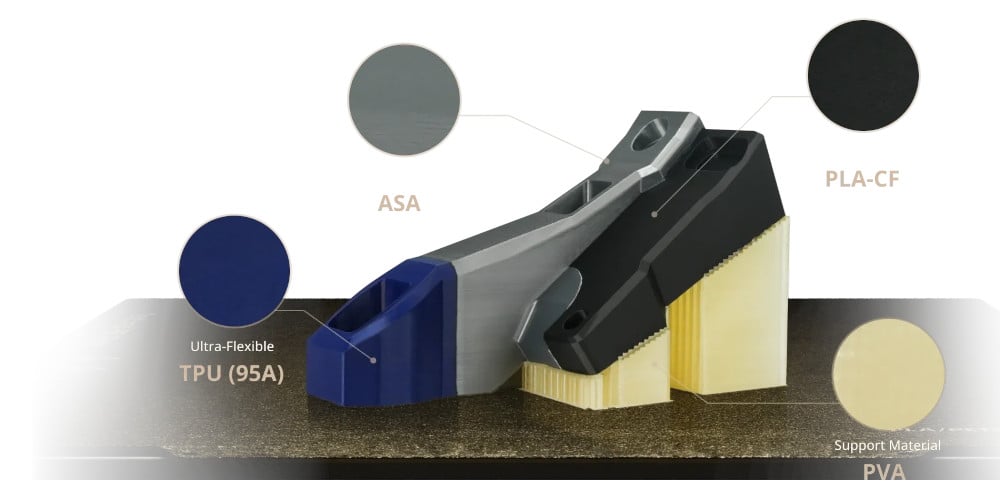

Multi-Material Structures in a Single Pass

Beyond color, the four independent toolheads let you combine fundamentally different materials in one job — for example, printing a rigid ASA or carbon-fiber PLA structural body alongside an ultra-flexible TPU (95A) overmold, with dissolvable PVA support material handling complex overhangs. Engineers and product designers can validate multi-material assemblies, like a rigid housing paired with a soft gasket, in a single automated print run, dramatically shortening iteration cycles.

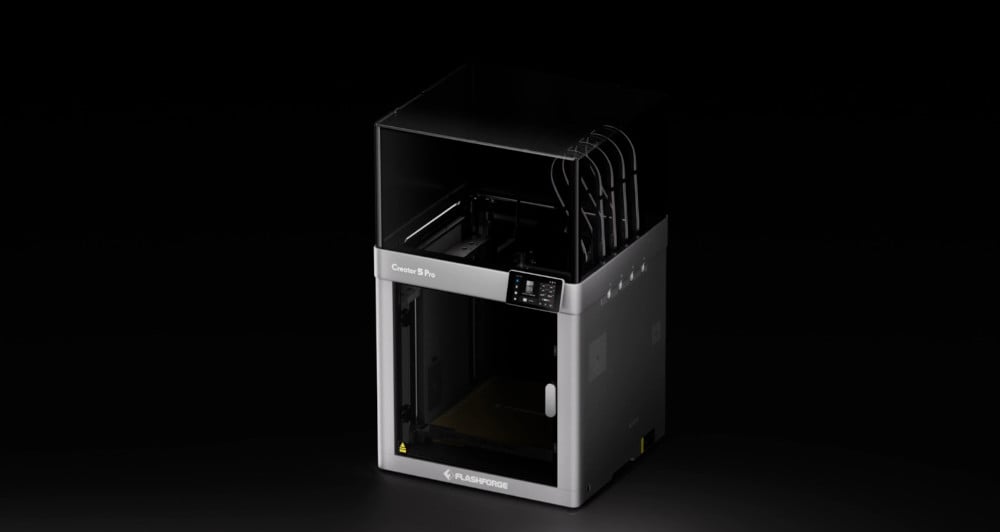

Fully Enclosed, Rigid Frame for Maximum Stability

The Creator 5 Pro's rigid, fully enclosed frame isn't just about aesthetics — it protects users, kids, and pets from hot surfaces and moving parts, contains fumes released by engineering filaments, and holds a stable internal temperature that reduces warping on large or tall prints. The enclosure also cuts operating noise from roughly 65 dB down to 55 dB, making it noticeably quieter for home offices, classrooms, and shared workspaces.

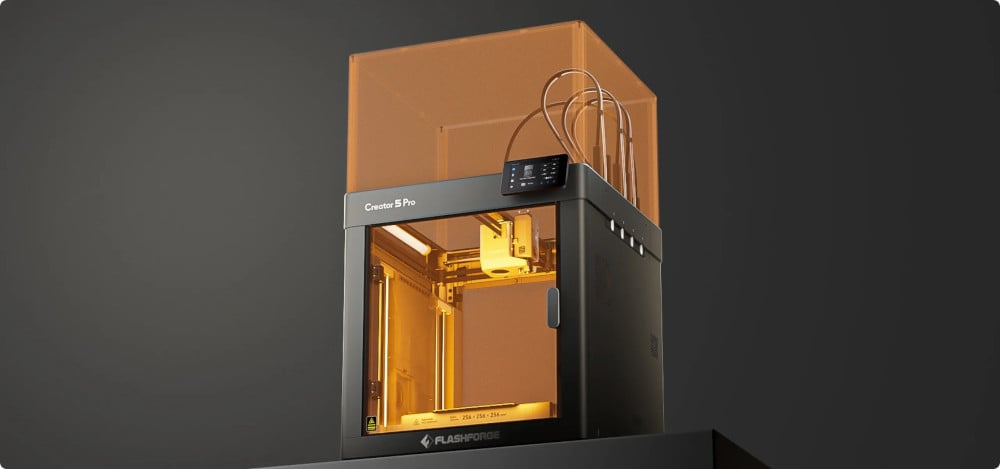

Active Heated Chamber Up to 65°C

An active heating system rapidly brings the enclosed chamber up to 65°C with precise temperature control and continuous monitoring. This eliminates the warping, cracking, and layer delamination that high-temperature engineering filaments like ABS, ASA, PC, and PA are prone to when printed in an open or passively heated environment, ensuring consistent dimensional accuracy on every part.

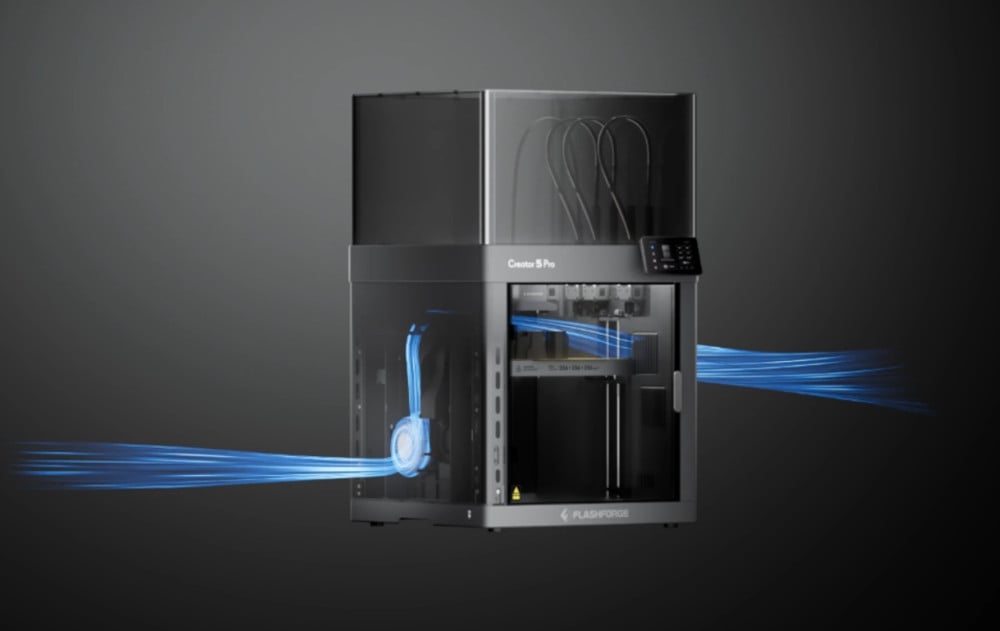

Dual-Mode Cooling System

For lower-temperature filaments like PLA, TPU, PETG, and PLA-CF, the Creator 5 Pro switches to cooling mode, drawing in cool external air to bring the chamber down quickly while keeping the door closed — delivering warp-free prints without having to manually vent the enclosure or wait for it to cool naturally.

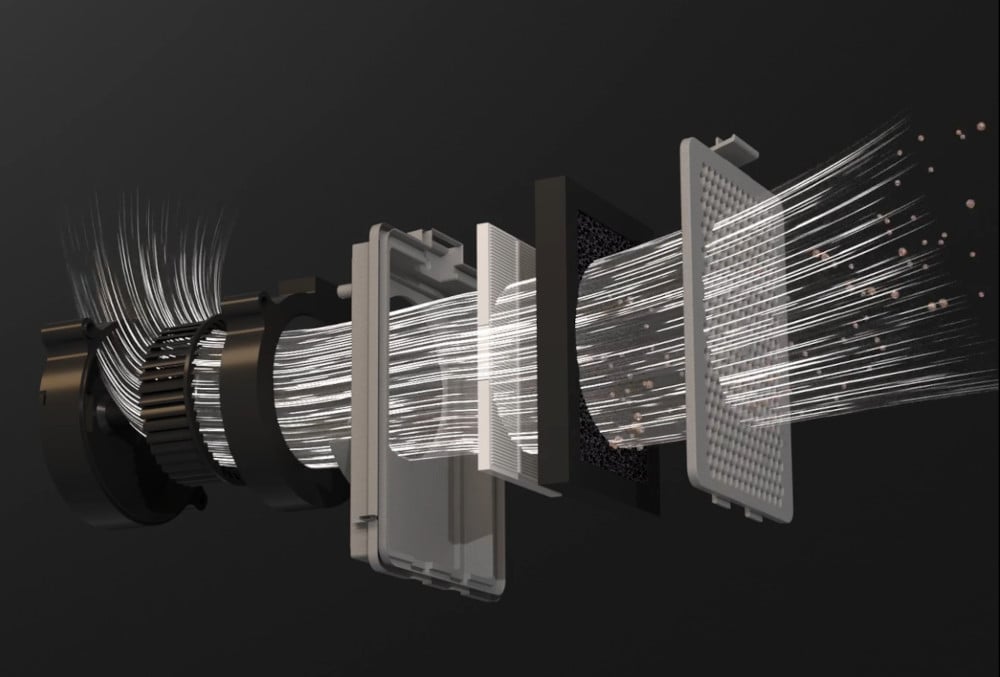

Top-Tier Air Purification

An integrated multi-stage filtration system combines an H13 medical-grade HEPA filter with premium coconut-shell activated carbon to capture ultrafine particulates and absorb the VOCs and odors released when printing ABS, ASA, and nylon. Continuous airflow pulls air through the enclosure and filtration stack, keeping the surrounding workspace cleaner during long, high-temperature print jobs.

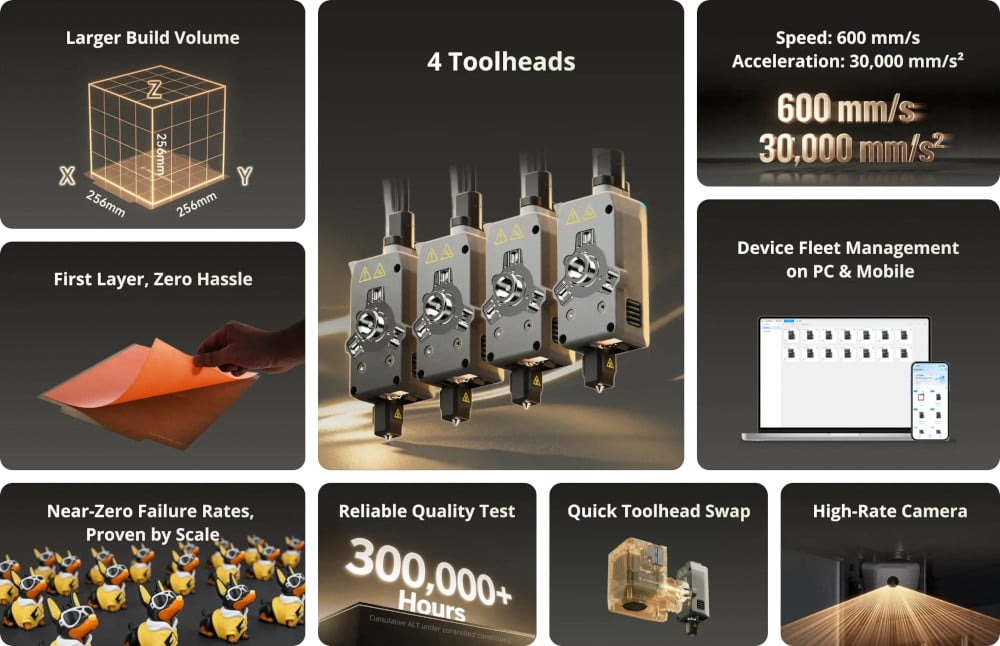

Built for Speed, Scale, and Reliability

A 256 × 256 × 256 mm build volume gives you room for larger single-piece prints, while a first-layer, zero-hassle textured PEI plate makes bed adhesion effortless. Top speeds of 600 mm/s and 30,000 mm/s² acceleration are backed by near-zero failure rates proven across more than 300,000 cumulative hours of testing, quick toolhead swaps, a high-rate camera for print monitoring, and device fleet management across PC and mobile for anyone running multiple printers.

Built for Every Kind of Creator

From hobbyist makers experimenting with multicolor figurines, to families printing toys and household fixes, to classrooms teaching design and engineering, to production teams running engineering-grade parts — the Creator 5 Pro's combination of speed, color capability, and enclosed reliability makes it a fit across use cases including rapid prototyping, functional end-use parts, education, and small-batch manufacturing.

Remote Monitoring & Fleet Management

A built-in Full HD camera (1280×720 @ 30 fps) streams a live view of every print, and Flashforge's device management platform lets you monitor and control multiple Creator 5 Pro units from PC or mobile — useful for makerspaces, classrooms, or small print farms running several machines at once.

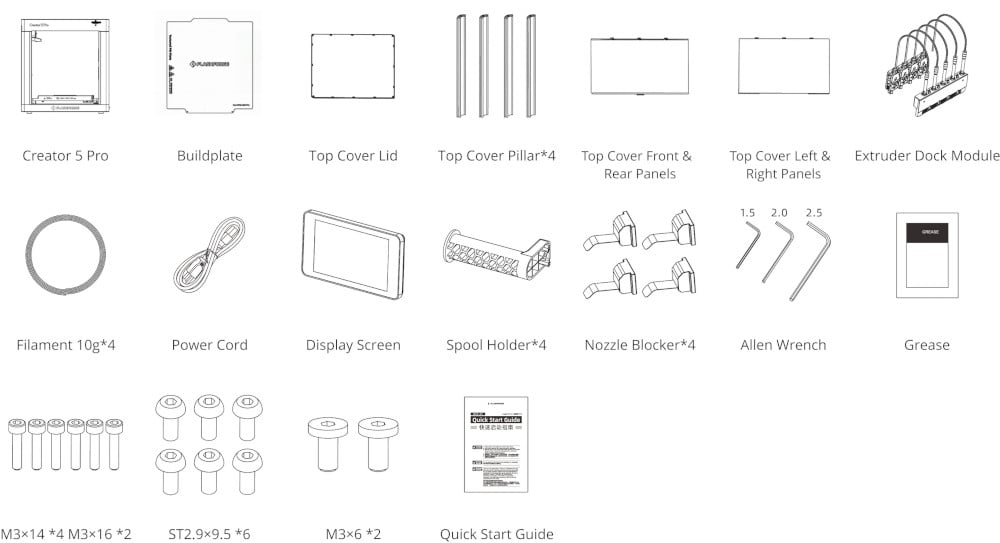

What's in the Box

• Creator 5 Pro 3D printer
• Build plate (PEI textured steel)
• Top cover lid, 4× top cover pillars, top cover front & rear panels, top cover left & right panels
• Extruder dock module
• 4× sample filament (10 g each)
• Power cord
• Display screen
• 4× spool holders
• 4× nozzle blockers
• Allen wrench set (1.5 mm, 2.0 mm, 2.5 mm)
• Grease
• Assorted screws: M3×14 ×4, M3×16 ×2, ST2.9×9.5 ×6, M3×6 ×2
• Quick Start Guide

Full Technical Specifications

Frequently Asked Questions

What intelligent detection features does the Creator 5 Pro have?

The Creator 5 Pro includes filament run-out and tangle detection, plus door-open detection and chamber temperature monitoring for enhanced safety and print stability — features that go beyond the standard Creator 5.

How much clearance space does the Creator 5 Pro need?

Leave at least 10 mm of clearance on the left and rear sides, 200 mm on the right side, and 500 mm at the front to allow the door to open and filament to feed properly.

Does the Creator 5 Pro support 5G Wi-Fi?

Yes. The Creator 5 Pro supports dual-band 2.4 GHz and 5 GHz Wi-Fi networks for fast, reliable slicer and app connectivity.

What materials can I print on the Creator 5 Pro?

The Creator 5 Pro supports a wide range of filaments including PLA, PETG, TPU, PLA-CF, PETG-CF, SILK, PVA, BVOH, ABS, ASA, PA-CF, PET-CF, PAHT-CF, ASA-CF, ASA-GF, ABS-GF, PPA-CF, PPS-CF, and HIPS — covering everything from easy consumer prints to demanding engineering-grade composites.

Can the Creator 5 Pro print multiple colors and materials at once?

Yes. With 4 independent toolheads and FlashSwap™ technology, the Creator 5 Pro can switch between up to four colors or materials in a single print with near-zero purge waste, unlike single-nozzle multi-material systems.

Which slicing software works with the Creator 5 Pro?

The Creator 5 Pro is compatible with Orca-Flashforge and OrcaSlicer.
