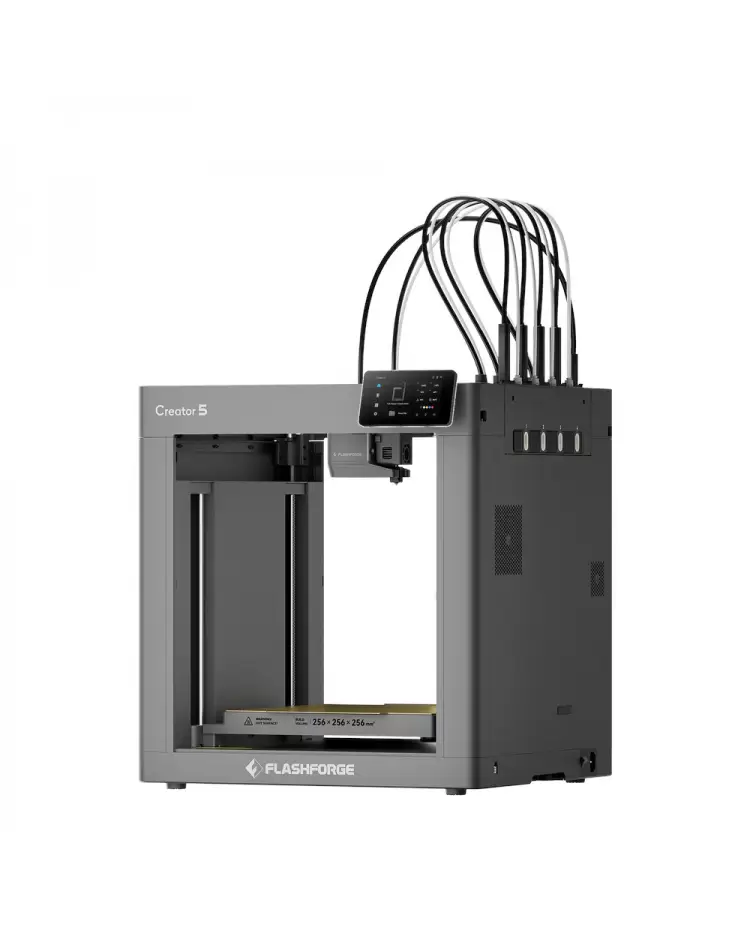

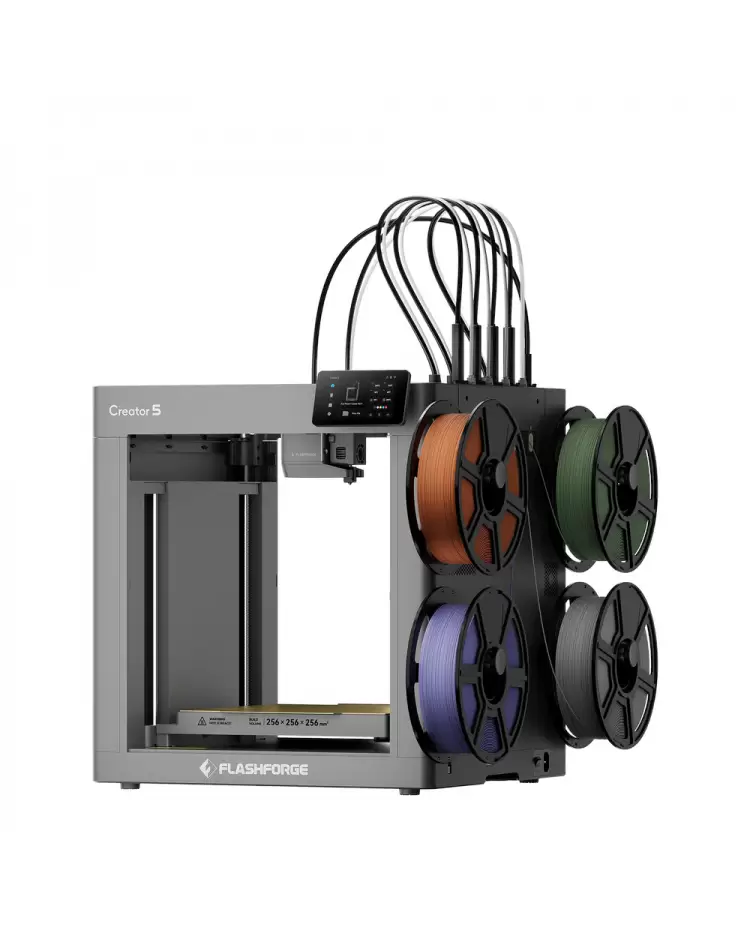

Flashforge Creator 5 4-Toolhead Multi-Color 3D Printer

The Flashforge Creator 5 is a quad-toolhead FDM 3D printer built for makers who are tired of choosing between speed, color, and material versatility. Instead of a single hotend juggling color changes with a purge tower, the Creator 5 runs four fully independent toolheads — so multi-color and multi-material prints finish dramatically faster with almost no wasted filament. Whether you're a hobbyist finishing multi-color miniatures, a teacher running a classroom fleet, or a small print farm chasing throughput, the Creator 5 is designed to make complex prints simple, fast, and repeatable.

At a Glance

• 4 independent toolheads for true multi-color and multi-material printing
• FlashSwap™ interchangeable multi-nozzle system with smart workflow control
• Up to 500% faster multi-color prints vs. single-nozzle tool-changing printers
• Zero purge waste when switching materials or colors
• Print speeds up to 600 mm/s with 30,000 mm/s² acceleration
• Fully automatic toolhead offset calibration and bed leveling
• 256 × 256 × 256 mm build volume
• Enclosed-capable printing supports ABS, ASA, PA-CF, PPS-CF, and other engineering filaments
• Built-in HD camera, Wi-Fi (2.4/5 GHz), and multi-printer fleet management
• 4-inch full-color touchscreen with quick-swap nozzle system

4 Independent Toolheads — Real Multi-Color, Real Multi-Material

Most "multi-color 3D printers" on the market actually use a single nozzle that swaps filament between colors, generating long purge blocks and slow layer times. The Creator 5 takes a different approach: four completely independent toolheads work together, each responsible for its own filament path. The result is genuinely simultaneous multi-color and multi-material 3D printing without the constant filament-swapping delay that single-nozzle tool changers rely on.

Why This Matters for Your Prints

Because each toolhead has its own nozzle and drive system, the printer isn't stopping to purge and reload filament every time the color changes. That translates directly into shorter print times on multi-color models, cleaner color transitions, and the ability to combine dissimilar materials — like a rigid PLA body paired with a flexible TPU section — in a single uninterrupted print job.

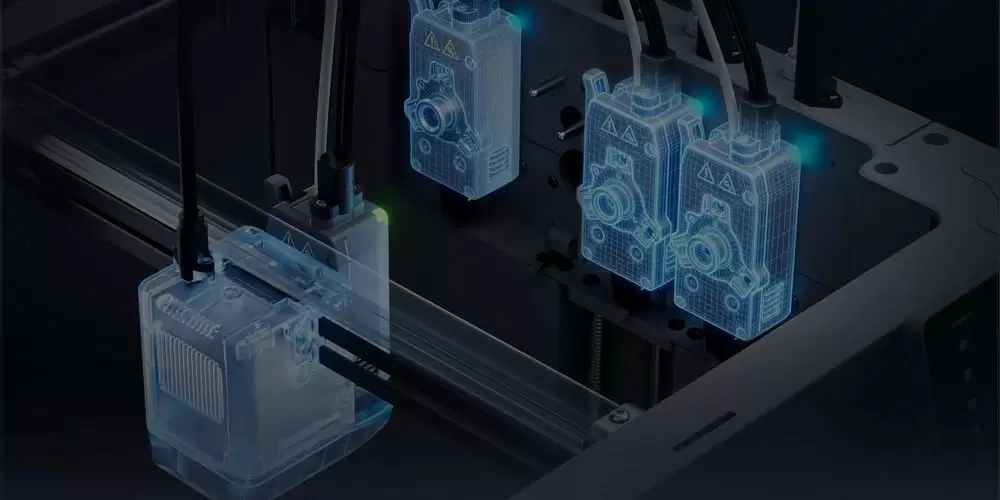

FlashSwap™ — Interchangeable Multi-Nozzle System

FlashSwap is Flashforge's name for the next-generation FDM architecture behind the Creator 5: interchangeable multi-nozzles paired with a smart workflow that coordinates all four toolheads. Instead of one nozzle doing every job, FlashSwap lets the printer bring the right nozzle diameter and toolhead into play at the right moment, whether that's a fine 0.25 mm detail pass or a high-flow 0.8 mm bulk section, all managed automatically as part of the print job.

Quick Toolhead and Nozzle Swaps, Without the Downtime

Because nozzles are removable and toolheads are designed for quick swaps, switching between 0.4 mm (standard), 0.25 mm, 0.6 mm, and 0.8 mm nozzles doesn't require a lengthy teardown. FlashSwap is what makes the Creator 5's zero-purge, multi-material workflow practical day to day — it's the mechanical and software layer that keeps four independent toolheads working together instead of four separate printers bolted to one frame.

Up to 500% Faster Multi-Color Printing

Flashforge rates the Creator 5 at up to 500% faster multi-color output compared to conventional single-toolhead tool-changer printers. Combined with a maximum travel speed of 600 mm/s and print speeds up to 300 mm/s, this printer is built to keep a busy production queue moving rather than sitting idle during color changes.

Built for High-Volume and Time-Sensitive Work

For makers running Etsy shops, classroom batches, or small-scale print farms, print speed is directly tied to profitability and turnaround time. The Creator 5's high-speed motion system and 30,000 mm/s² acceleration mean less time waiting on prints and more time fulfilling orders.

Zero Purge Waste, Maximum Efficiency

Traditional multi-material printing often means towers of wasted purge filament sitting next to every finished print. The Creator 5's independent toolhead design is engineered to eliminate that waste almost entirely, so more of the filament you load ends up in the finished part rather than in the trash.

Lower Cost Per Print, Less Cleanup

Zero purge waste isn't just an environmental win — it's a real reduction in filament cost per print and less post-processing cleanup between jobs, which matters most for anyone running the printer daily.

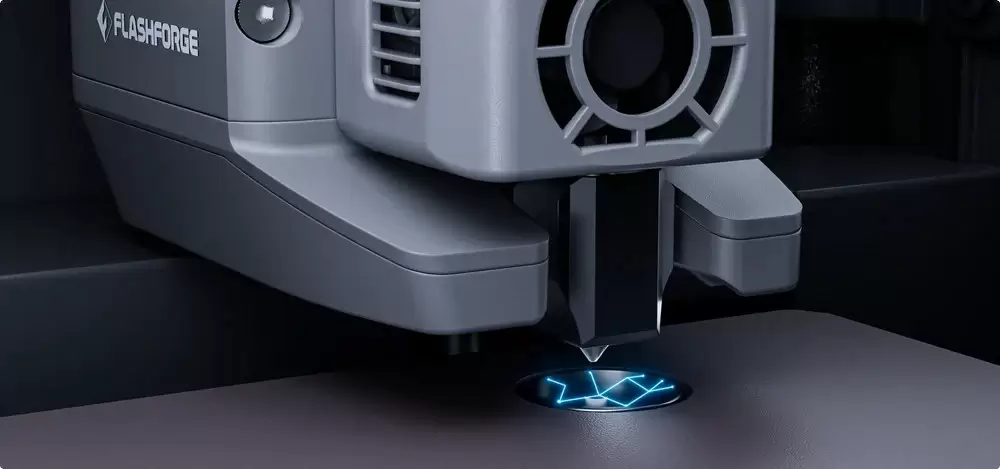

Fully Automatic Calibration and Leveling

Multi-toolhead printers traditionally require careful manual offset calibration to keep colors aligned layer after layer. The Creator 5 automates this process completely, including automatic bed leveling and automatic toolhead offset calibration, so switching hotends, replacing nozzles, or simply powering on the machine doesn't turn into a lengthy manual setup routine.

Consistent First Layers, No Guesswork

Full automatic calibration typically completes in about 15–20 minutes and is triggered automatically for first-time setup, hotend swaps, nozzle scraping incidents, or persistent multi-color offset issues — removing one of the most frustrating parts of multi-toolhead printing.

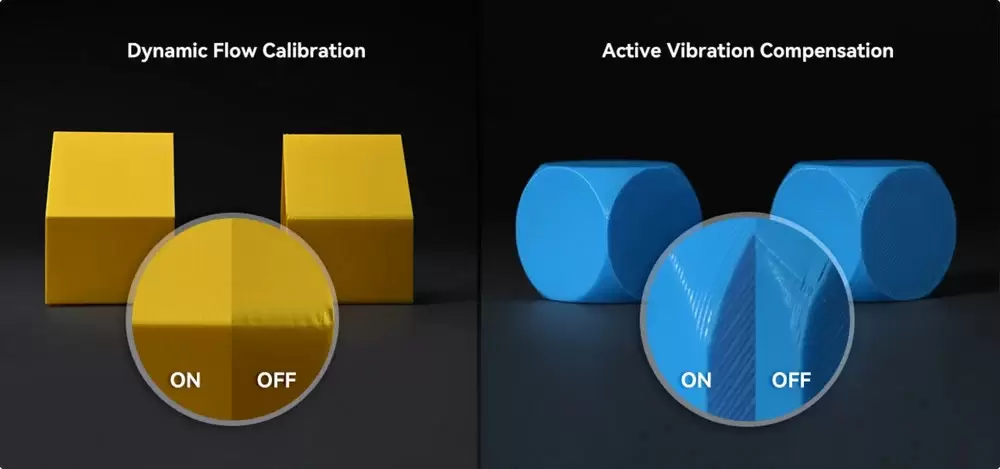

Flawless Print Quality with Smart Compensation

Beyond leveling, the Creator 5 uses dynamic flow calibration with automatic pressure advance (PA) tuning to keep extrusion consistent across different filaments and toolheads. That smart compensation is what keeps surface finish clean and layer bonding strong, even when the print is switching between multiple materials mid-job.

Multi-Material Structures in a Single Pass

The Creator 5 supports a wide range of materials for direct printing — including PLA, PETG, TPU-90A, TPU-95A, TPU-64D, PLA-CF, PETG-CF, silk filaments, PVA, and BVOH. With the enclosure in place, it also handles more demanding engineering filaments such as ABS, ASA, HIPS, ABS-GF, PA-CF, ASA-CF, ASA-GF, PET-CF, PAHT-CF, PPA-CF, PPS-CF, and S-Multi/S-PAHT composites — giving you room to grow from everyday PLA prints into functional, industrial-grade parts.

Reliable, Connected, and Built to Scale

The Creator 5 pairs its printing hardware with practical workflow features: a built-in Full HD camera (1280×720 @ 30fps) for remote monitoring, dual-band 2.4GHz/5GHz Wi-Fi, USB connectivity, power-outage recovery, filament run-out detection, and multi-printer fleet management for anyone scaling beyond a single machine. A 4-inch full-color touchscreen makes day-to-day operation straightforward, and the open-frame, high-strength frame construction is designed to handle sustained high-speed motion without sacrificing accuracy.

Who the Creator 5 Is Built For

Makers and Hobbyists

Print multi-color miniatures, cosplay props, and display pieces without manually swapping filament mid-print.

Families

An open-frame design and automatic calibration keep the learning curve low for first-time 3D printing at home.

Educators

Fleet management and remote monitoring make it easier to run multiple units in a classroom or makerspace.

Print Farms and Small Businesses

Faster multi-color cycle times and near-zero purge waste directly improve throughput and reduce material cost per job at scale.

Full Technical Specifications

Frequently Asked Questions

When is print head offset calibration required, and how long does it take?

Offset calibration runs automatically during initial setup, after a hotend replacement, if a nozzle scrapes the bed or a model, or if you notice offset issues during multi-color/multi-material prints. The full process takes about 15–20 minutes.

How loud is the Creator 5 during printing?

The Creator 5 offers three printing modes, and in silent mode noise stays below 55 dB — quiet enough for a home office or classroom.

What safety and monitoring features does the Creator 5 include?

It includes filament run-out and tangle detection alongside remote monitoring through its built-in HD camera. (The Creator 5 Pro variant adds door-open detection and chamber temperature monitoring.)

How much clearance space does the printer need?

Leave at least 10 mm on the left and rear sides, 200 mm on the right side, and 500 mm in front for filament loading and maintenance access.

Does the Creator 5 support 5G Wi-Fi?

Yes — it supports dual-band 2.4 GHz and 5 GHz Wi-Fi networks for flexible network setup.

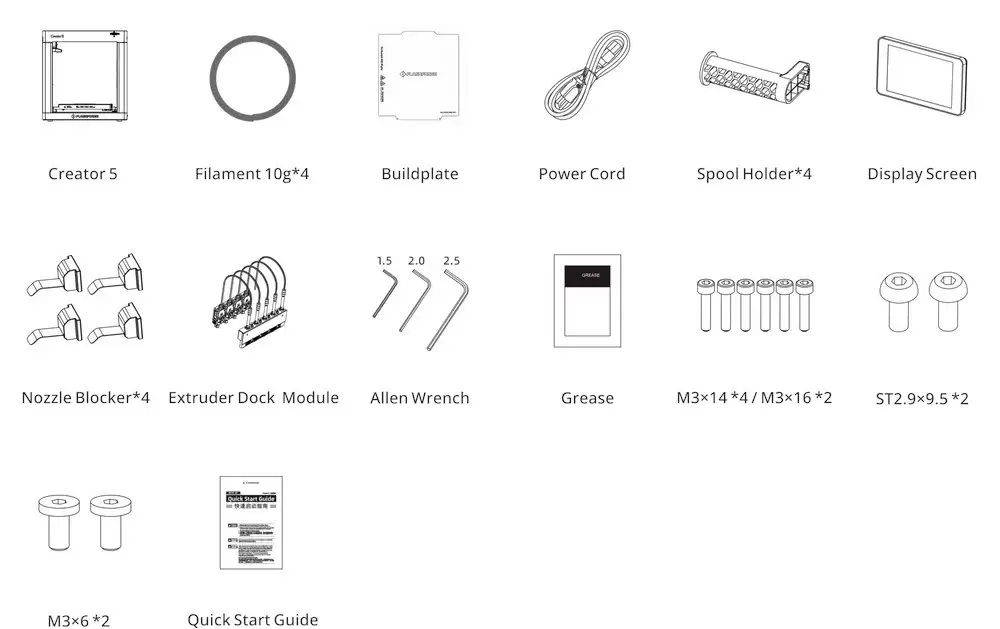

What's included in the box?

The Creator 5 ships ready to print with its four toolheads pre-installed, PEI textured build plate, filament holders and tube, and the accessories needed for first-time setup and calibration.
