In Stock
$390.00 USD $345.00 USD Sale -12% OFF
-
+
  • Brand: FOLGERTECH
  • Product Code: FOLGERTECH-BAY-0135

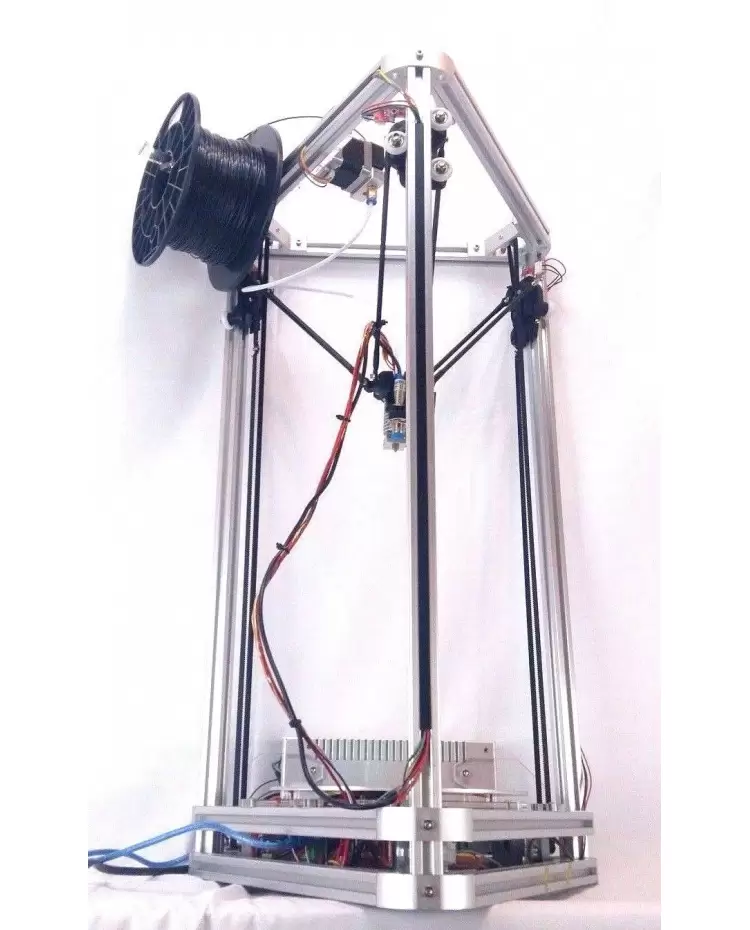

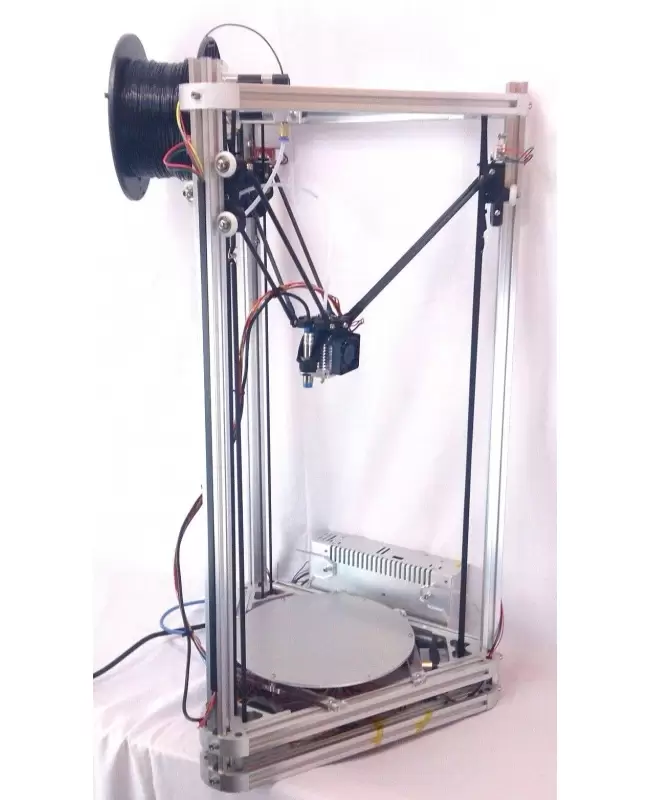

Folger Tech Kossel 2020 3D Printer (Full Kit) REV B


Dispatch time:Ships in 1-2 Business days

FREE Shipping to United States.

Other items you might be interested in buying with your kit:

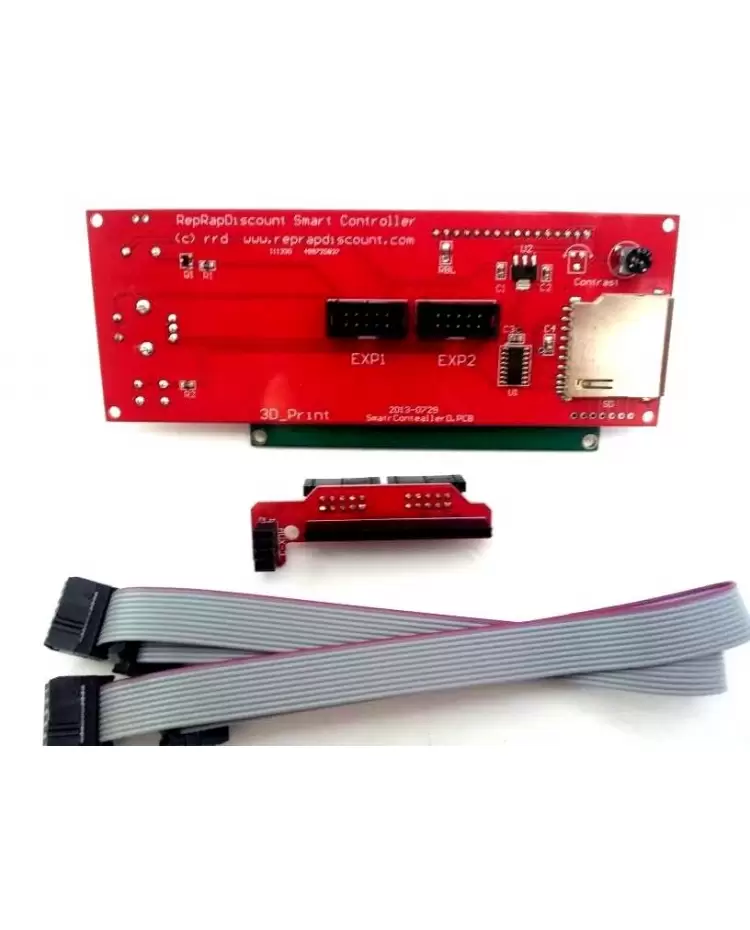

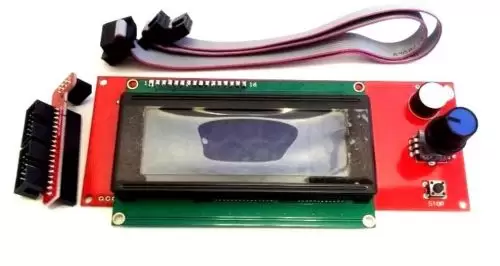

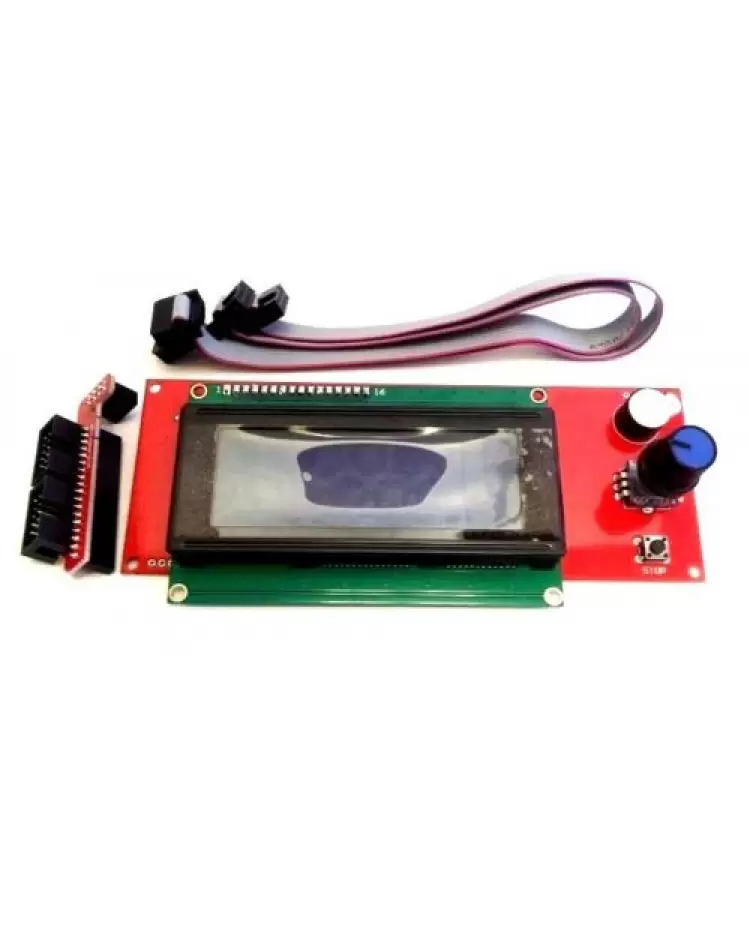

2004 LCD Controller w/ SD Card Reader (Print Without a Computer!) ($12)

LCD screen with adapter for RAMPS 1.4 controller board. Includes SD card reader, buzzer, stop button, and turnable knob that also acts as a button.




** Assembly required

** As we receive customer feedback we do make small alterations to the kit if we feel they improve the kits performance and stability, the kit you receive might reflect some of these slight changes and improvements.

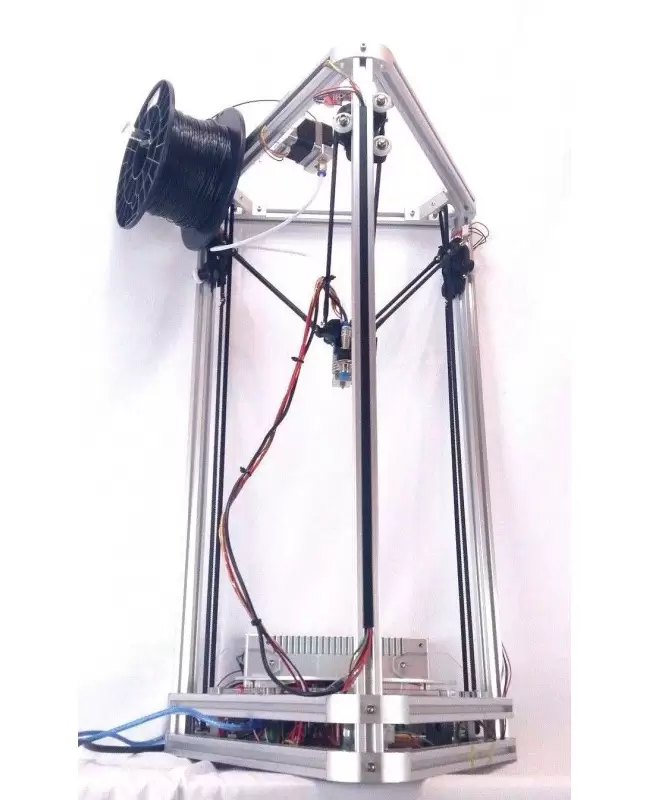

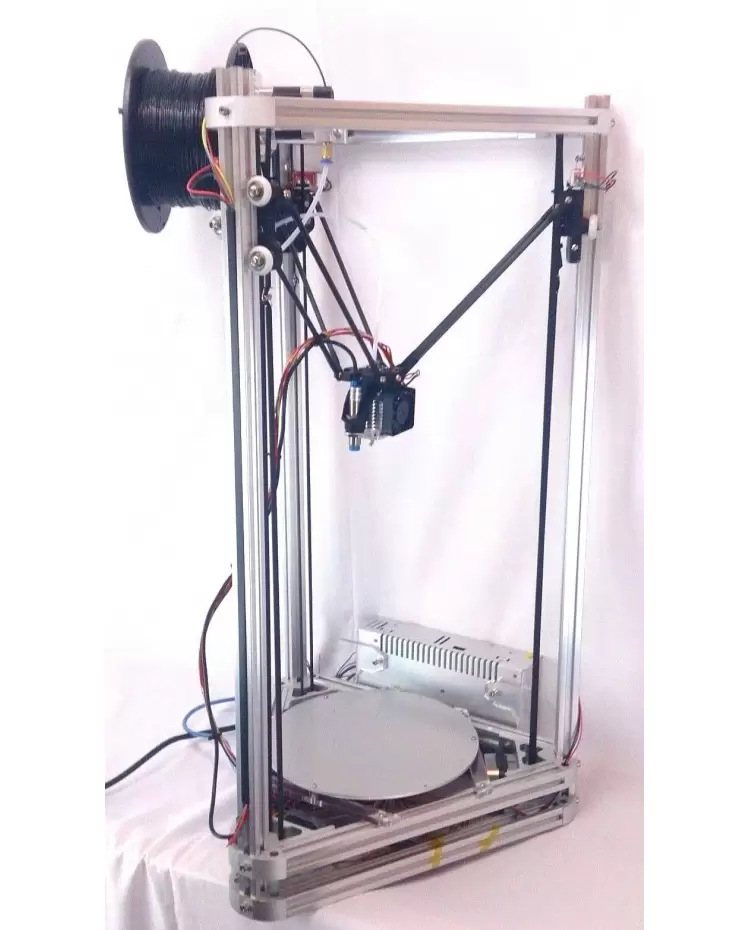

If you are looking for a fun and exciting 3D printer to build that requires a bit more technical skill than our i3 kit this delta printer might be just what you are looking for. This delta style printer is constructed using 2020 extruded aluminum rails making it strong as well as aesthetically pleasing. This printer also comes with an auto level servo that will set a relative bed level without you making the physical adjustments to the bed. All in all this is a great kit and worth the time required for this slightly more demanding setup.


  Buyer Protection Policies


      Safe Payment

                 PayPal-the most reliable payment method.Credit/Debit cards processed by PayPal

      USPS(US)/UPS(Outside US) Insured Shipment

                 High Quality Express Transport without damage.

         1 Year Warranty

                 Just in case. Of course we only ship out perfect products.

      Technical Support Service

                 Experiencing trouble? Feel free to contact us!



This kit includes the following:


  Complete Set of Black Printed Plastic Parts

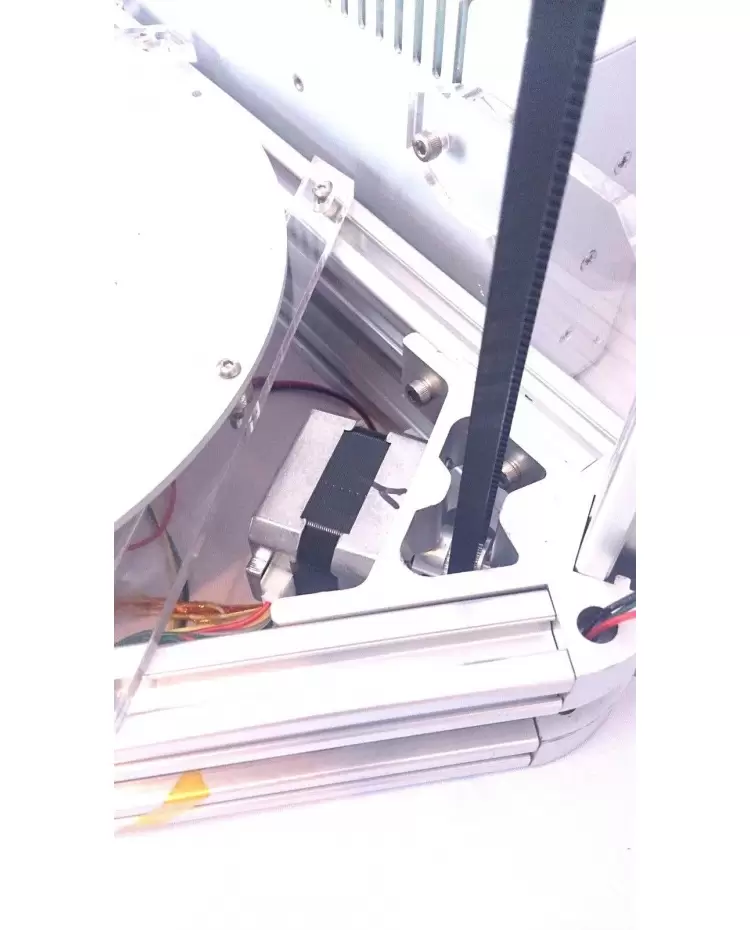

  Aluminum corners

  Pre-Cut 2020 Aluminum Beam ( x3-700mm x9-300mm)

  1x Bearings Set

  Nylon Sliders Wheels

  Aluminum Heated Bed (3mm x 210mm)

  x3 End Stop Circuits w/ LED (Incl. 40" Cables)

  x3 Belt Tension Springs

  Carbon Fiber Rods (Need to Be Cut to Length)

  x12 Tie Rod Ends

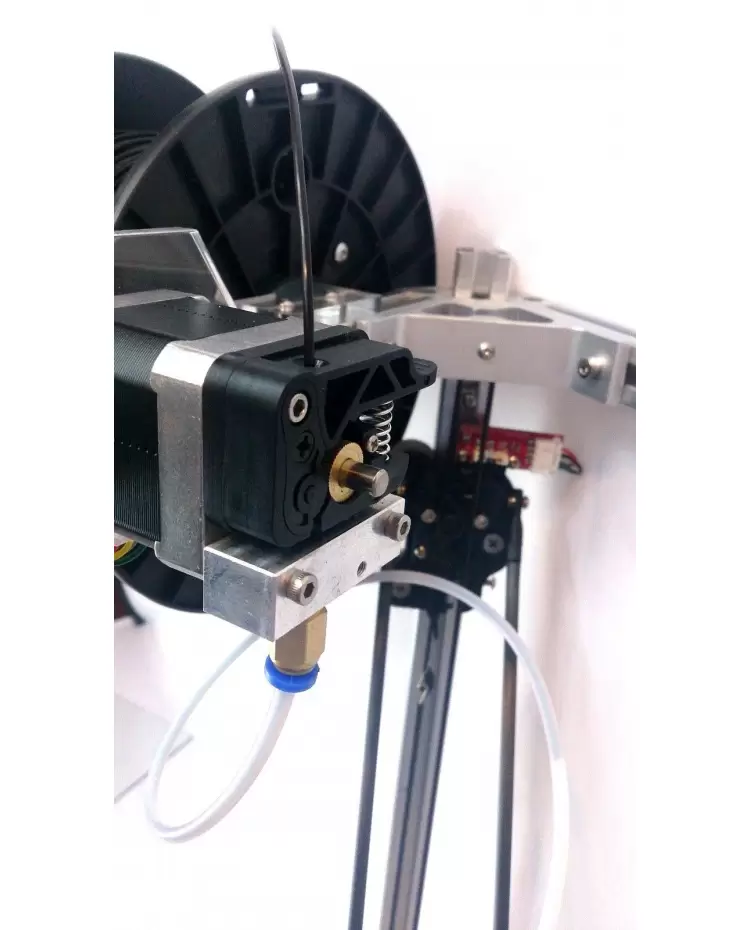

  Direct Drive Extruder w/ Injection Molded Part (For 1.75mm ABS/PLA) MK9 TYPE

  x1 All-Metal Hot End for 1.75mm Filament

  All Required Nuts/Bolts for Assembly

  360W 12V 30A Power supply

  x4 NEMA 17 Stepper Motors

  5 Meters of GT2 Timing Belt

  x3 20 Tooth Pulleys

  x1 RAMPS 1.4 Controller

  x1 Arduino Mega 2560 R3 Clone

  x5 A4988 Stepper Drivers (1 Extra)

  x1 Roll 8mm Kapton Tape

  x1 Inductive Sensor with resistors

  Wiring Set

  Power Cable


Features:


  210mm Print Area x 310mm

  Can print ABS or PLA 1.75mm

  Can run 110V or 220V (Only Comes With US cord)

  Packed And Shipped from the USA


Items you will need:


  Tools

  Filament

  Time


Build Guide / Firmware and Software


Google Drive link


Disclaimer:


This is a kit of components for assembly into a 3D Printer by the end user. Building and using the printer is potentially very dangerous as it involves electricity and high temperatures.

Building the printer will require a certain amount of physical dexterity, common sense and a thorough understanding of what you are doing. We have provided fully comprehensive build documentation to enable you to build your Folger Tech 3D Printer Kit in a safe manner.

However ultimately we cannot be responsible for your health and safety whilst building or operating the printer, with that in mind be sure you are confident with what you are doing prior to commencing with building or buying. Read all of the manual to enable you to make an informed decision.

Building and operating involves electricity, so all necessary precautions should be taken and adhered to, the printer runs on 12V supplied by a certified power supply, so you shouldn't ever have to get involved with anything over 12V but bear in mind there can still be high currents involved and even at 12V they shouldn't be taken lightly.

High temperatures are involved with 3D Printing, the Extrusion nozzle of the hot end runs at 230°C, the heated bed runs a 110°C and the molten plastic extruded will initially be at around 200°C, so special care and attention should be made when handling these parts of the printer during operation.

We wouldn't recommend leaving your printer running unattended.We cannot be held responsible for any loss, damage, threat, hurt or other negligent result from either building or using the printer
