Out Of Stock
$275.00 $230.00 Sale -16% OFF
  • Brand: HE3D
  • Product Code: HE3D-BAY-0131

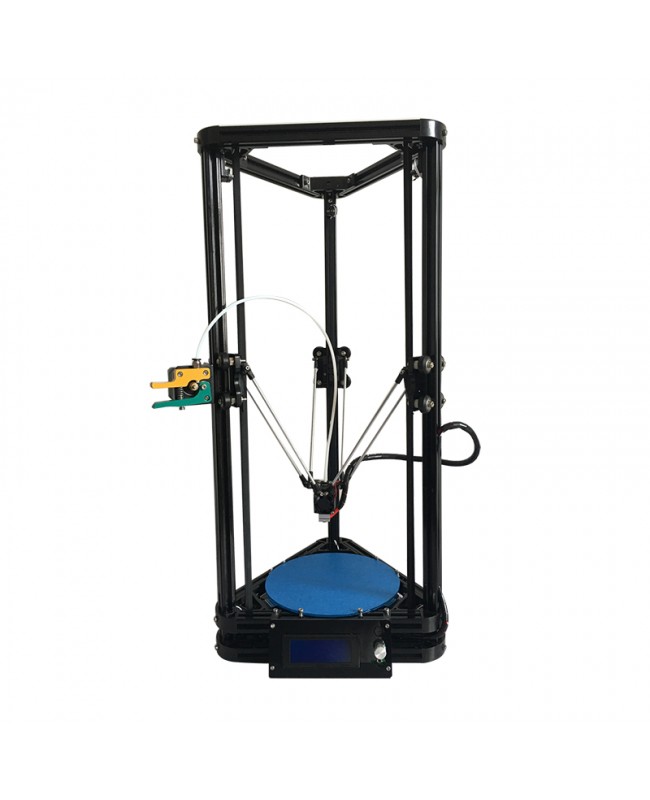

HE3D K200 Auto leveling Delta 3D Printer Kit

with 2 Rolls(Red & Blue) of Free PLA Filaments

Welcome to the HE3D family of Delta style 3D Printers. The K200 breaks from the traditional limitations of Cartesian printers and offers precision and speed with a build volume over 1000 inches (7.87 in. diameter, 11.87 in. height)! The kit is built with the new enthusiast and experts in mind. With high quality 2020 aluminum extruded beams and acrylic forms the construction is simple, yet very robust. The E3D single/dual extruder, capable of up to 260C, opens the possibilities to almost all filament material including PLA, ABS, TPU, WOOD, PVA, Nylon, PVA, PP and most of their variants. The upgraded LCD interface and ATmega2560 control board, expandable to dual print heads, with RAMPS PLUS and 80 step precision motors this printer can achieve ultra-high quality prints down to 12 micron X,Y and 50 micron layer accuracy. The kit includes all necessary tools and requires no soldering. The K200 DIY kit is simple to build and includes detailed video instructions from unboxing to printing. With lifetime customer support your never more than 24 hours away from help. The K200 Single Extruder Printer DYI Kit includes: K200 printer with single/dual extruder(upgrade*), 7.87 inch (200mm) heated print bed(add-ons*), 250W power supply, 2 roles of PLA filament, 4 print nozzles (0.2, 0.3, 0.4, 0.5), 2GB SD card, additional tools, print bed tape, 30 day warranty, lifetime support.

Wiki Guide for HE3D K200

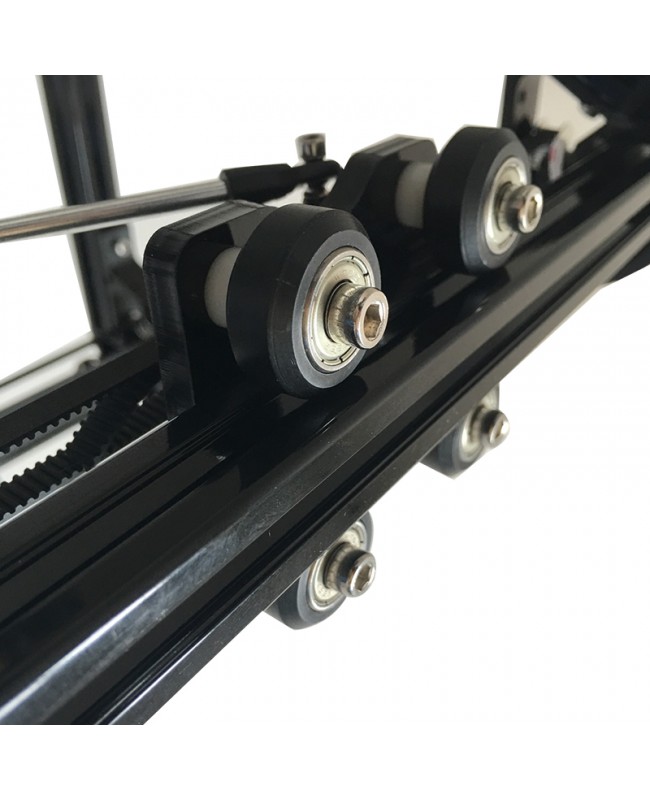

  • ROBUST FRAME: 2020 extruded aluminum with acrylic supports for greater stability and true angles for high accuracy prints with an 7.87 inch diameter x 11.87 inch tall build volume.
  • FULLY CUSTIMIZABLE: Expandable ATmega2560 and integrated RAMPS PLUS control board supports dual print heads, heated print bed, and upgradable pro-extruder to support exotic material like flexible rubber.
  • EASY TO BUILD AND READY TO PRINT: No soldering required, all required tools included, auto-z calibration for easy bed level setup, complete build video tutorials, 4 extruder nozzles (0.2, 0.3, 0.4, 0.5), two rolls of PLA filament, additional tools, and 2GB SD card and USB cable to connect to your Windows/Mac/Linux PC.
  • EXCELLENT SUPPORT AND WARRANTY: Lifetime support with less than 24h response time and a 30-day money back guarantee. Our goal is 100% customer satisfaction. If something is broken or damaged, we will replace the part free of charge and free shipping

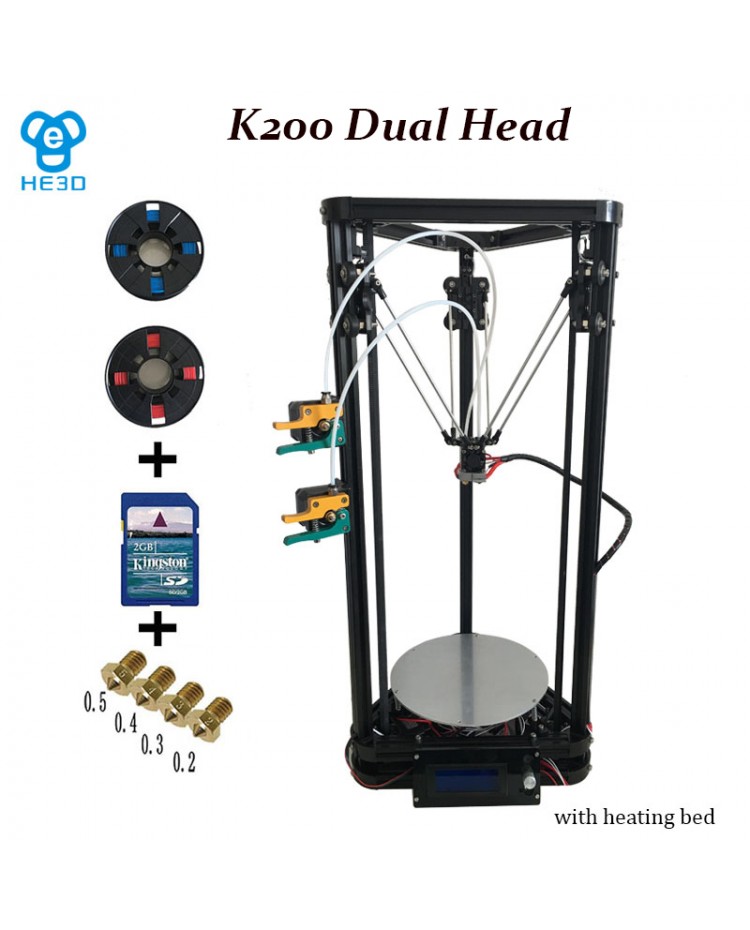

  • 2 in 1 out Dual Extruder upgrade is available ! NEW

HE3D K200 Features

Printing technology: the accumulation of fused deposition molding (FDM)

Auto bed leveling supported

Print Build Size: 200 mm diameter, height 300 mm

Physical Structure: Parallel arm (delta)

External frame: imported aluminum, steel (laser precision cutting)

E3D long distance High Extrusion Extruder and E3D Hot end

Print head material: copper, aluminum, polyether ether ketone

Nozzle diameter: 0.4 mm ( E3D nozzle)

Data Format: STL

Multi Filaments materials supported: PLA, ABS, TPU,WOOD,PVA, Nylon,PVA,PP

Software: Repetier host、Pronterface

Power input: AC110-220V

Power supply output:12V 7A(Without heat bed)、250W 12V(With heat bed)

Print plate: high borosilicate glass/wood bed/heat bed with high temperature 200 mm in diameter

Synchronous belt wheel / 16 teeth, belt GT2

Equipped with LCD

Operating system: Windows/Mac/Linux

Printing Compatibility

PLA, Flexible PLA, Wood (Without Heat bed) Nylon

Performance parameters

Print thickness of 0.05 mm to 4 mm

Mechanical precision is 0.0125mm

High-speed USB device interface or SD card
