In Stock
$399.00 USD $315.00 USD Sale -21% OFF
  • Brand: ORTUR
  • Product Code: LASER MASTER 2

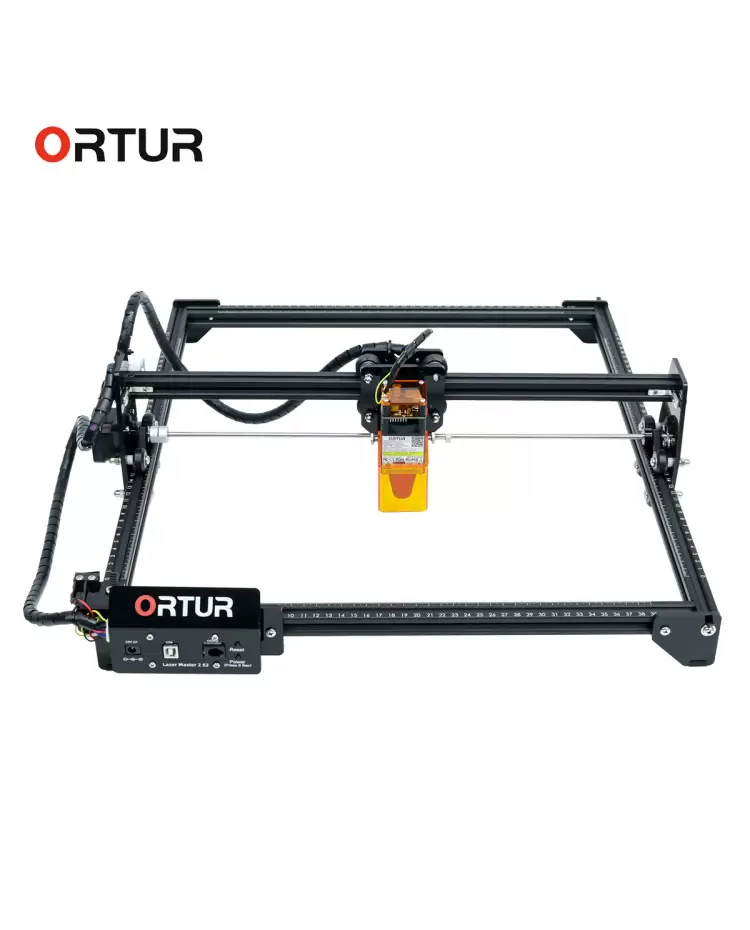

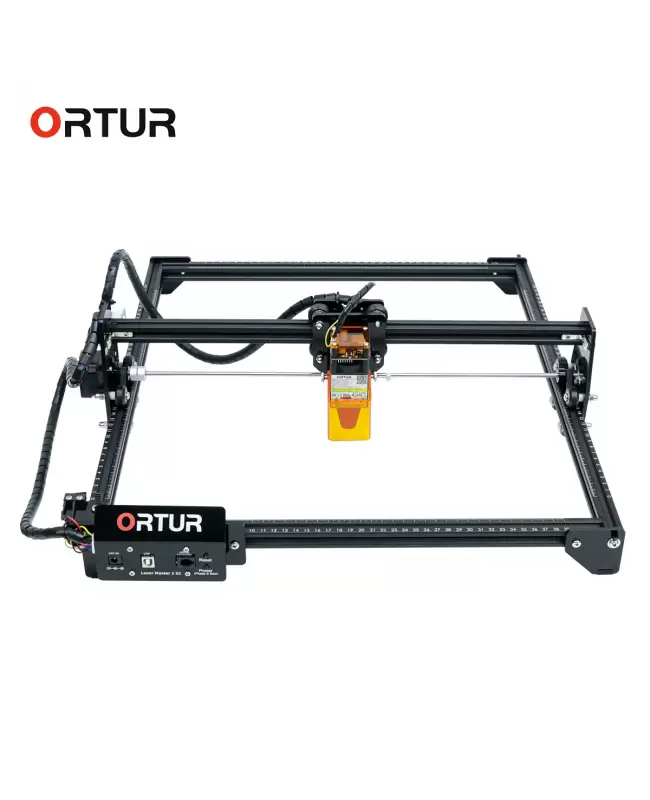

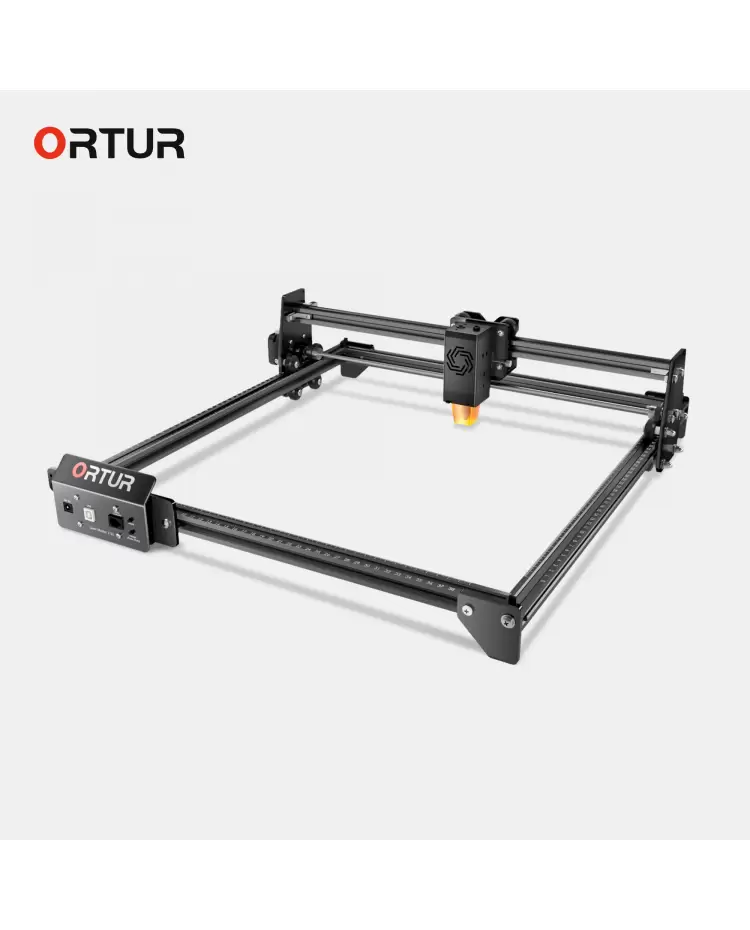

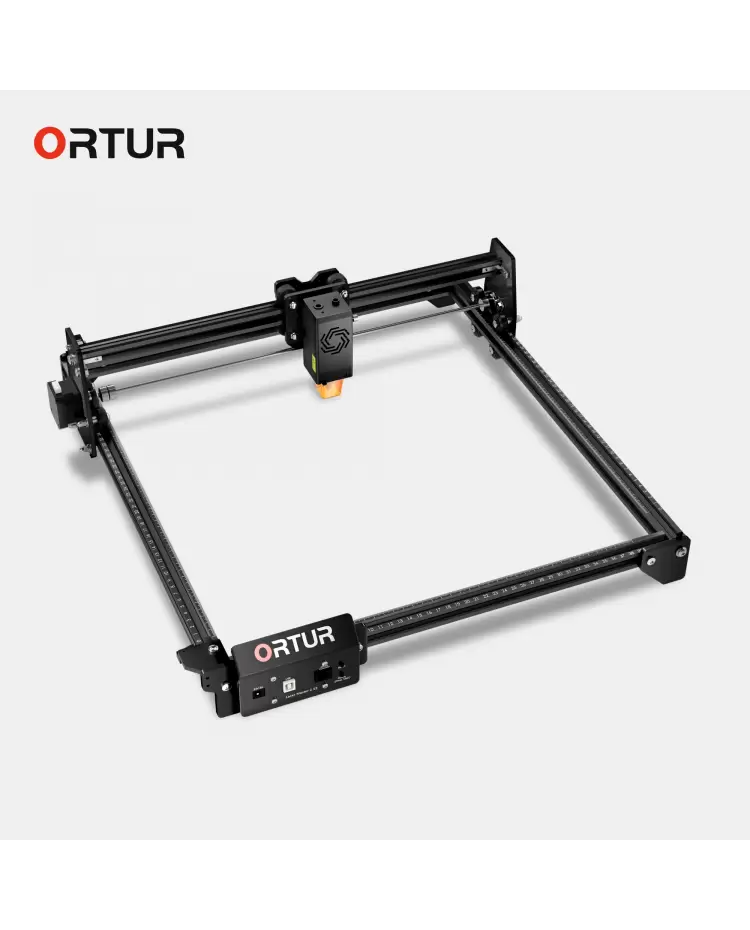

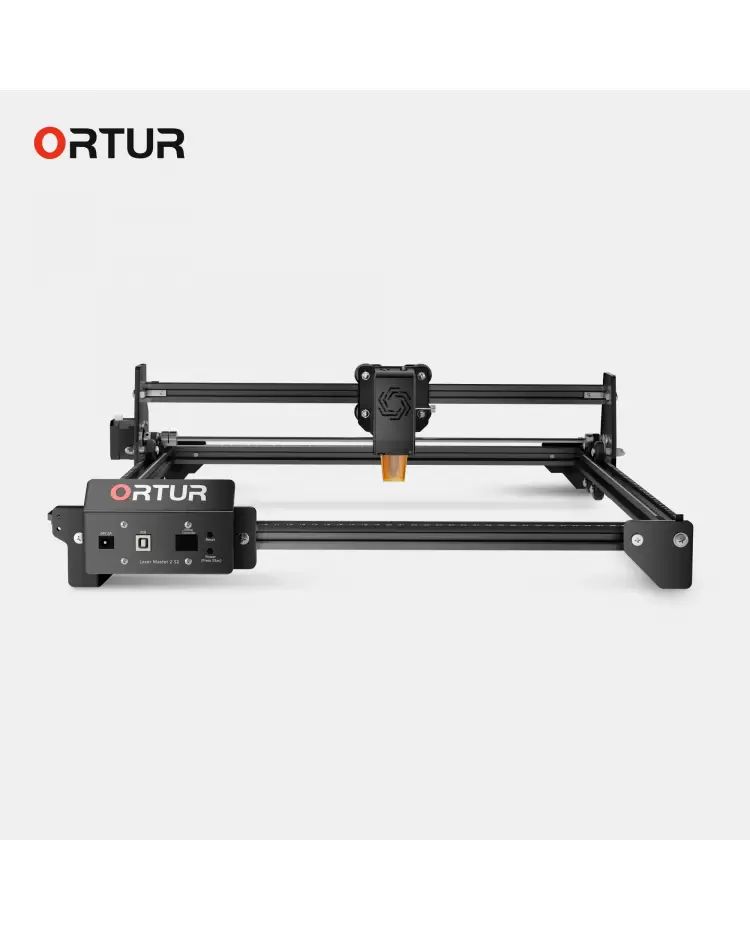

Ortur Laser Master 2 S2 with LU2-4 SF 20W 24V Module

US Warehouse - Ready to ship on the same or next business day

Brief Introduction:

  • The Laser Master 2 - 20W (LU2-4) SF 24V  is a higher power and supports faster engraving and cutting.

Main Features:

  • Specialized Motherboard with STM32 MCU
  • Ortur Metal Enclosure is now available for purchase.
  • Fixed Focus UPDATED!
  • A grounding kit will be supplied.

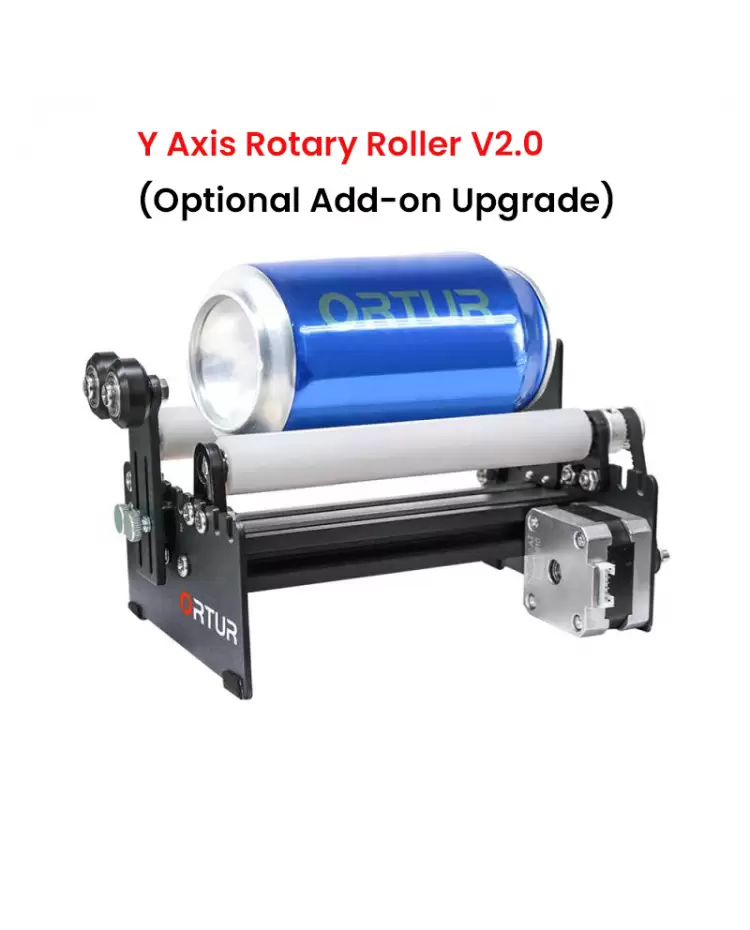

  • Y-axis rotary roller system  used for engraving on cylindrical objects such as engraving texts, patterns on cansOPTIONAL UPGRADE
  • It could preprocess 32 instructions, support a baud rate as high as 921600, more powerful!
  • The Most Advanced 32Bits Laser Engraver Firmware
  • Ortur laser master firmware, smarter, faster, higher precision, and easier to use.
  • Laser power range could be S0 - S1000, compared to 8bits desktop laser engravers, which only has S0 - S255, Ortur Laser Master could control laser beam more accurately, could even use the high power laser unit to "draw" a picture on paper, that the 8bits high power laser engravers could not do.
  • Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S )
  • Active Position Protection
  • There is a G-sensor on the motherboard. If the machine detects unauthorized movement, the laser beam will stop.
  • Laser Beam Safety Guard
  • If your computer system is halted or the USB cable disconnected, the laser engraver stops moving. The laser beam will stop to prevent fire.
  • Exposure Duration Detection and Limitation
  • If the laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off if the motor stopped moving to prevent fire.
  • LaserGRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world; it could import different format images, you could try editing in PhotoShop, Inkscape, CAD, etc., and then connect to the engraver via laser LaserGRBL for engraving and cutting.
  • LightBurn ( paid software, ) supports Windows, Mac OS, and Linux. It's the most popular paid carving software in the world, straightforward to use.
  • This laser engraver supports PWM mode.

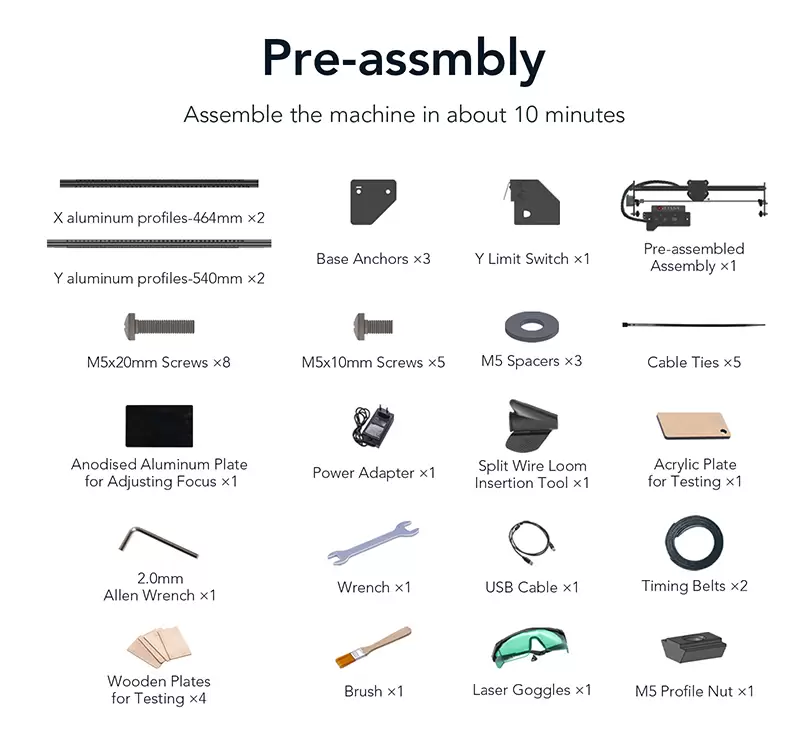

  • Pre-assembled parts just need 10 - 20 minutes to install the machine.

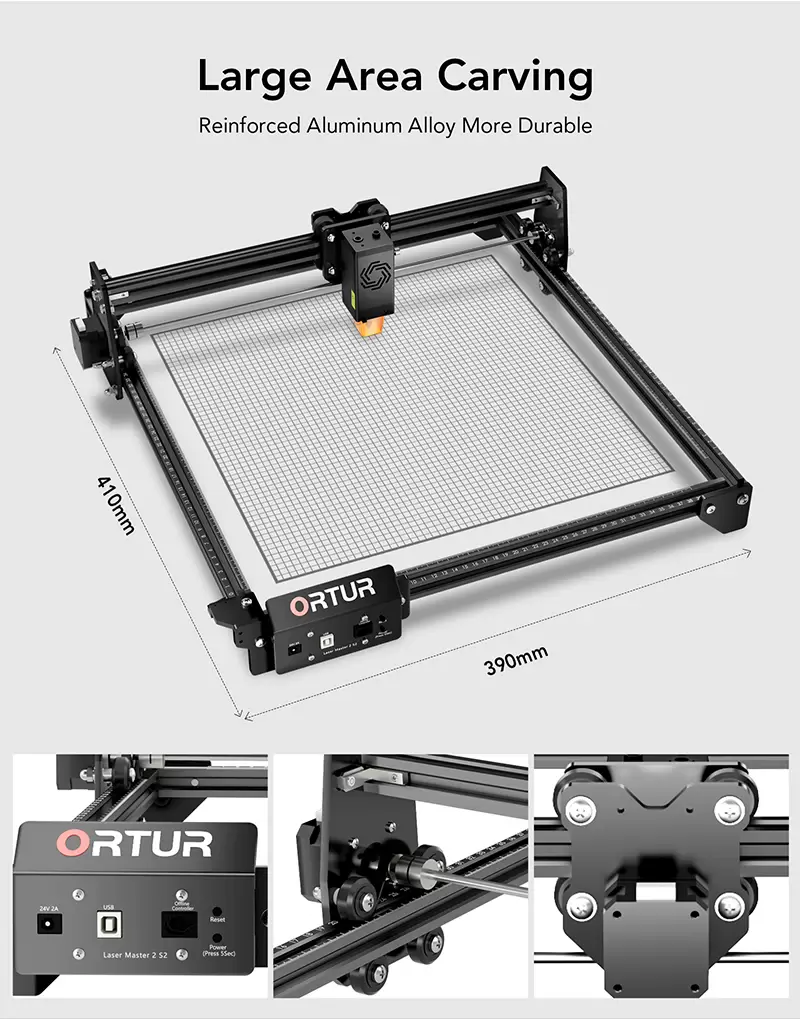

  • 400 x 430 mm large engraving area.
  • Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
  • Synchronizing shaft mechanical structure, avoid out-sync on two Y rails during full speed engraving.

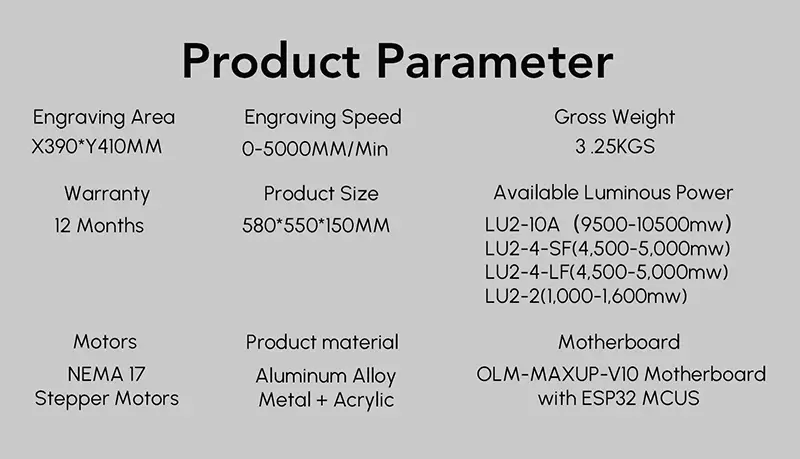

  • Motherboard: 32 bits motherboard with STM32 MCU
  • Firmware: Ortur Laser Master Firmware
  • OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux ( Working with LightBurn )
  • Power of Laser Engraver: 36W, 12V 3A

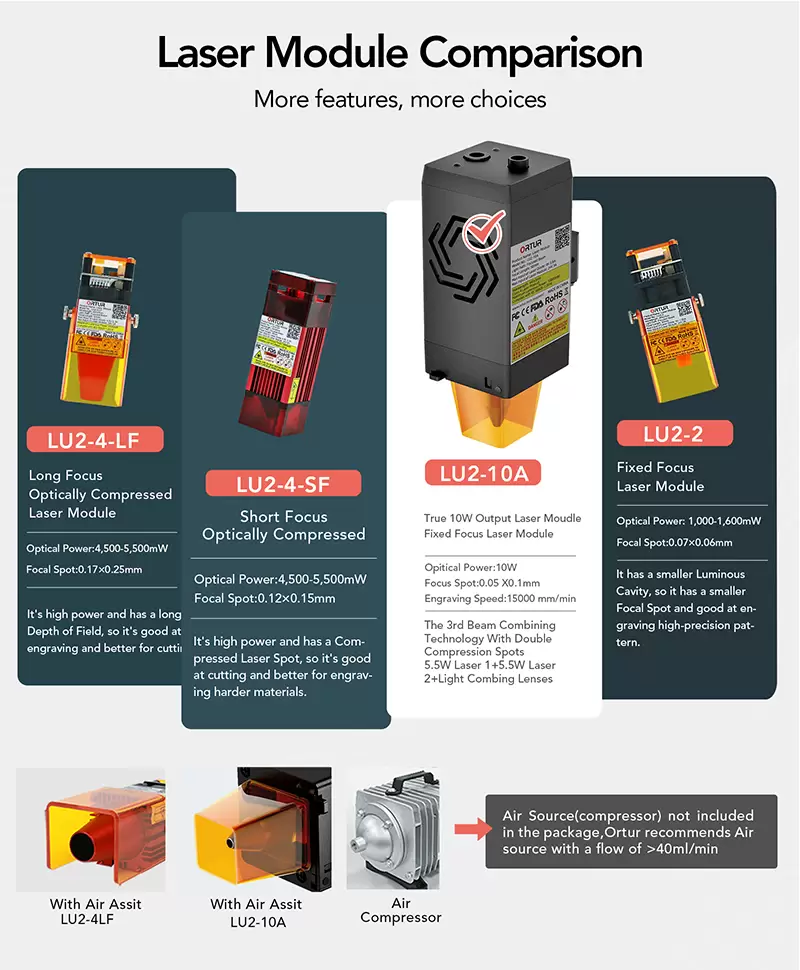

  • Electrical Power of Laser Module: 7W, 15W, 20W
  • Wave Length: 445 ± 5nm
  • Variable Focus: Yes for 7W
  • Fixed Focus: Yes for 15 W, 20W
  • Default Focal Length: 55MM for 15W & 20W Laser Module; 58MM for 7W Laser Module
  • Input Format: NC, BMP, JPG, PNG, DXF, etc.
  • Carving Area: X: 400MM x Y: 430MM
  • Carving Speed: 3000MM / Min and less
  • Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, it's about 0.81um pixel precision )


  • Please wear goggles when operating the laser engraver. Wear safety goggles to avoid blindness.
  • Please do not touch the laser emitter with your hand, or it may burn your hand.
  • Please avoid a strong impact on the machine.
  • Children under 14 are not allowed to use this product, and children over 14 need adult supervision.
  • The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
  • This product is not recommended for industrial cutting due to its high engraving speed.


 Ortur Laser Master 2 -User guide(English) or Alternate link

 Ortur Laser Master 2 - Cutting & Engraving properties/Data Sheet.
