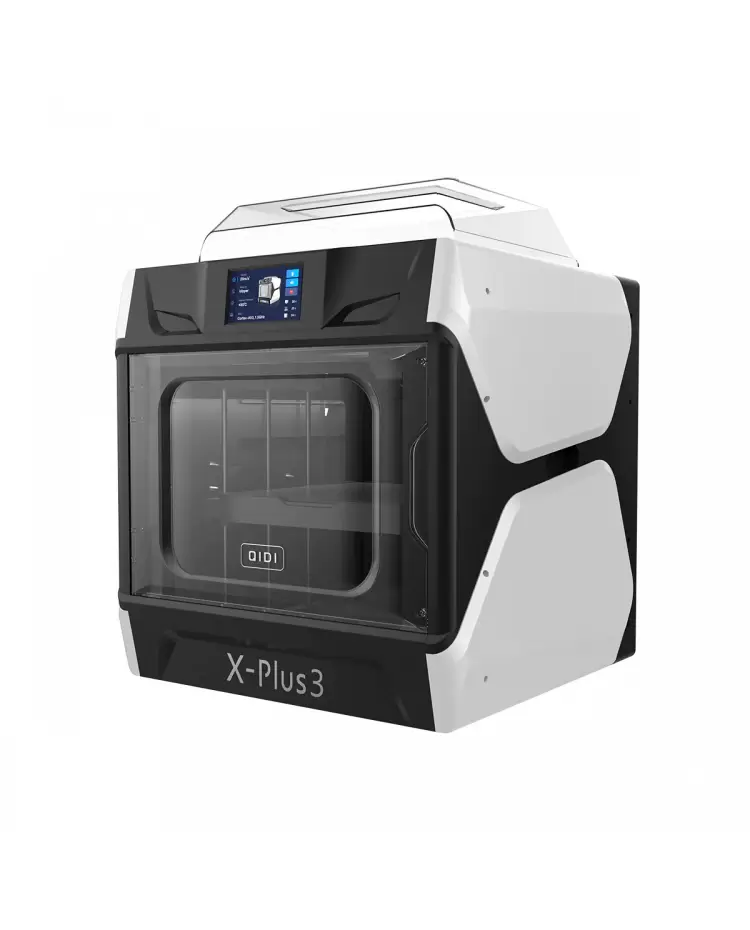

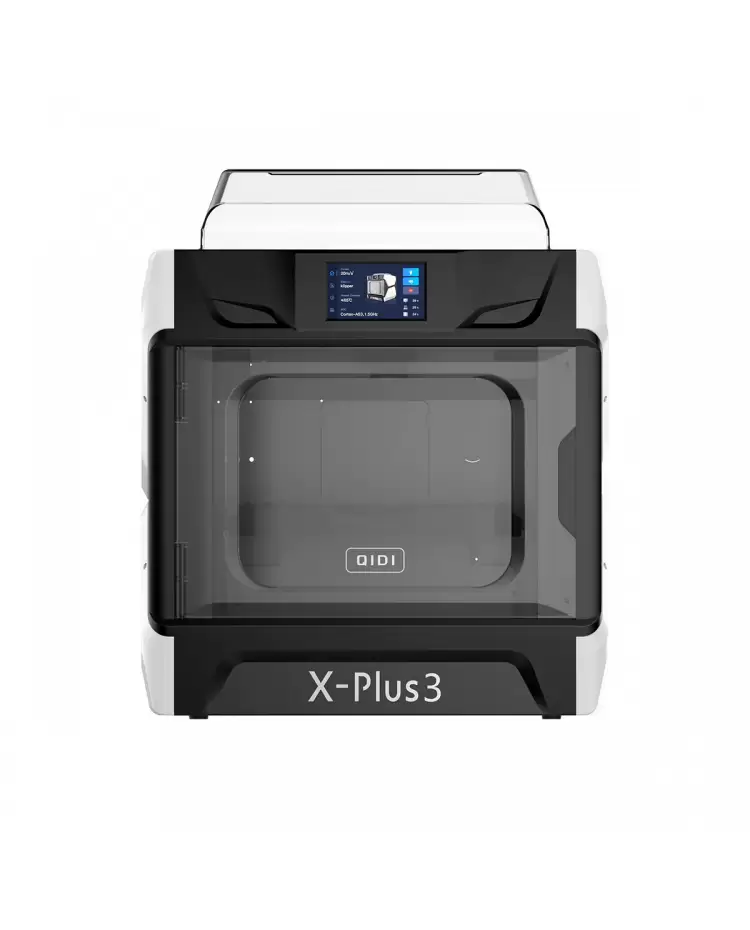

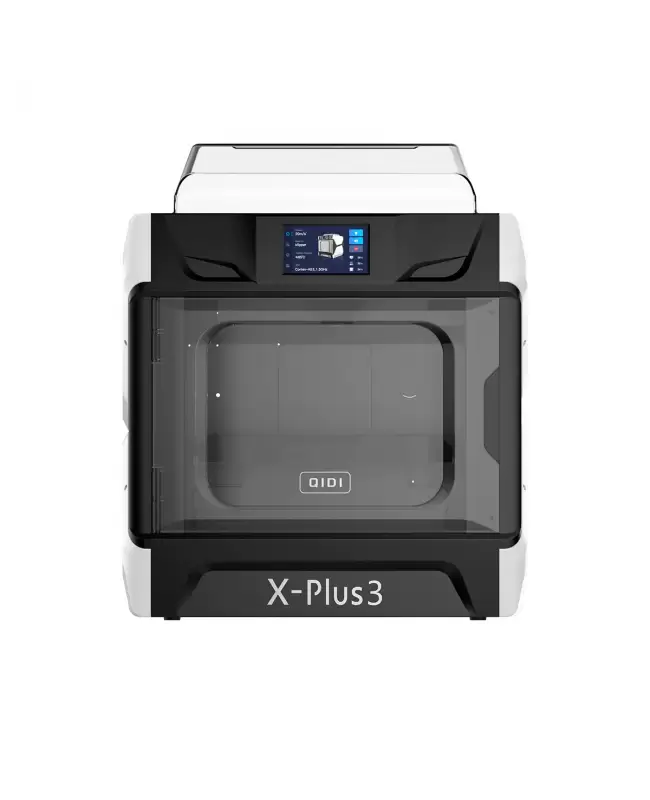

Qidi Tech X-Plus 3


The ability to print high-performance materials with ease, faster printing, combined with its user-friendly interface and innovative features, the Qidi X-Plus 3 is an attractive choice for businesses seeking greater efficiency at a competitive price.


QIDI TECH X-PLUS 3 FEATURES & HIGHIGHTS

  • Ultra-Fast Printing Capability
    • The Qid X-Plus 3 can print a Benchy in just 14-16 minutes - a feat that is made possible by its lightweight, hardened wear-resistant carbon fiber rods and CoreXY Structure and a 9.5:1 gear ratio. This ultra-fast printing capability can significantly increase productivity and save money by allowing one printer to do the work of many.
  • Klipper firmware
  • Controlled temperature chamber and drying box
    • The Qidi Tech X-Plus 3 printer has a controlled temperature chamber and drying box that enable it to print high-performance materials such as ABS or PETG.
    • The chamber can be heated to as high as 65°C, the extruder up to 350°C and the hot bed 120 °C. There are LEDs installed in order improve visibility during operation
    • The printer's precise temperature control enables users to achieve superior print quality for even the most demanding materials.
  • Resonance compensation & 16 point auto leveling.
    • The Qidi X-Plus 3 is equipped with resonance compensation technology, which reduces printing vibrations to give you smoother and more precise prints.
    • The printer has an inductive sensor that performs 16-point auto bed leveling.
    • The advanced automatic leveling system works in conjunction with this feature to ensure hassle-free calibration and consistent high quality prints.
  • Silent, Strong & Durability
    • X-Plus 3 uses the TMC2209 for its X and Y axes, which feature sensor less home positioning. The Z axis is supported by optical limit switches; it also has dual lead screws. Linear rods are used in both Y and Z axes while carbon rods provide support to the X axis in order to provide more stability during operation.
  • Double-sided flexible magnetic HF printing plate
    • The 280x280x270mm print size of the printer makes it ideal for larger projects in a variety of industries.
    • The X-Plus 3 comes equipped with a double-sided flexible magnetic HF printing plate, which makes it easy to remove printed models by bending the plate.
  • Two types of Hot ends & its Flexibility
    • The copper alloy nozzles are appropriate for printing regular filament types like PLA, PETG, and ABS.
    • Hardened steel nozzles are suitable for abrasive filaments like carbon fiber—both sets have high flow rate nozzles capable of reaching up to 35mm/s³ and the maximum nozzle temperature can go up to 350C.
    • The extruder has a 9.5 to 1 gear ratio, and in addition to the hotend part cooling fan—the printer features an auxiliary cooling fan on its right side.
    • The flexibility provided by its interchangeable nozzle options enables users to tailor the printer's performance to their specific needs.
  • Ease of installation & User-friendliness
    • Ease of installation is another important aspect of the X-Plus 3. The printer comes fully assembled, reducing the amount of effort required to set up.
    • This user-friendly approach extends to the software designed to work with the X-Plus 3, which is easier and more accessible than ever before—making printing a breeze for people of all skill levels.
  • Connectivity
    • The printer is equipped with a 5” touch screen and supports WiFi as well as Ethernet network printing.
  • Cost-effective solution
    • The X-Plus 3 is an excellent choice for businesses that need a high quality printer without breaking the bank.


QIDI TECH X-PLUS 3 TECHNICAL SPECIFICATIONS

TechnologyFDM
Build Volume 280*280*270mm
Dimensions 511*527*529mm
Net weight (kg)19.5
Printing Speed600mm/s
Extruder Flow:35mm³/s
Extruder Temp350°C
Hotend (Included)

Copper alloy nozzle hotend For Common materials

Hardened steel nozzle hotend For Abrasive materials

Auxiliary Part Cooling FanYes
Chamber Temperature Control65°C Independent Chamber Heating
Chamber Circulation Fan With Activated carbon air filterNo
Screen5.0 inch 480*272 touch screen
Seal printDryer Box + Desiccant
Connection OptionsWi-Fi/USB Flash Drive/Ethernet Cable
Rated Power800W
Recommended FilamentPAHT-CF,PET-CF,PA12-CF
Compatible filamentPLA, ABS, ASA, PETG, TPU, PET-CF, PA12-CF, PC, UltraPA, Nylon, etc.
StructureCoreXY
Z AxisDouble Z axis
X axisHardened Wear-resistant Carbon Fiber Rod
Firmware:Klipper
Printing Acceleration:20000mm/s²
Printing Accuracy:±0.1 mm
Filament diameter:1.75mm
Bed Leveling:Automatic Leveling
Extruder transmission ratio9.5:1
Hot end:Ceramic Heating Core
Extruder:High-flow Direct Drive Extruder
Nozzle diameter:0.4mm (0.2,0.6,0.8mm Optional)
Hot bed temperature:120C
Printing Plate:Double-Sided Flexible Magnetic HF Plate
Filament Detection:Yes
Resonance CompensationYes
Pressure AdvanceYes
Voltage:100-240VAC, 50/60Hz
Main Processer:Cortex-A53,64-bit Processor 1.5Ghz,8G-EMMC,1G DDR3
Slicer:

QIDI Print and other third-party software,

such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.

Operating System:Windows, MacOS, Linux
AssembledAssembled and First Print within 10 minutes


WHAT'S IN THE BOX

X-PLUS 3D Printer + Dryer BoxDesiccant
500g filamentPower cord
Filament spool holderEthernet cable
Holder coverScraper
Allen keys H1.5,2,2.5Glue stick
7mm spannerUSB 2.0 flash drive
Flat head screwdriverSpare parts kit
0.4mm nozzle cleaning toolOrdinary hotend
