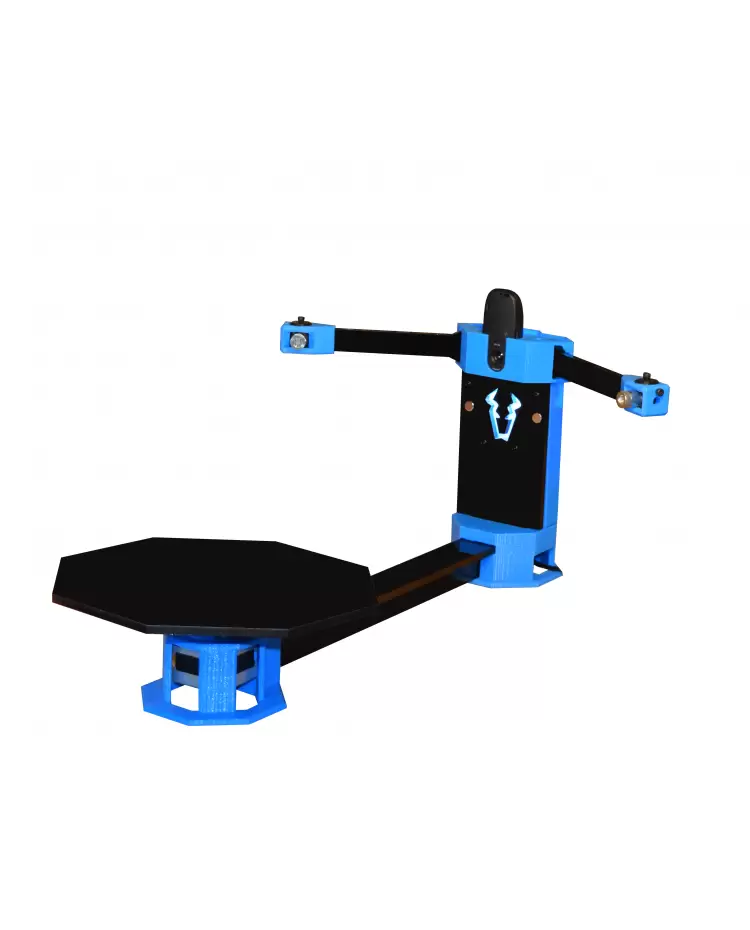

Cowtech Standard Ciclop 3D Scanner

Made & Designed in America

Ships from USA - Free Shipping to US


The CowTech Ciclop 3D scanner is the most affordable laser scanner on the market today. With a large scan volume and high quality resolution, it is a perfect companion to your 3D printer.

The Classic Ciclop Scanner kit, discounted so the user can print their own parts which are available for download here.

Full kit contains:

  1x Acrylic parts

  1x Bearing

  1x Custom CT Scan Shield and UNO R3

  1x Logitech C270 webcam

  2x Line lasers

  1x LED strip

  1x NEMA 17 29mm stepper motor

  1x Hardware kit

  1x Right angle usb cord

  1x 12V 1A power supply


  Buyer Protection Policies


      Safe Payment

                 PayPal-the most reliable payment method.Credit/Debit cards processed by PayPal

      UPS Insured Shipment

                 High Quality Express Transport without damage.

         1 Year Warranty

                 Just in case. Of course we only ship out perfect products.

      Technical Support Service

                 Experiencing trouble? Feel free to contact us!

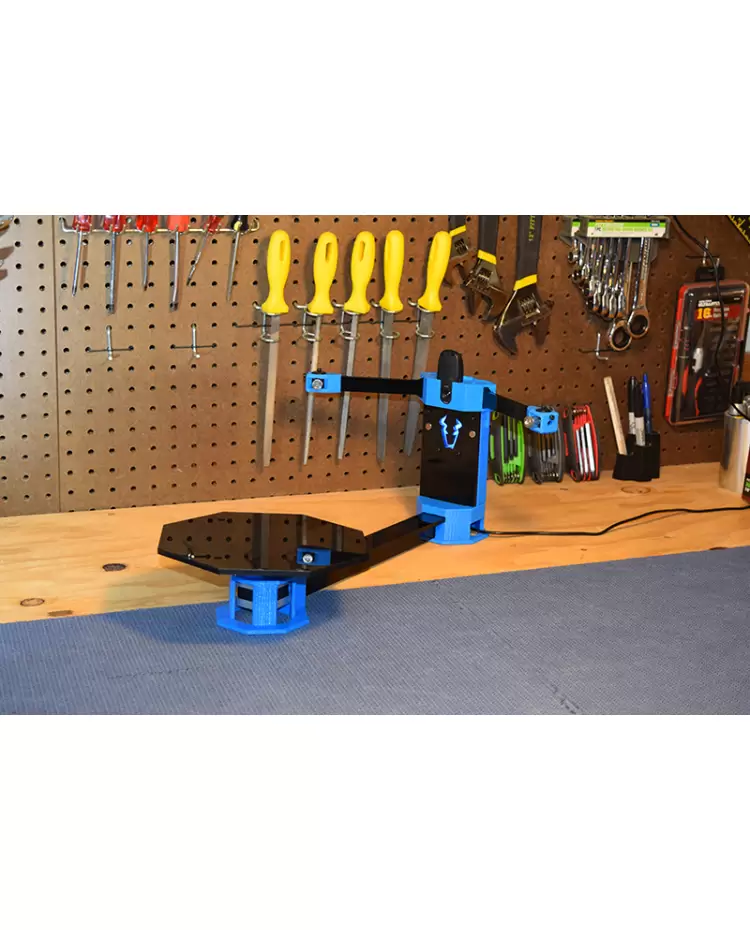

The 3D printing revolution has come, and it’s time for 3D scanning to follow. The CowTech Ciclop is a RepRap 3D scanner with a large scan volume, simple, yet elegant design, and a disruptive price point that blows any other laser scanner out of the water. The user prints the plastic parts on their own printer in any color and resolution they choose, and can assemble the scanner in less than 30 minutes. Then, simply take any object you want to replicate, set it on the 200mm laser cut acrylic turntable, and start scanning. We wanted to make sure our product was usable for anyone who owns a 3D printer, so we meticulously designed our parts for a print bed volume of only 115mm x 110mm x 65mm (4.5 x 4.3 x 2.6in) so they can be produced on even the smallest of printers.


How it Works




Laser scanners are a very common type of 3D scanner that use a pair of line lasers that flash in succession in combination with a camera and a rotating turntable. As the lines flash on the object, they trace the outline of the object in red light. The camera then picks up the location of the laser lines in 3D space, converting those lines into hundreds of thousands of points, and as the turntable rotates, every side of the object is scanned into a cloud of points, which can then be stitched together to form a mesh that replicates the surface of the object with up to 0.5mm precision.



3D printed model lion, 0.2mm resolution, PLA, Prusa i3

The term 3D scanner is a bit of a misnomer. Technically, most 3D scanners are actually point cloud generators. The scanner itself is a tool to make a .PLY file, or a point cloud, made up of hundreds of thousands of points that represent the geometry of the object. The typical user will want to convert this point cloud to an .STL file, which can easily be printed on a 3D printer.

Scanned and post processed model loaded into Cura for slicing alongside the model mesh in CloudCompare

Once you have a digital 3D file of the part, the possibilities are endless. The CowTech Ciclop uses Horus, software developed by BQ for their version of the scanner. Unfortunately, Horus doesn't support direct .STL exports at this time, but this feature may be developed in later versions of the program. Fortunately, there are many options for post processing programs that can stitch the point clouds together into a printable file. These include Meshlab, Cloudcompare, Netfabb, Blender, and more. We recommend Meshlab and Cloudcompare, and provide detailed documentation with the scanner on how to use these programs.


User submitted 3D prints

The CT Ciclop scanner is a fully open source Rep Rap project, and part files and details on how to build your own can be found in the downloads section of our website.​

All laser scanners can struggle with objects that are very black, very shiny, or furry, as the laser doesn't register properly with the camera. The CowTech Ciclop, is designed for experienced users who can familiarize themselves with different software programs in order to use the scanner and get high quality outputs from it.

We like to think of a 3D scanner like a video camera. A nice camera gives you the tools to take great pictures and videos, but without post production work in a video editing or photo editing program, you will likely be disappointed in the end result.
