Out Of Stock
$389.00 $179.00 Sale -54% OFF
  • Brand: SOVOL
  • Product Code: SV01

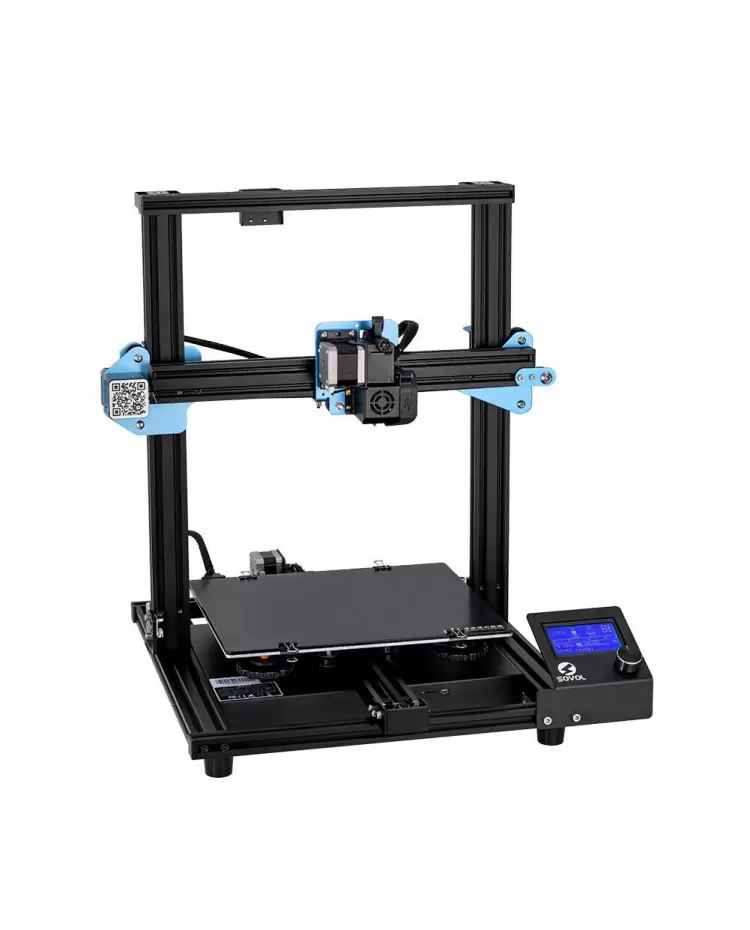

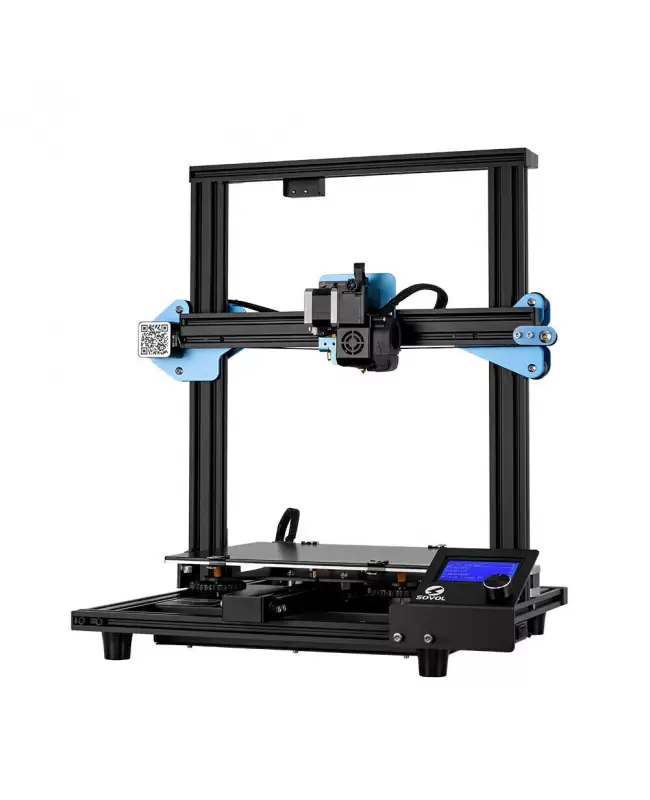

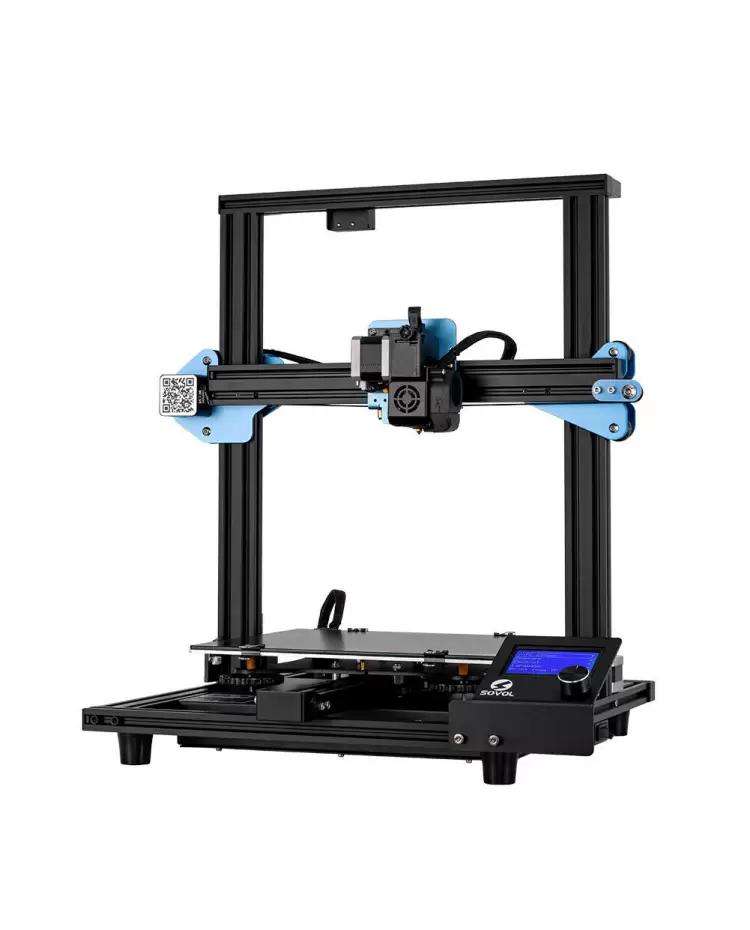

SOVOL SV01 3D Printer

SOVOL SV01 Features

Direct Drive Extruder

  • The most significant feature on the SV01 is the direct drive extruder.
  • Direct drives are a great benefit on 3D printers as they alleviate all of the issues seen with Bowden cables.
    • Allow you to print with soft and flexible filament materials like TPU and TPE.

Carbon Silicon Crystal Glass Coated Bed(Tempered)

  • The coated bed plate is uniquely permanently bonded to the heated bed which results in a very stable platform that requires much less calibration between prints.
    • No Warping issues
  • The coating itself is similar to the Ultrabase coating seen on Anycubic 3D printers, and works in the same way, providing a superior gripping surface that negates the need for glue or hairspray while also making prints pop off with ease once they have cooled to room temperature

Dual Z-axis Design

  • Two Z-axis screws and stepper motors drive the vertical axis of the SV01, improving accuracy and precision,
  • Stabilize the printer in larger prints and. add a "pro" level to the printer.

Meanwell Power Supply

  •  24V Meanwell power supply is neatly integrated underneath the printer with an aluminum cover over it, rather than being mounted precariously and unprotected on the outer frame.
    • Protects both the printer and the user and looks more attractive.
  • The cable routing and ATMega2560 motherboard are also under this cover, giving the printer a very neat appearance.
  • Unlike other manufacturers, we haven't  cut corners with a cheap power supply. The Meanwell branded unit is a trustworthy brand which will deliver the power needed without cutting out or causing a safety hazard

 Auto-leveling Sensor Location

While the SV01 doesn’t have auto-leveling, we thoughtfully left space and appropriate mounting holes for a sensor if you should want to upgrade. As this is one of the most popular 3D printer upgrades, but not for everyone, it’s a good idea to not add to the printers price with a feature many people won’t want, while making it easy to upgrade for those that do want to.

Thermal Runaway Protection

So many 3D printers do not have this basic safety feature, to ensures your 3D printer stops sending power to heating elements in the event of an error. This can prevent catastrophic overheating.

Filament Runout Sensor

In the event of your filament running out too soon, the SV01 will detect this and pause your print so you can fit a new spool of filament and resume the print, saving you from failed print disaster!

Power Outage Resume

In the event of a power outage, whether a tripped fuse or an accidental unplugging, the SV01 will simply ask you if you want to resume from where it stopped. Again, this is a print-saving feature that can easily save you from canning hours of printing.

Technical specifications:

Technology FDM
Assembly Pre-assembled
Mechanical arrangement Cartesian-XZ-head
Manufacturer Sovol
Model SV01
Build volume 240 x 280 x 300 mm
Extruder Direct Drive
Extruder Type Single
Nozzle size 0.4 mm
Max. printing speed 180 mm/s
Max. extruder temperature 250 °C
Max. heated bed temperature 100 °C
Precision ±0.1mm
Layer thickness0.1-0.4mm
XY Axis positioning accuracy 0.012mm
Z Axis positioning accuracy0.001mm
Power InputAC Input 115V/230V
Power Output24V DC 350W
Power rating350W
Machine Power 270W
Heat Bed Power 220W
Enclosed print chamber No
Auto-leveling Optional
Connectivity SD Card,USB
Build-in camera for monitoring No
Board Version ATmega2560
Motor parameters 42-40 Stepper motor,42-34 Stepper motor, Step angle is 1.8°
Filament diameter 1.75 mm
Third-party filament Yes
Filament materials PLA, ABS, PETG, TPU
Operating system Windows (XP or higher), MacOSX, Linux
Recommended Slicer Cura, Simplify3D
File types STL, OBJ, AMF
Product dimensions 650 x 785 x 735 mm
Weight 9.8 kg

Buyer Protection Policies

 100% Secure Payment

PayPal-the most reliable payment method. Also accepts card payments(PCI DSS Compliant)

 DHL,UPS Insured Shipment

High Quality Express Transport without damage.

1 Year Warranty

Just in case. Of course we only ship out perfect products.

Technical Support Service

Experiencing trouble? Feel free to contact us!

Shipping Details

Processing (Lead) Time

Ships in 1 to 2 Business days. Proper Testing & Packaging prior to shipment(100% Quality Control)

Delivery Time to Doorstep (Transit)

4 to 5 days via FedEx/UPS/DHL


 User Manual

 SOVOL SV01 1.1.6 Firmware

Sovol Sv01 3D Printer
Printing Technology FFF/FDM
Assemble Type Semi Assembled
Build Volume 240 x 280 x 300 mm
Number of Extruders One
Precision ±0.1mm
Print Speed 180 mm/s Max
Nozzle Diameter 0.4 mm
Max Nozzle Temperature 250 °C
Max. Heated bed temperature 100 °C
Layer Thickness 0.1-0.4mm
Feeder System Direct Drive
XY axis positioning accuracy 0.012mm
Z axis positioning accuracy 0.001mm
Rated Power 350W
Compatible with 3rd party materials? Yes
Filament Diameter 1.75 mm
Material Type PLA, ABS, PETG, TPU
SD Card Reader Yes
USB Port Yes
Built in Camera for Monitoring No
Dual Z axis Yes
Filament runout detection Yes
Meanwell Power Supply Yes
Thermal runaway protection Yes
Enclosed Build Chamber No
Levelling BLTouch Autoleveling optional
Print Pause & Resume Yes
Supported Software/Slicing Cura, Simplify3D
Supported OS Windows (XP or higher), MacOSX, Linux
Supported File Formats STL, OBJ, AMF
Input Power AC Input 115V/230V
Output Power 24V DC 350W
Motherboard version ATmega2560
Motor parameters 42-40 Stepper motor,42-34 Stepper motor, Step angle is 1.8°
Product Dimensions 650 x 785 x 735 mm
Product Weight 9.8 Kg
