UPDATED! TEVO Black Widow 3D Printer Kit V3

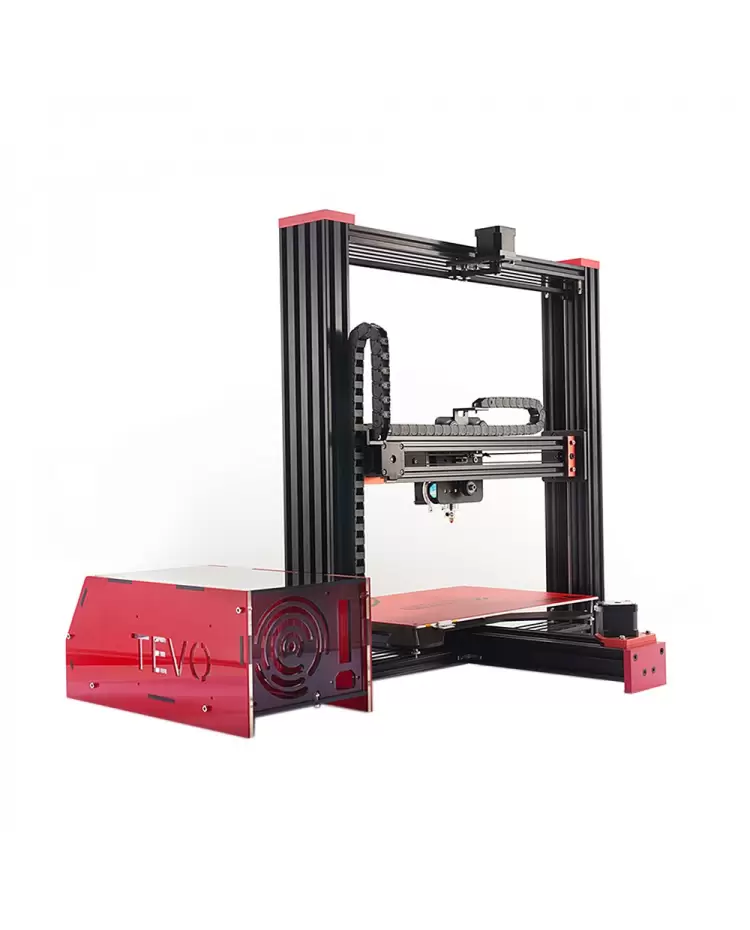

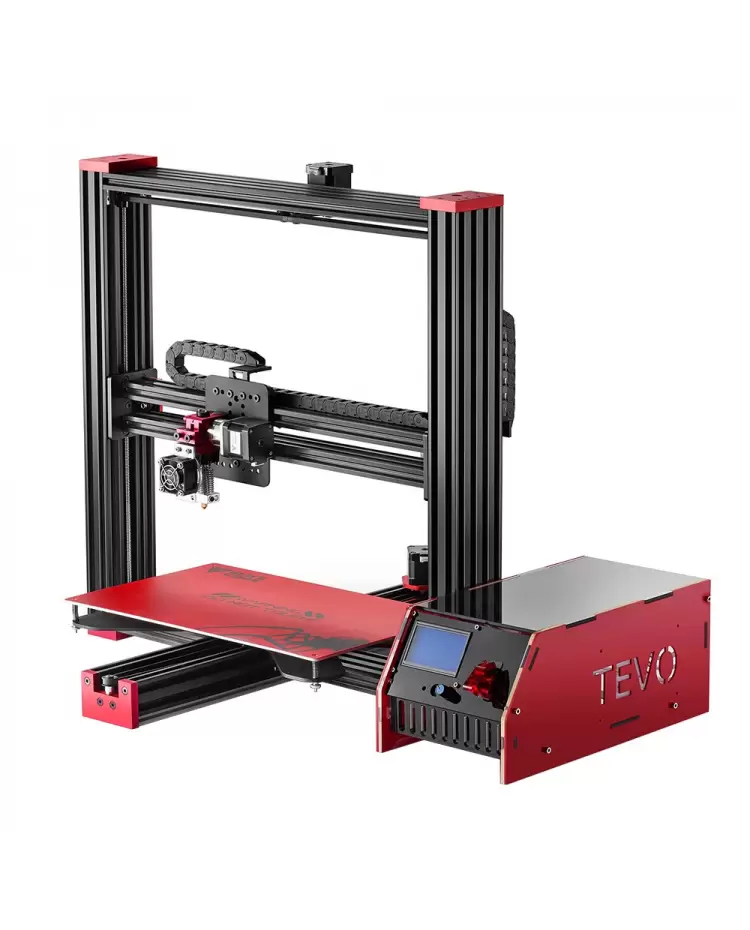

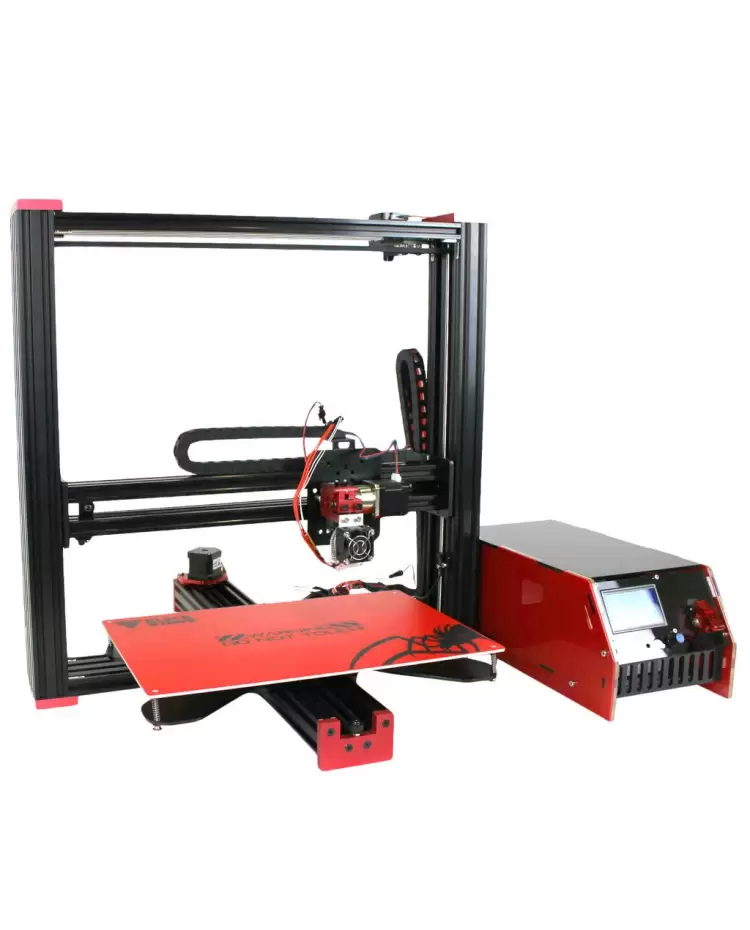

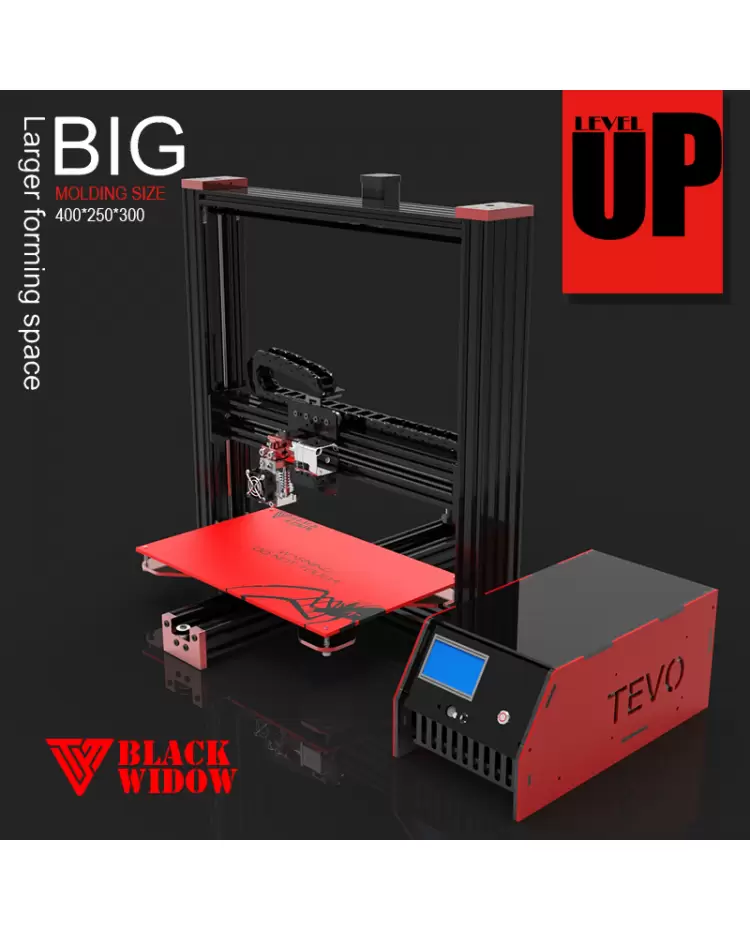

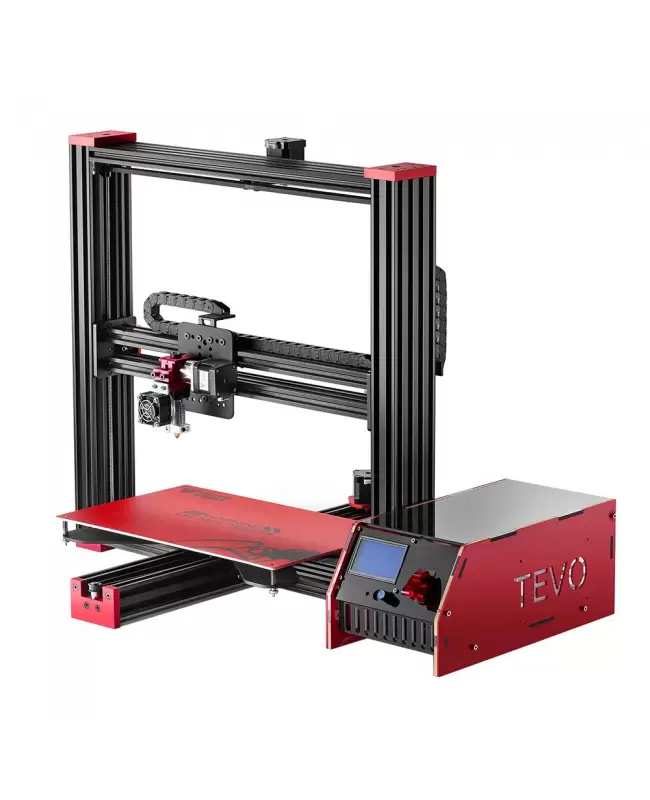

The Tevo Black Widow is a large size DIY 3D printer kit capable of a whooping 375 (X) x 250 (Y) x 300mm (Z) build volume. Features include solid anodised aluminium plates, an all metal 5:1 geared extruder for continuous filament flow, heated bed, inductive sensors and a separated electronics box.This design is known for its simplicity and robustness.

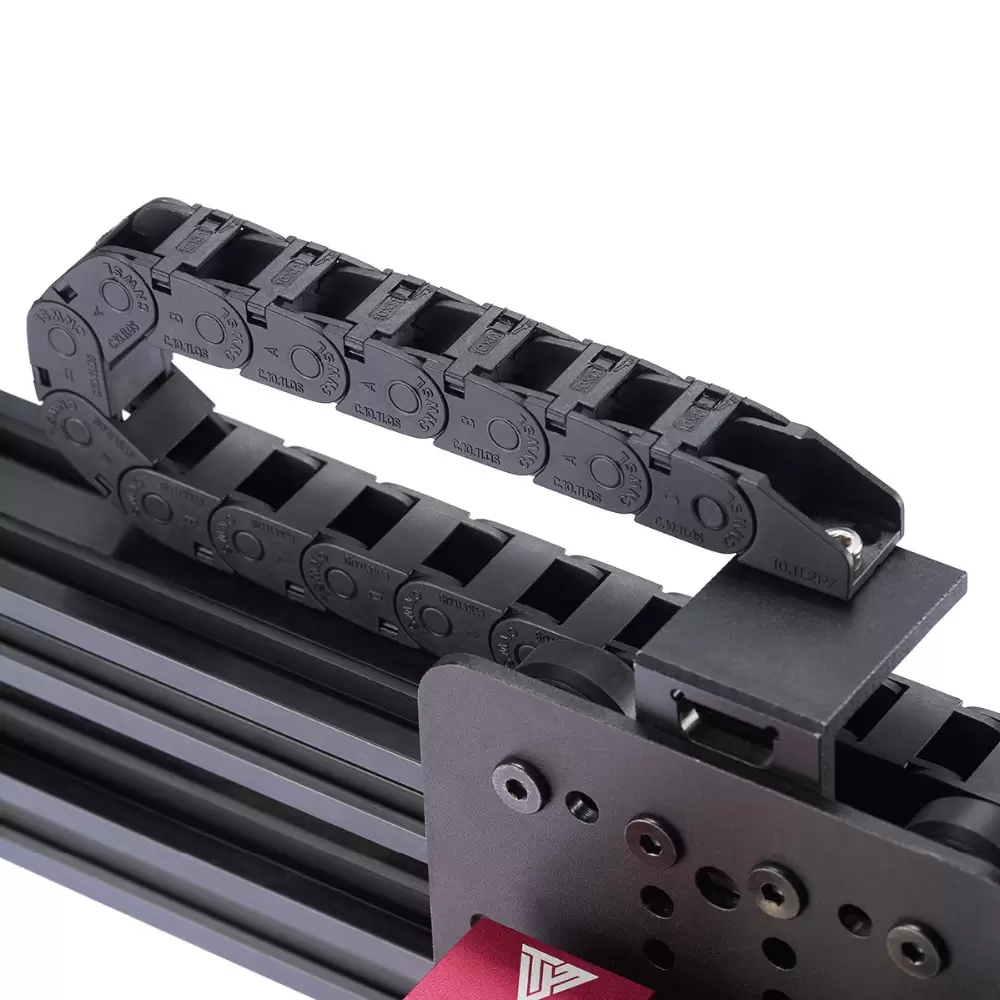

TEVO Black Widow main parts of the frame structure at all fabricated from aircraft grade aluminum and are based on the Open Build V-groove rails. All of the moving parts are supported on V-grove wheels with German made ball bearings for a very low friction silky smooth movement.Even the Heated Bed is supported on an aluminum base plate

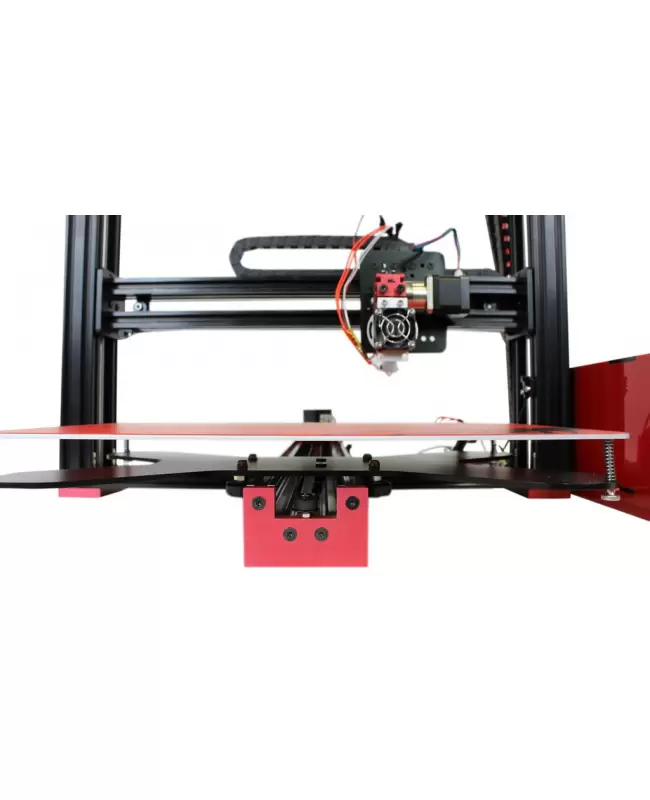

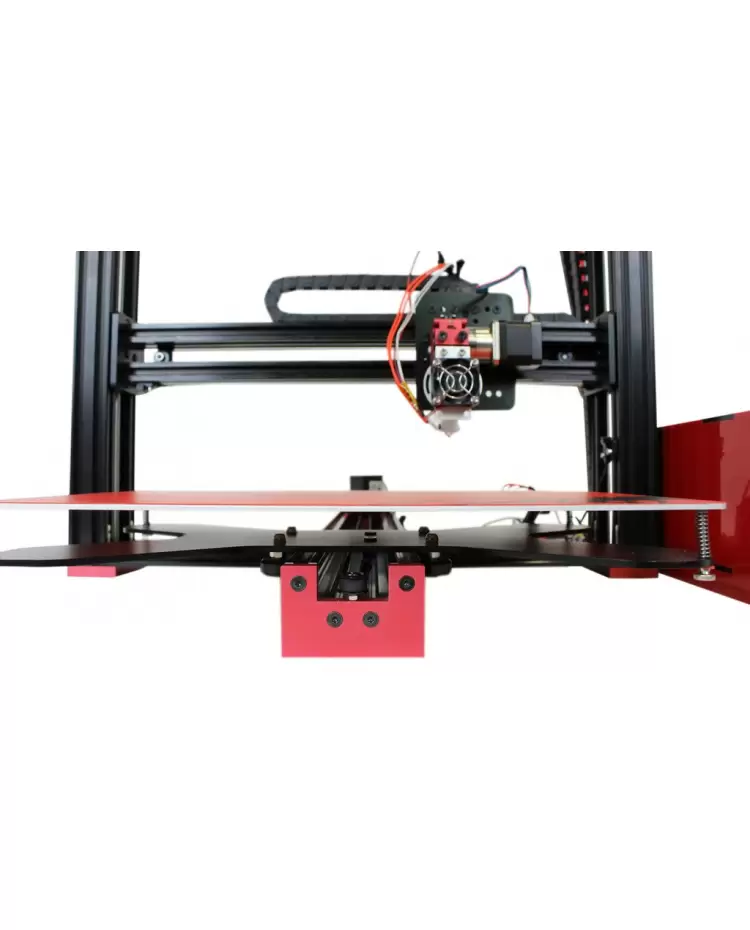

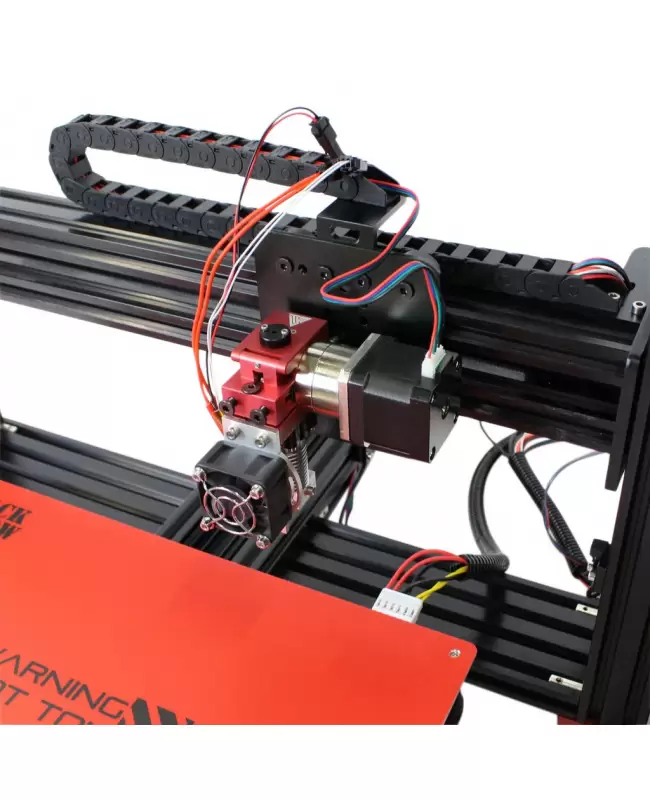

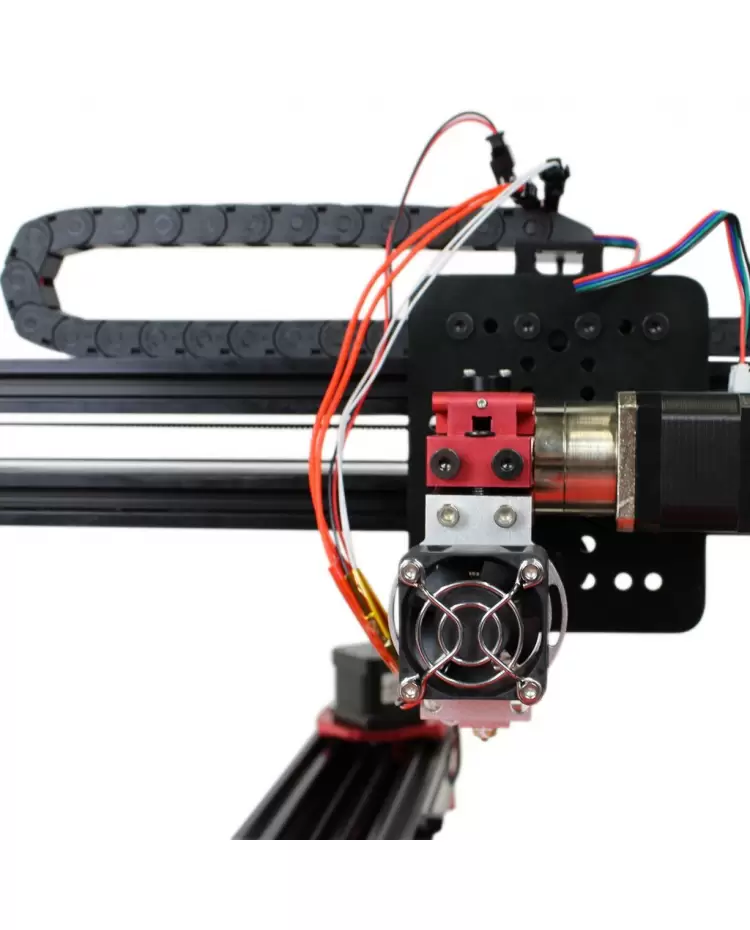

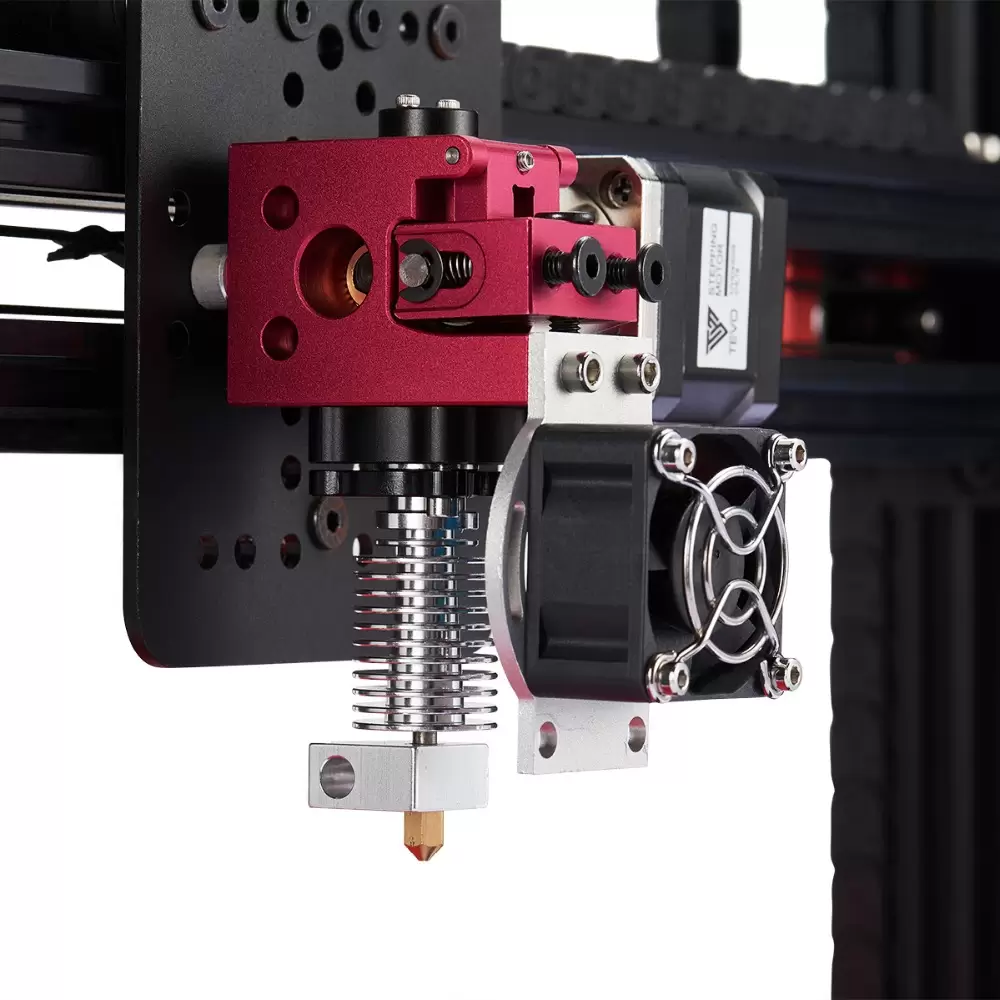

Extruder and feed motor assembly - the hot-end is a new design which contains a direct 5:1 ratio gear-drive feed stepper motor for additional torque.The hot-end is constructed in such as way as to allow removal and installation of the nozzle assembly quickly for cleaning and nozzle changes. The assembly is an all-in-one configuration with direct drive - no more bowden tube between an external feed and the extruder assembly. The all metal construction of the feed assembly allows using filaments of all different types with this printer. Given the feed construction you can even use the Flex filaments with this printer without any change
TEVO Black Widow Highlights:
Super large printing size 370 * 250 * 300mm，accurate positioning XY-axis 0.012 mm, Z-axis 0.004 mm.
All metal Microstep extruder can ensure a continuous filament flow.
Compatible for 1.75mm filament such as PLA, ABS, Flexible PLA, HIPS, WOOD, PVA, Nylon.

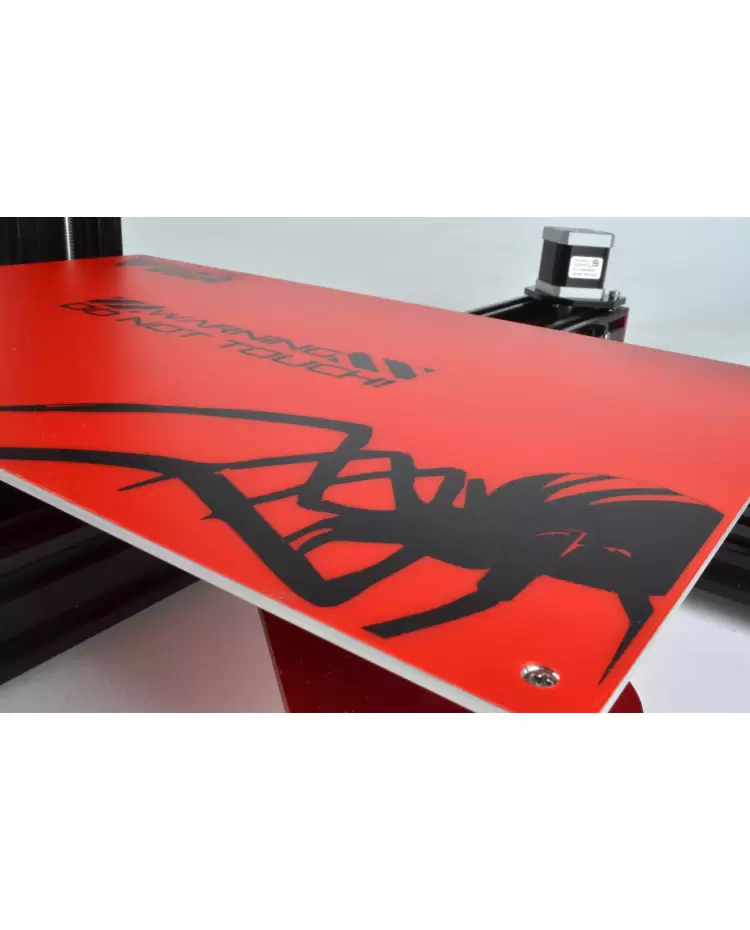

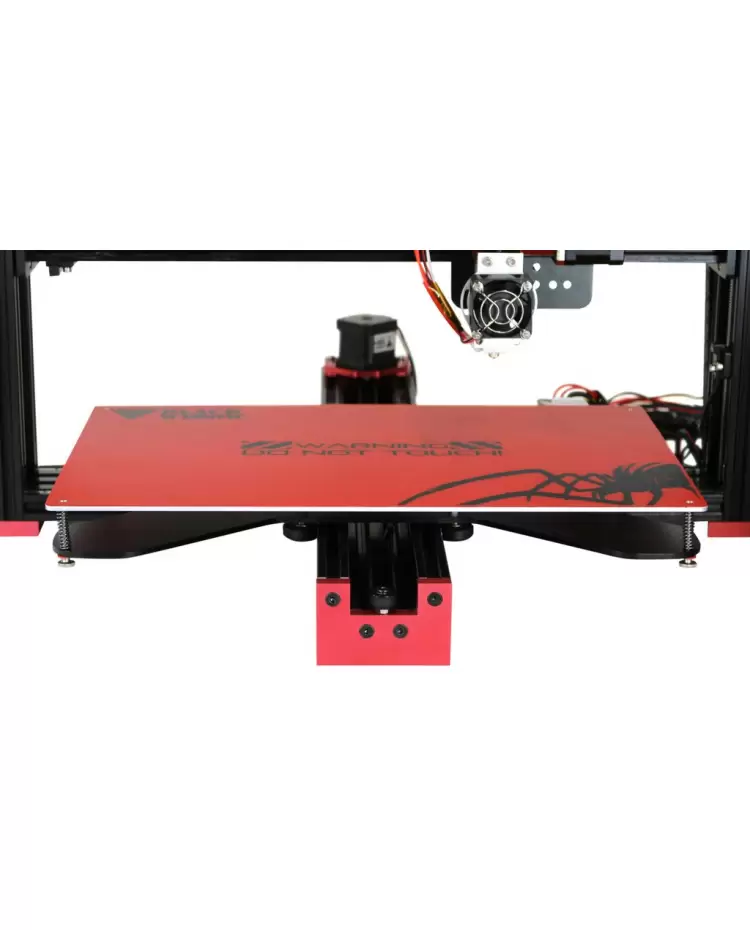

With a 400 * 250mm heatbed can heat up fast, so you can print large things in a shorter time.
MKS MOSFET heating controller to help dissipate heat quickly. (Included.)
LCD screen display machine operating data clearly.
A 8GB memory card & card reader is included, support printing from SD card; the machine has a USB port.

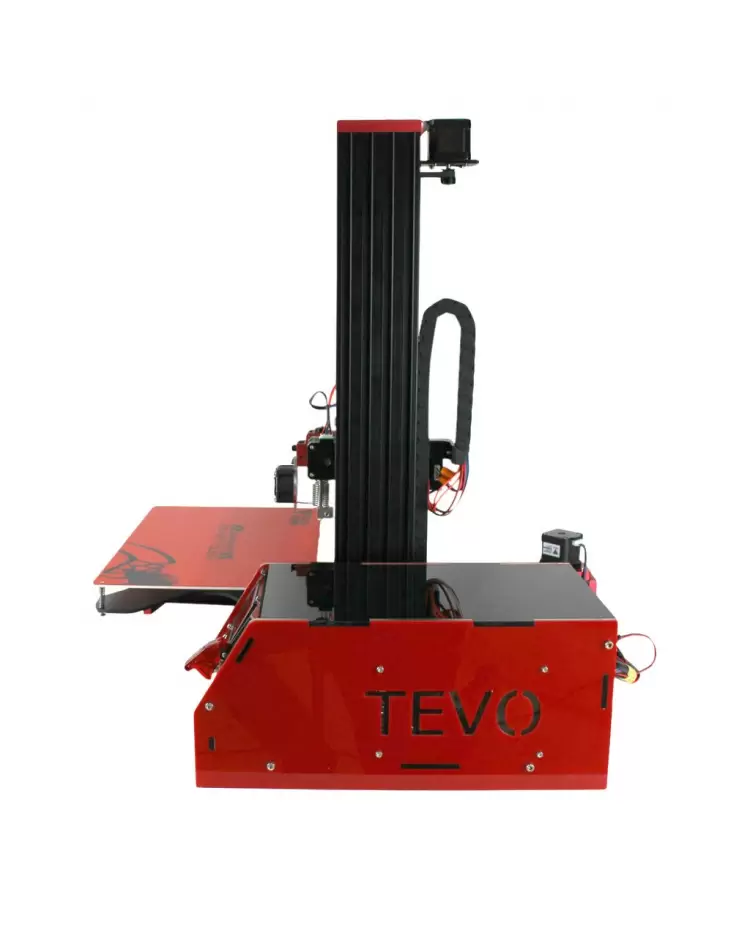

All the electronics are safely and neatly stalled away in a separate control box.
Solid anodized aluminum plates are CNC milled for precise fit, high rigidity, long lifetime and beautiful outlook.
Wide voltage design 110V/220V.
The 3D works can be widely applied to fields like medical/industrial/scientific/educational usage/home decoration & etc.
ANTCLABS BLTouch auto leveling function, make balance easier

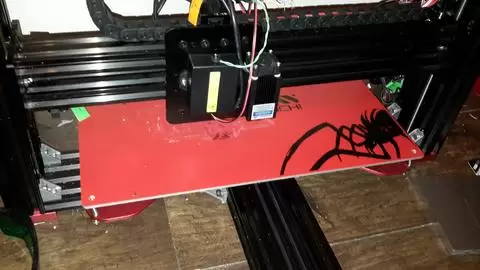

It can be upgraded to support laser engraving function to create works of fine art on various objects
Black Widow Newbie Guide by Jupa Creations
TEVO Black Widow Bill of Materials
TEVO Black Widow Firmware files
ANTCLABS BLTouch BW wiring manual
Tevo Black Widow Assembly video through detailed steps
Assembling the 3D printer by only following the instruction manual that comes with the Tevo Black Widow is possible but can be challenging. To make your build a bit easier, we recommend you to use one of the Youtube assembly guides that are available. We found the 8 step Youtube guide(above link) by The Art of 3D Printing to be a very useful assembly guide.You probably also need to adjust the firmware before you can 3D print successfully. The Youtube guide by The Art of 3D Printing will also help you step by step through this process. So, even if you are not familiar with any of this, you will be able to successfully assemble and calibrate this 3D printer (and learn some great stuff along the way!).
Buyer Protection Policies
PayPal-the most reliable payment method
UPS Fast Insured Shipment
Fast Transport without damage.
1 Year Warranty
Just in case. Of course we only ship out perfect products.
Lifetime Support Service
Experiencing trouble with your Tevo Black Widow? Feel free to contact us! We are here to help !
Within 3 to 4 Weeks.. Period to test the kit & packing before it ships out
Delivery Time to Door step
4 to 5 days via UPS or DHL.
|Name||Tevo Black Widow 3D Printer kit|
|Model number||Tevo Black Widow|
|Positioning accuracy||Z 0.004mm, X & Y 0.012mm|
|Extruder Type||Microstep Extruder|
|Print precision||0.05 mm|
|Layer Resolution||50 microns|
|Layer Thickness||50 microns|
|MAX Printing Speed||100 mm/s|
|Recommended Print Speed||70 mm/s|
|Build size||370 X 250 X 300mm|
|Printing Color||Single color – Single Head|
|Extruder diameter||0.4mm (customized 0.3mm/0.2mm)|
|Recommended extruder temperature||210°C (the maximum can be set to 240°C)|
|Heating plate temperature||60-100°C (when in a 25°C environment – no drafts)|
|Best ambient temperature||≥25°C|
|Power requirements||110V/220V, 500W, 50/60 Hz AC power|
|Connection||via SD card or USB and LCD manual control|
|The file print format||STL,G-Code (SD-Card G-Code only)|
|Compatibility||Windows XP, Windows 7, Windows 10, Linux, Mac OS X|
|CE, FCC specifications||CE,FC ,ROHS|
|Equipment size||650mm * 510mm * 520mm|
|Package size||600mm * 400mm * 200mm|
|Material type||ABS, PLA, Nylon, PETG, Wood, PVA and Flex filaments|
|Material colors||white, green, red, blue, yellow, black, transparent, orange, grey ect.|
1.75mm in diameter
ANTCLABS BLTouch ADD-ON

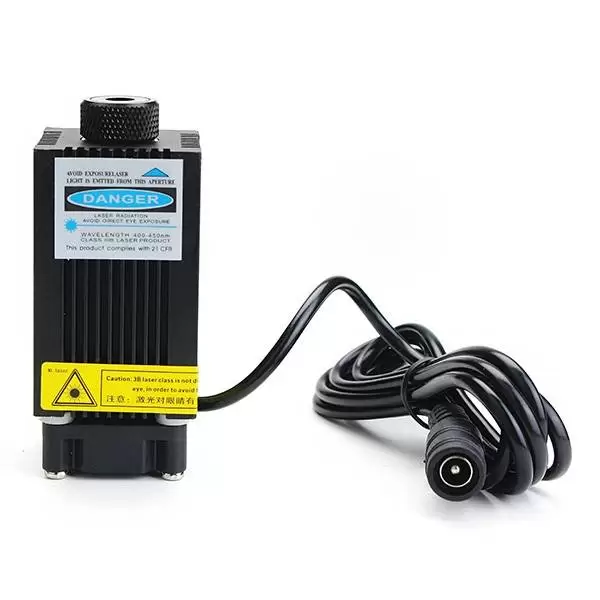

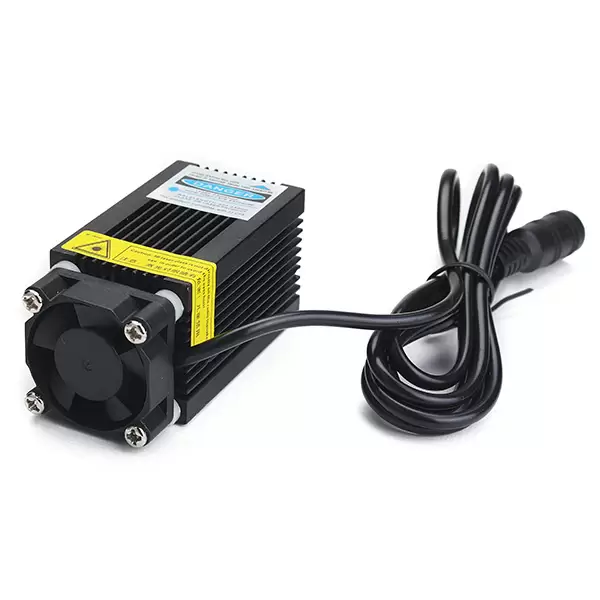

LASER ENGRAVER KIT ADD-ON
This kit is meant for Tevo Black Widow and it includes all parts necessary to start make some laser engravings with widow. Note that you have to flash different firmware to your printer, but it can be downloaded from here.
