In Stock
$859.00 USD $719.00 USD Sale -16% OFF
-
+
  • Brand: TEVO
  • Product Code: TEVO-BAY-0151

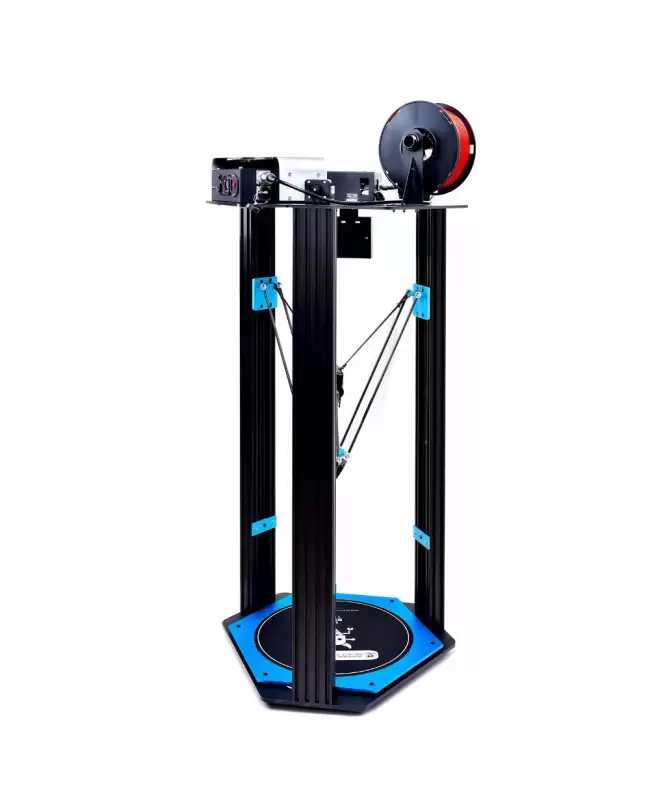

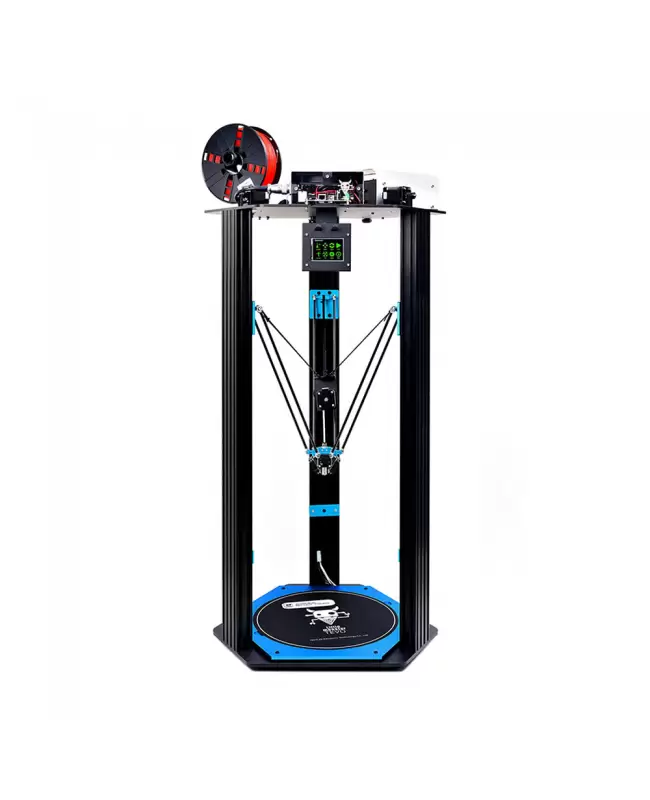

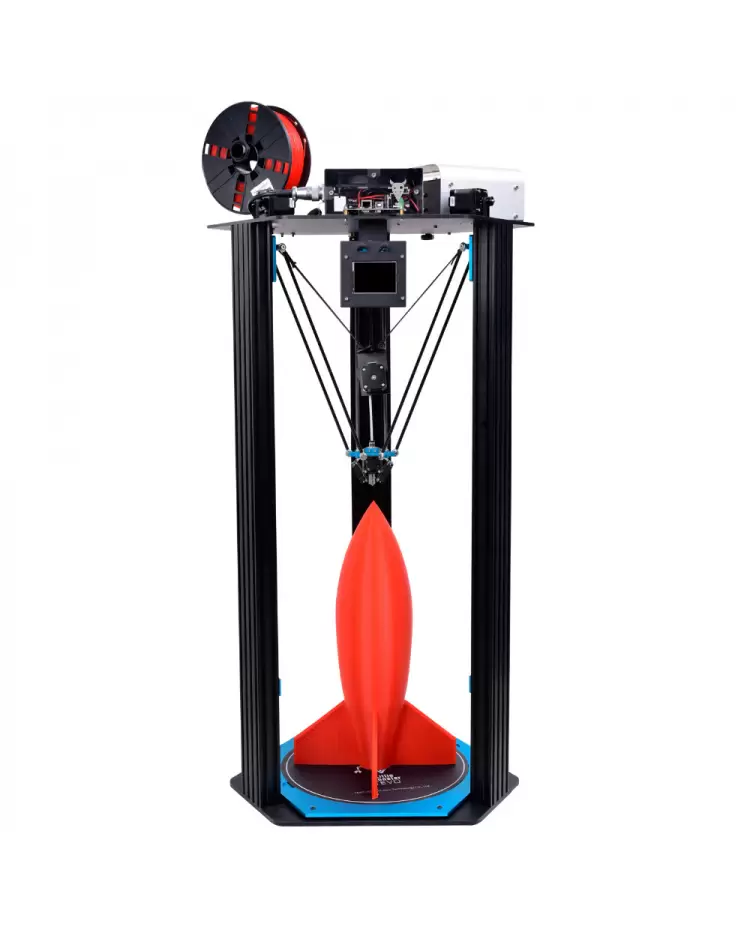

TEVO LITTLE MONSTER

Openbuilds Aluminium Extrusion Full CNC Large Delta 3D Printer

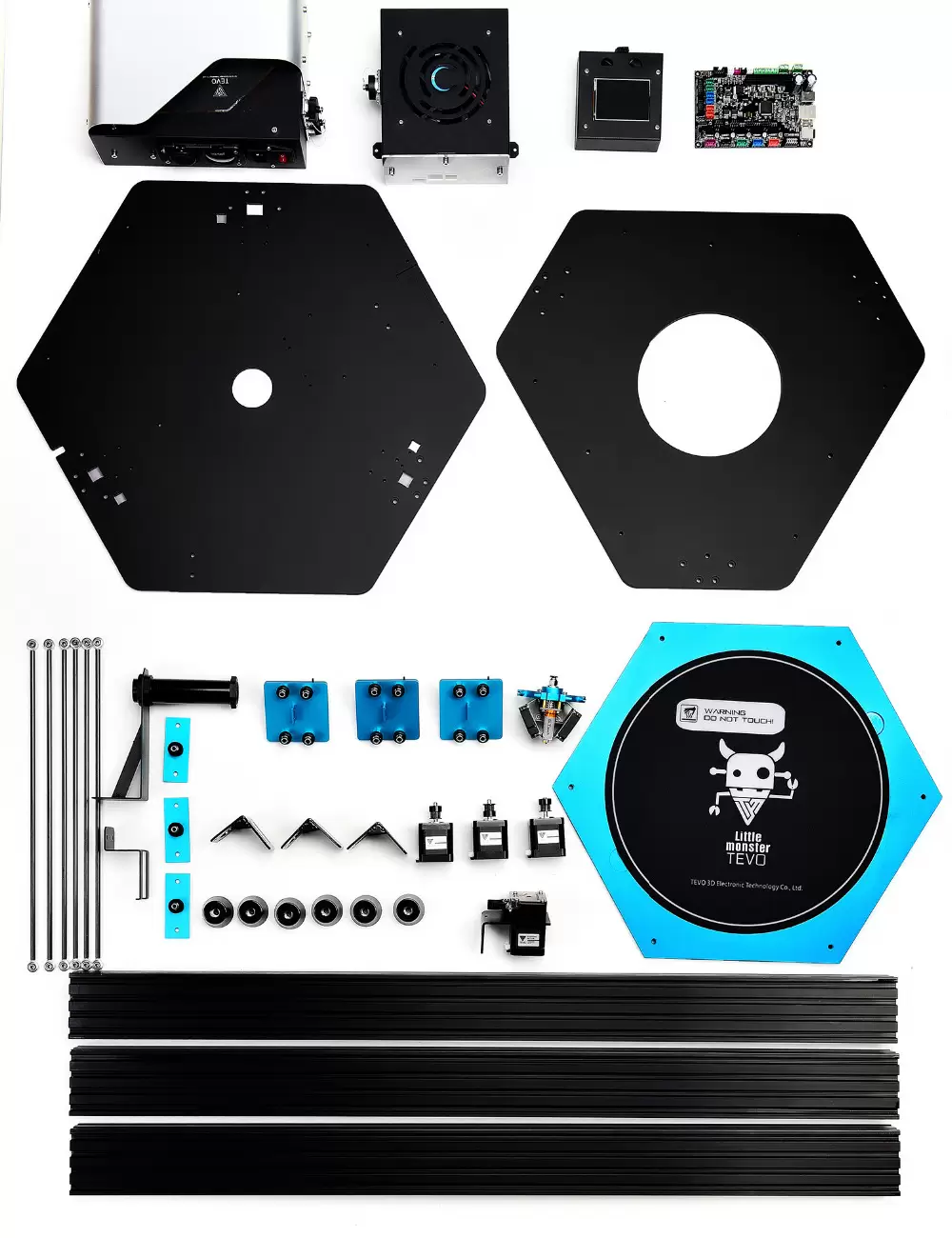

Tevo brings a brand new product to their line of 3D Printer kits. The Tevo Little Monster is only little in name. This Delta printer kit boasts a large print volume of 340mm diameter and 500mm height

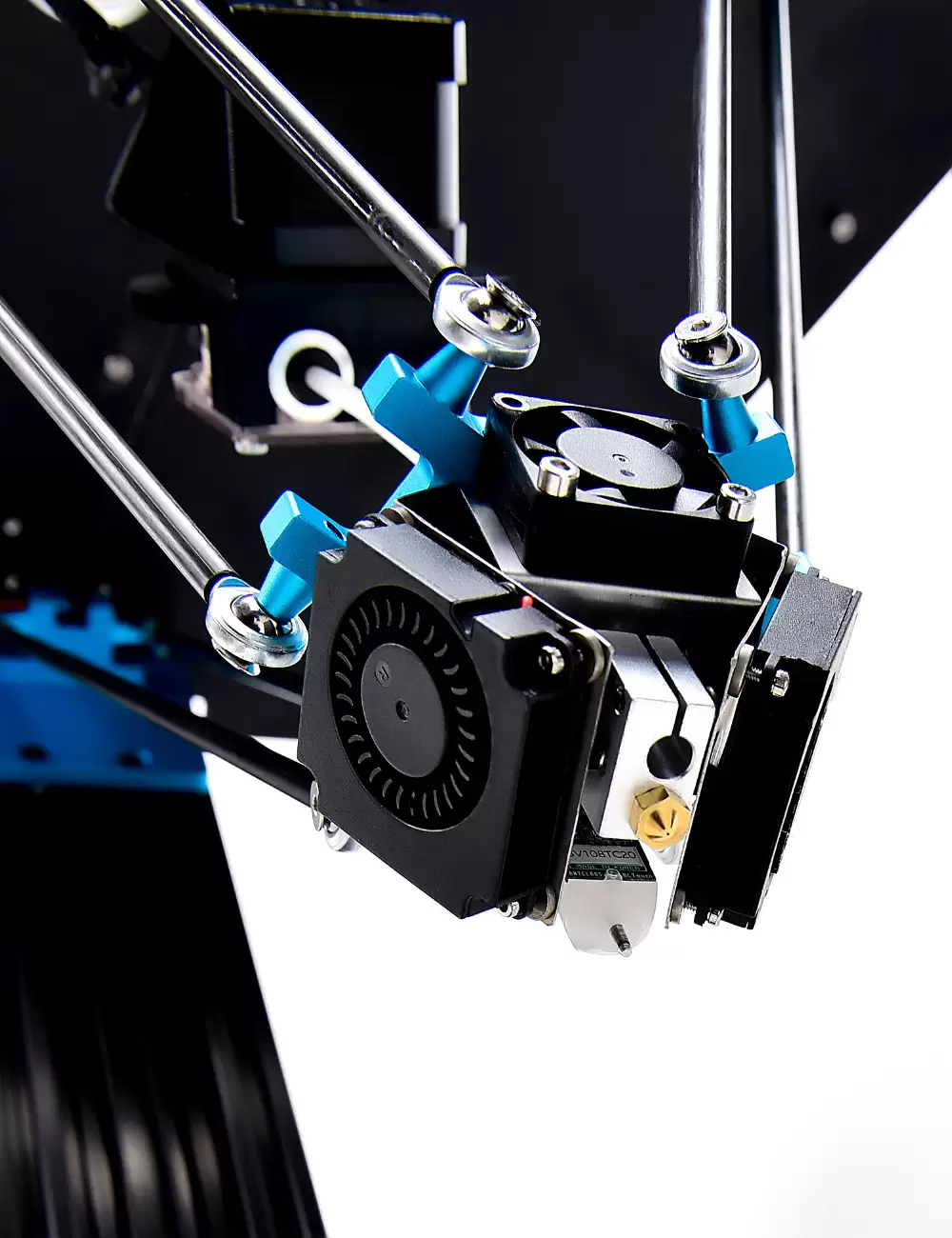

The Little Monster does not hold back on features either. It is the complete package with a glass-ceramic heated bed for faster bed heating times, auto leveling with the renowned BLTouch, a touch screen display for easy input, and dual stainless steal fan shrouds for super effective part cooling

Tevo Little Monster

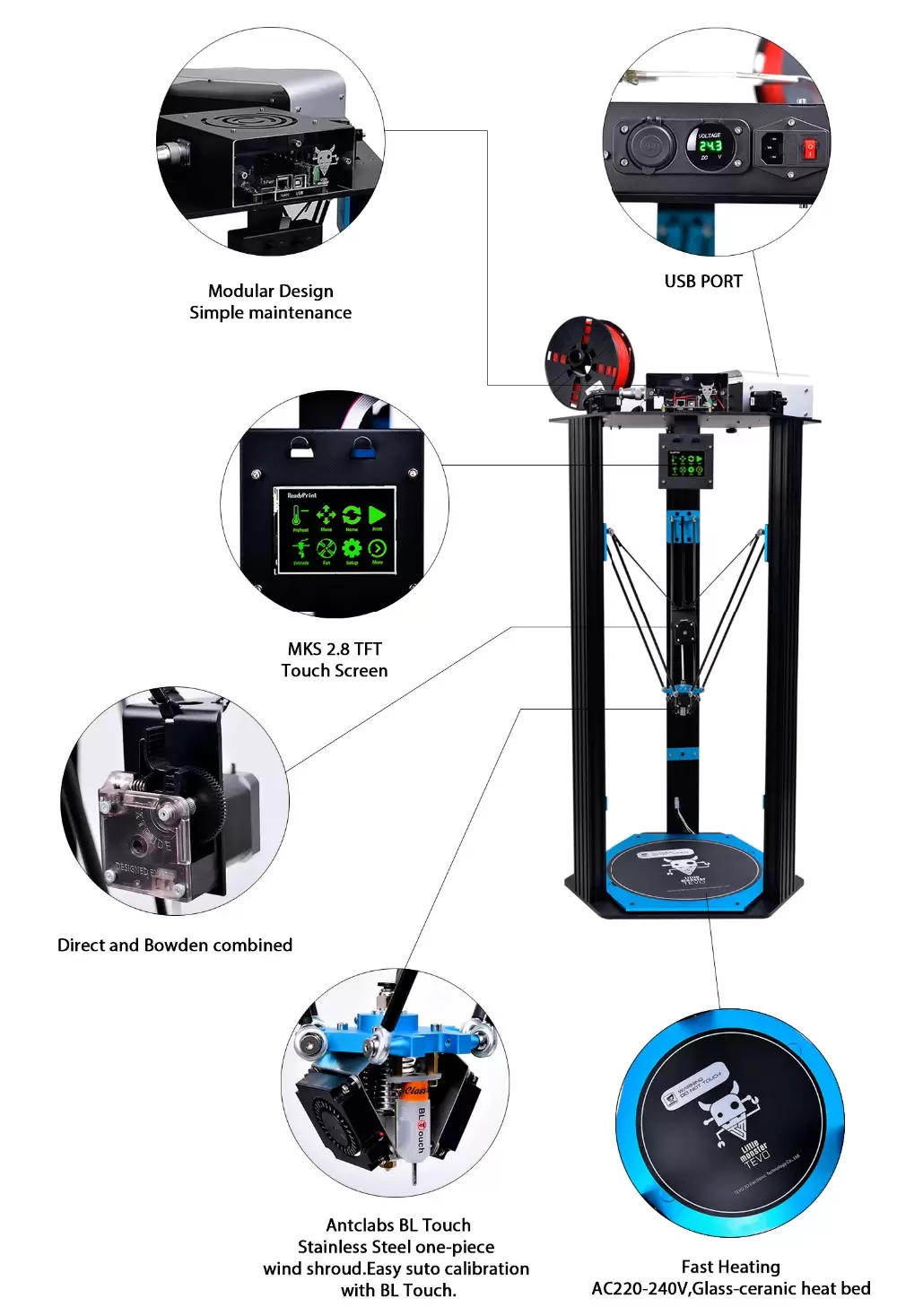

Highlights:


  • Huge Build Volume: 340*500mm/ 14 x 20 inches

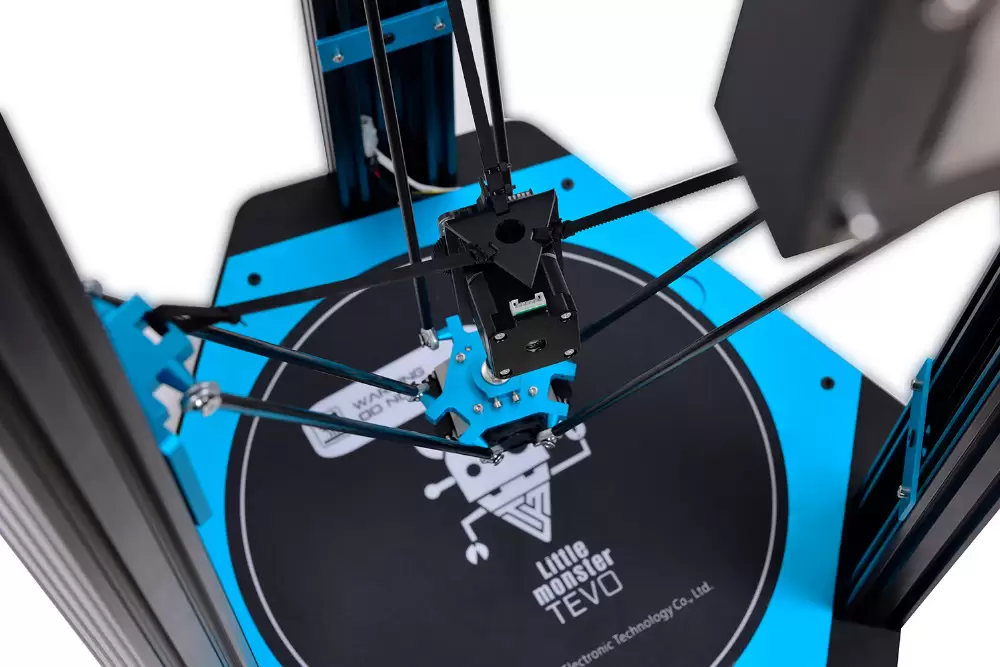

  • AC 110/220V types Glass-Ceramic Based Heated Bed to reduce heating time
  • Max Printing speed 300 mm/s

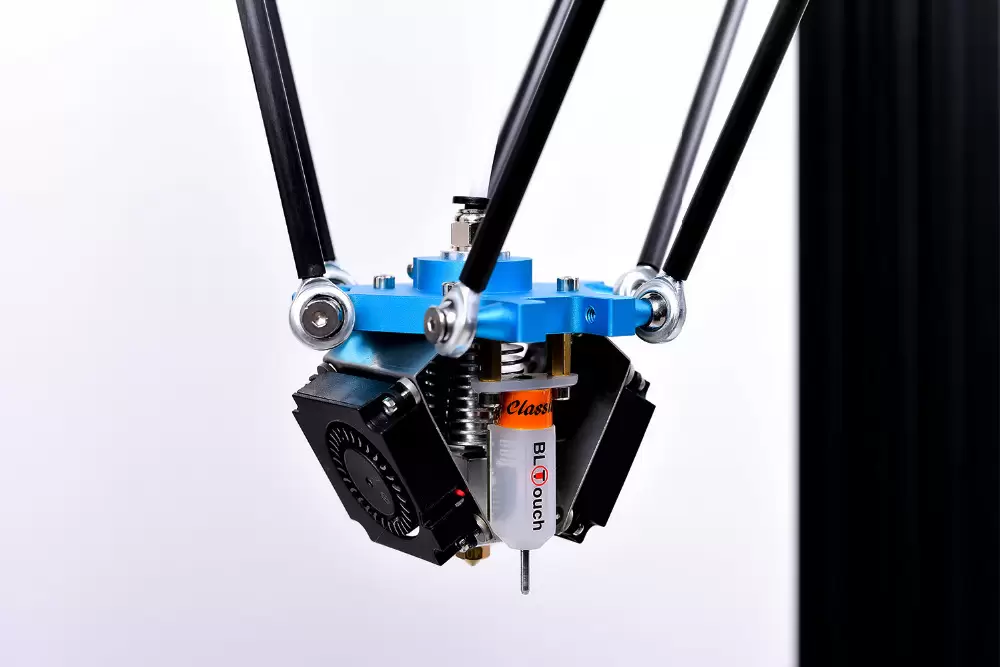

  • ANTCLABS Original BLTouch Bed Levelling Sensors
  • MKS TFT28 Touchscreen Onboard

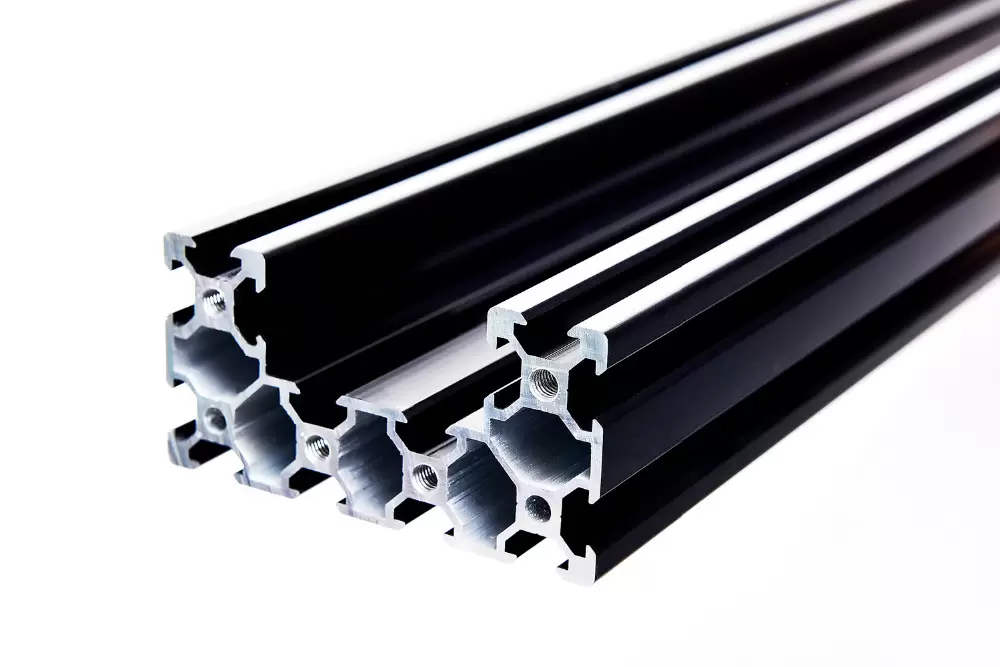

  • Openbuilds Aluminium Extrusion 4080
  • Strong Active Cooling Fan for Better Temperature Control
  • Brilliant Pause Functionality which can be resummed
  • Smoothieware Opensource Platform
  • Titan Extruder, E3D Volcano Hot end(c)


Technical specifications:

Technology FDM
MAX Print Speed 300mm/s
Print Speed Range 20-300mm/s
Layer Resolution 0.05-0.8mm
Printing Size D340xH500mm/ 14" x 20"
Positioning Accuracy 0.02mm
Standard Nozzle Diameter 0.4mm
Extruder Type Titan Extruder, E3D Volcano Hot end(C)
Recommended extruder temperature 210°C (maximum up to 260°C)
Heating plate temperature 60-120°C (when in a 25°C environment – no drafts) AC powered for faster heating.

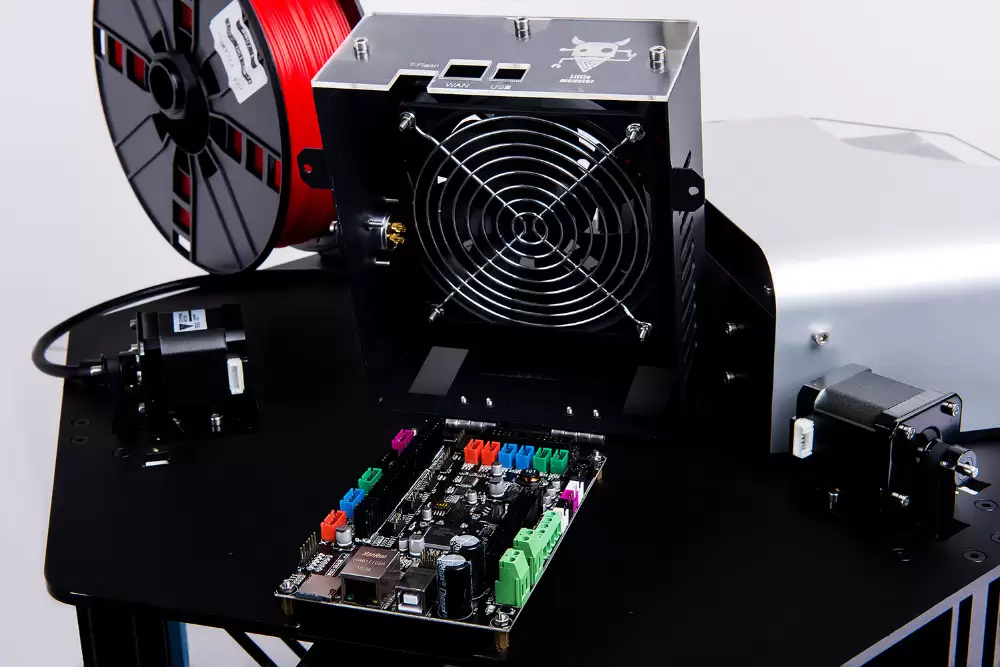

Mainboard & LCD MKS Sbase V1.3 + MKS TFT28
Firmware Smoothieware & Antclabs Bltouch
Support Filament PLA, ABS, Flexible, HIPS, PLA WOOD
Compatibility 3D printing Software Simplify3D, Repetier host, Pronterface
Supported File Format STL, G-code
Compatibility Windows , Linux, Mac
AC Input DC 400W 24V(With heat bed)
Power Requirements AC110-220V
Connectivity (Interface) High-speed USB device interface or SD card
Machine Size 600x 600x 1200mm


Advantages of MKS TFT28 Touch screen:


  • 8 inch colorful touch screen LCD, support U disk and SD card
  • Support continual and easy software update.
  • Suitable for many main board such as Ramps1.4 and MKS Base,MKS Gen,MKS Mini.
  • P&P, do not need to modify your firmware, support Marlin\Smoothieware and Repetier.
  • Support situation save when power breakout function. Using this function, you should choose Pause action first before you breakout the power. When you open the power again, the printer can run from the situation before you breakout the power


Smoothieware


Smoothieware is a free, opensource, high performance and modular G-code interpreter and CNC control system for most of the opensource reprap 32bits controller board.

It's already preconfigured/flashed to the board of TEVO Delta ,so you can just plug in,start and play the print.


Some of the advantages of Smoothieware


  • Designed to support non-Cartesian machines ( rotational axes : wall drawer, SCARA robot, Delta/Parallel robot, Robotic arm, Spherical/Cylindrical robot, etc … ). Currently supported : Cartesian and H-Bot ( CoreXY ), Linear Delta, Rotary Delta and Feather
  • Supports all features found in Reprap firmwares
  • Compatible with the normal Reprap ecosystem ( G-code flavour ), making it compatible with the common Reprap Hosts ( Pronterface, Octoprint etc )
  • Easy configuration using a simple configuration file on the SD card ( no compiling/flashing required )
  • Serial interface over USB
  • High step rate ( 120khz ) for higher movement speed or high microstepping
  • Easy firmware upgrade via the SD card
  • Modular and well commented code
  • Modular, event driven design, allowing to add functionality easily without modifying the core


Documentation Guides:


Tevo Little Monster Manual

Master Guide(Firmware/Helper)

Little Monster Documentation and Config/Settings

S3D Profile

Duet Conversion by AK Eric
