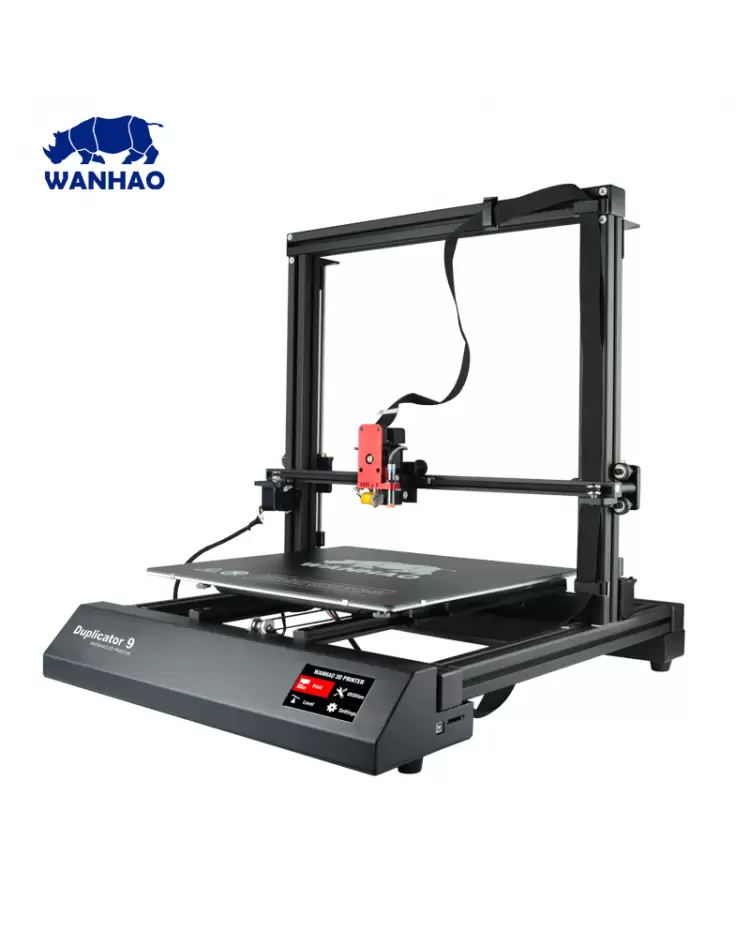

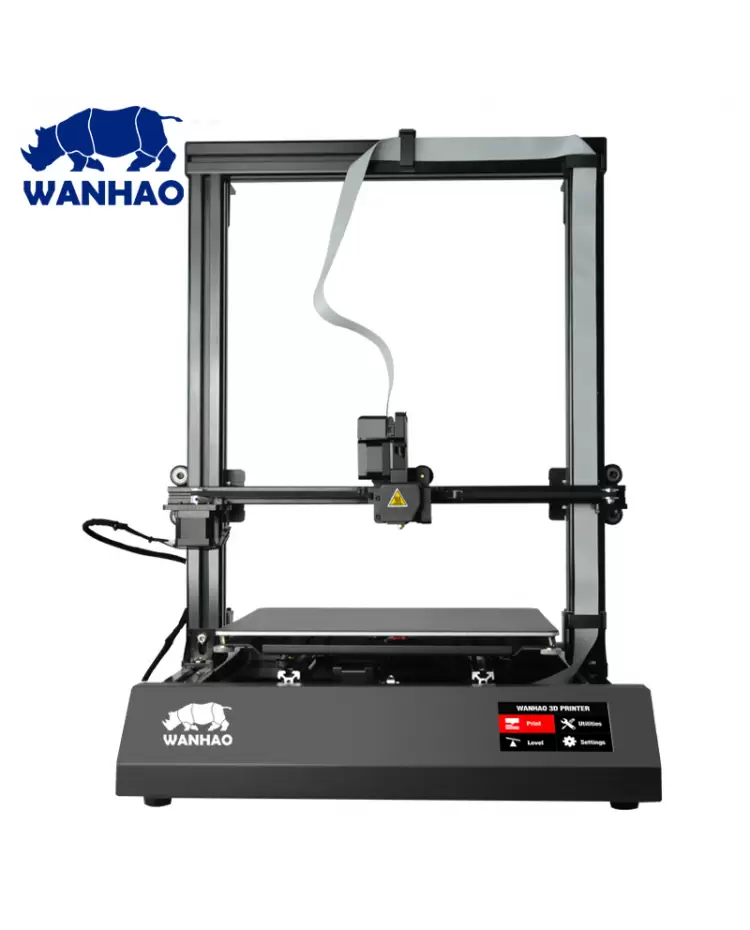

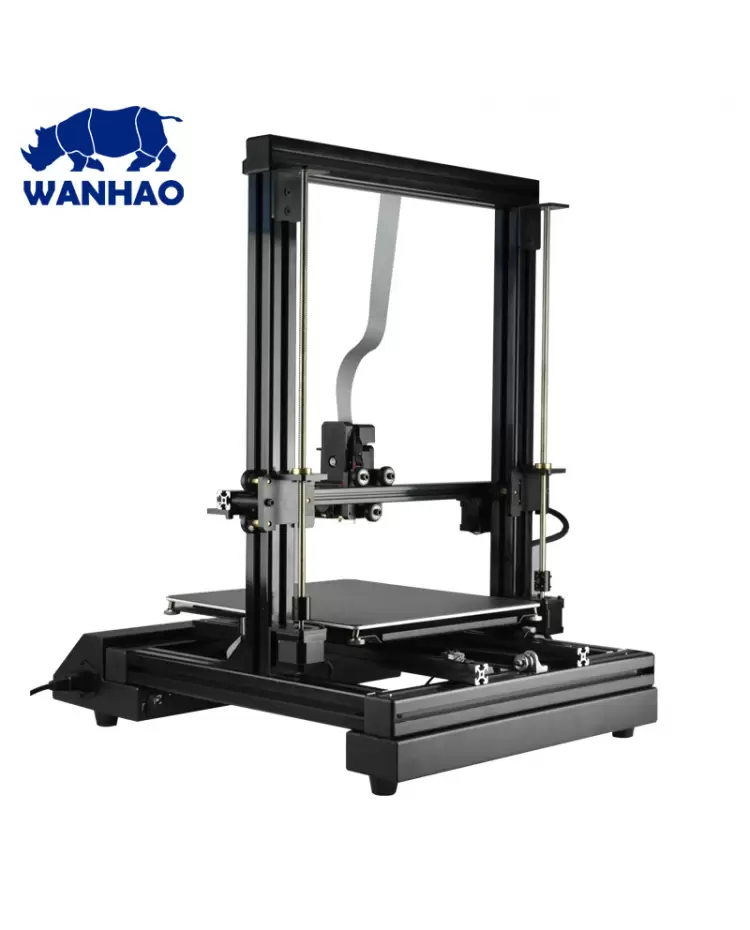

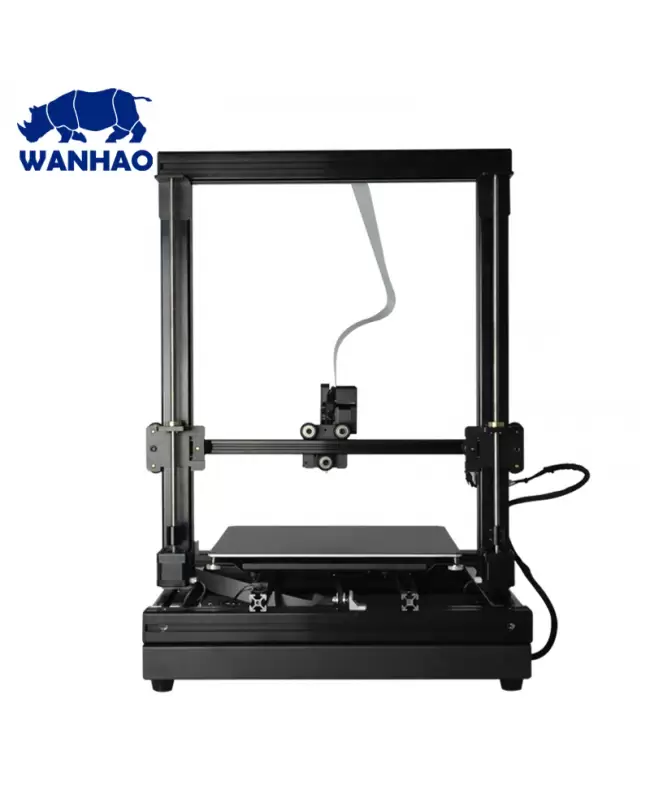

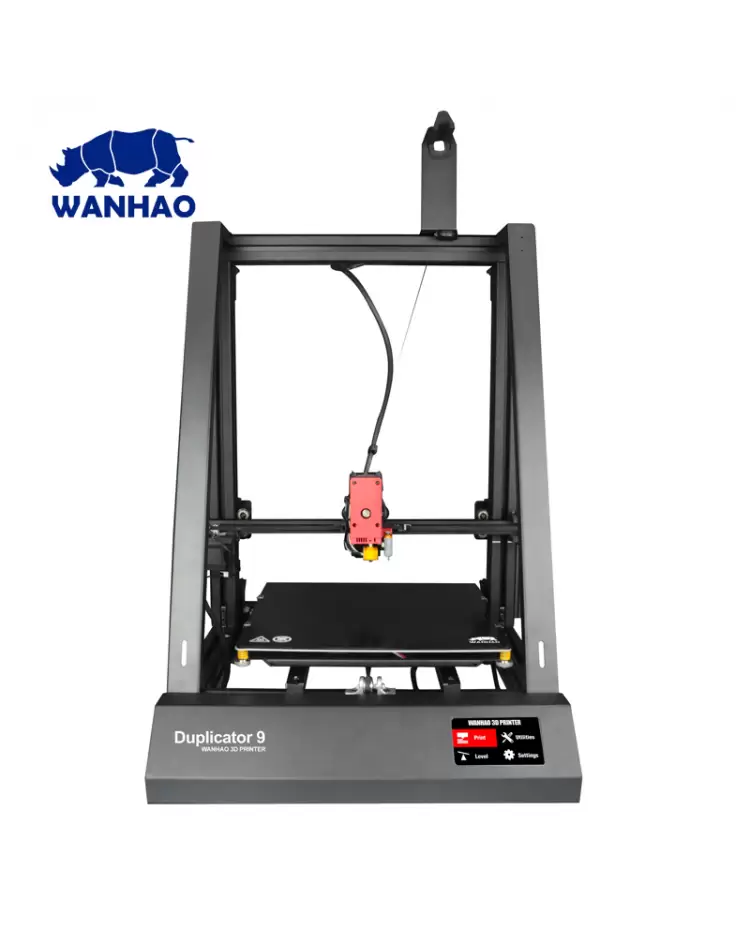

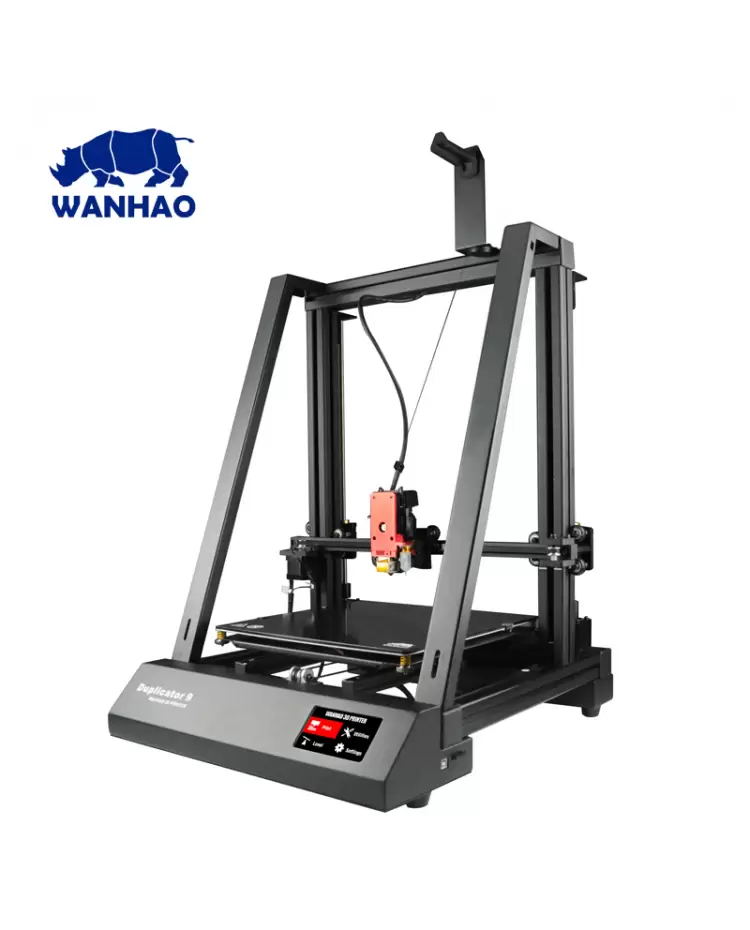

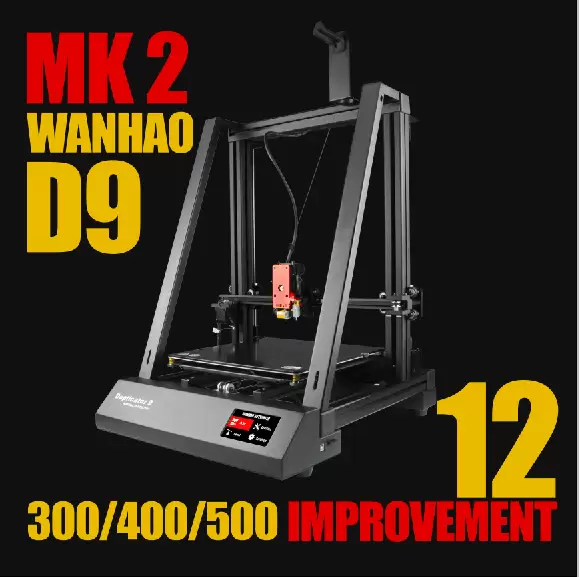

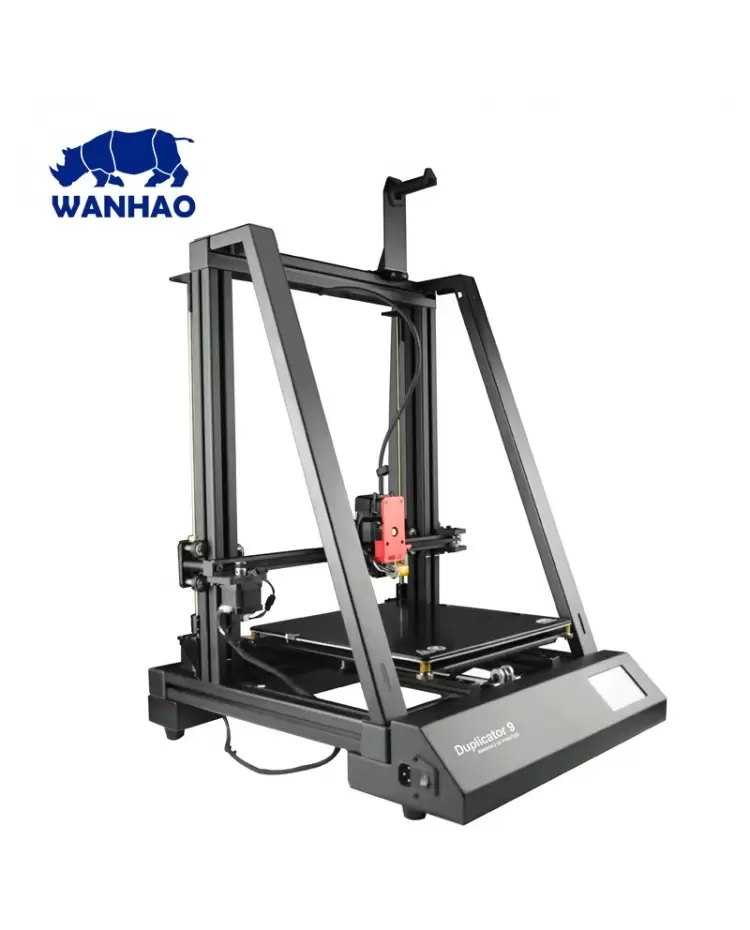

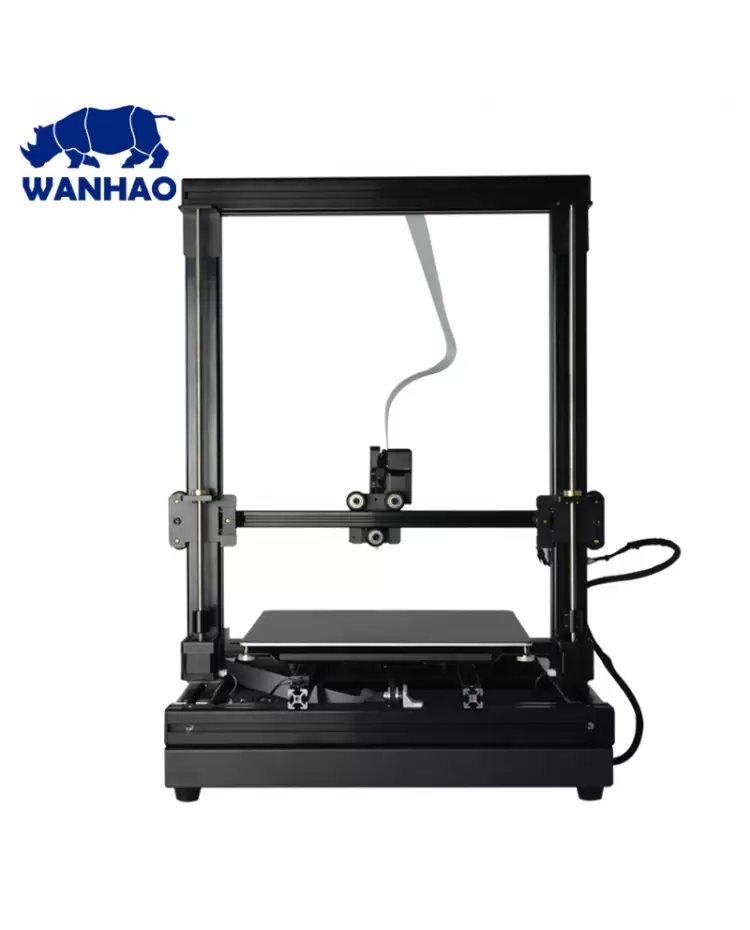

Wanhao Duplicator 9 Mark II(2) Large Format 3D Printer

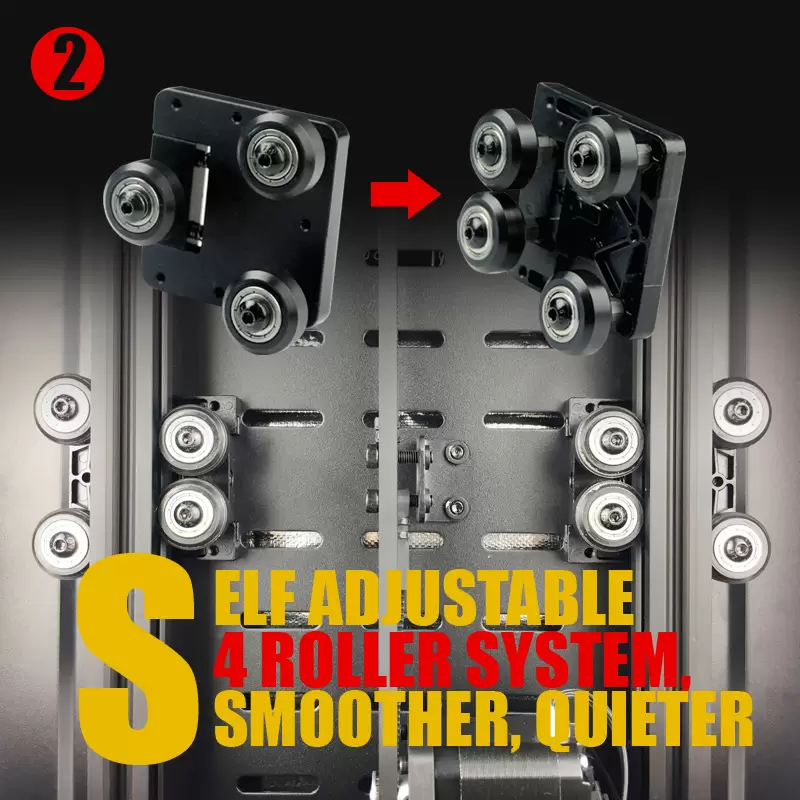

The Duplicator D9 from Wanhao is their newest FDM style printer. It features a touch screen, MK10 Extruder with full metal hotend, heated bed and anti-backlash rolling system. The printer will be available in three sizes (see below). The printer is made from machined metal brackets and extruded aluminum instead of the previous sheet metal designs.

let’s take a closer look at some of the top features that have given the new Wanhao D9 MK2 the competitive edge that it needed, with some of our favourites listed first, and some of the lesser important (but still appreciated) features following:

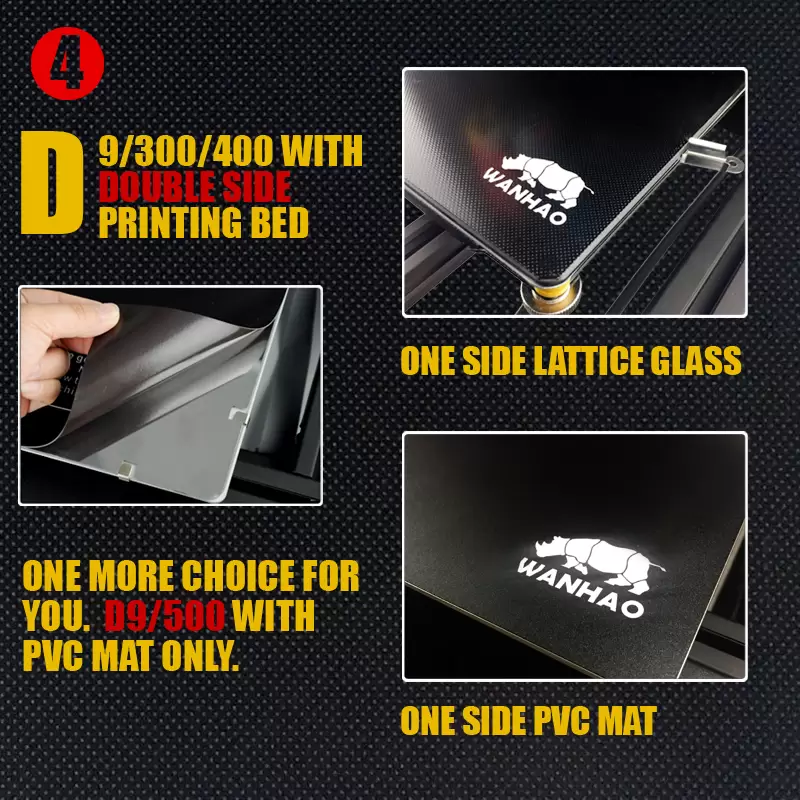

  • A New Double-Sided Heated Bed – While we know that we should be more excited about the other features in this list, this particular feature is rather ingenious, and may just be a first in 3D Printing history. Featuring latticed etchings on one side and a permanently-adhered PVC Mat on the other, the glass bed that comes with the Duplicator 9 MK2 is double-sided, and can be flipped over to swap between the latticed glass and the PVC Mat as you see fit. This enables you to test both different bed styles and find the perfect one for whatever 3D Filaments you are using, with each side offering distinct benefits – doubling the effective value of the bed without requiring any extra parts or tools!
  • A Stock All Metal Hotend Assembly – While some of you may remember that the original Duplicator 9 came with a PTFE-lined hotend assembly, this new MK2 edition does away with that redundancy, and is equipped with a stock all-metal hotend assembly capable of reaching temperatures up to 300°C. This ensures that you will never have to replace your hotend assembly just to achieve the temperatures you need for Exotic Filaments, and doesn’t leave you with a PTFE-lined hotend that you may never actually use.

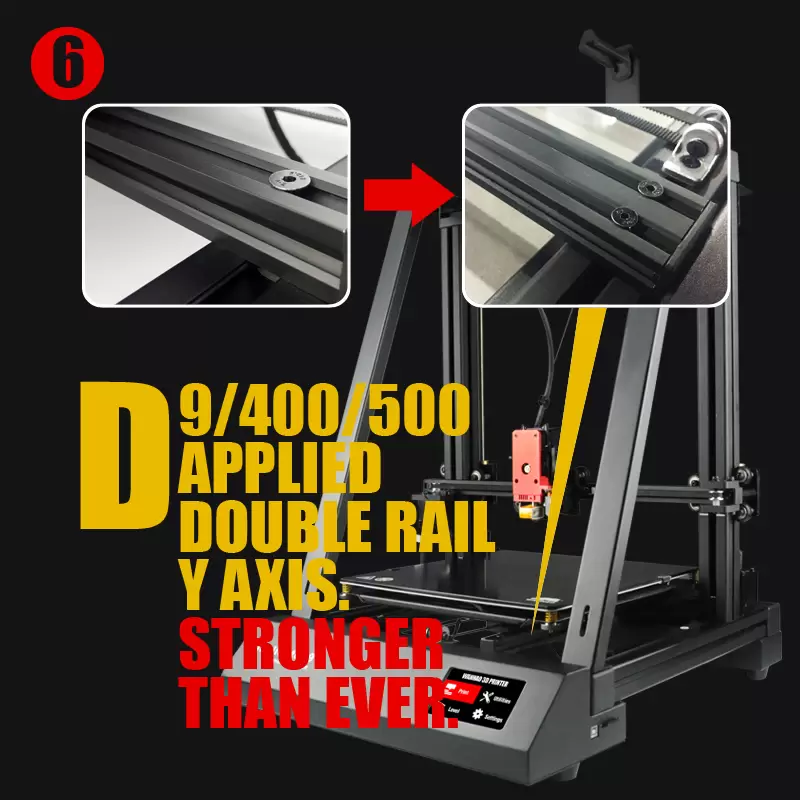

  • Reinforced “RIB” Stabiliser Bars – If you like to keep up with 3D Printing news and updates, then you may already know that the original Duplicator 9 struggles with accuracy on large prints, and would start giving subtle problems at the higher ranges of the Z-axis. These reinforced “RIB” bars connect the base of the chassis to the crossbar at the top, which leads to far better structural stability. This of course has eliminated the problems near the maximum heights, while also slightly enhancing overall print quality, making it a welcome upgrade that owners of the original D9 may certainly appreciate.

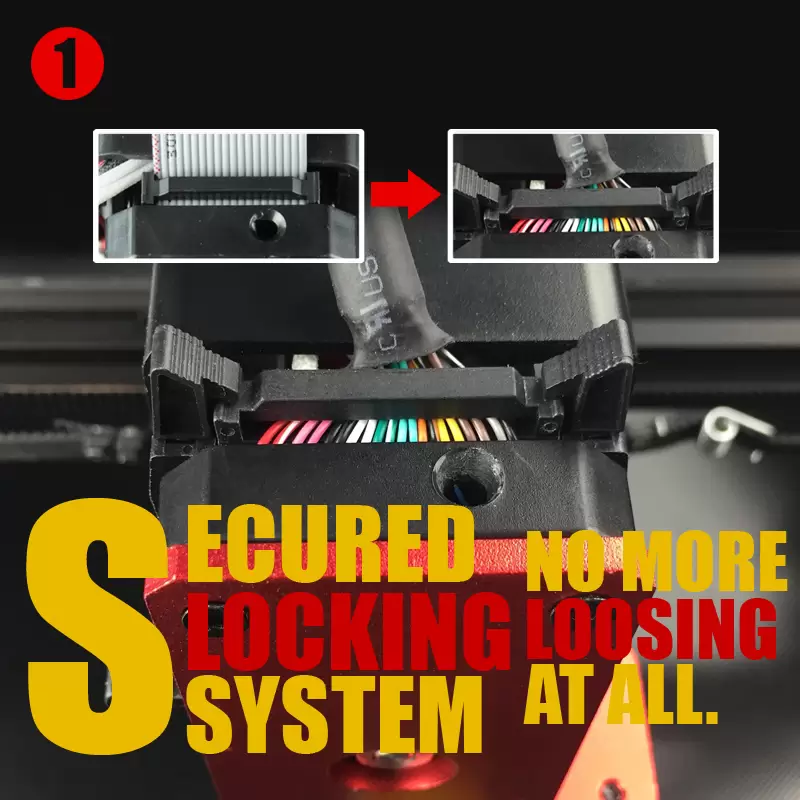

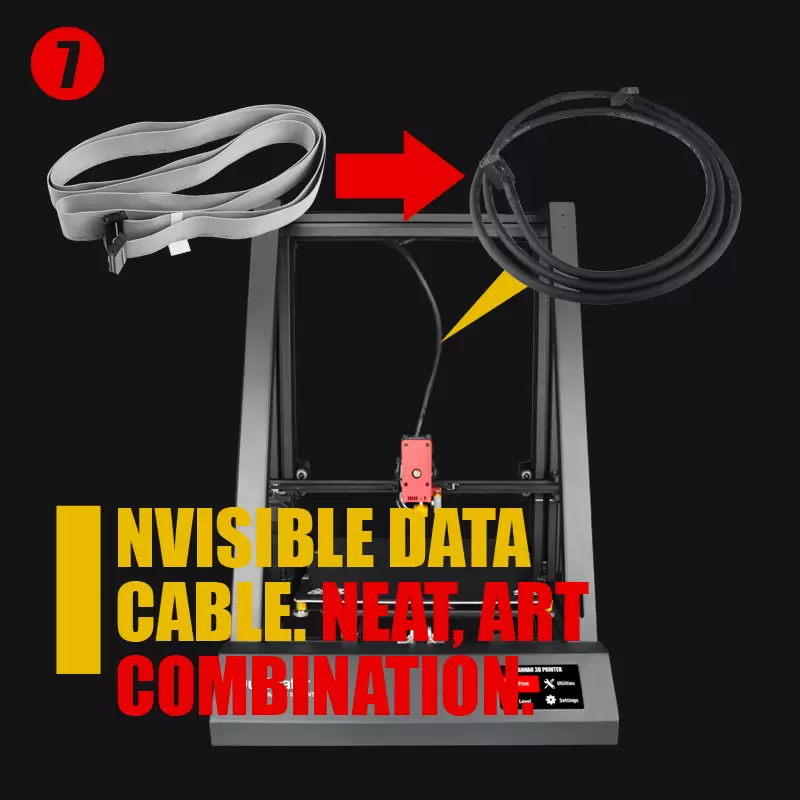

  • An Intelligent Cable Protection System – Over the past few years, many of the top manufacturers of hobbyist 3D printers have tried a variety of different ways to neaten up the cabling on their machines by hiding cables in the aluminium extrusion channels, bundling them into single cable sets with predefined paths, as well as a few other inventive (and sometimes disastrous) ways. However, the new system that Wanhao have introduced absolutely nails it, and utilises a mix of many different cable neatening techniques, in conjunction with a zipcord-like string that attaches between the extruder cable and the filament spool holder on the top crossbar, to keep the cables neatly tucked out of the way of the extruder assembly in one of the most unobstructed ways possible!

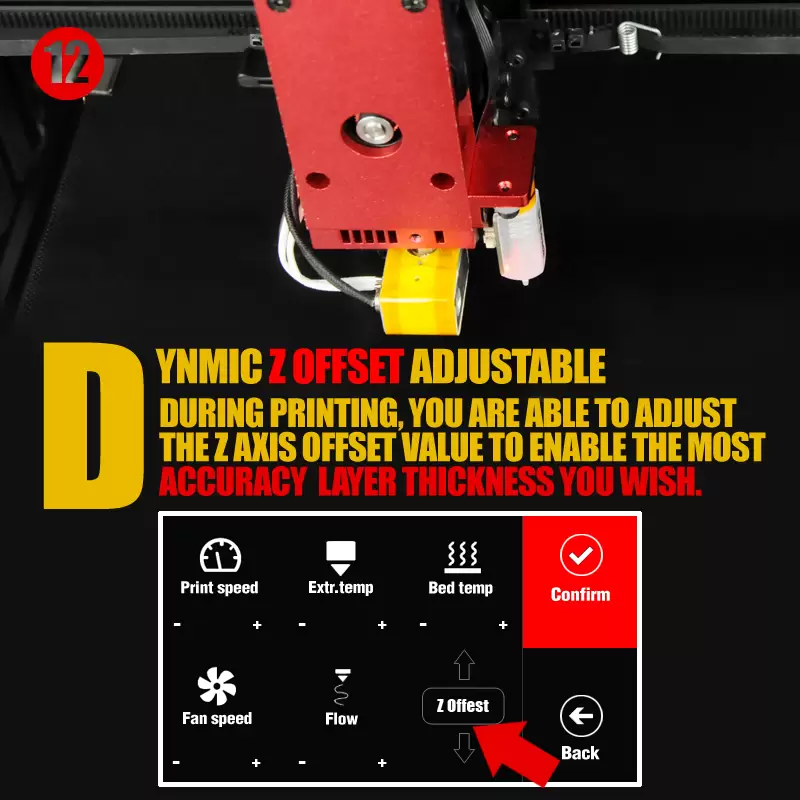

  • Dynamic Z-Offset Mid-Print Adjustments – While we all love automatic bed levelling and the sheer convenience it offers, it too has its downfalls – or at least it did until now. The Duplicator 9 MK2 features automatic 4-point bed levelling with an authentic BLTouch Smart 2.0 Sensor, but also complements this with a new dynamic Z-offset adjustment that can be performed during the printing process. This allows you to automatically level your bed, and then perform “on-the-fly” adjustments to get your Z-height as close to perfect as possible, without having to stop the print or install any specialised programs or applications to do so.

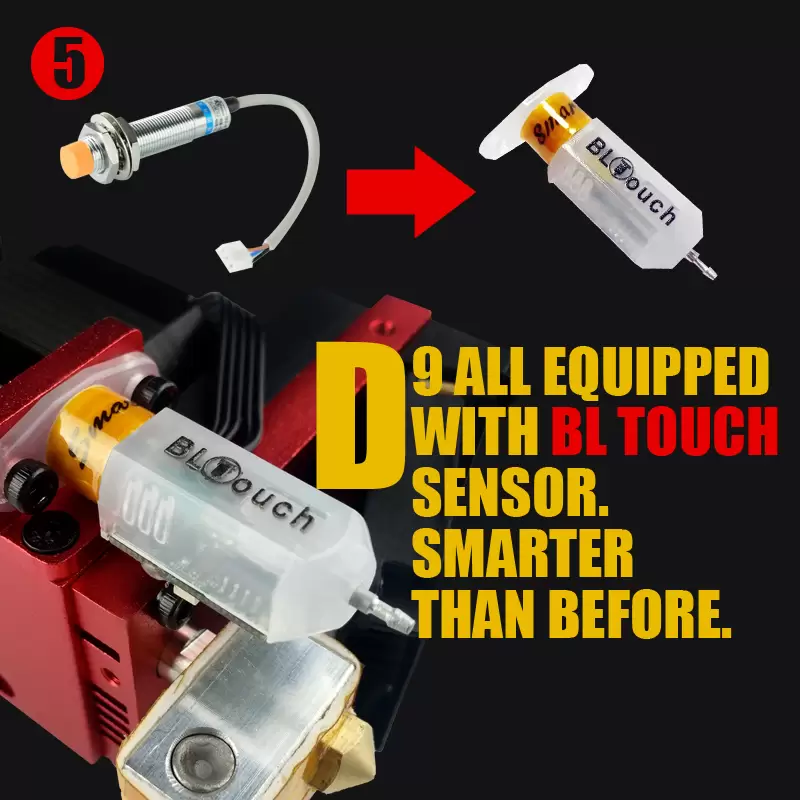

  • An Authentic BLTouch Smart 2.0 Sensor – When it comes to Automatic Bed Levelling Sensors, there is a good reason why BLTouch sensors are some of the most popular sensors available to 3D Makers. And instead of relying on inductive sensors that struggle with non-ferrite materials, or capacitive sensors that sometimes have less-than-ideal accuracy, BLTouch sensors are touch-probes that can identify precision distances on any hard materials, making it the only genuinely valuable choice considering the fact that many 3D Makers like to switch between bed materials and Adhesive Aids depending on what filament they’re using, and even what models they’re printing.

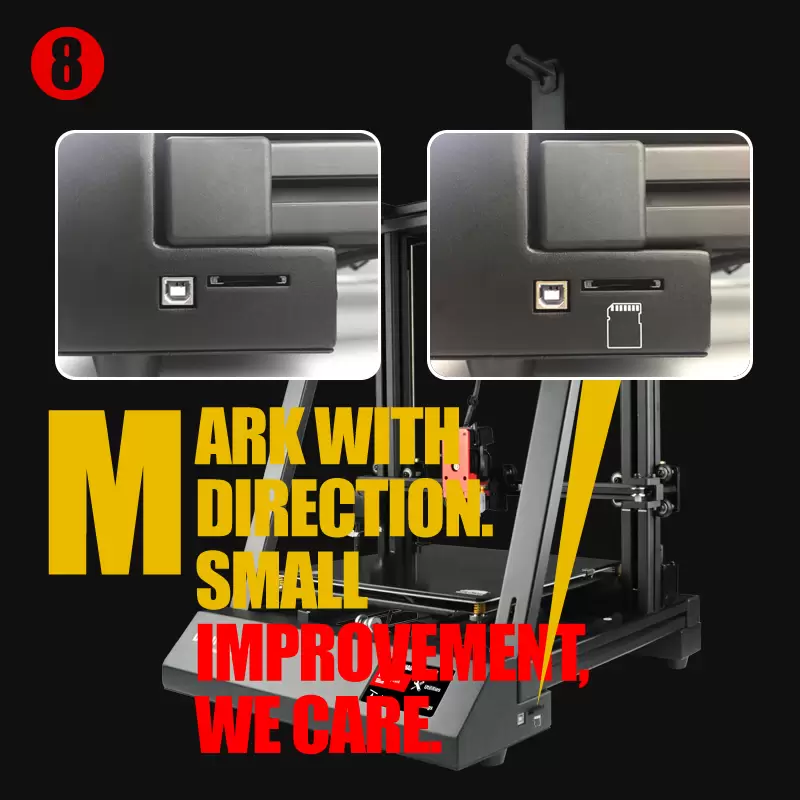

Of course, in addition to these features, the D9 MK2 has also been improved in a variety of ways in terms of the structural integrity and user convenience, including predefined assembly points for the gantry, clearly marked cables and connectors, as well as permanent Gantry-levelling lines to help you get your Z-axis perfectly horizontal without requiring any extra tools (or Coke cans). So now let's explore some of the actual "Tech' Spec's" that help this beautiful machine achieve the impressive print quality that it offers.


WANHAO DUPLICATOR 9 MK2 3D PRINTER - TECHNICAL SPECIFICATIONS:

  • Printing Technology

– FDM

  • Build Volume

– 300 x 300 x 400mm/400x400x400 mm/500x500x500mm

  • Chassis Size (Desk Space Required)

– 490 x 550 x 650mm

  • Filament Diameter Compatibility

– 1.75mm

  • Extruder Style

– Direct Drive (MK12 Extruder Design)

  • Stock Nozzle

– 0.4mm MK10 Nozzle

  • Stock Hotend Assembly

– MK10 All Metal Hotend

  • Maximum Hotend Temperature

– 300°C

  • Print Platform Style

– Double Sided Heated Bed: Latticed Glass / Wanhao BuildTak

  • Print Platform Max Temperature

– 100°C

  • Printing Speed (Stable)

– Up to 30mm/s

  • Printing Speed (Max)

– Up to 60mm/s

  • Layer Height (Resolution)

– 100 to 400 microns

  • Motherboard / Primary Controller

– Wanhao Duplicator 9 Main Board V1.0

  • User Interface

– Duplicator 9 Touchscreen LCD

  • Slicing Software Compatibility

– Cura / Simplify3D / Slic3r / Repetier Host

  • File Transfer Method

– SD Card / USB

  • Bed Levelling System

– Automatic 4-Point Levelling with BLTouch Smart 2.0

  • Print Resume Functionality

– Included

  • Filament Runout Sensor

– N/A

  • Chassis Materials

– Anodised Aluminium and Steel

  • Included Slicing Software

– Cura2 Wanhao Edition

  • Included 3D Filament

– 300g PLA

  • Distinct Features

– Reinforced “RIB” Stabiliser Bars

– Double Sided Bed: Latticed Glass / PVC Mat

– Intelligent Cable Protection System

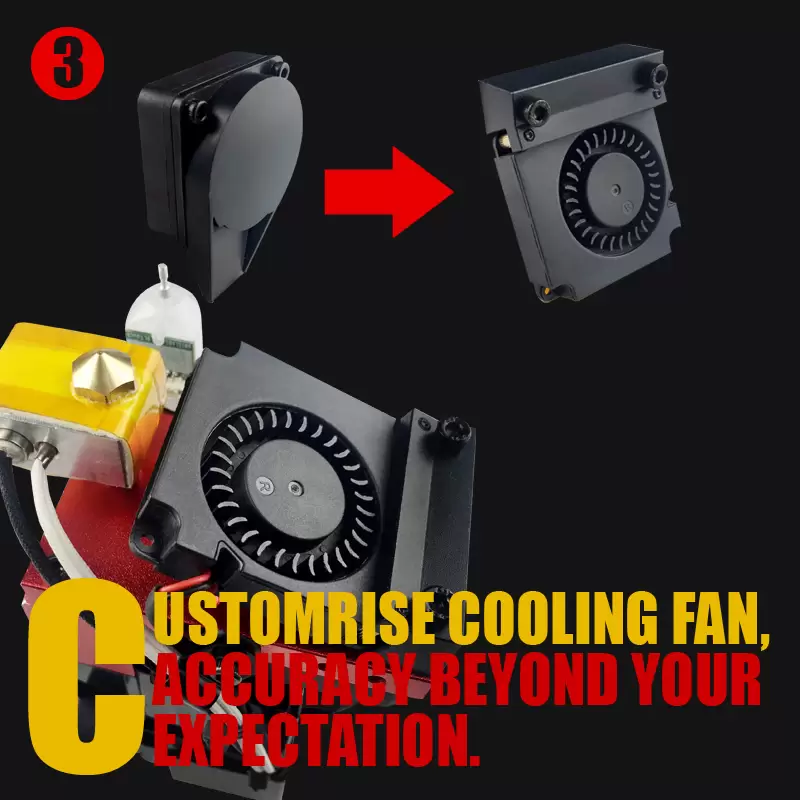

– Adjustable Radial Cooling Fan Positioner

– Dynamic Z-Offset: Adjustable While Printing

  • Weight (Printer)

– 20kg

  • Weight (Package)

– 22kg

  • Operating Voltage

– 24V DC

  • Power Supply Input

– 110 / 250V AC (Manual Switch)

  • Power Supply Output

– LRS-350-24 | 24V, 350W, 14.6A


PARTS INCLUDED WITH THE WANHAO D9 MK2 3D PRINTER:

  • ±300g Wanhao PLA Filament
  • Spool Holder Assembly
  • Spare All-Metal Hotend
  • 2 x Plastic Belts
  • Extruder/Nozzle Unclogger
  • Screwdriver
  • 8GB SD Card
  • Assortment of Nuts, Bolts and Screws
  • USB Cable
  • Instruction Manual + Getting Started Guide
  • Hex Key with 6 x Hex Bolts
  • PSU Cable


OUR VERDICT ON THE WANHAO DUPLICATOR 9 MK2:

While many of us were eagerly hoping to see Wanhao introduce a Duplicator 11 or similar type of new 3D Printer model this year, we’re certainly not disappointed with what we are now defining as the “Pro” Version of the original Duplicator 9 – aptly named the Duplicator 9 MK2. This updated and upgraded model brings a whole host of very cool new features that offer both major and minor improvements, with a strong consideration toward the plethora of posts, reviews and other user feedback over 2018.

This has resulted in one of the best hobbyist-grade Direct Drive 3D Printers on the market, with incredible rigidity and stability, exceptional printing performance, and a solid collection of ingenious features that are new to the industry, including a double-sided heated bed, repositionable part cooling fan, mid-print dynamic Z-offset adjustment capabilities, and even a clever cable management accessory to keep cables neat and out of harms way, regardless of where the extruder and hotend are positioned!

With all of these fantastic features that Wanhao have brought to the table, we are confident in stating that Wanhao are still maintaining a competitive edge despite being in the midst of an increasingly-saturating market. And while some of the weaker brands are slowly falling out of favour (and some disappearing from the scene altogether), top brands like Wanhao and Creality 3D continue to lead the way forward – with other brands often cloning their tech’ just so that they can keep up.

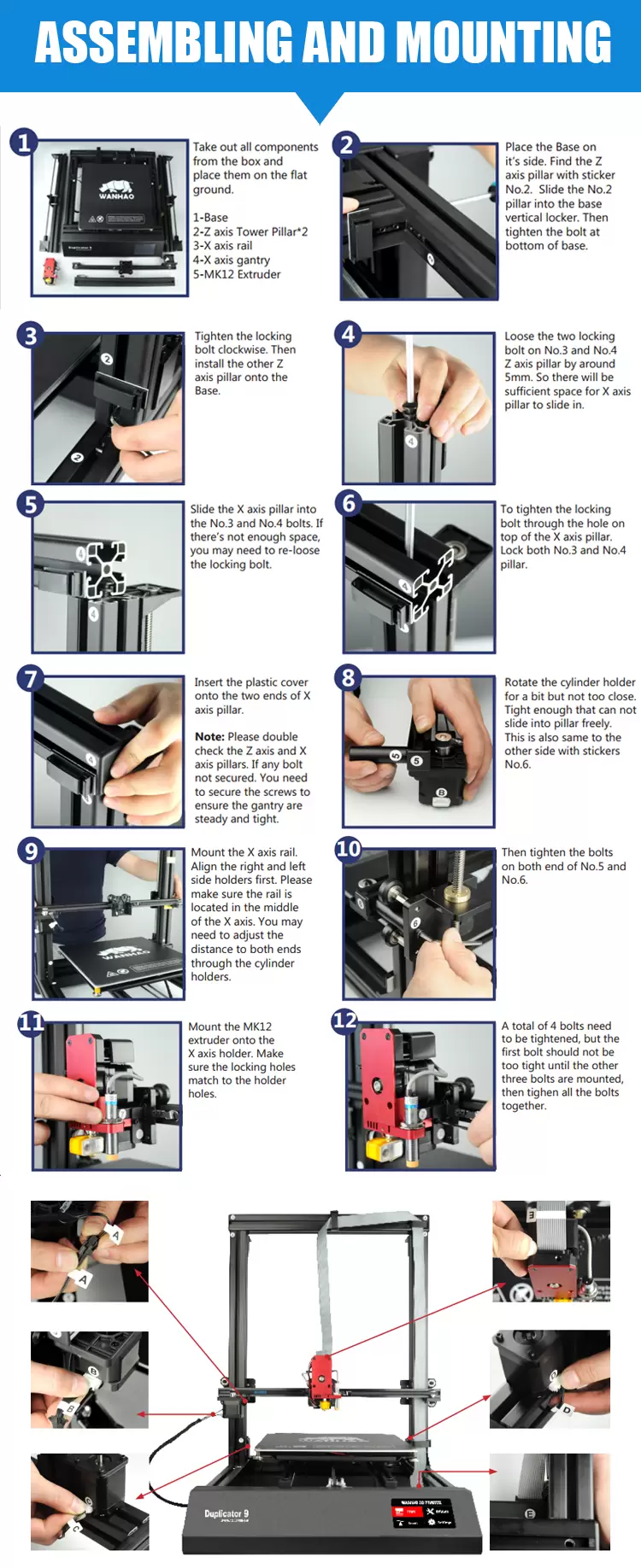

The following is a great video showing the unboxing and assembly of the Wanhao D9 MK2, and while it is reasonably long, it also contains a wealth of insights and some juicy bits of info' that we didn't have space to talk about in this description. So be sure to check it out and get your mouth watering at the many fancy new features that you can look forward to with the Wanhao Duplicator 9 Mark 2:





Buyer Protection Policies


 100% Secure Payment

PayPal-the most reliable payment method. Also accepts card payments(PCI DSS Compliant)

 DHL,UPS Insured Shipment

High Quality Express Transport without damage.

1 Year Warranty

Just in case. Of course we only ship out perfect products.

Technical Support Service

Experiencing trouble? Feel free to contact us!


Shipping Details


Processing (Lead) Time

Ships in 3 to 6 Business days. Proper Testing & Packaging prior to shipment(100% Quality Control)

Delivery Time to Doorstep (Transit)

4 to 5 days via FedEx/UPS/DHL

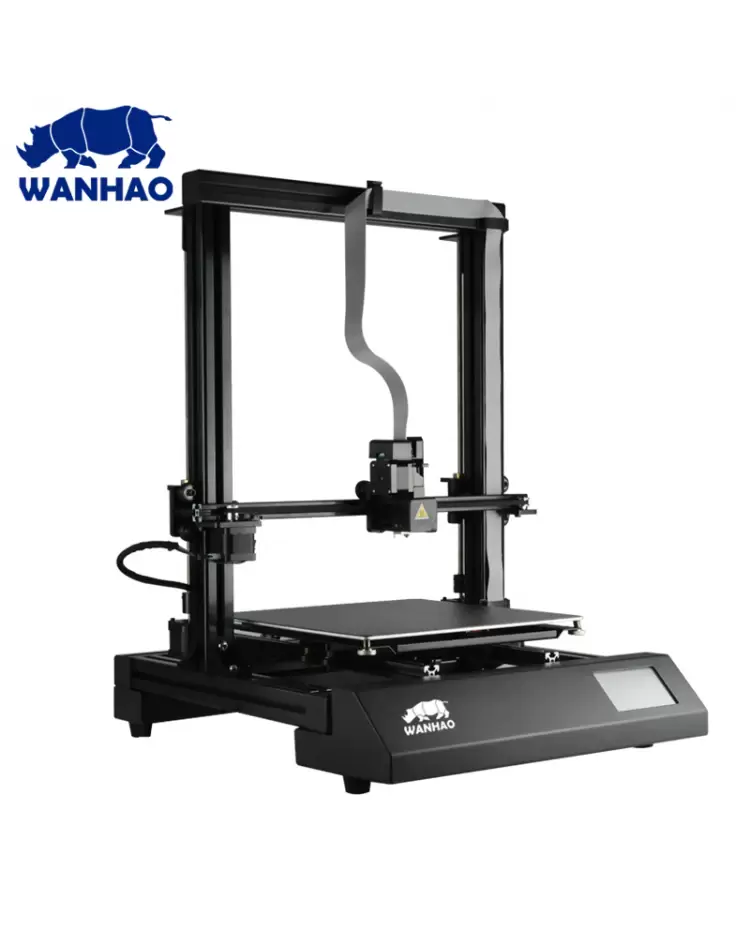

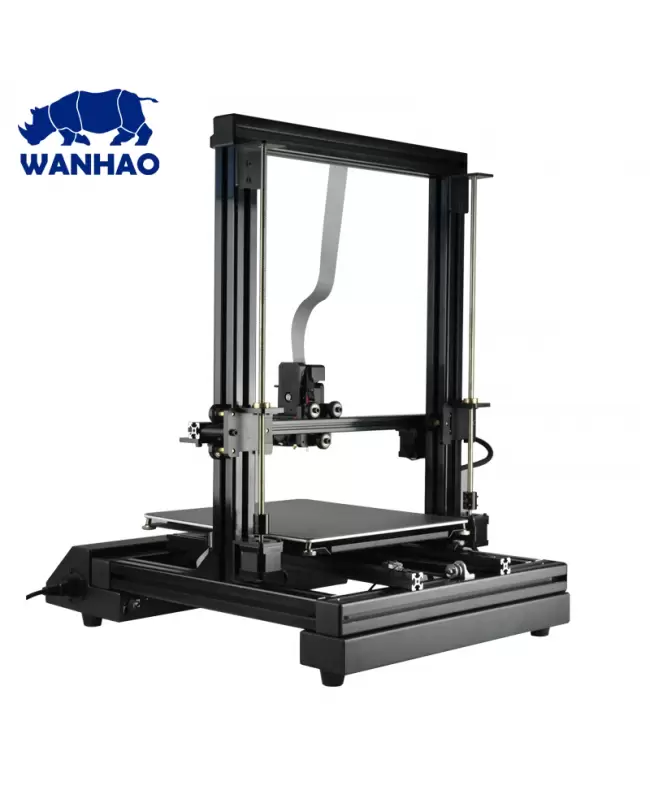

Wanhao Duplicator 9 Mark I Large Format 3D PrinterWanhao Duplicator 9 Mark I Large Format 3D Printer

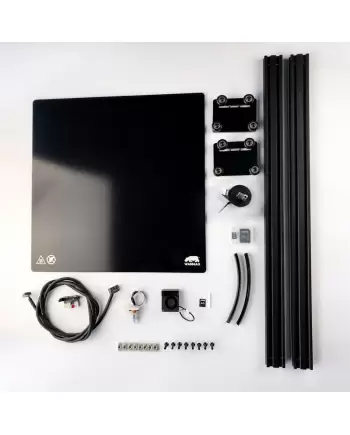

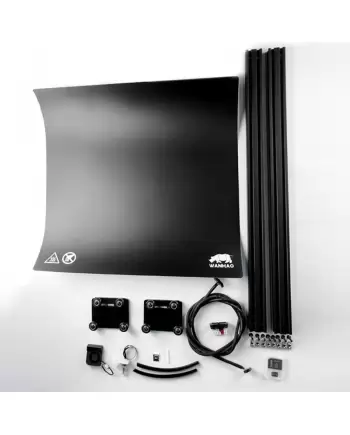

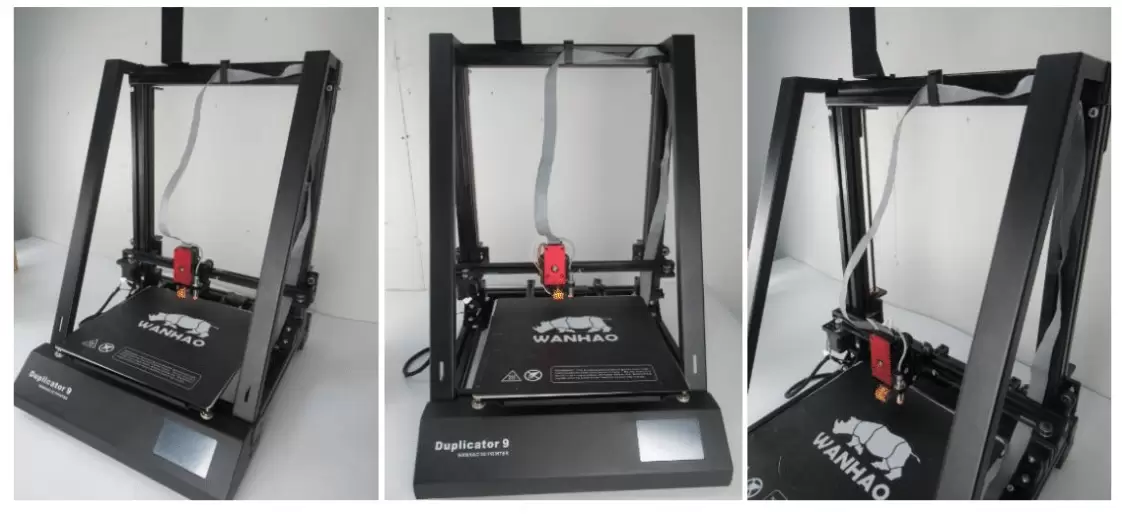

Reinforcement Strengthen bar for Duplicator 9 300 Machine UPGRADE
