In Stock
$1,049.00 $999.00 Sale -5% OFF
-
+

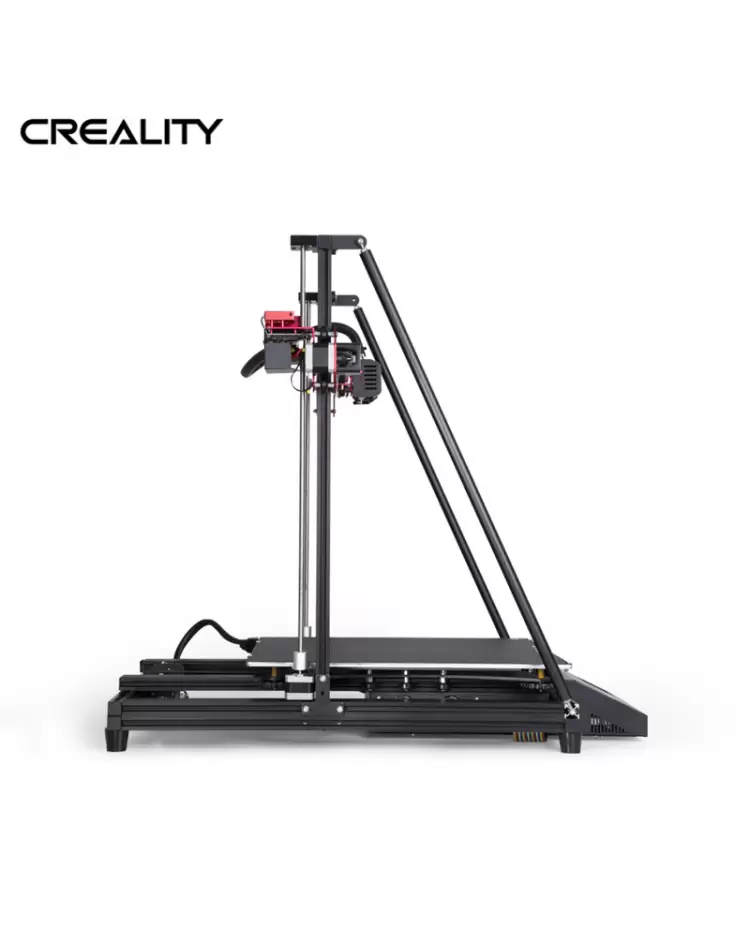

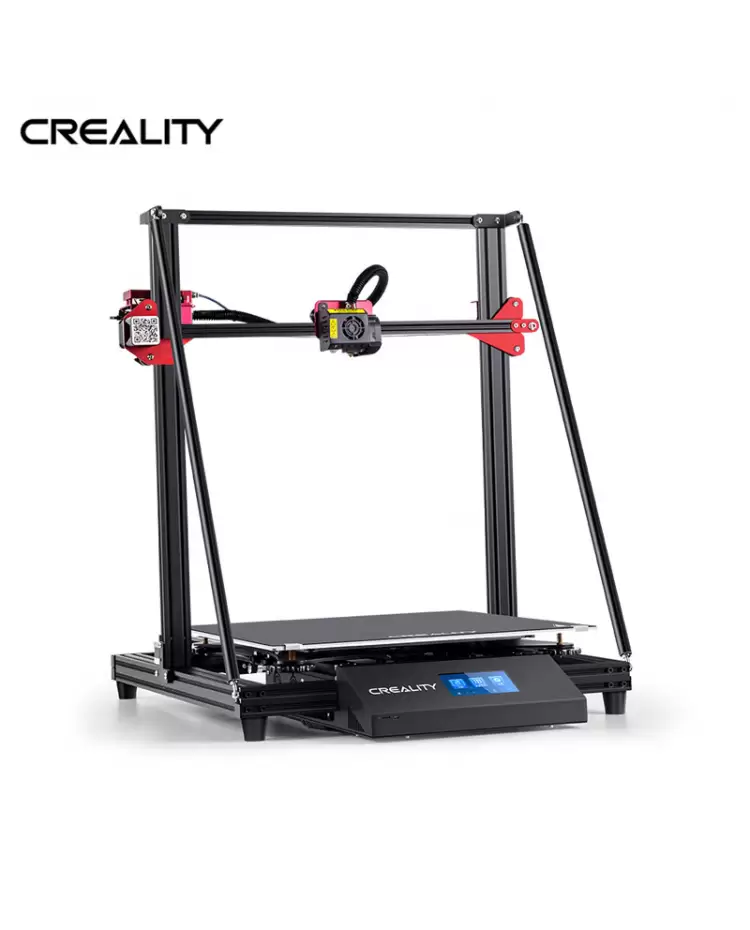

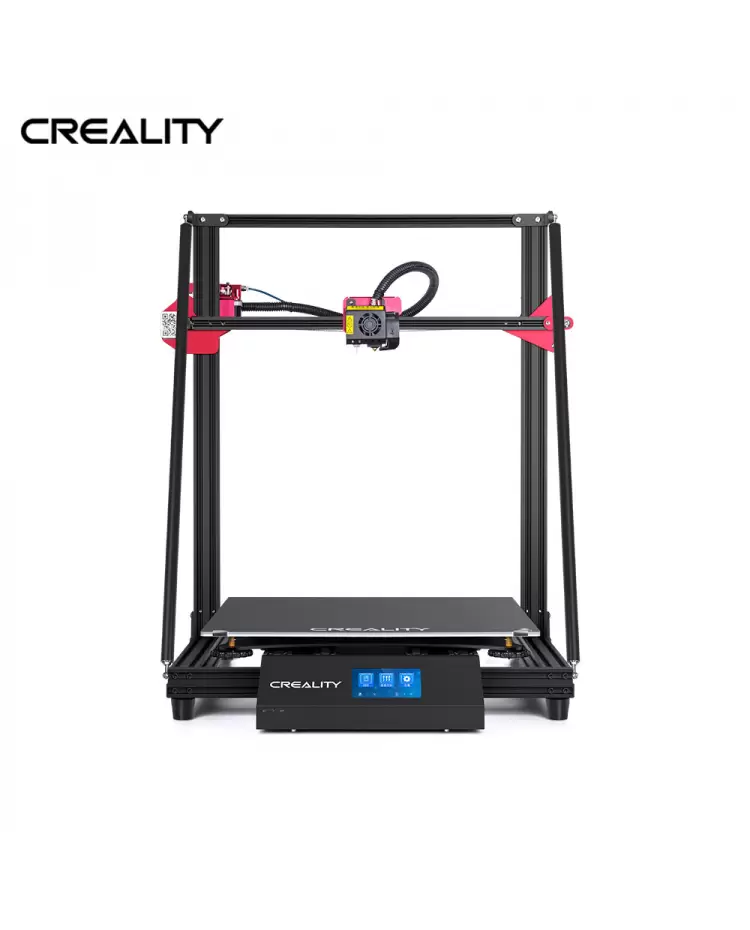

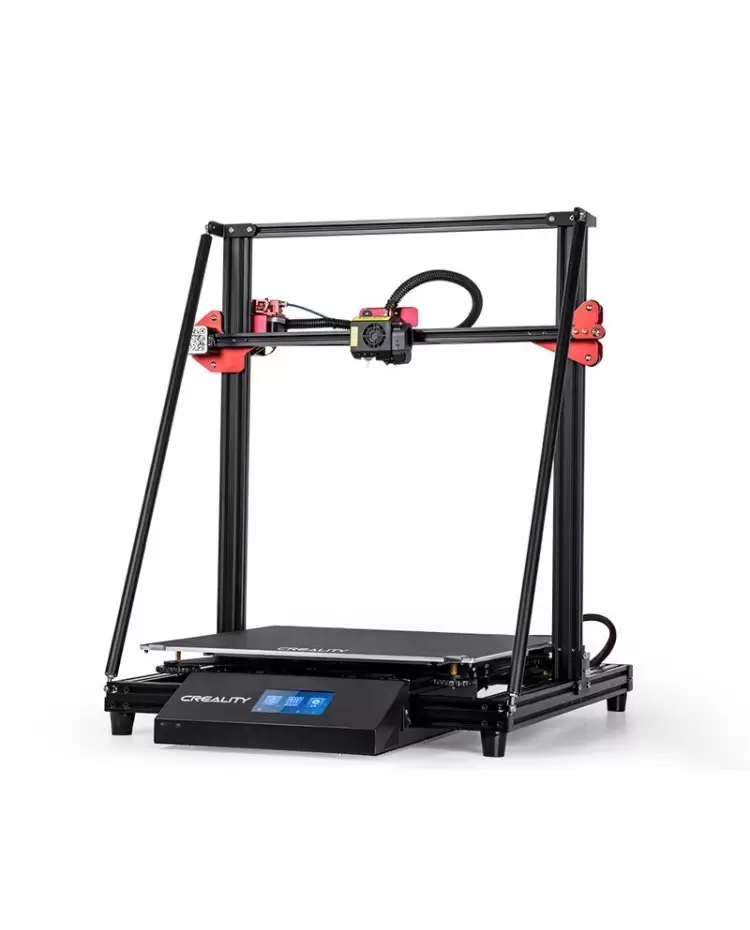

Creality CR-10 Max Large Format 3D Printer


Creality CR-10 Max Highlights


  Amazing build volume! 450x450x470mm (17.7x17.7x18.5in)

  New 2.4.1 Motherboard with TMC stepper drivers for fast and quiet operation

  AUTO LEVELING with genuine Antclabs BL Touch Probe

  Bondtech Dual gear extruder for more filament versatility ensures reliable and smooth feed to the hot end

  CAPRICORN BOWDEN TUBE - provides high lubricity and temperature resistance to a Bowden style extrusion setup. A premium inclusion

  Dual MEANWELL 24V Power Supplies

  750 watt Power Supply for bed (bed heats to 100°C in 9 minutes)

  75 watt Power Supply for machine

  Aluminum build plate has better thermal conductivity than glass

  The Creality CR-10 max has an all metal frame and a heated print bed

  Dual Lead Screw design will stabilize the printer on larger, tall prints

  Z Support Rods design will stabilize the printer on larger, tall prints

  Dual Y Axis belt design will stabilize front to back motion

  Filament Sensor NEW DESIGN will alert you when the filament has ran out or broken

  Integrated Touchscreen: for a more intuitive user experience.

  Improved AUTO RESUME PRINT function: Resume Print, which stores the print information and position of the print head in case of power failure or similar

  3D Prints PLA, PETG, PC, TPU, Copper and Wood fill (ABS with enclosure)

  The CR-10 Max offers a SD card reader and USB connectivity

  Compatible with Simplify3d, Cura, Slic3r and Repetier Host software

  0.4 mm nozzle included with 1 spare .4mm

  All tools needed for assembly are included

  Some assembly required but it is simple and suitable for "Newbies"

  Note: This 3D Printer is mostly assembled, no soldering required. You will just need to connect the upper and lower frame together and plug in some connections.


Technical specifications

BrandCreality
ModelCR-10 Max
Molding technologyFDM(fused deposition molding)
Printing size450X450X470
Printing precision±0.1mm
Slice thickness0.1-0.4mm
Nozzle diameterStandard 0.4mm,0.8mm
Nozzle number1
Nozzle temperature≤250℃
Hot bed temperature≤100℃
Working modeTF card offline or online
File formatSTL,OBJ,amf
Slicing softwareCura、Simplify3D
Power supplyDouble power supply,mother board 75W,24V,input -100-240V AC,output -24V;hot bed power supply 750W,24V,input-100-240V AC,output-24V
Machine power750W
Printing materialPLA, PETG, PC, TPU, Copper and Wood fill (ABS with enclosure)
Filament diameter1.75mm
Machine size650*785*735
Package Size735X735X305
G.W24.8KG
N.W20.0KG
XY axis position precision0.012mm
Z axis position precision0.001mm
Screen4.3 inch touch screen
Control systemWindows XP/Vista/7/10 MAC Linux
Motor parameter42-40 stepper motor,42-34 stepper motor Step angle1.8°
