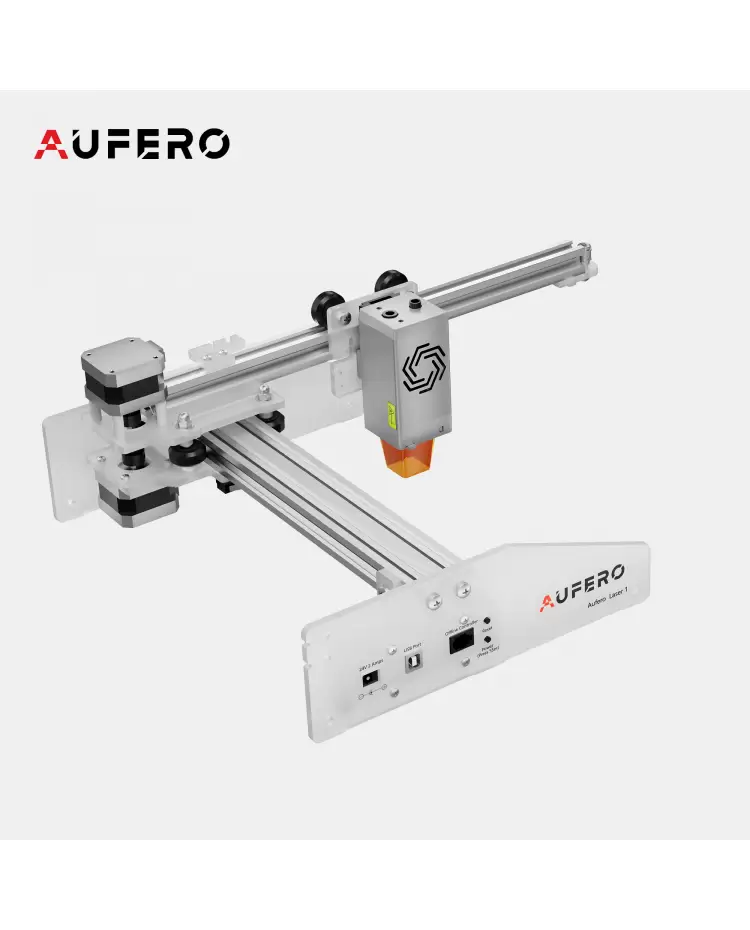

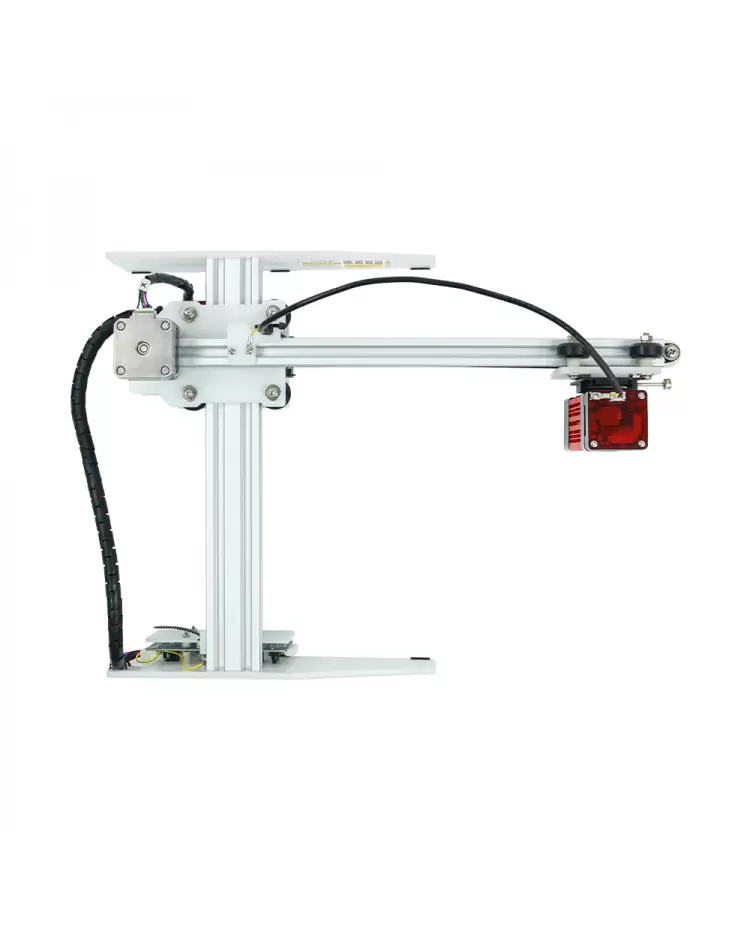

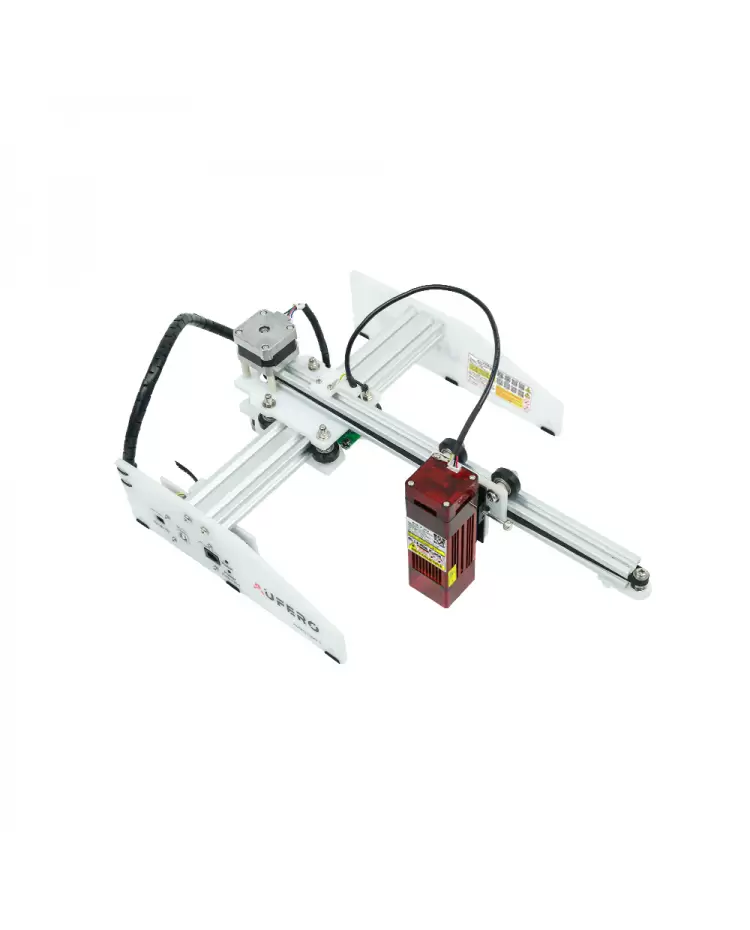

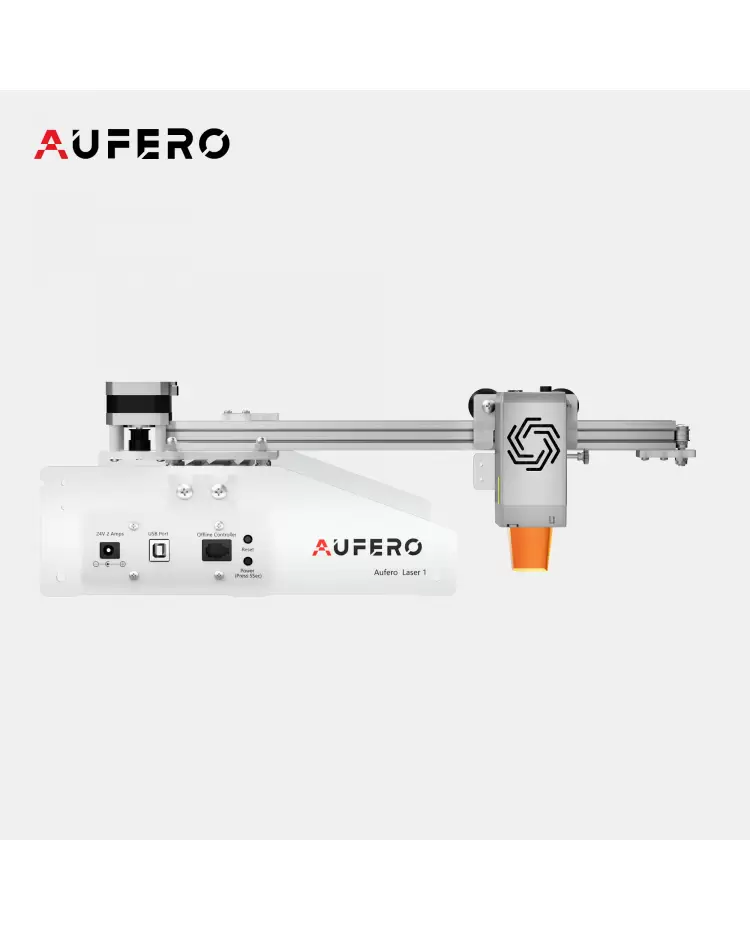

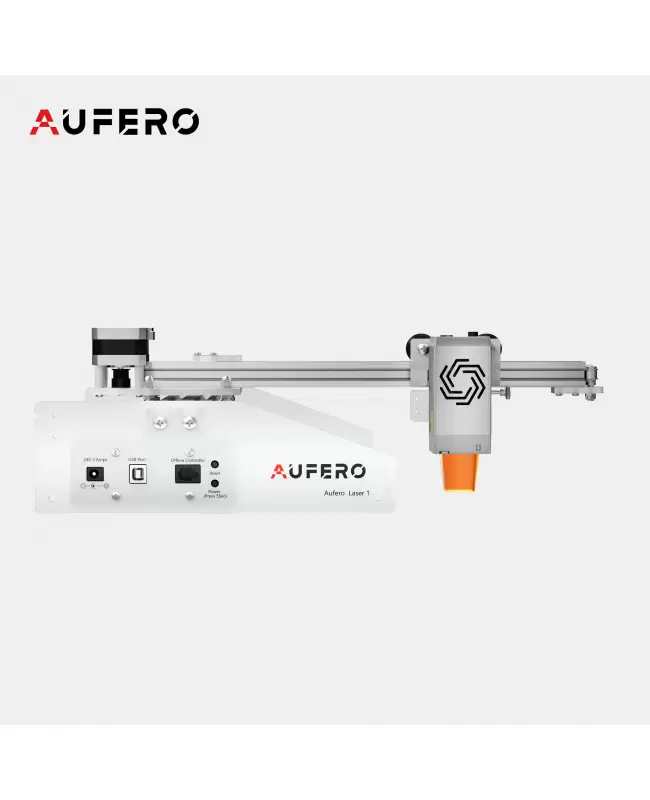

Aufero Laser 1 Portable Diode Laser Engraver

Aufero Laser 1 (AL1) is the world's first plug-and-play portable diode laser engraver with a larger engraving area, four safety protections, advanced mother and pre-assembled packaging, which is highly used in artistic creation, soft outfit design, toy puzzles, manufacturing, Logo & VI design and Life record, multiple materials are supported such as wood, glass, food, stone, oxidized metal, stainless steel, ceramic tile, corkwood, paper, acrylic, plywood, leather and more.

Aufero Laser 1 Key Features & Highlights

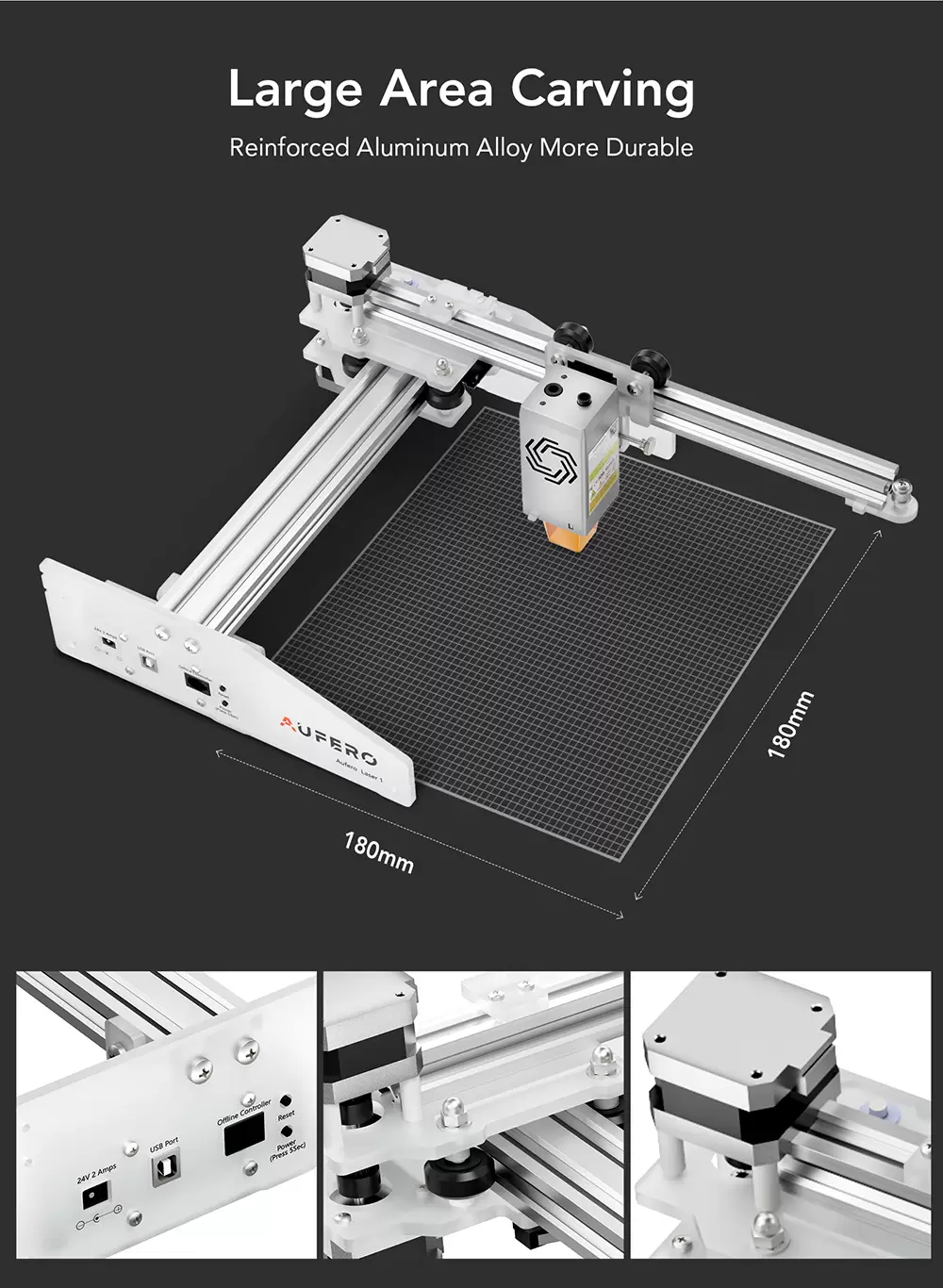

Aufero Laser 1 has 180x180mm Engraving area
Compressed spot

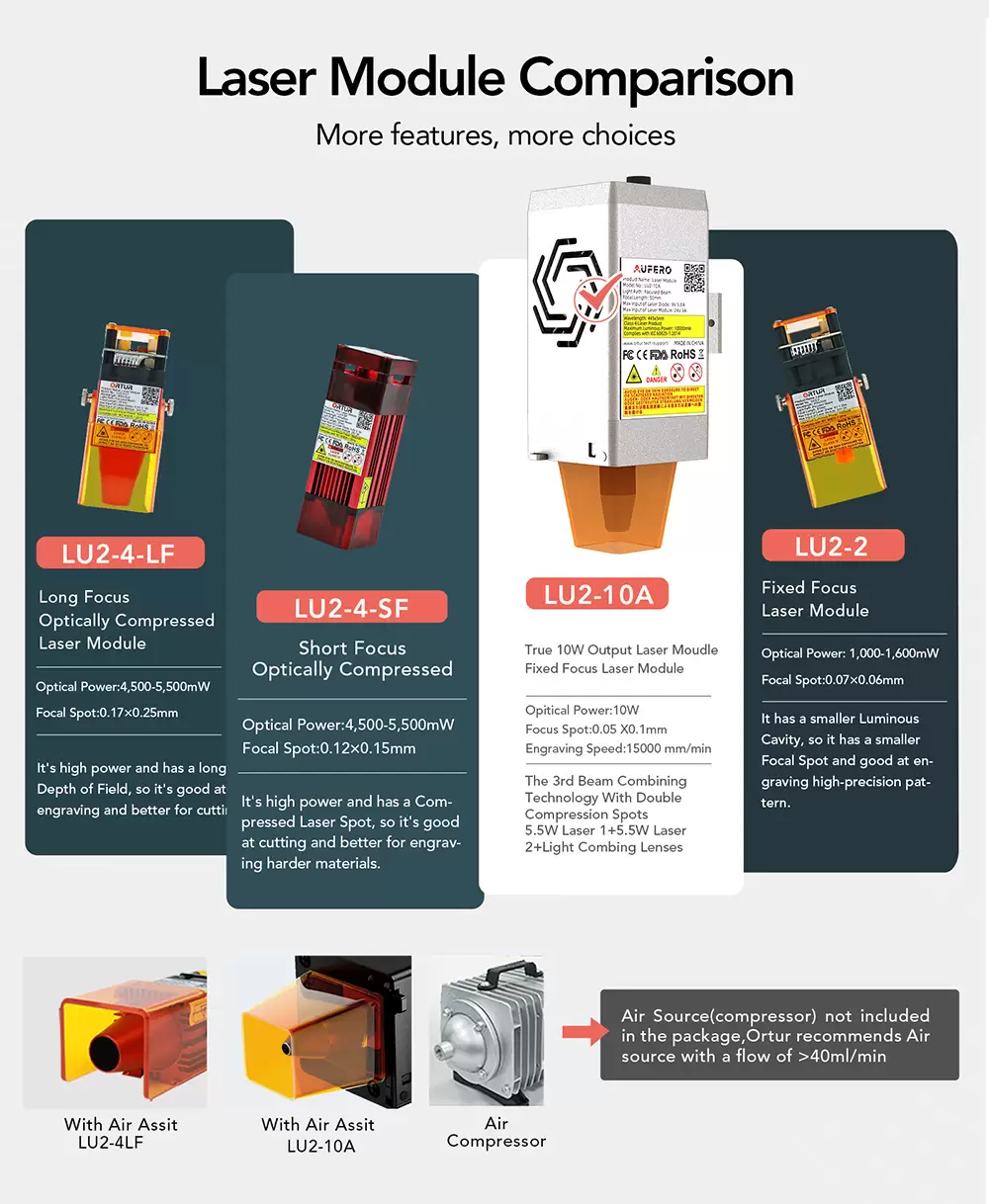

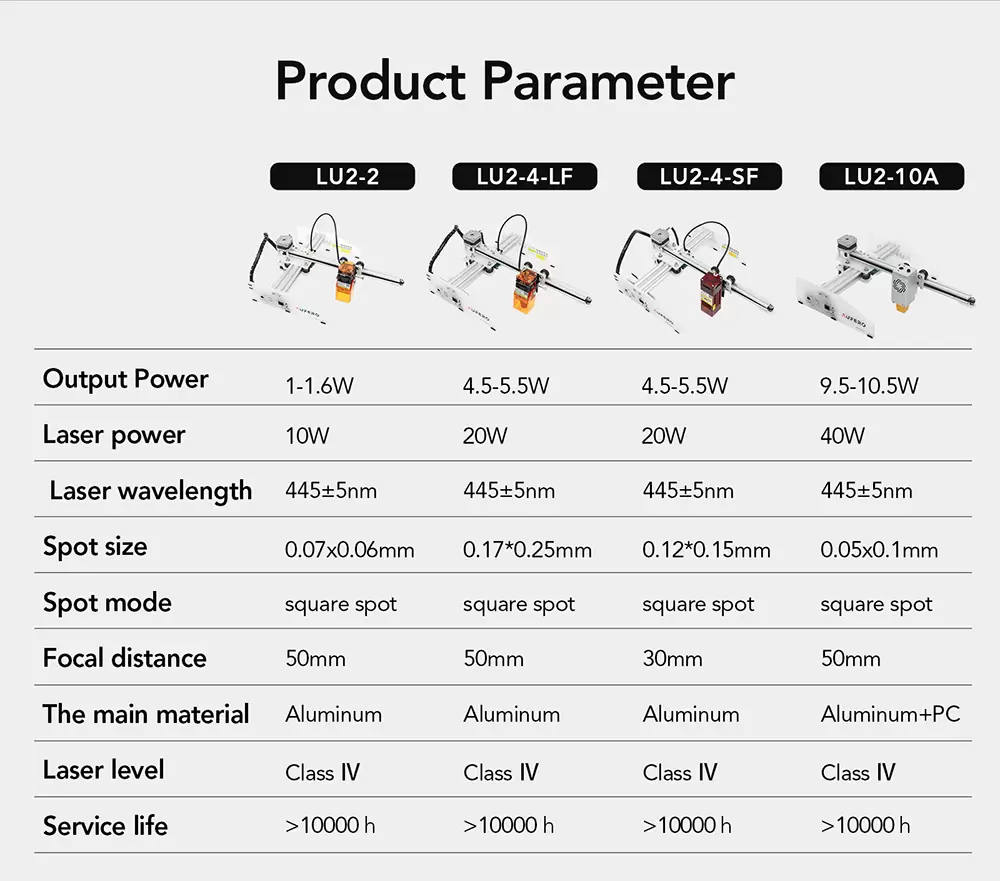

Aufero Laser 1 LU2-2 Fixed Focus Laser Module

Optical Power: 1KmW-1.6KmW Focal Spot: About 0.07×0.06mm
It has a smaller Luminous Cavity, Smaller Focal Spot, and is good at engraving high-precision patterns.

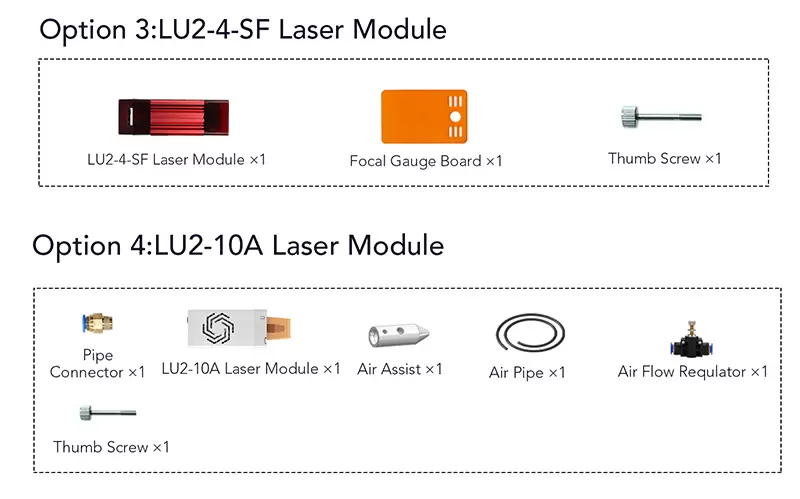

Aufero Laser 1 LU2-4-SF Short Focus Optically Compressed Laser Module

Optical Power: 4.5KmW-5.5KmW Focal Spot: About 0.12×0.15mm
It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.

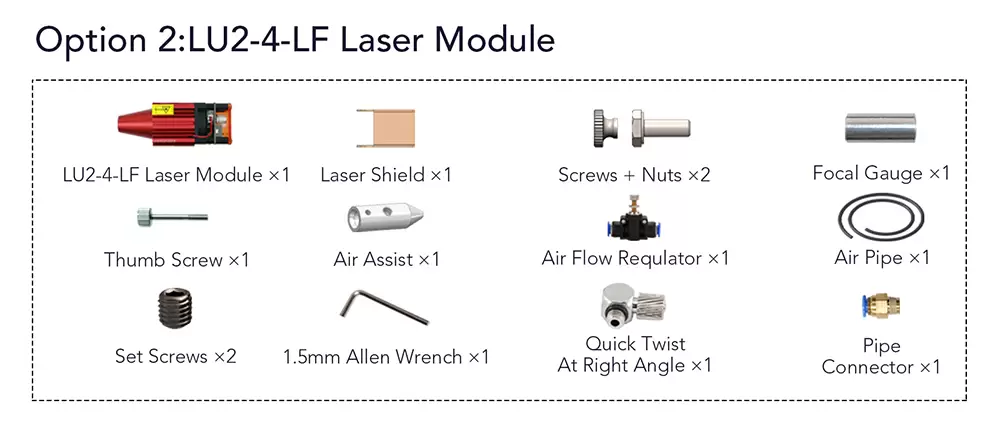

Aufero Laser 1 LU2-4-LF Long Focus Optically Compressed Laser Module

Optical Power: 4.5KmW-5.5KmW Focal Spot: About 0.17×0.25mm
It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.
Telephoto. Longer Depth of Field.
It has a good engraving effect and is more suitable for cutting thicker wood boards.
With air assist, it is not easy to have black edges, but you need to bring your own air compressor
While this laser module has a good engraving effect, it also has a more perfect cutting effect. You can use some beautiful wood planks with your own individual design to cut them into various forms of art; of course, in addition to wood planks, it also supports a variety of materials such as leather and black acrylic, and it can also Cut these materials into the shape you want, and engrave your pattern design.

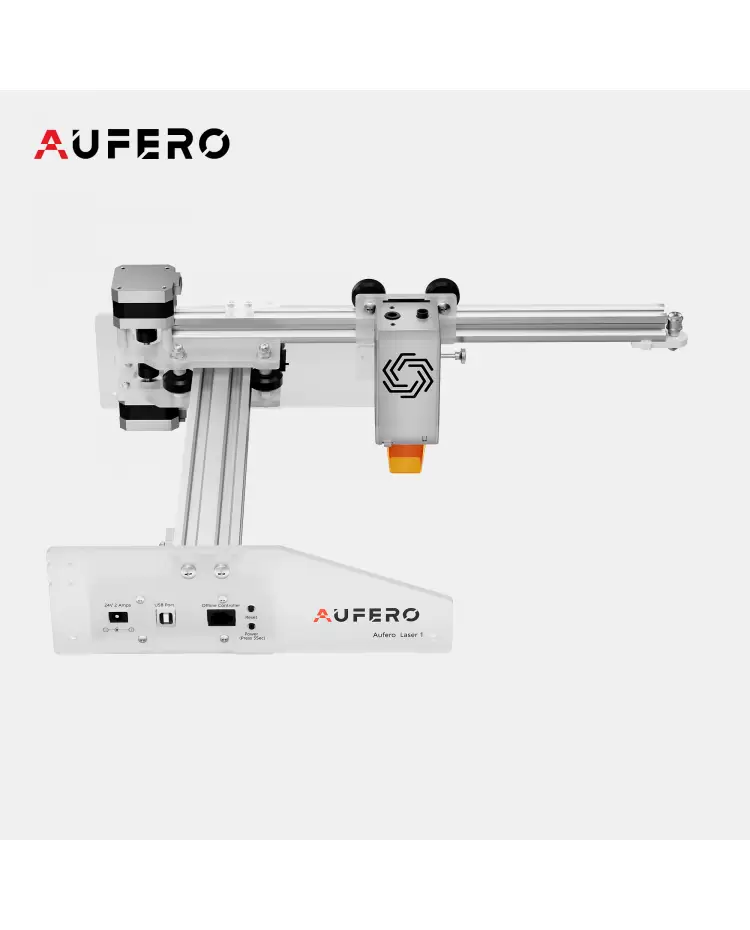

LU2-10A Truly 10W Laser output Fixed focus Laser Module

Optical power: 10W , Focus spot 0.05x0.1mm, Engraving speed 15000mm/min
It yields Powerful & professional cutting & also it does extreme & precise engraving

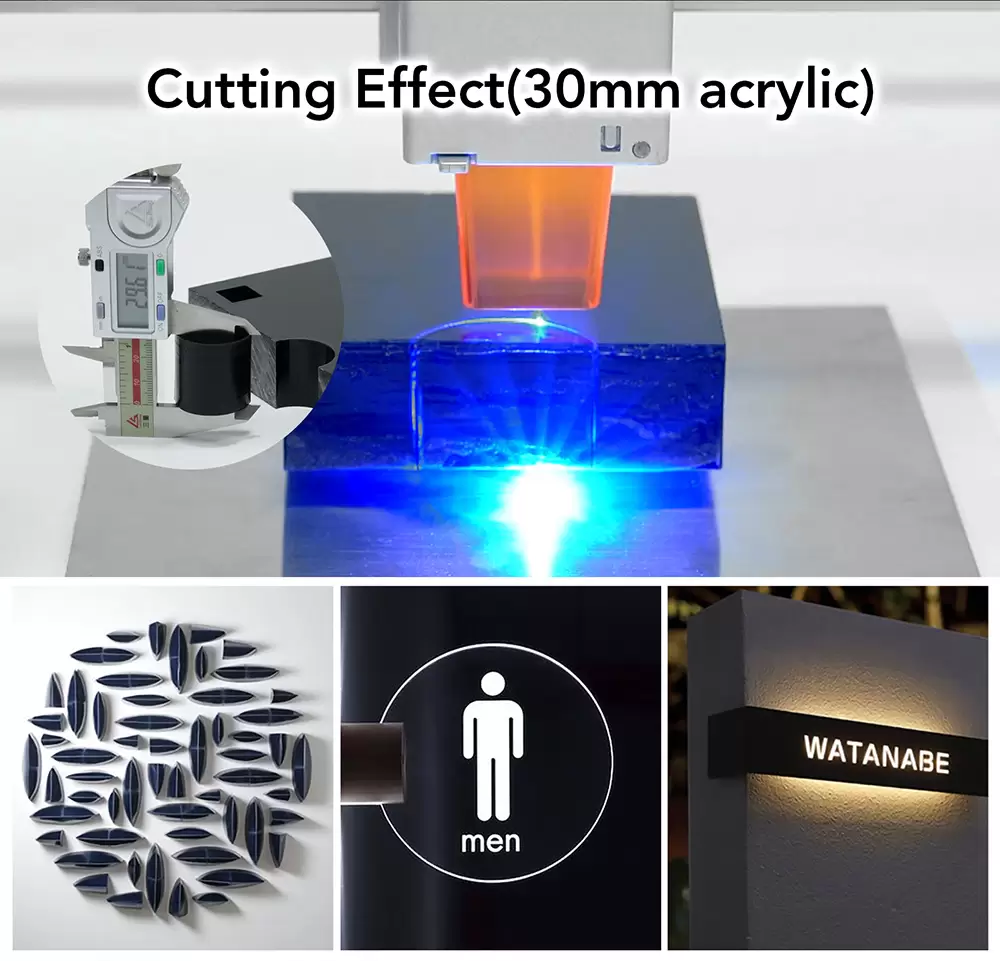

Cuts through 15mm wood, 20mm plywood, and 30mm acrylic at one pass

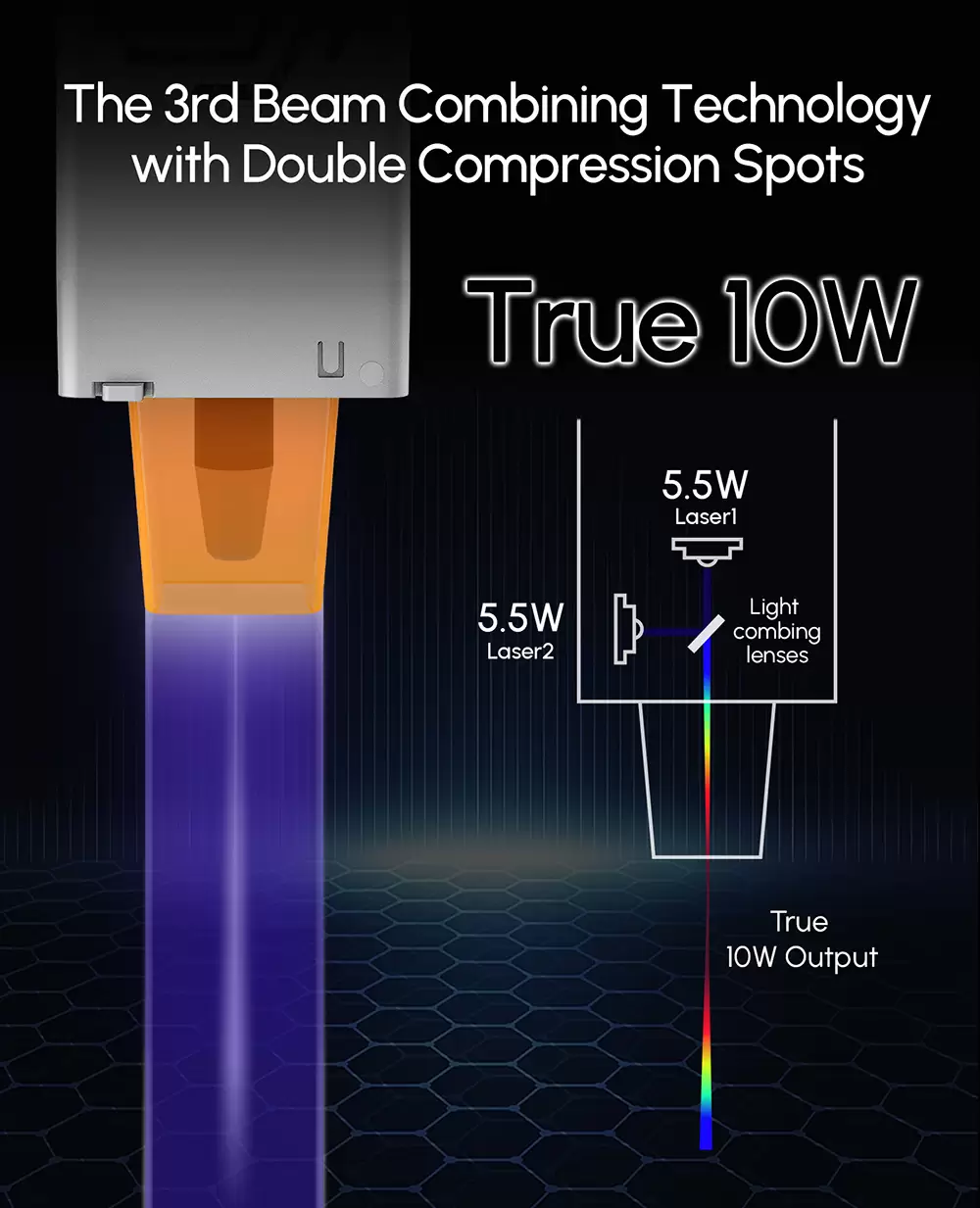

3rd beam combining technology with double compression spots (True 10W)

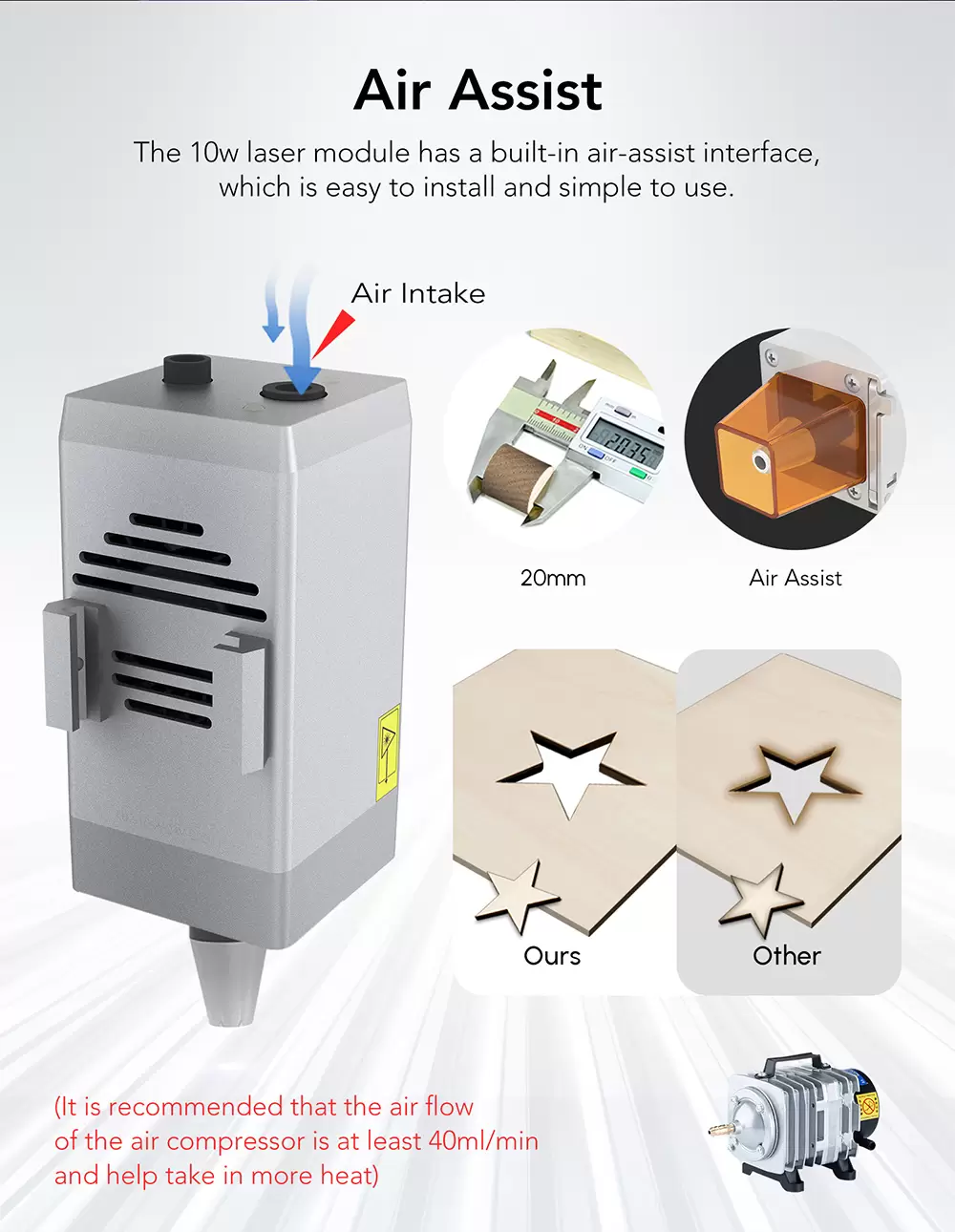

Built-in air-assist interface which is easy to install and simple to use

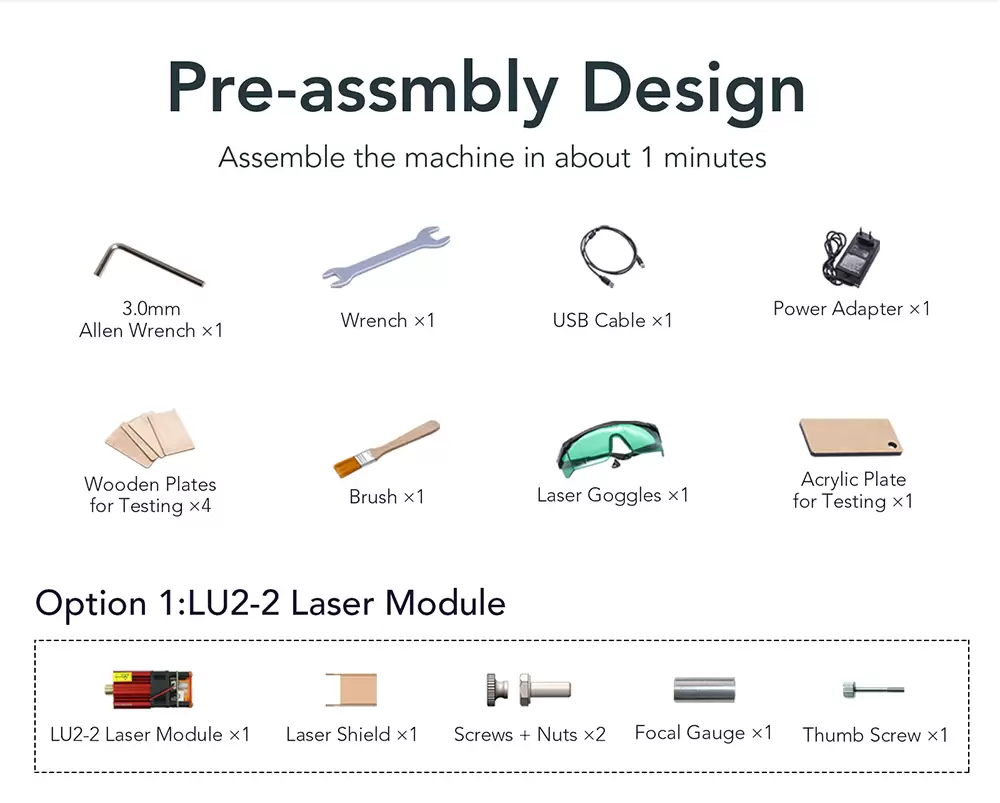

Pre-assembled package

It's unnecessary to laboriously learn how to install, easy to use. Suitable for new players and experienced players. The real plug-and-play laser engraver for everyone!

Ortur Laser 1.8 Advanced Firmware

Aufero Laser 1 firmware is smarter, faster, more accurate, and easier to use. Professional motherboard with 32-bit MCU. It can pre-process 32 instructions, support up to 921600 baud rate, more powerful. The engraving speed can be as high as 5000mm/min.

Broad Compatibility

Aufero Laser 1 Laser Engraver can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10, and also support Mac and Linux system (LightBurn, need to be paid), engraving file format supports BMP, JPG, PNG, JPEG, SVG, etc.

Safety Protection

Active Position Protection
Exposure Duration Detection and Limitation
Laser Beam Safety Guard
The power control system, if shut down the machine, would cut the power

Eye Protection Design

Aufero Laser 1 Laser Engraver with a protective cover perfectly protects our eyes when working. Without wearing goggles, we and the people around us can watch laser engraving.

9th Generation Motherboard

All Aufero motherboard is embedded with the latest and most advanced 9 generation motherboard.
Driver free use on most modern operating systems, except for Windows XP and Windows 7 driver required.
Higher MCU frequency at 240Mhz and about 10% faster calculation speed than 8th motherboard
Support next-generation Digital Laser Module.

Optional upgrades

Y-axis rotary roller V2 used for engraving cylindrical objects
Offline controller
Ortur Metal enclosure

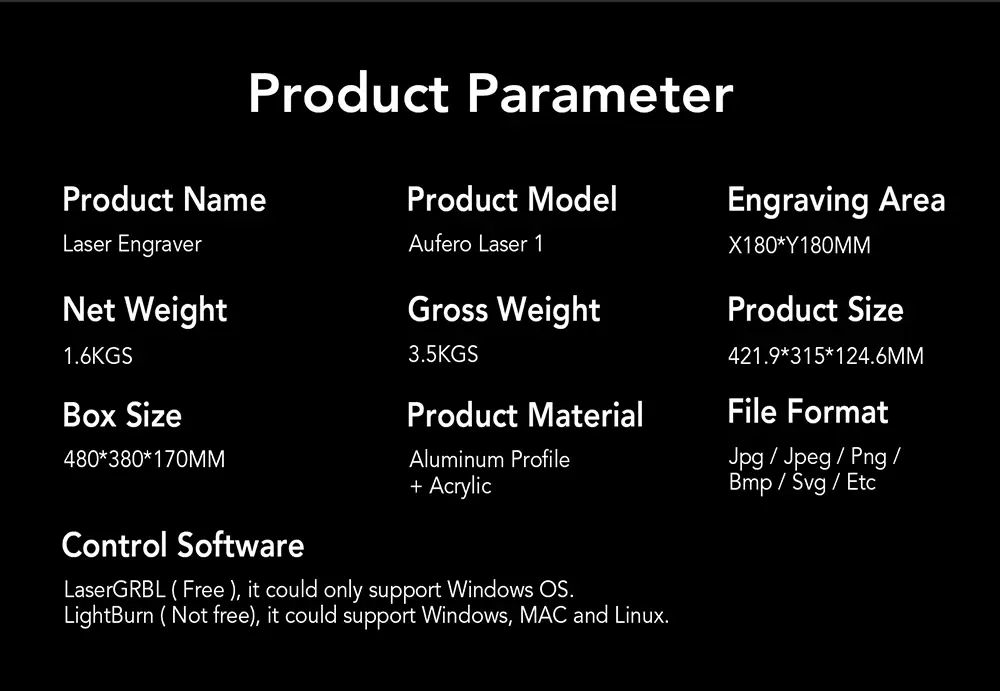

Aufero Laser 1 Technical specifications

Product Model: Aufero Laser 1
Motherboard: OLM-PRO-V1.2 Motherboard,32Bits ESP32MCU
Firmware: OLF-V180 series
Add-ons: 1.Ortur Offline Controller; 2.Ortur Saftey Enclosure
Frame Materials: Aluminum Profile + Acrylic
Motors: NEMA 17 Stepper Motors
Mechanical Precision: Y:12.5um，X:12.5um
Pixel Accuracy: Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)
Engraving Area: 180MM×180MM
Wave Length: 445±5nm
Focus: Fixed Focus
Control Mode: PWM
Power Rate: S0-S1,000
Engraving Speed: 0-5,000MM/Min
Baud Rate: 115200 - 921600 (Default: 115200)
Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL)
Mac and Linux (LightBurn)
Control Softwares: LaserGRBL (free), LightBurn (Paid Software)
Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
Input Voltage: 110V-220V (Compatible)
Power Adapter Output: 24V / 2A
Operating Temp.: -20℃-50℃ Product Size: 315x422x125MM / 12.4"x16.6"x4.9"
Net Weight: 1.6KGS / 3.53LBS
Packing Way: 2 Options: Pre-assembled or Modular Packaging
Box Size: 480x380x170MM / 18.9"x15"x6.7"
Gross Weight: 3.5KGS / 7.72LBS
