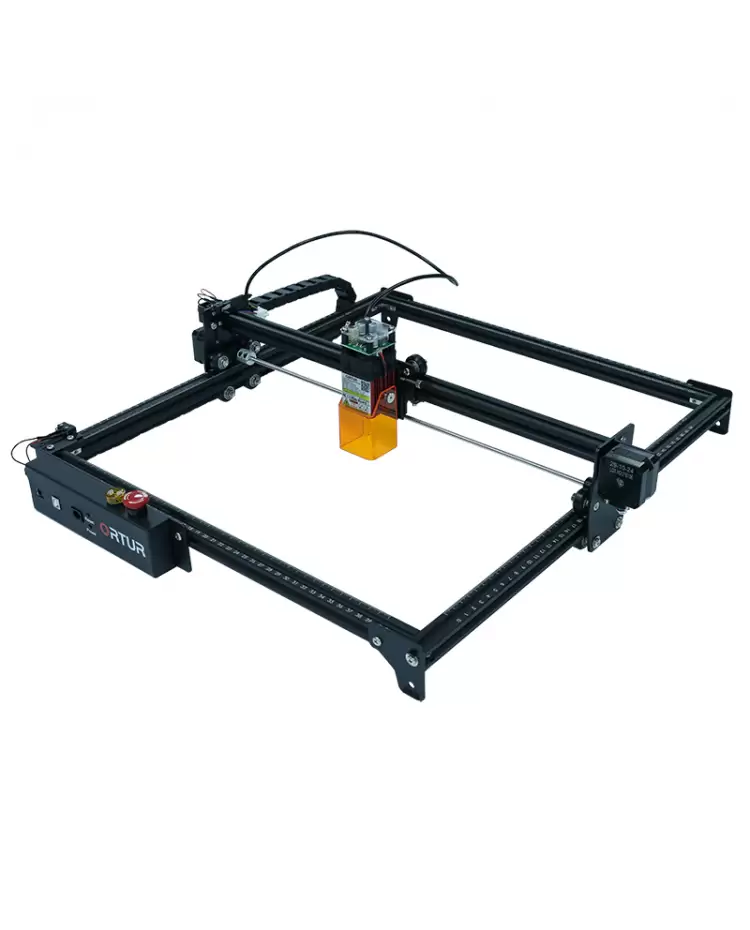

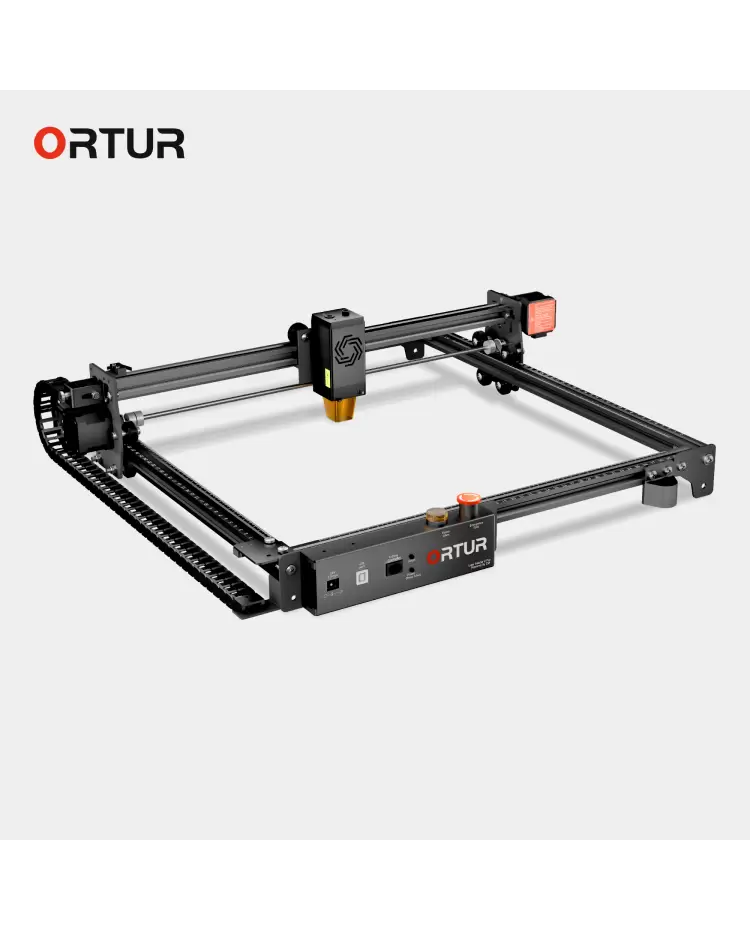

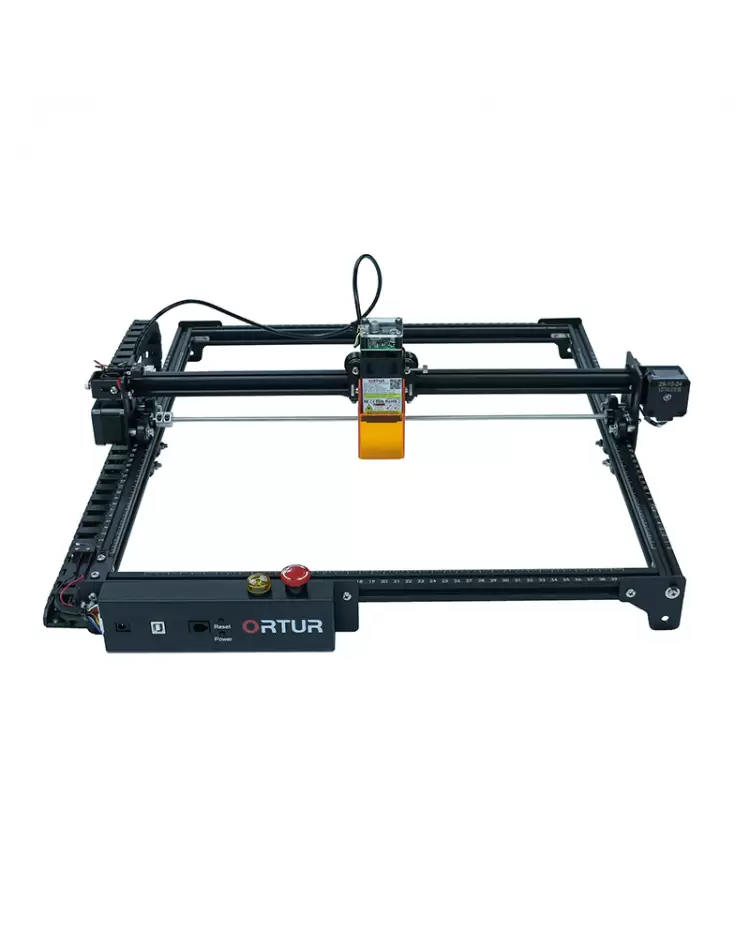

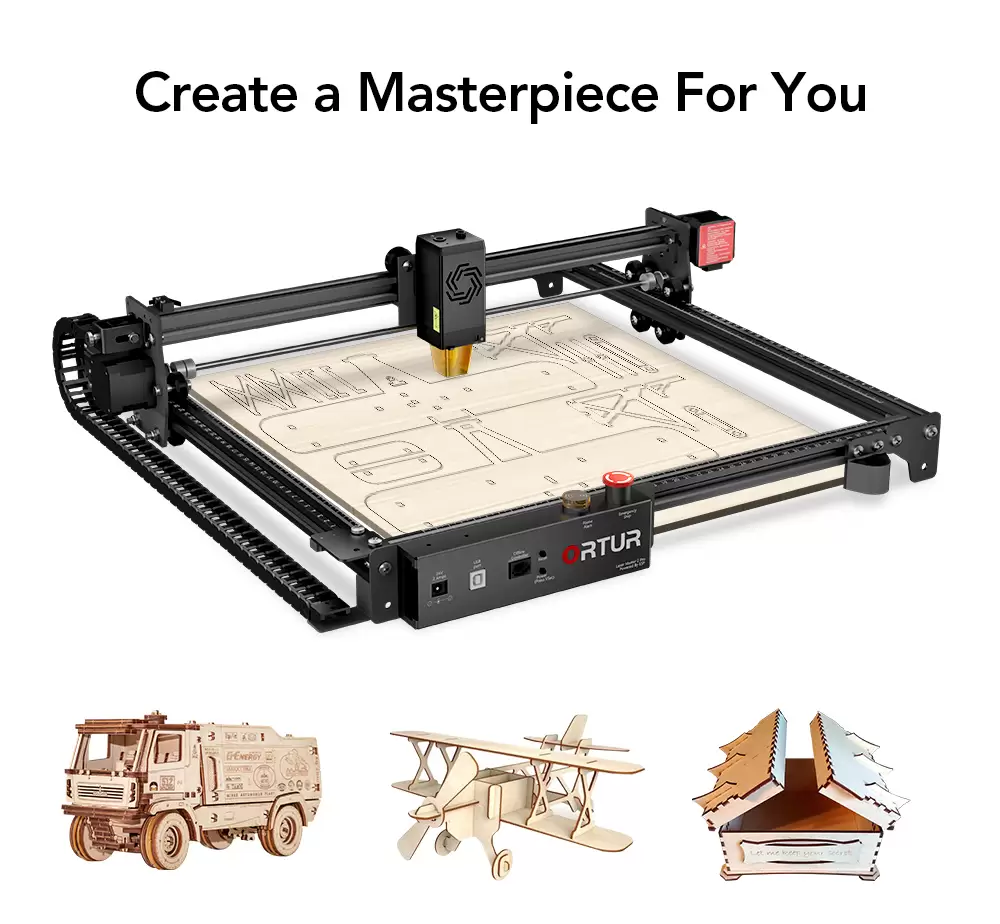

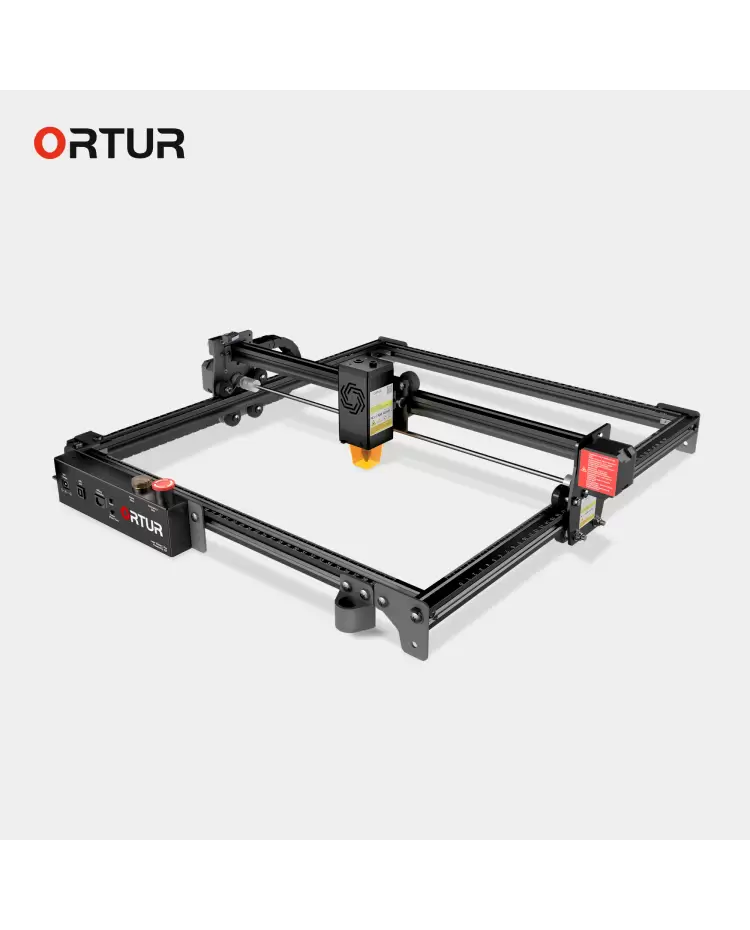

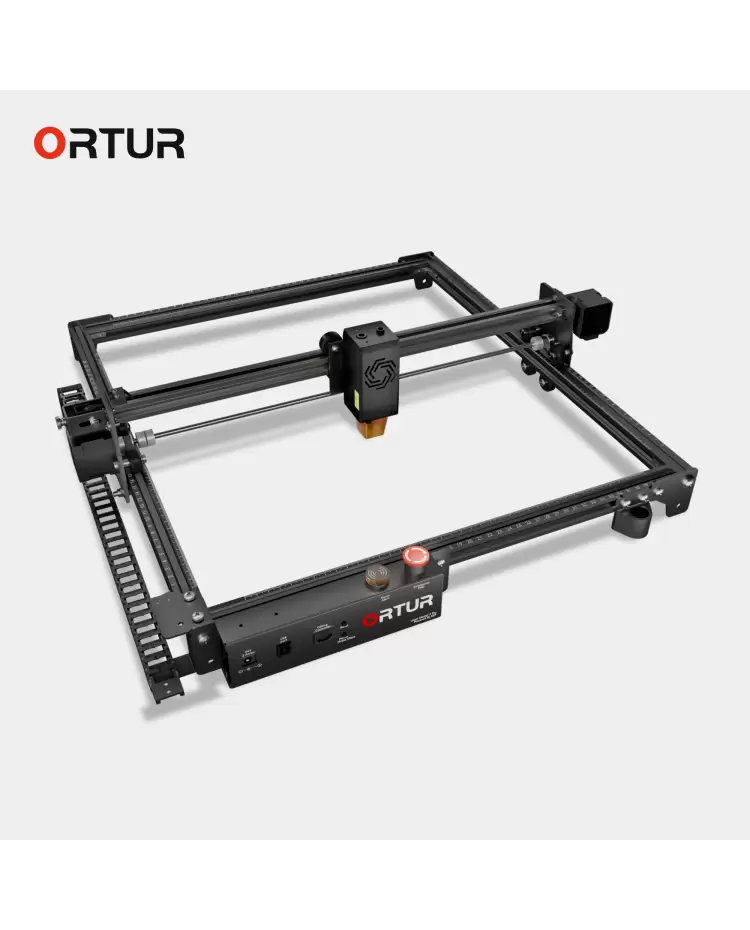

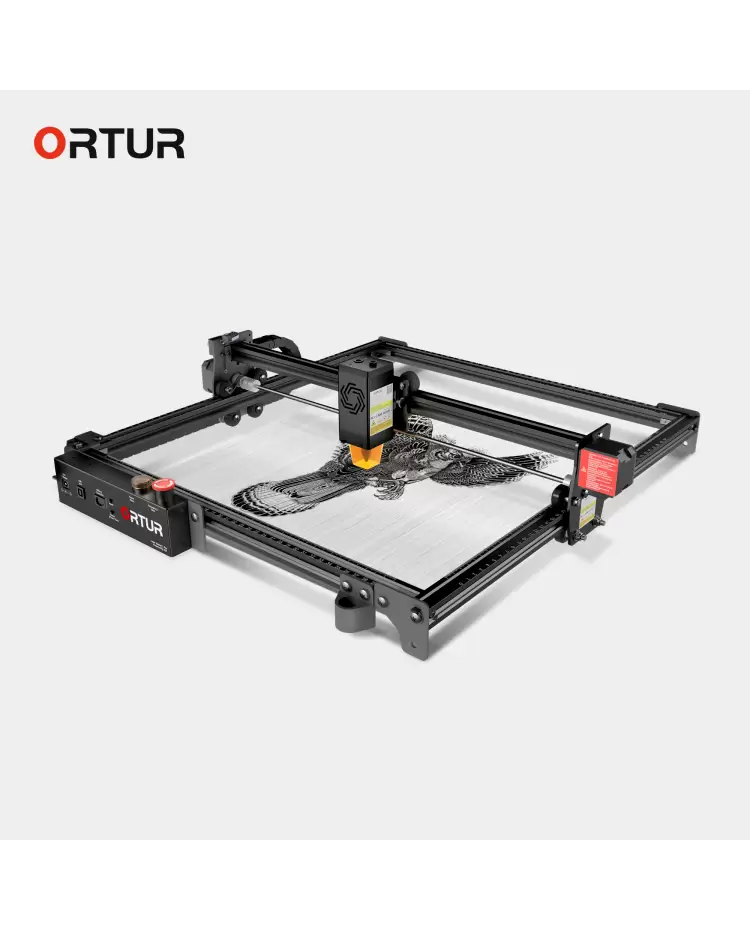

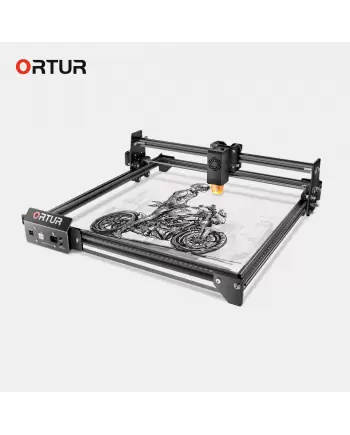

Ortur Laser Master 2 Pro S2 Laser Engraver

Ships from China.

Ortur Laser Master 2 Pro S2 is the successor of ortur laser master 2 with loads of improvements. Ortur Metal enclosure is available for purchase.

Ortur Laser Master 2 Pro S2 safety features

• Active Position Protection
• Laser Beam Safety Guard
• Exposure Duration Detection and switching off

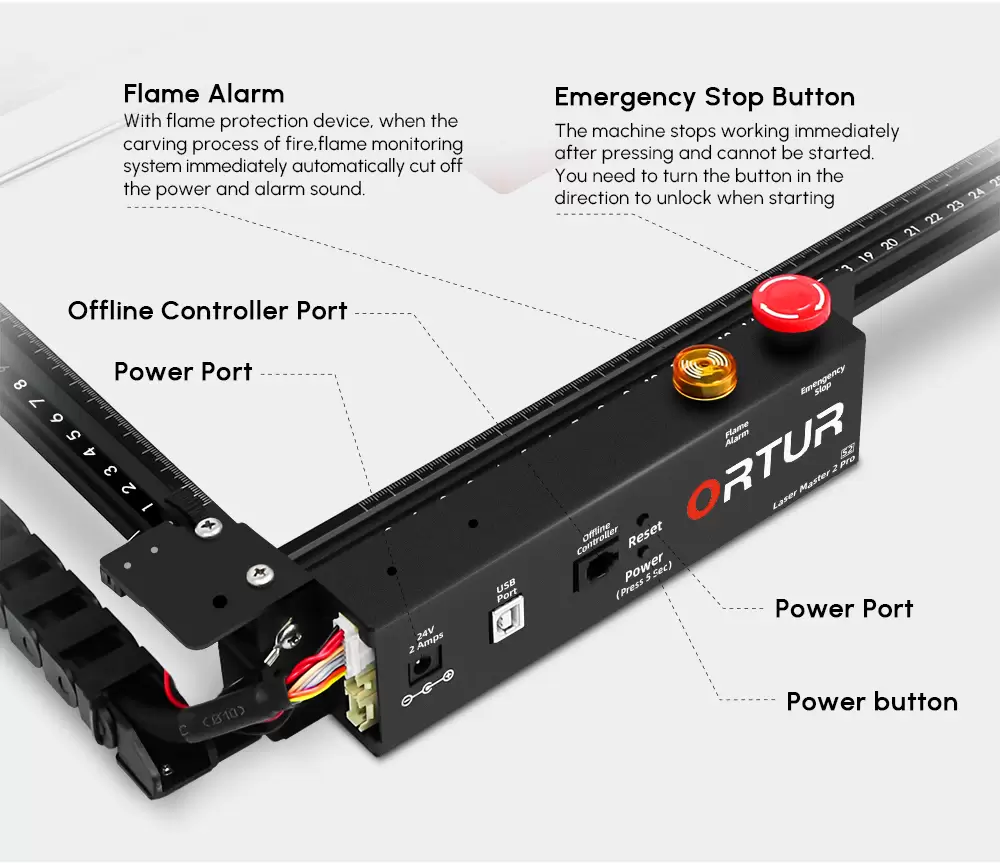

• Flame detector
• Emergency Stop Button

Ortur Laser Master 2 Pro S2 improvements

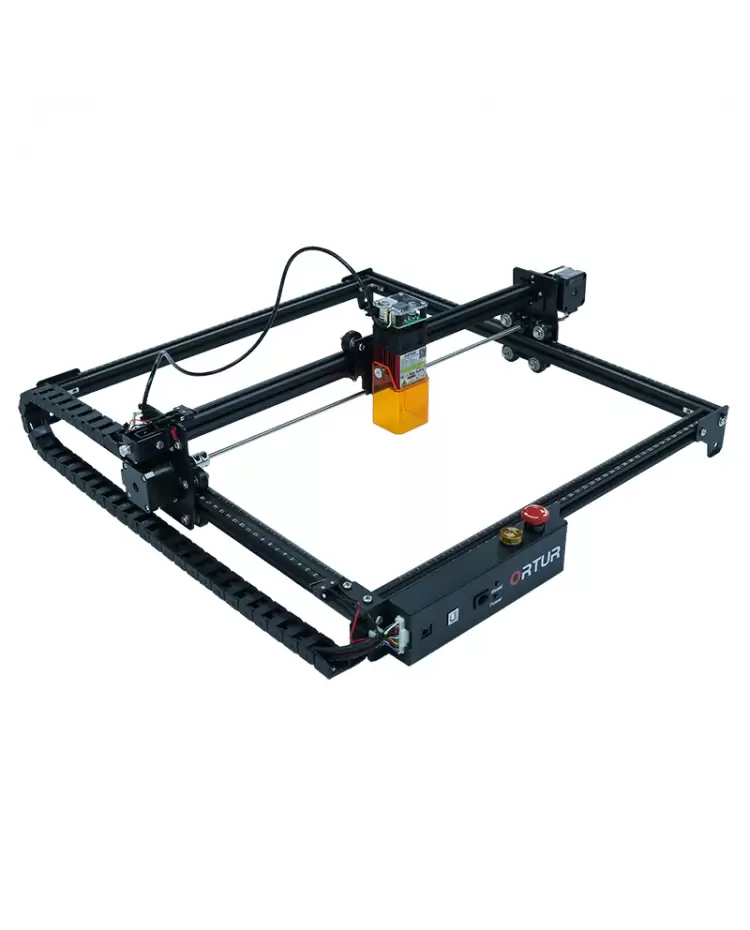

• Towline/Drag chains – provides longevity

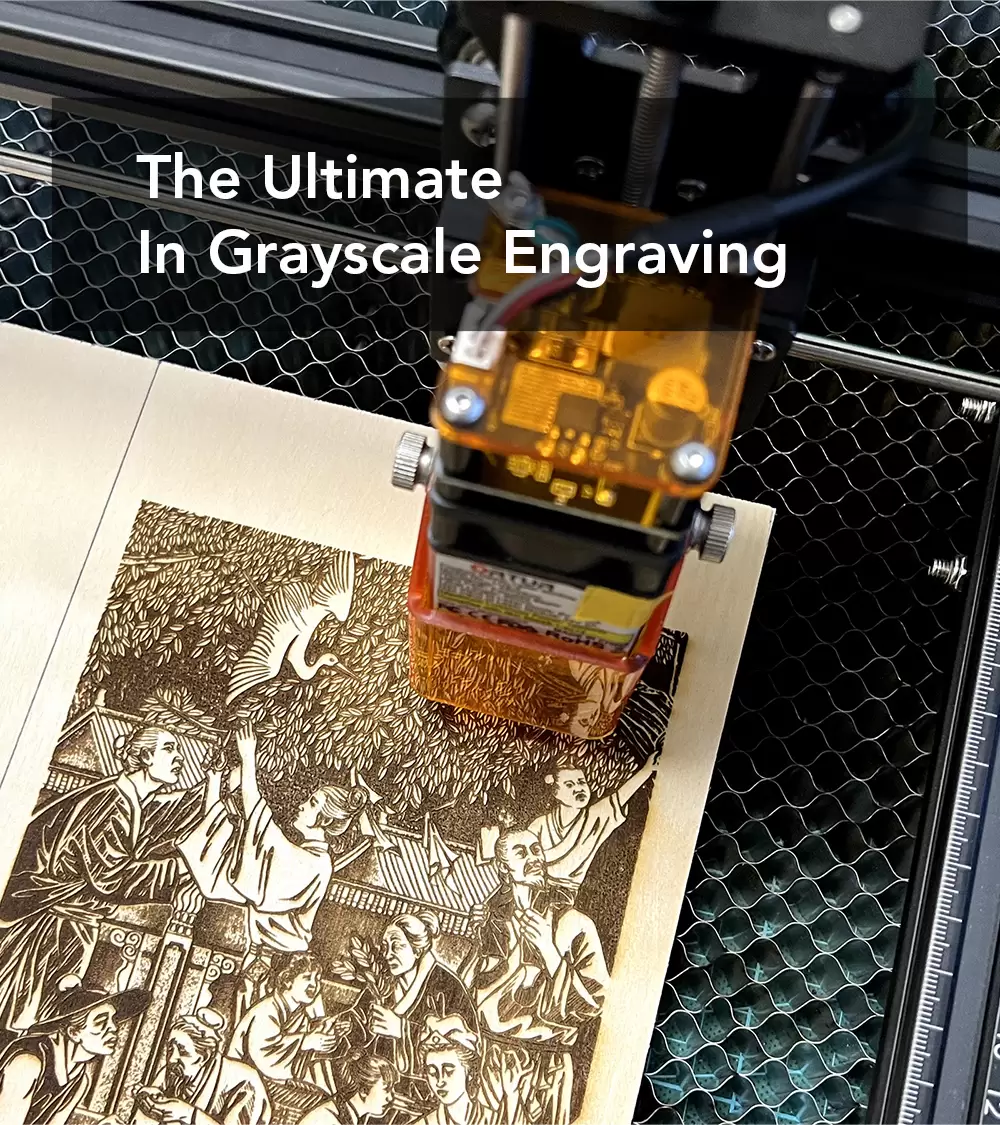

• Enhanced gray scale
• Compressed Focal spot

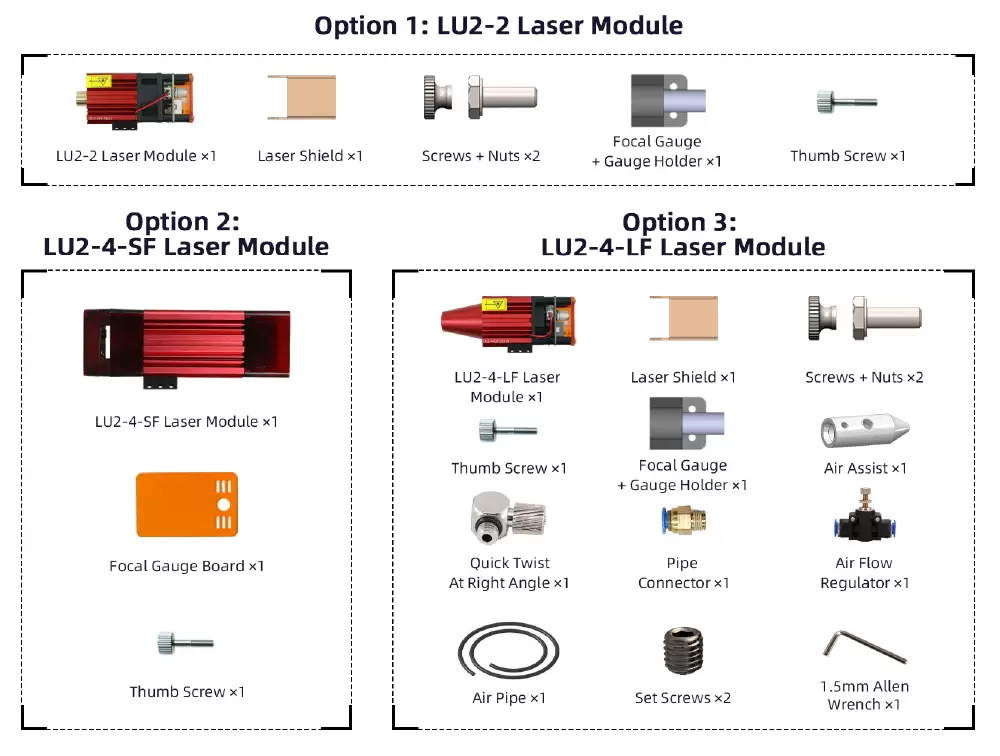

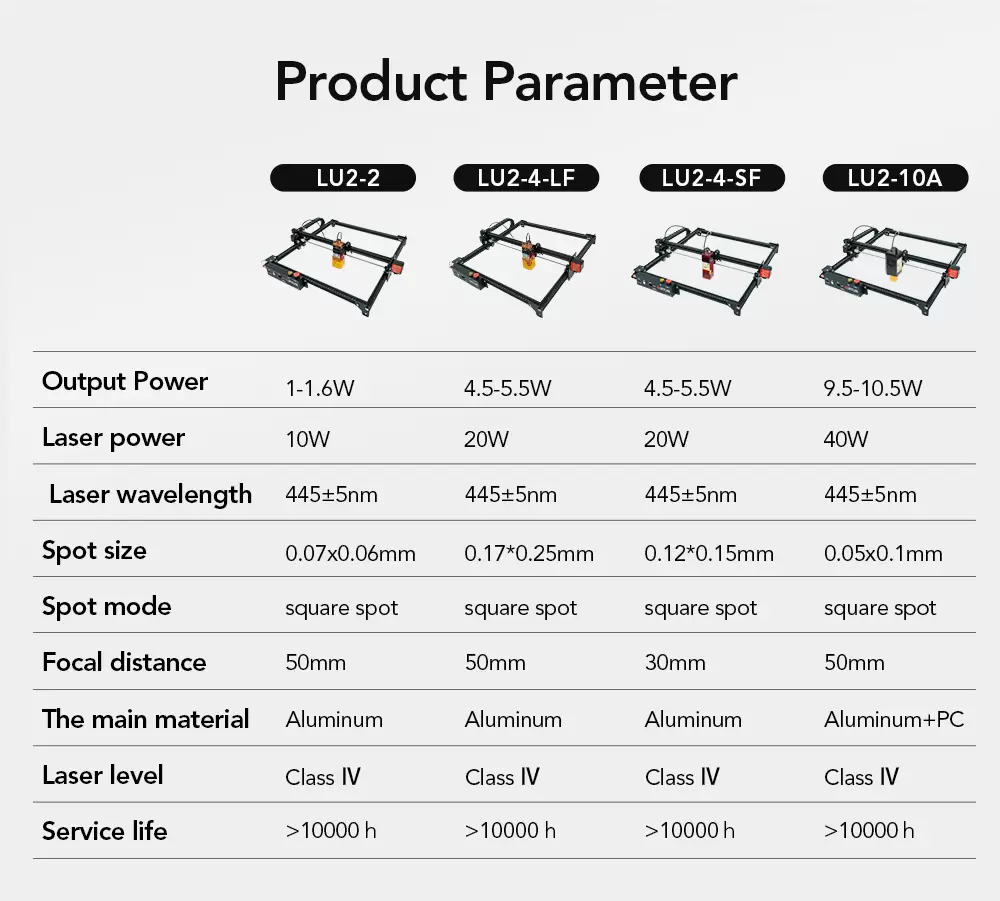

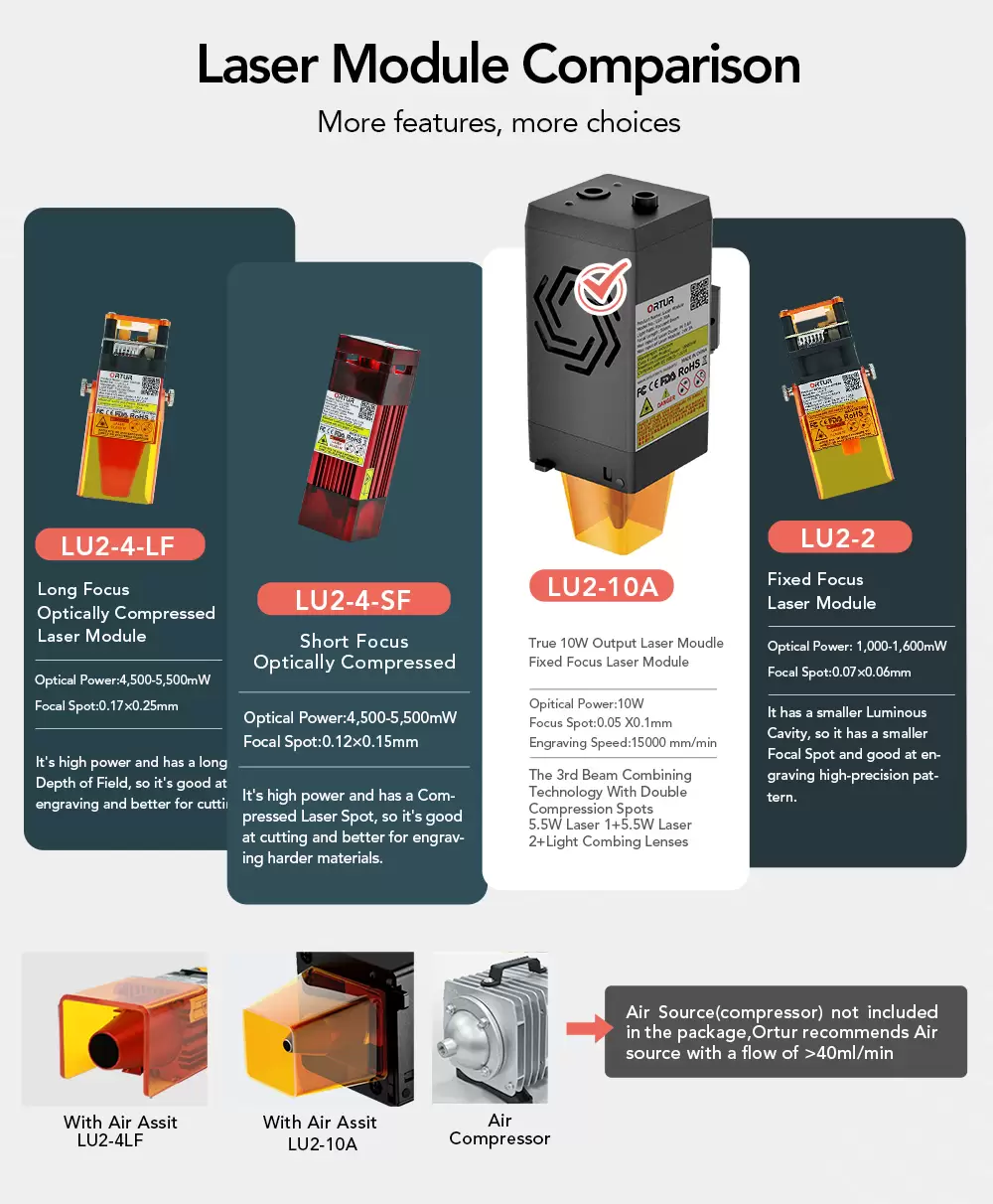

• LU2-2 Fixed focus Laser Module
• Optical power: 1000-1600mW, Focal spot 0.07x0.06mm
• It has a smaller Luminous Cavity, so it has a smaller Focal Spot and is good at engraving high-precision patterns.

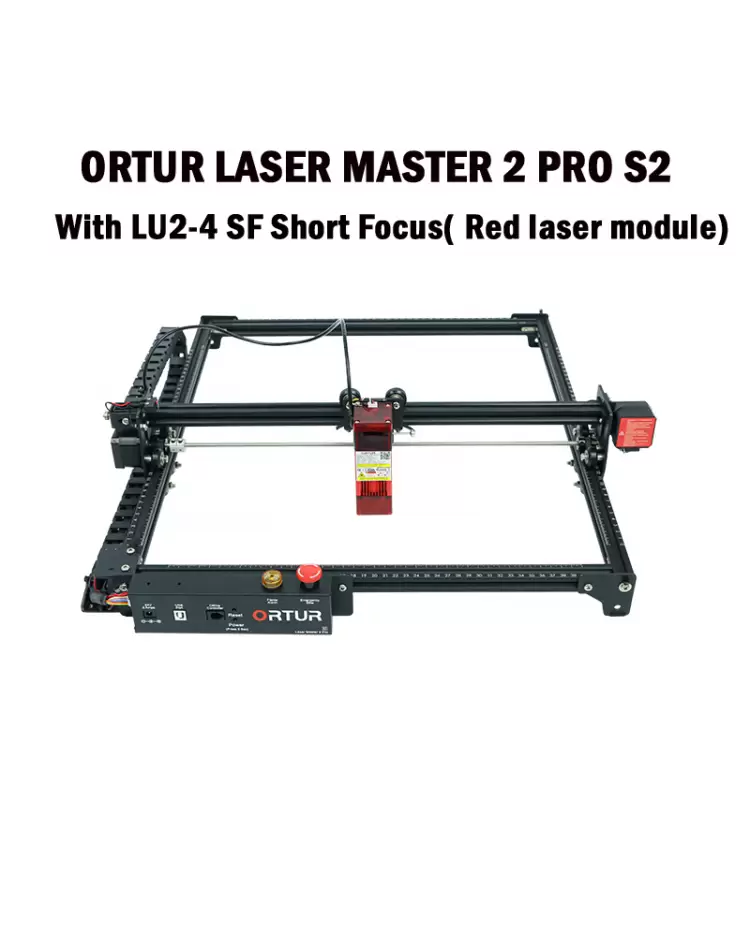

• LU2-4-SF Short Focus Optically Compressed Laser Module
• Optical Power: 4.5KmW-5.5KmW Focal Spot: About 0.12×0.15mm
• It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.

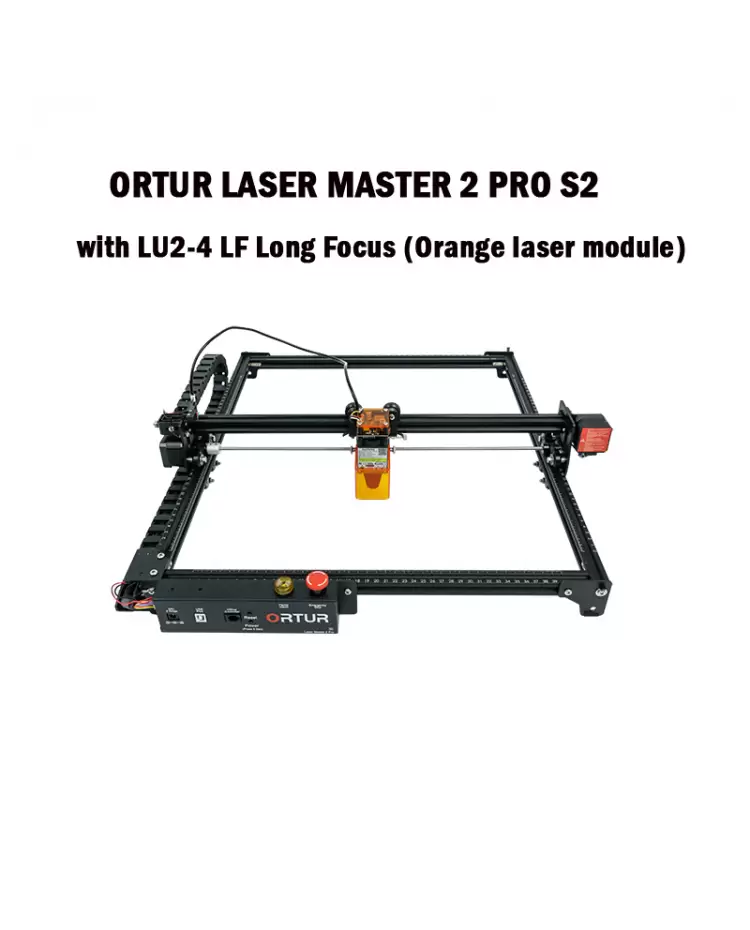

• LU2-4-LF Long Focus Optically Compressed Laser Module
• Optical Power: 4.5KmW-5.5KmW Focal Spot: About 0.17×0.25mm
• It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.
• Telephoto. Longer Depth of Field.
• It has a good engraving effect and is more suitable for cutting thicker wood boards.
• With air assist, it is not easy to have black edges, but you need to bring your own air compressor
• While this laser module has a good engraving effect, it also has a more perfect cutting effect. You can use some beautiful wood planks with your own individual design to cut them into various forms of art; of course, in addition to wood planks, it also supports a variety of materials such as leather and black acrylic, and it can also Cut these materials into the shape you want, and engrave your pattern design.

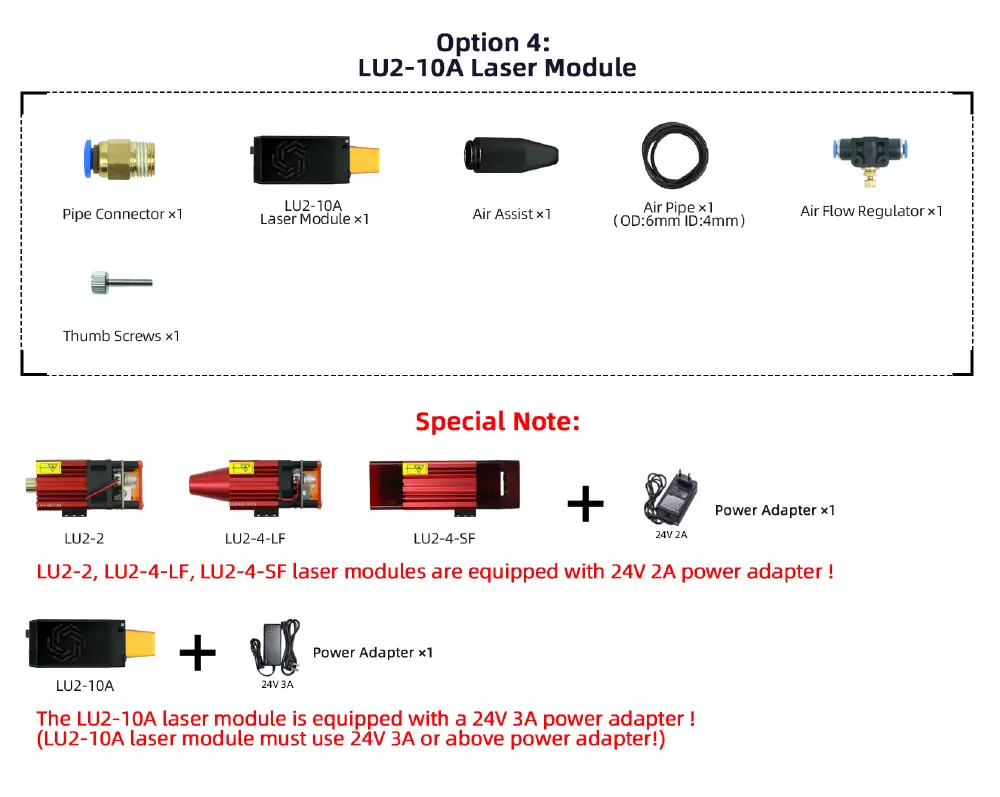

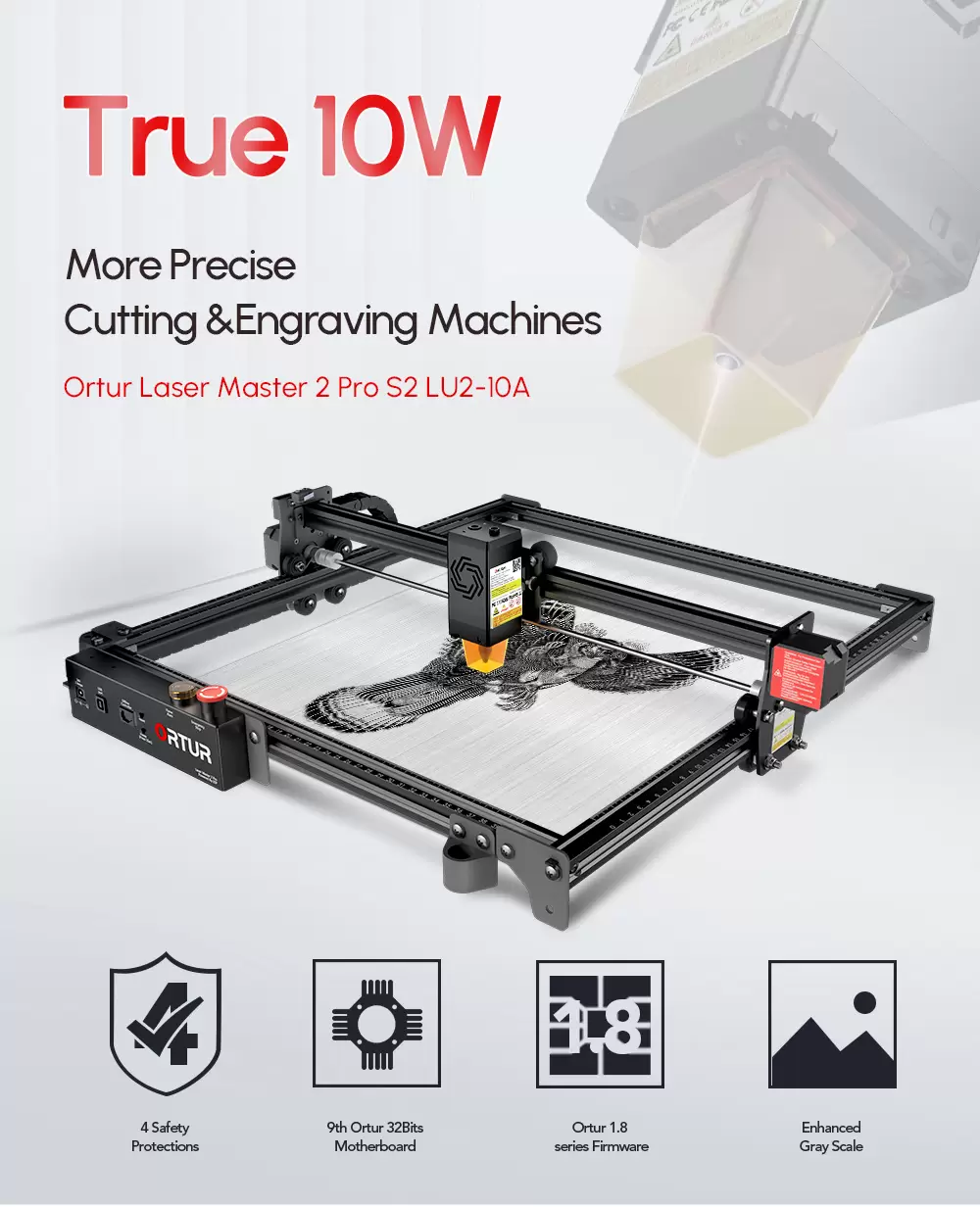

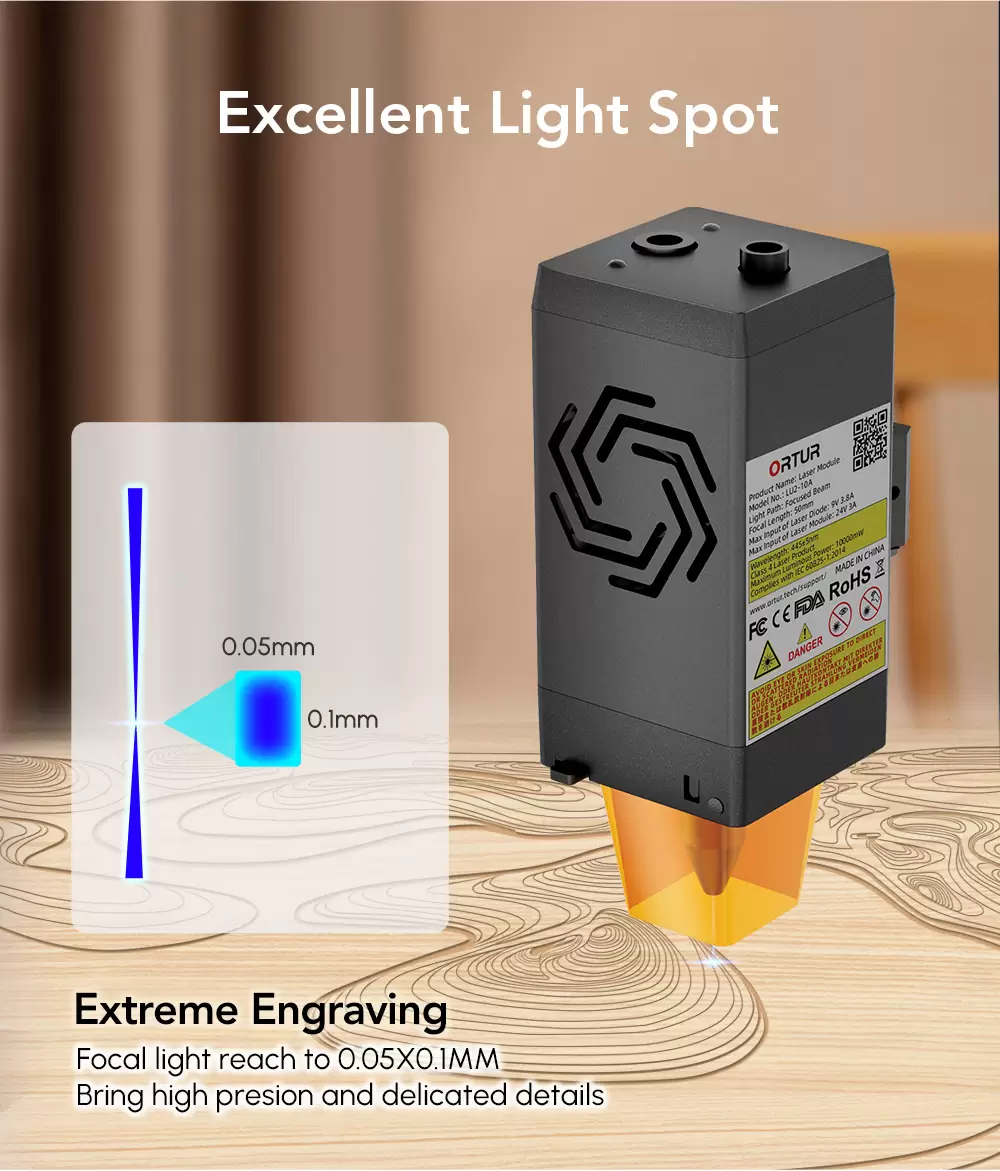

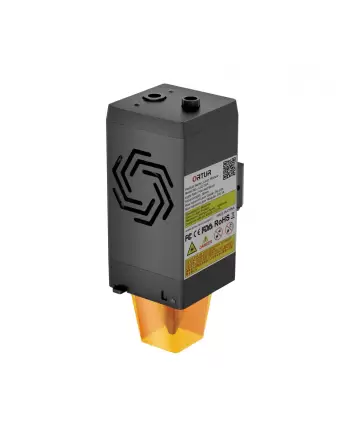

• LU2-10A Truly 10W Laser output Fixed focus Laser Module

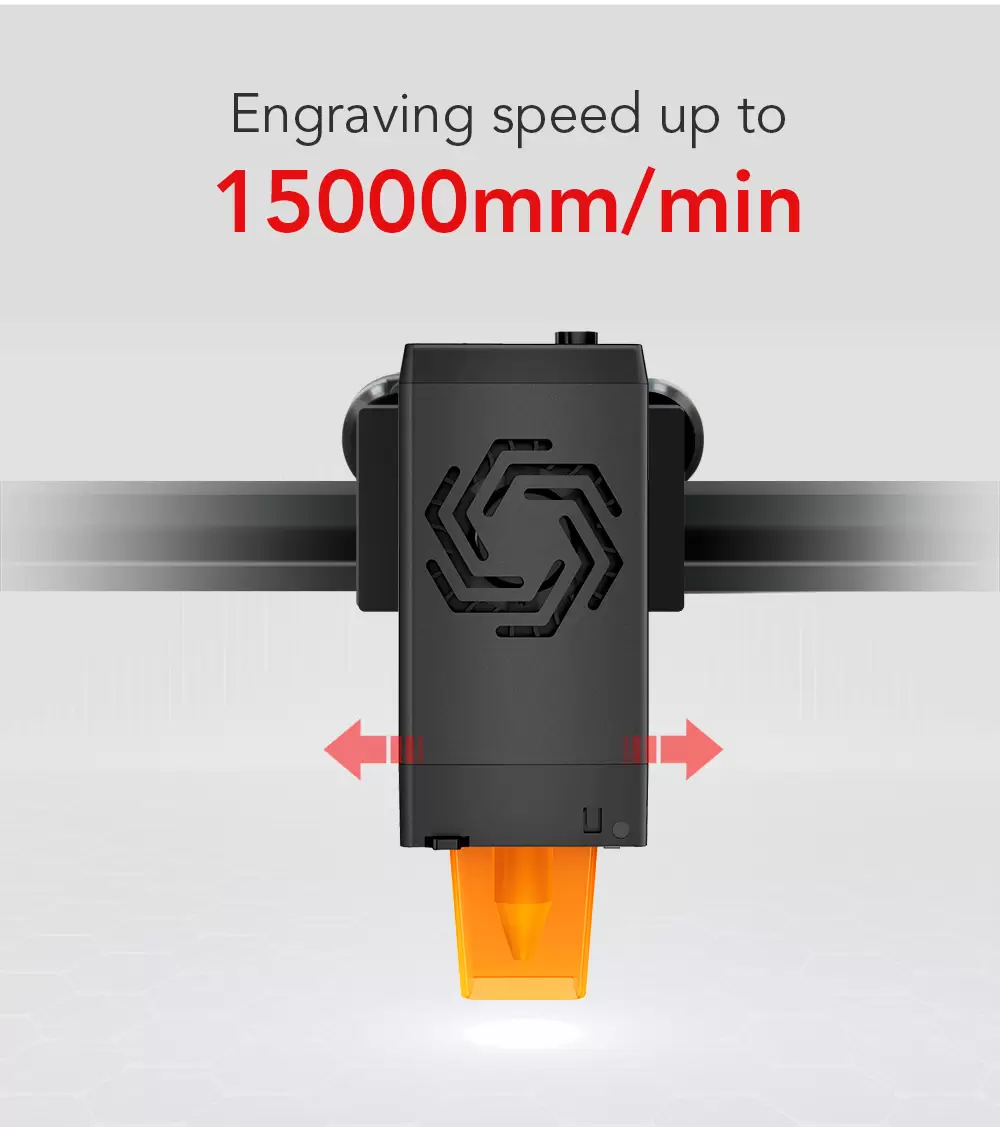

• Optical power: 10W , Focus spot 0.05x0.1mm, Engraving speed 15000mm/min,24V
• 24V LU2-10A with real 10W laser power. It has an ultra-thin square laser focus, and its cutting penetration and accuracy are twice of ordinary lasers. Even in the field of spot  lasers, LU2-10A has finer engraving marks and stronger cutting and penetration capabilities
• It yields Powerful & professional cutting & also it does extreme & precise engraving

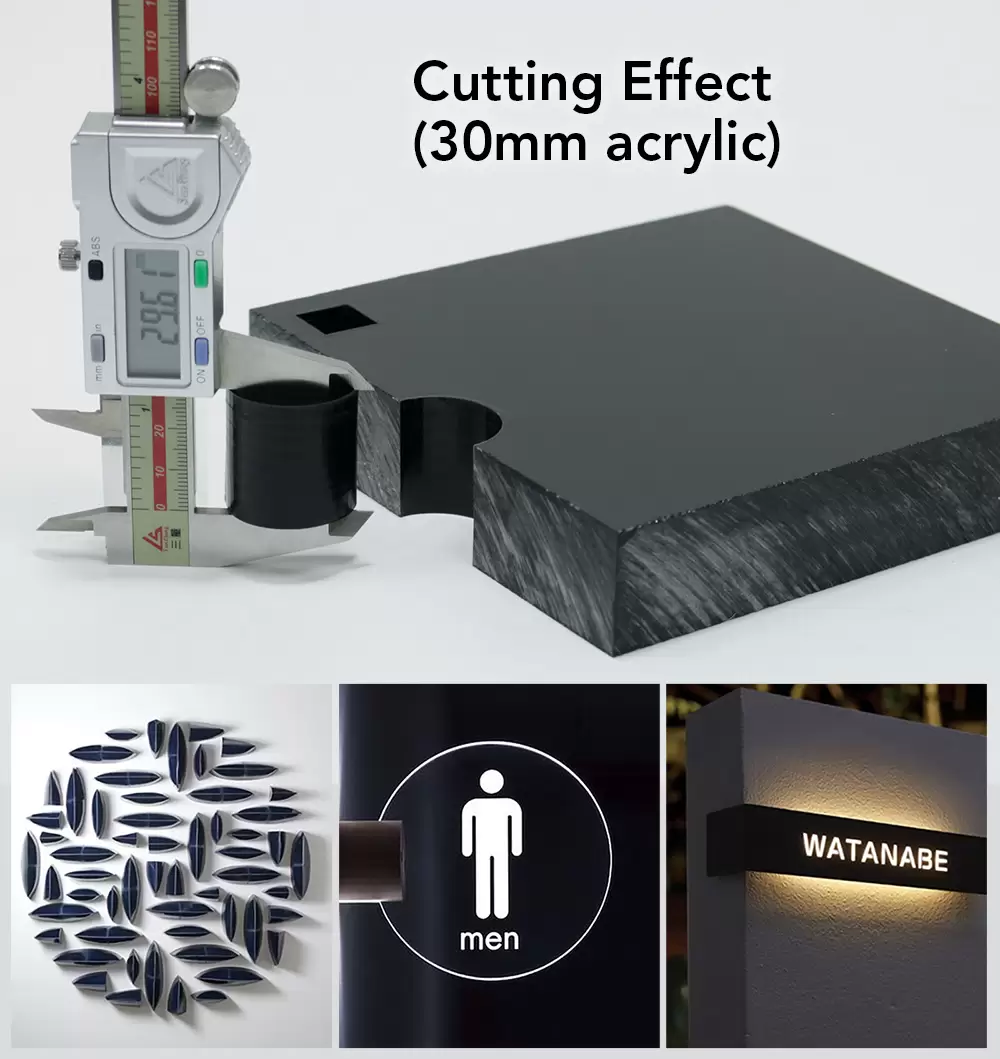

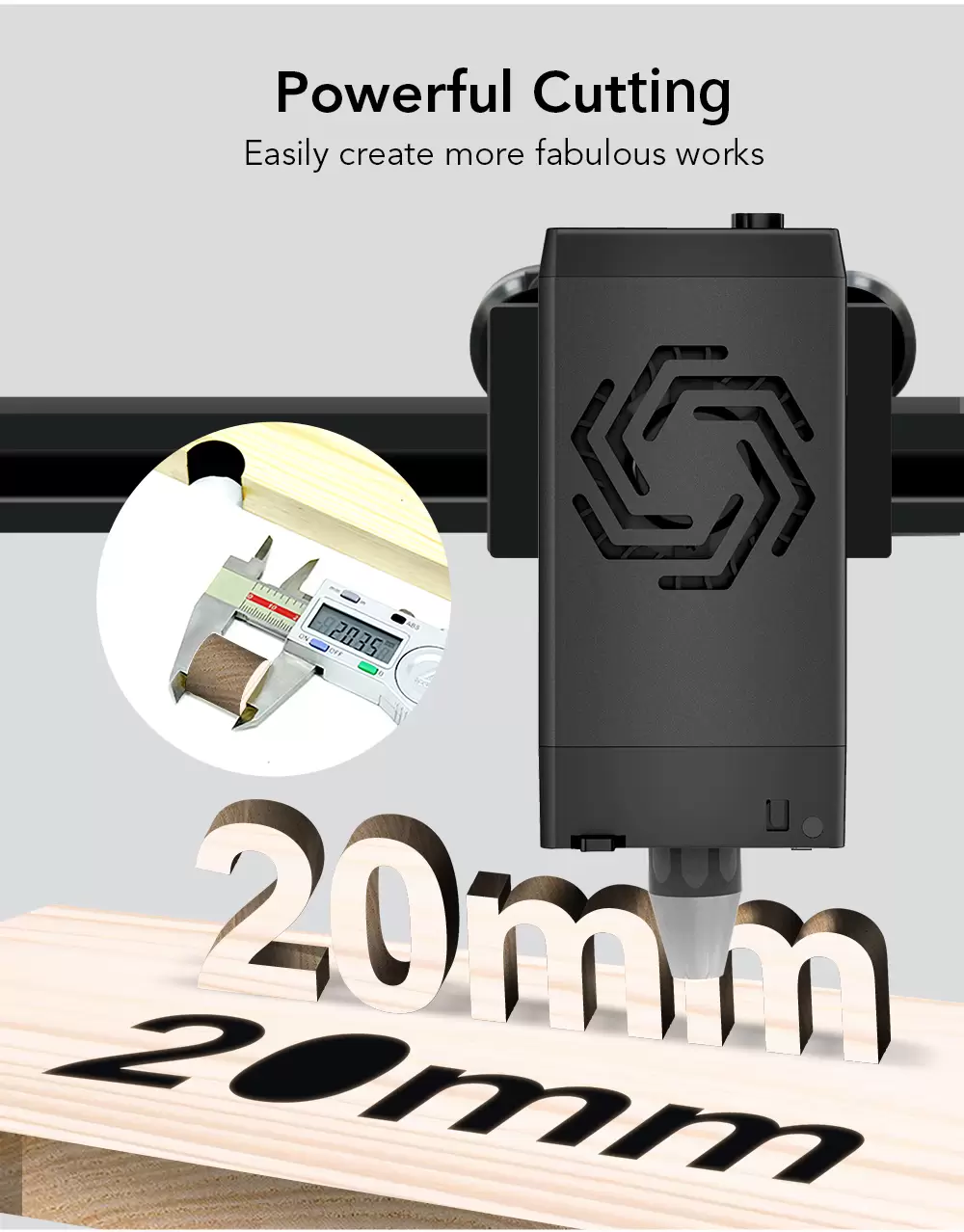

• Cuts through 15mm wood, 20mm plywood, and 30mm acrylic at one pass which is almost beyond the effect of 60W CO2 laser.

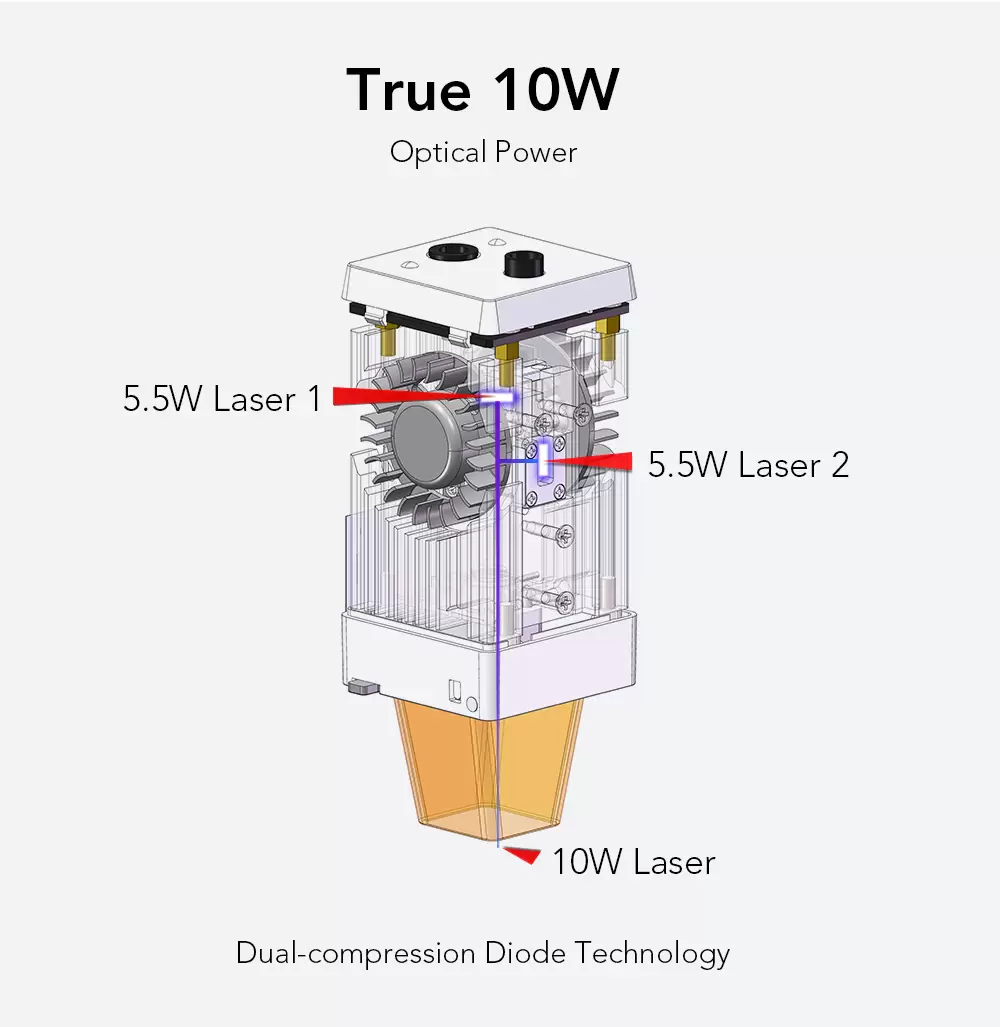

• 3rd beam combining technology with double compression spots (True 10W)

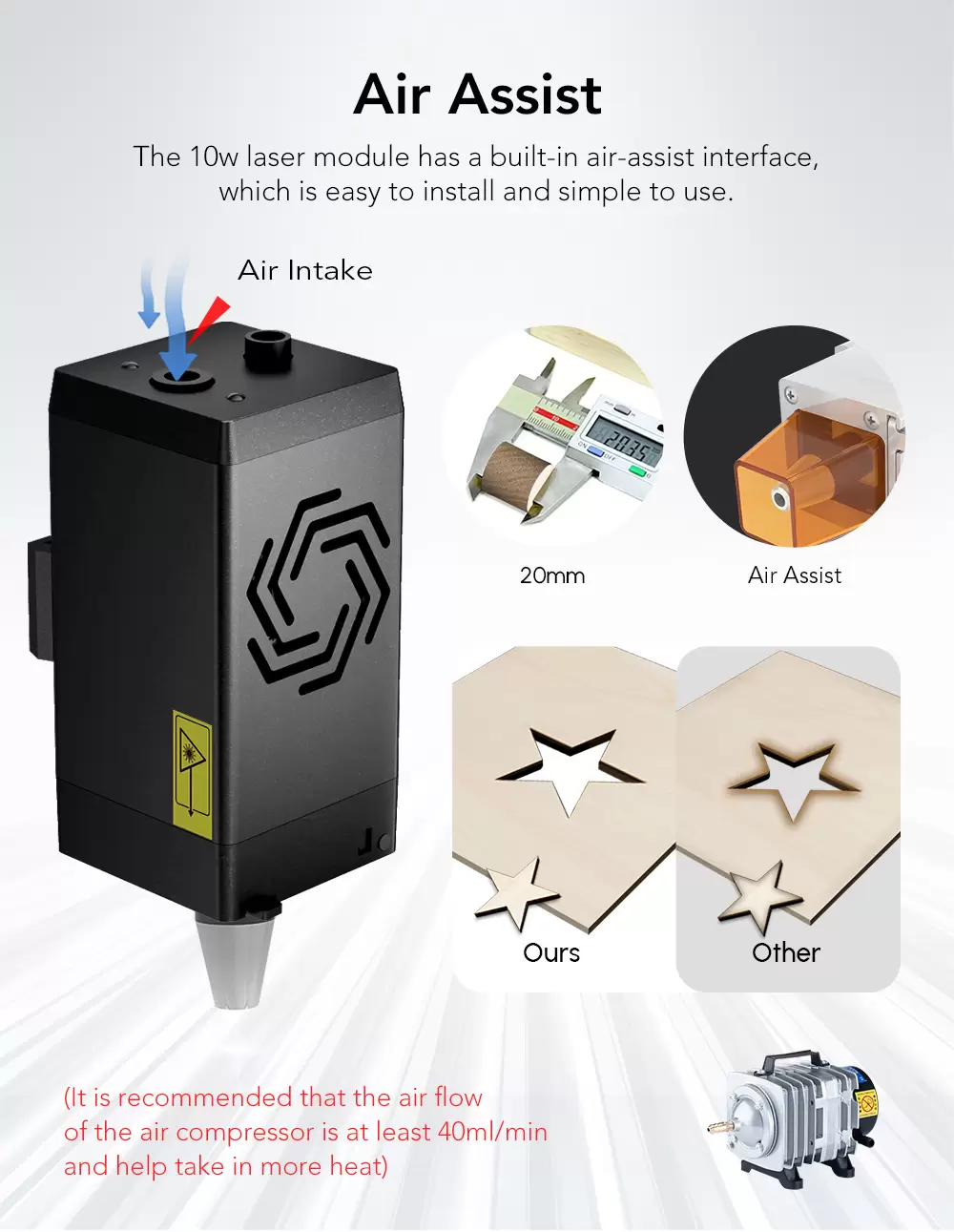

• Built-in air-assist interface which is easy to install and simple to use
• Aluminum framework and Strong NEMA 17 motors – Withstand faster engraving speed to achieve 10000mm/min and maintains accuracy.
• 24V Power system
• 9th Generation Motherboard 32 Bits MCU ESP32 MCU optimizes the motion algorithm and increases the maximum stepper motors speed from 4000mm/min to 10000mm/mm

• Support next-generation Digital Laser Module

• Laser Master 2 Pro S2 has advanced 1.8 series firmware which has an updated optimized algorithm to support fast engraving speed

• Upgraded Laser Module LU2-4 SF and LF 24V 20W FAC second-generation – cut 6mm plywood or 8mm pine board at one pass.
• External acrylic protective laser shell

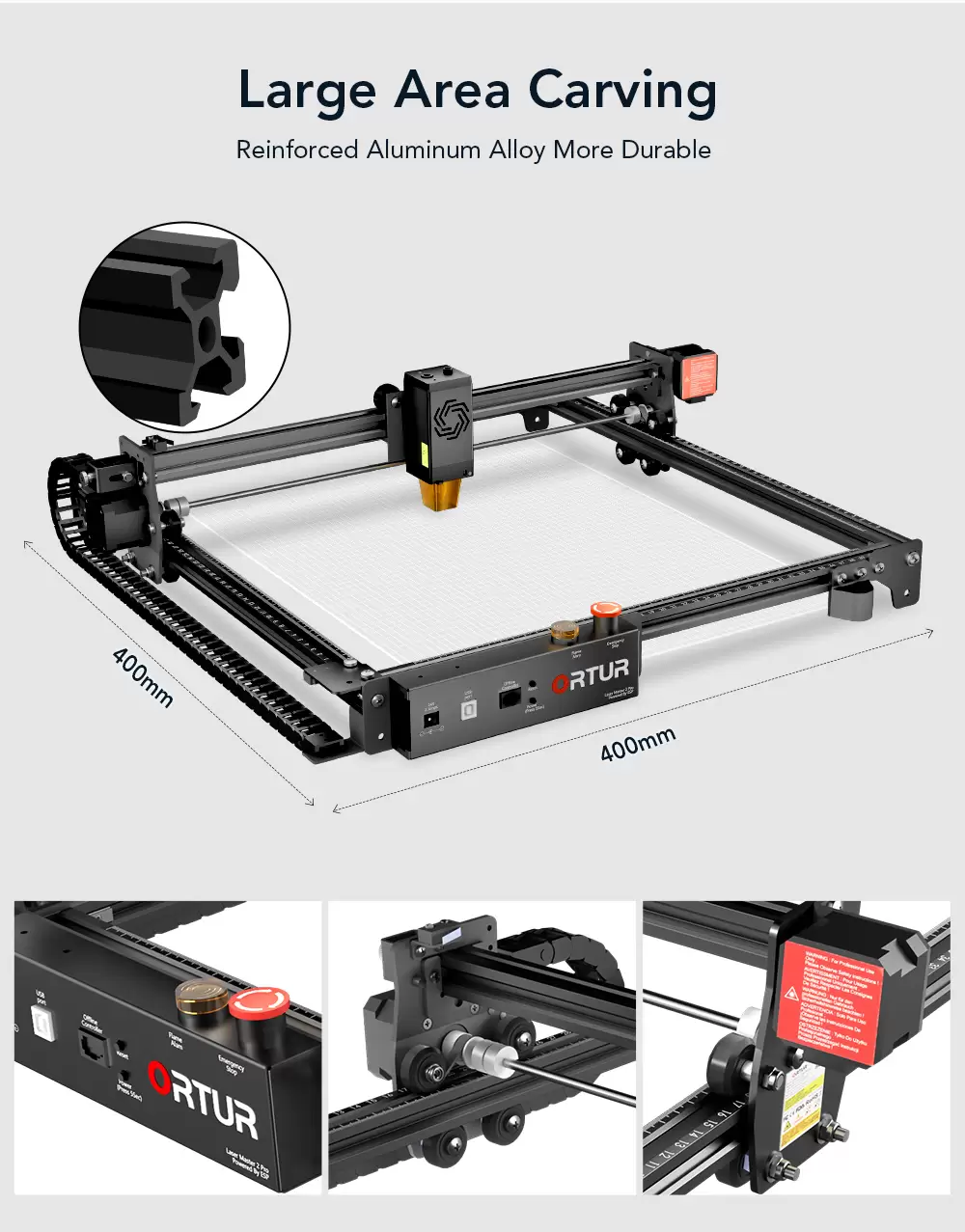

• 400 x 400 mm Laser engraving area

Ortur Laser Master 2 Pro S2 Durability & Optional add-ons & upgrades

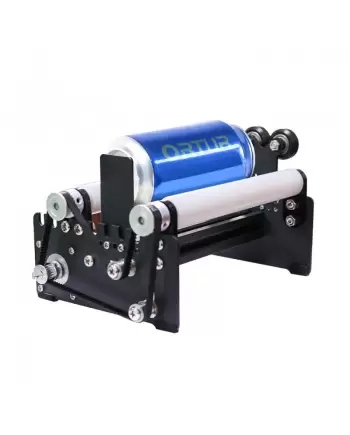

• Y-axis rotary roller V2
• Z-axis lifting device for Focal spot adjustment
