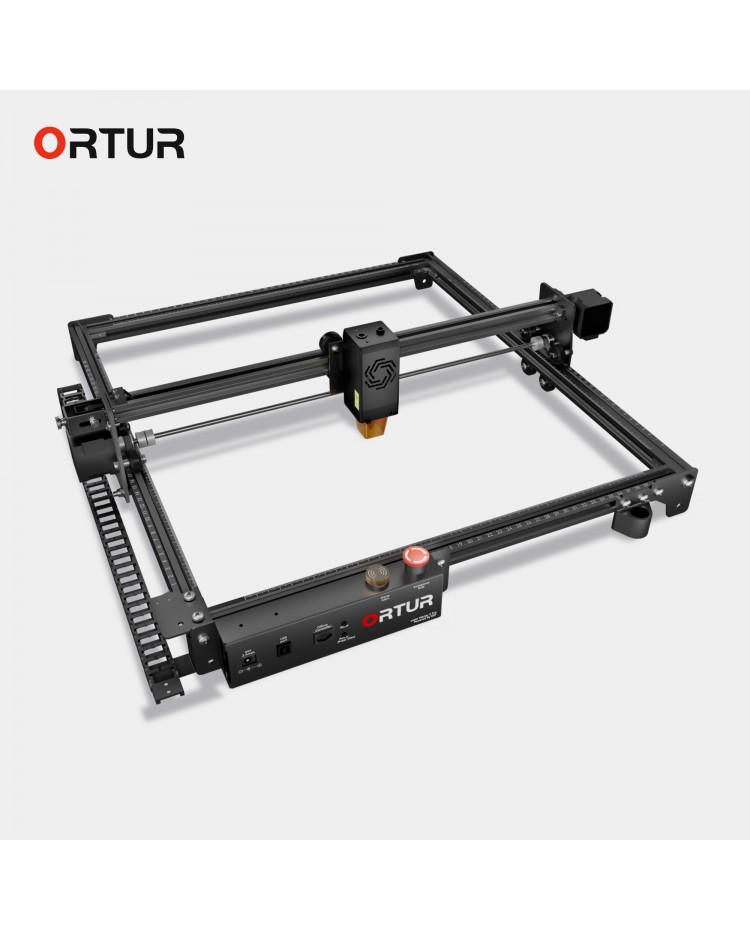

Ortur Laser Master 2 Pro

Ready to ship in 2 to 4 business days.


Ortur Laser Master 2 Pro is the successor of ortur laser master 2 with loads of improvements. Ortur Metal enclosure is available for purchase.


Ortur Laser Master 2 Pro safety features

  • Active Position Protection
  • Laser Beam Safety Guard
  • Exposure Duration Detection and switching off
  • Flame detector
  • Emergency Stop Button


Ortur Laser Master 2 Pro improvements

  • Towline/Drag chains – provides longevity
  • Aluminum framework and Strong NEMA 17 motors – Withstand faster engraving speed to achieve 10000mm/min and maintains accuracy.
  • 24V Power system
  • 32 Bits MCU
  • Laser Master 2 Pro has 1.5 series firmware which has updated optimized algorithm to support fast engraving speed from 3000mm/min to 10000mm/min
  • Upgraded Laser Module LU2-4 24V 20W FAC second-generationcut 4mm plywood or 6mm pine board at one pass.
  • External acrylic protective laser shell
  • 400 x 400 mm Laser engraving area



Ortur Laser Master 2 Pro Technical specifications & comparison

Parameters Laser Master 2 Pro
Motherboard OLM-MAXUP-V10 Motherboard,
with 32Bits MCU
Firmware OLF-V1.5 Firmware
Safety Precautions
1. Active Position Protection
2. Exposure Duration Detection and Limitation
3. Laser Beam Safety Guard
4. Flame Detector
5. Emergency Stop Button
Add-ons
1. Ortur Control Box (Offline Controller)
2. Adjustable Z-axis Lifting Device
Frame Materials Aluminum + Powder Coated Steel
Motors NEMA 17 Stepper Motors
Mechanical Precision Y:12.5um,X:12.5um
Pixel Accuracy Adjustable
(Default: 300 pixels per inch, about 0.81um Pixel Accuracy)
Engraving Area
400mm*400mm
Available Laser Modules
LU2-4
 (2nd Generation FAC , Luminous Power: 4,500-5,000mw)
WaveLength 445±5nm
Focus Fixed Focus
Default Focal Length 50mm
(from the heat sink to the object)
Control Mode PWM
Power Rate S0-S1,000
Engraving Speed 0-10,000MM/Min
Baud Rate 115200 - 921600 (Default: 115200)
Computer OS
Win XP, Win 7, Win 8, Win 10 (LaserGRBL)
Mac and Linux (LightBurn)
Control Softwares LaserGRBL (free), LightBurn (Paid Software)
Input Format JPG, JPEG, PNG, BMP, SVG, etc.
Available Materials of Engraving
Wood Board, Paperboard, Black Acrylic, Leather, Food, Stainless Steel, Powder Coated Metal, etc.
Available Materials of Cutting
Wood Board, Paperboard, Black Acrylic, Leather, Felt Cloth, Dark Color Plastic Sheet (Melt), etc.
Input Voltage 110V-220V (Compatible)
Power Adapter Output 24V/2A
Operating Temp. -20℃-50℃


Ortur Laser Master 2 Pro Durability & Optional add-ons & upgrades

    • Y-axis rotary roller V2
    • Z-axis lifting device for Focal spot adjustment



Ortur Laser Master 2 Pro- Technical specification

Documentation


 Ortur Laser Master 2 Pro -User Guide(English)

 Ortur Laser Master 2 Pro - Cutting & Engraving properties/Data Sheet.
