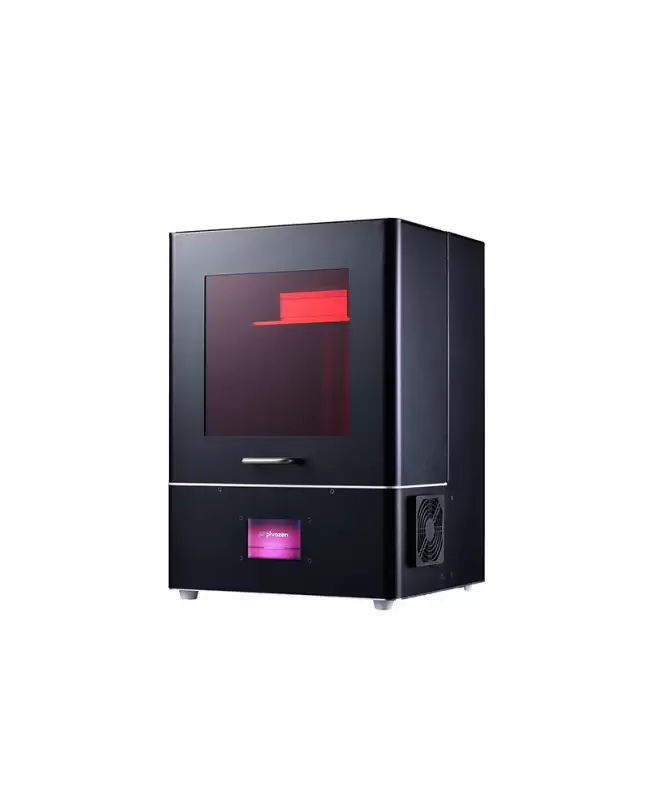

Phrozen Shuffle XL
Special promotions $50 USD OFF on this product. Limited time only. Use Promo code PHROZEN50
The Prosumer Resin 3D Printer
The Phrozen Shuffle is the next generation prosumer resin 3D printer. With a 8.9" High Resolution 2K LCD and a print volume of 190mm x 120mm x 200mm. This little power house delivers where others fall short. Using a ParaLED Matrix 50 Watt 24 Bulb UV/LED light source this printer delivers full build plate exposure to 100% even lighting resulting in the full use of the entire build area, no hot spots at all. Twin Linear Guides, Ball Screw, and Optical End-stops ensure smooth deliberate movement, no upgrades needed extremely well built,this is the most solid SLA printer we have ever seen for the money. An integrated 3.5" Color Touch Screen Display and intuitive interface make operation a breeze. 75 micron XY resolution and a Z Resolution of an amazing 10 micron make this one of the most detailed printers on the market in almost any class. A custom built slicing software allows for easy design and implementation of support material and control of the machine.
This is the answer to those asking should i get into SLA, let the results speak for themselves, this is the answer
Phrozen Self-Developed ParaLED Optical Engine
In optical systems for resin 3D printer, light intensity, wavelength, and optical path highly influences printing quality and efficiency. Conventional LCD 3D printer tends to use thumb-size COB LED with Fresnel film. This leads to a bad light uniformity where the light intensity is less in the edge areas. Their major target is to reduce the cost.Phrozen’s ParaLED Optical Engine uses LED array matrix with the size same as LCD panel. Moreover, we narrow down the LED emission angle to make it as parallel as possible. That way, we can increase the efficiency that light pass through LCD and, therefore, improve printing speed and quality.
Phrozen Shuffle is the only entry level 3D Printer with a ParaLED array.
Twin Linear Rail, Ball Screw / Ball Bearing for Ultra-Stable Z-axis
Z axis wobbling is a big problem for most entry level resin 3D Printers. You will see Z-axis of many 3D printers are not fixed on top (or just simply put a cap on it). Overall Z-axis design is based on simple optical axis and rail shaft. These will cause severe wobbling during 3D printing process, especially for large & high models. That’s why Phrozen team uses Twin Linear Rail, Ball Screw, and Ball Bearing with Aluminum-CNC part to on Phrozen Shuffle’s Z-axis. That can assure linearity and minimize impact of loaded force during the printing process. This concept has been widely verified in their previous model Phrozen Make XL, 8.9 inch LCD 3D Printer.
Phrozen Shuffle XL Highlights
- Uniform printing on the full buildplate
- XY Resolution 75 µm. Suitable for detailed models, jewelry, and dental use
- Buildplate is almost three times the size of the normal Shuffle.
- ParaLED LED Array with 90% optical uniformity, much better than conventional singel point source COB LED
- 150W LED Array combined with uniform light angle for faster resin curing
- 405 nm UV-LED. Works with most commercially available resin
- Touch Screen control
- USB port
- Works standalone, no need for a dedicated PC.
- Twin Linear Rail along with Ball Screw & Ball Bearing. Highly stable Z-axis, ZERO wobbling during printing.
- 1 year warranty
|Printing Technology||LCD-based Masked Stereolithography (MSLA)|
|LCD||8.9-inch 2K (Shuffle XL) 405nm ParaLED Matrix Optical Engine|
|Led power||150 W - 405 nm|
|Led typer||Para Led|
|Build Volume||190 x 120 x 200 (Shuffle XL)|
|Z-Layer Resolution||10 microns|
|XY Resolution||75 microns (Shuffle XL)|
|Printing Speed||30 mm per hour|
|Recommended minimum thickness of the surfaces||> 0.4 mm|
|UI||Color touchscreen, web browser|
|Connectivity||USB, LAN Ethernet|
|Build Platform Leveling||Assisted leveling|
|Materials||Resins suitable for 405nm LCD-based printers|
|Z axis||Dual linear rail,Ball screw/Ball bearing|
|Front display||3.5" Touch display|
|Software bundle||Phrozen skinned NanoDLP host/control via web browser and LAN, ChiTu slicer|
|File types||STL (up to 100mb), SLC, ZIP|
|Weight||21kg (Shuffle XL)|
|Dimensions||315 x 285 x 450mm (Shuffle XL)|
Buyer Protection Policies
100% Secure Payment
PayPal-the most reliable payment method. Also accepts card payments(PCI DSS Compliant)
DHL,UPS Insured Shipment
High Quality Express Transport without damage.
1 Year Warranty
Just in case. Of course we only ship out perfect products.
Technical Support Service
Experiencing trouble? Feel free to contact us!
Processing (Lead) Time
Ships in 3 to 6 Business days. Proper Testing & Packaging prior to shipment(100% Quality Control)
Delivery Time to Doorstep (Transit)
4 to 5 days via FedEx/UPS/DHL
What’s in the box
Phrozen Shuffle XL: LCD 3D Printer * 1
Black Power Cable, Blue Connection Cable
Printing Kit (Gloves, Wiper/Scraper, Funnel)
