Voron Trident R1 Pro CoreXY 3D Printer Kit

Get an additional $40 OFF. Use code 'VORON40' at checkout

We're proud to partner with Formbot to bring their exceptional Voron kits to 3D printing enthusiasts in the USA and Europe.

This latest version includes the BTT Manta M8P V2.0 board and an HDMI V1.2 touch screen, offering improved performance and a more user-friendly experience.

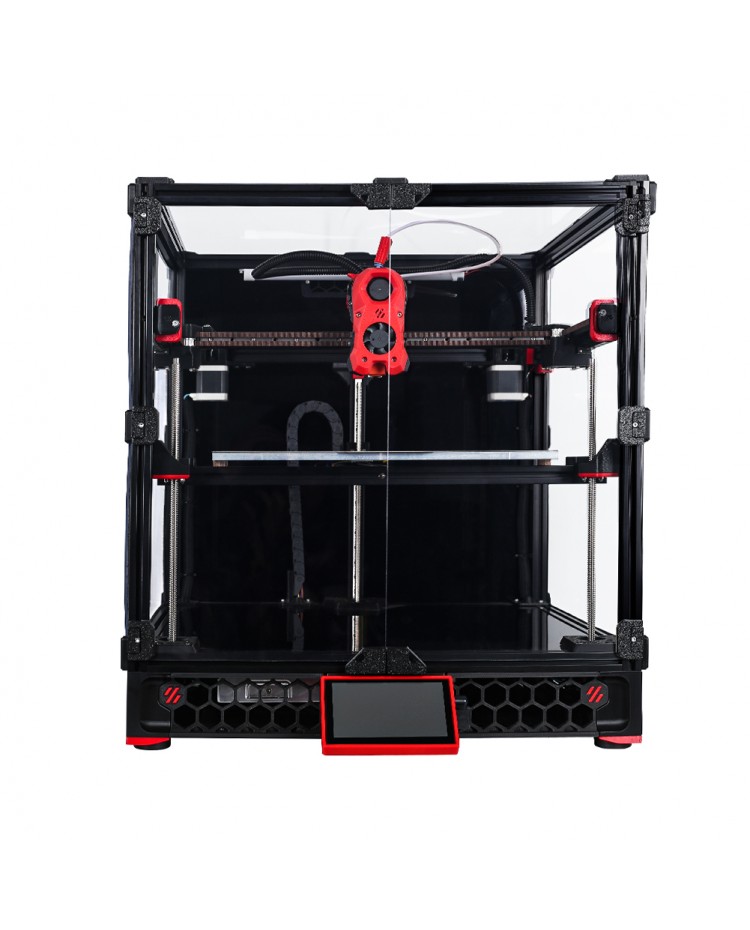

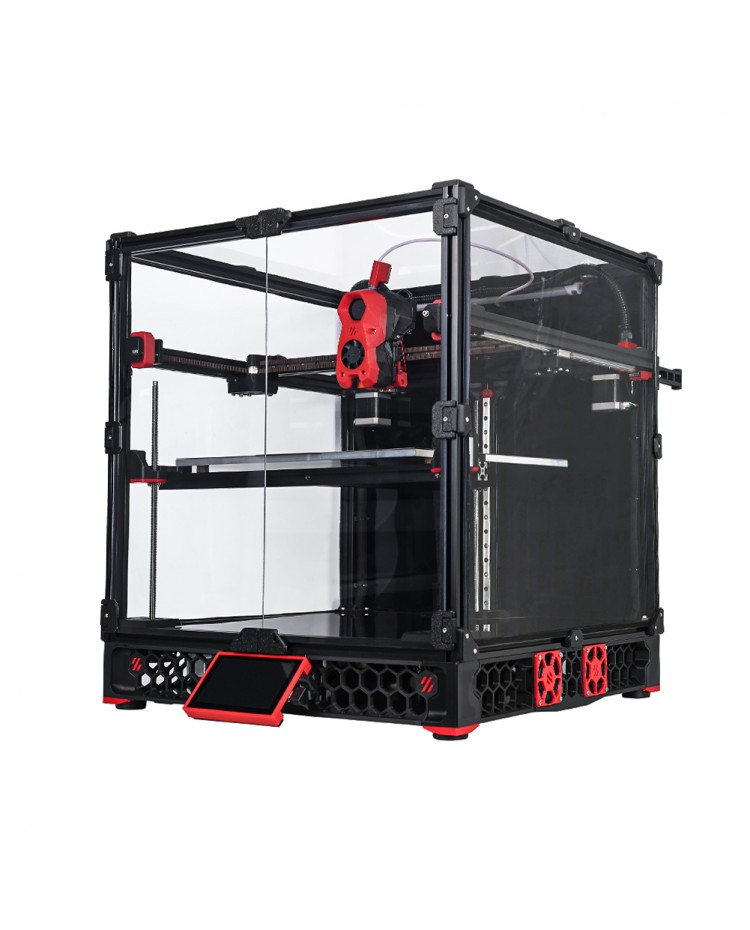

The Voron Trident is a traditional CoreXY design with a fixed gantry and the 3-point bed moves along the Z-axis.

Here are the Voron Trident R1 Pro Top features:

• This kit includes the primary components required to build a Voron Trident. It does not include 3D printed parts
• BTT Manta M8P+CB1 Board, EBB SB2209 CAN (RP2040) as default, Double sided PEI Sheet.
• HDMI 5" Touch screen
• PVC Cable duct
• Filament runout sensor
• LED illumination inside chamber
• Nevermore air filter
• DLC hard-wearing gear
• 3 in 6 out PCB for easier wiring
• Upgraded heating pad with integrated thermal fuse
• It is simpler to build than V2.
• Voron trident uses three linear rails on the Z-axis. This was a significant advancement from the previous version and helped improve print quality issues, and it is also stable at 350x350mm
• It encloses naturally so it can print ABS or other temperature-sensitive filaments easily
• StealthBurner Extruder
• Better Part cooling
• Better wire management. Easy to disassembly & clean
• LED integration.
• Phaetus dragon hotend is available for optional upgrade. By default it includes V6 hotend.
• High-quality components used throughout:

• High quality magnetic flexible PEI sheet
• Genuine gates belts for XY axis
• High-level stainless steel linear guide rails - 100% quality control
• Premium silicone heating pad with glass fiber
• High temp resistant, increased torque, and high-speed Moons’ motors
• Precision machined cast aluminum plate - Avoid thermal deformation
• Pre-crimped wiring harness with Teflon material for extruder
• Stainless steel fasteners – Avoid rusting
• High-quality electronic components – Meanwell, Omron and Sunon
• All metal titanium alloy hotend
• Voron Tap Mod Kit with OPB666N sensor
• Extreme precision 0.4μm (0.0004mm)

• Any build surface and easily change at will
• Durability via optical sensor (millions of probe cycles)
• High temperature reliability (70C to 100C)
• Simplified probe mechanics (no dock/undock macros)
• No separate Z-endstop required
• Crash protection
• CNC Machined Tap leveling Kit (Optional upgrade)
• You can optionally upgrade to CNC TAP Leveling Sensor for improved accuracy. This upgrade can significantly enhance the precision of your prints

• CAN bus upgrade
• Reduce wiring and eliminate cable chains for an umbilical configuration

Voron Trident R1 Pro Technical specifications

Available resources for Voron Trident R1 Pro

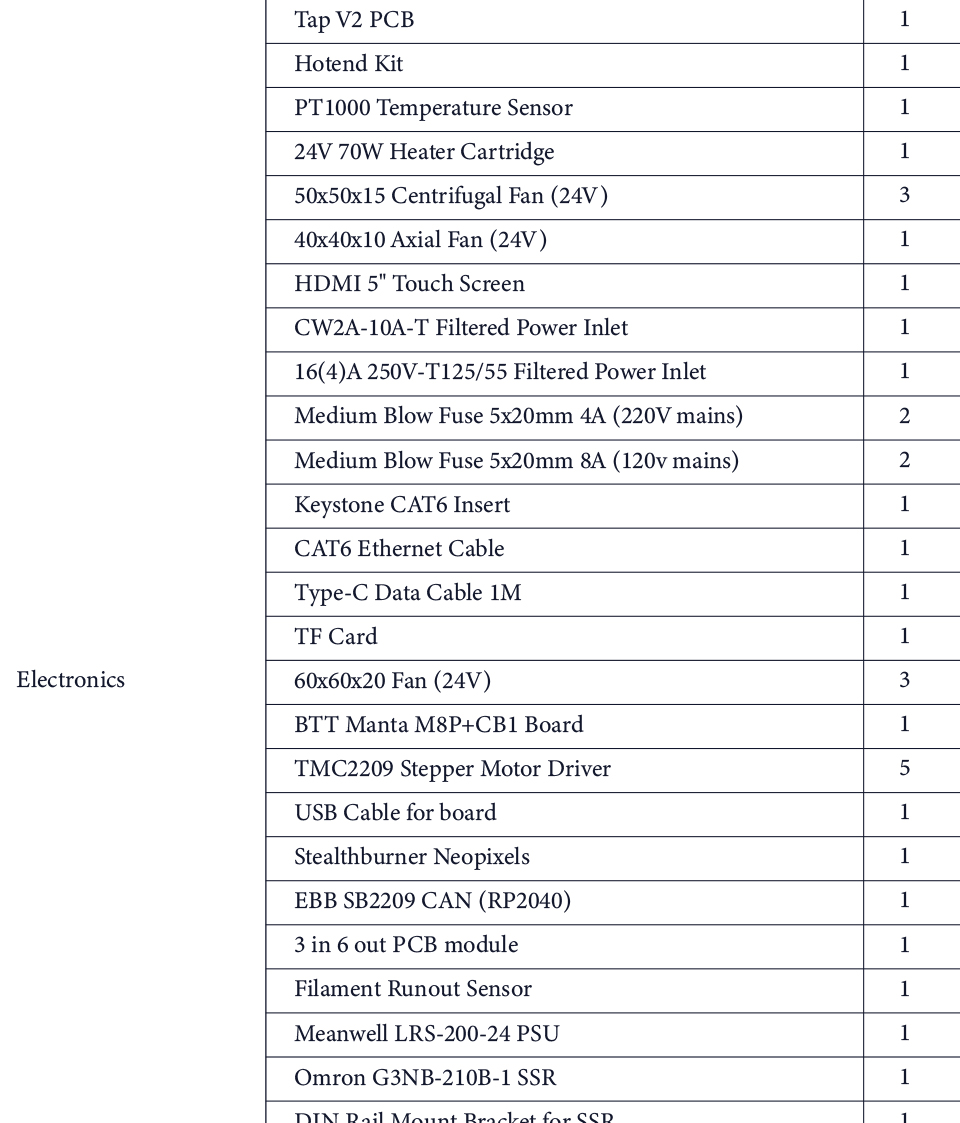

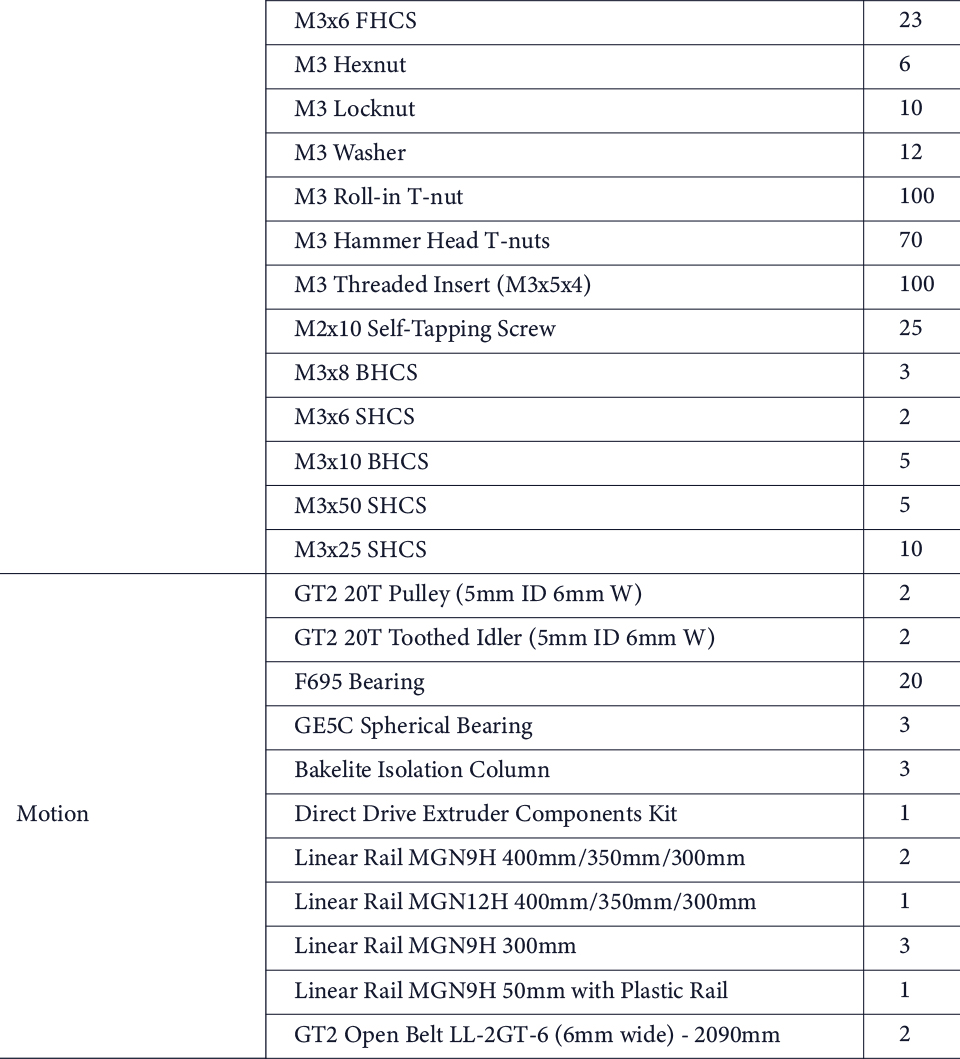

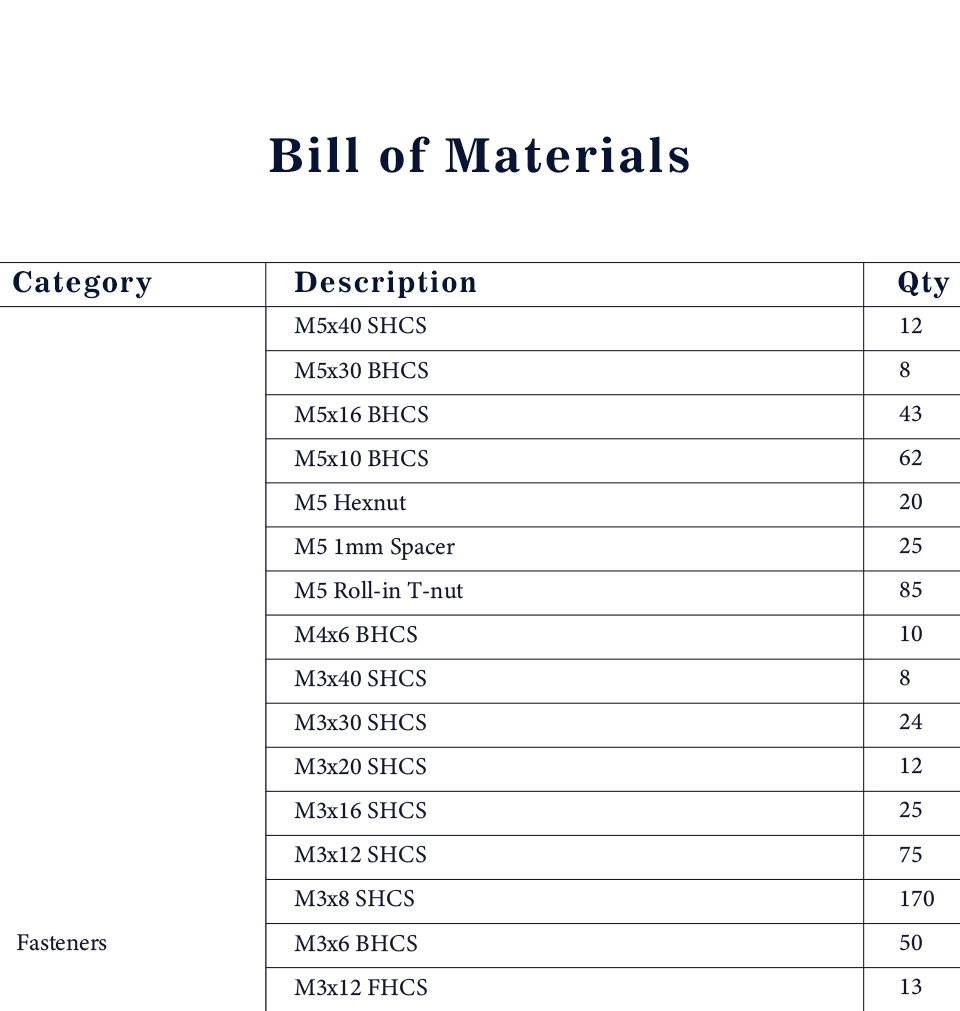

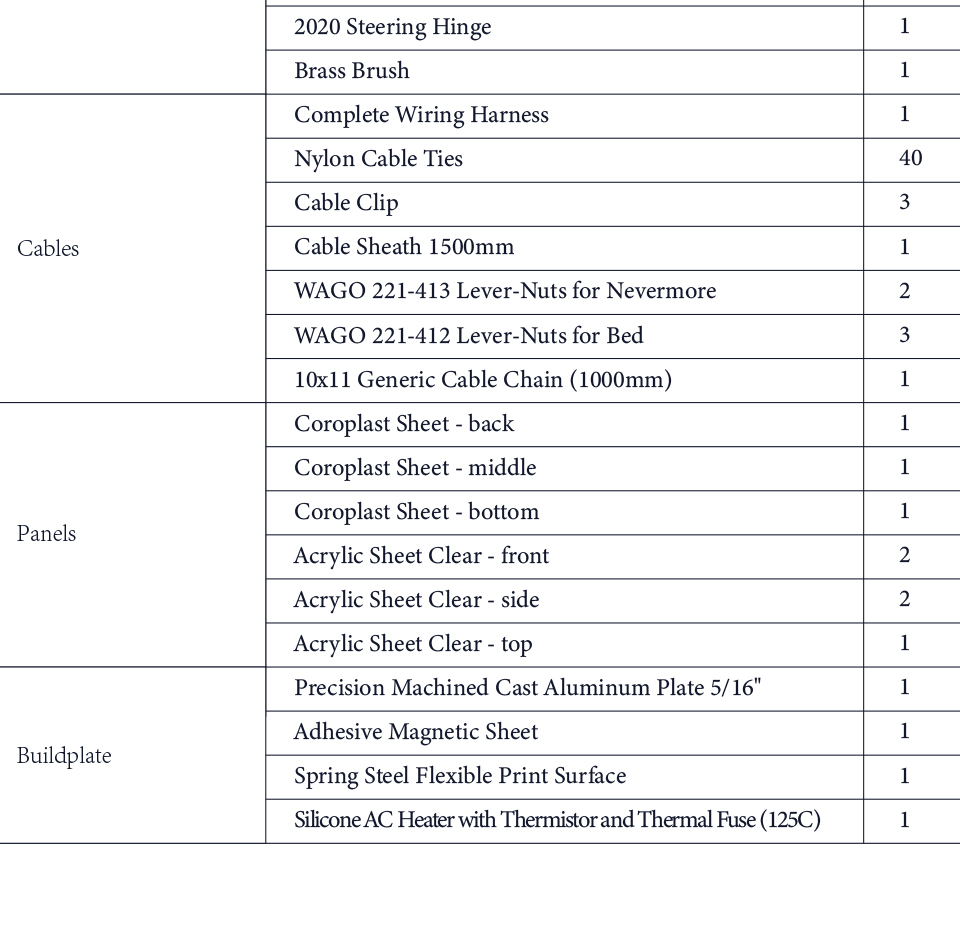

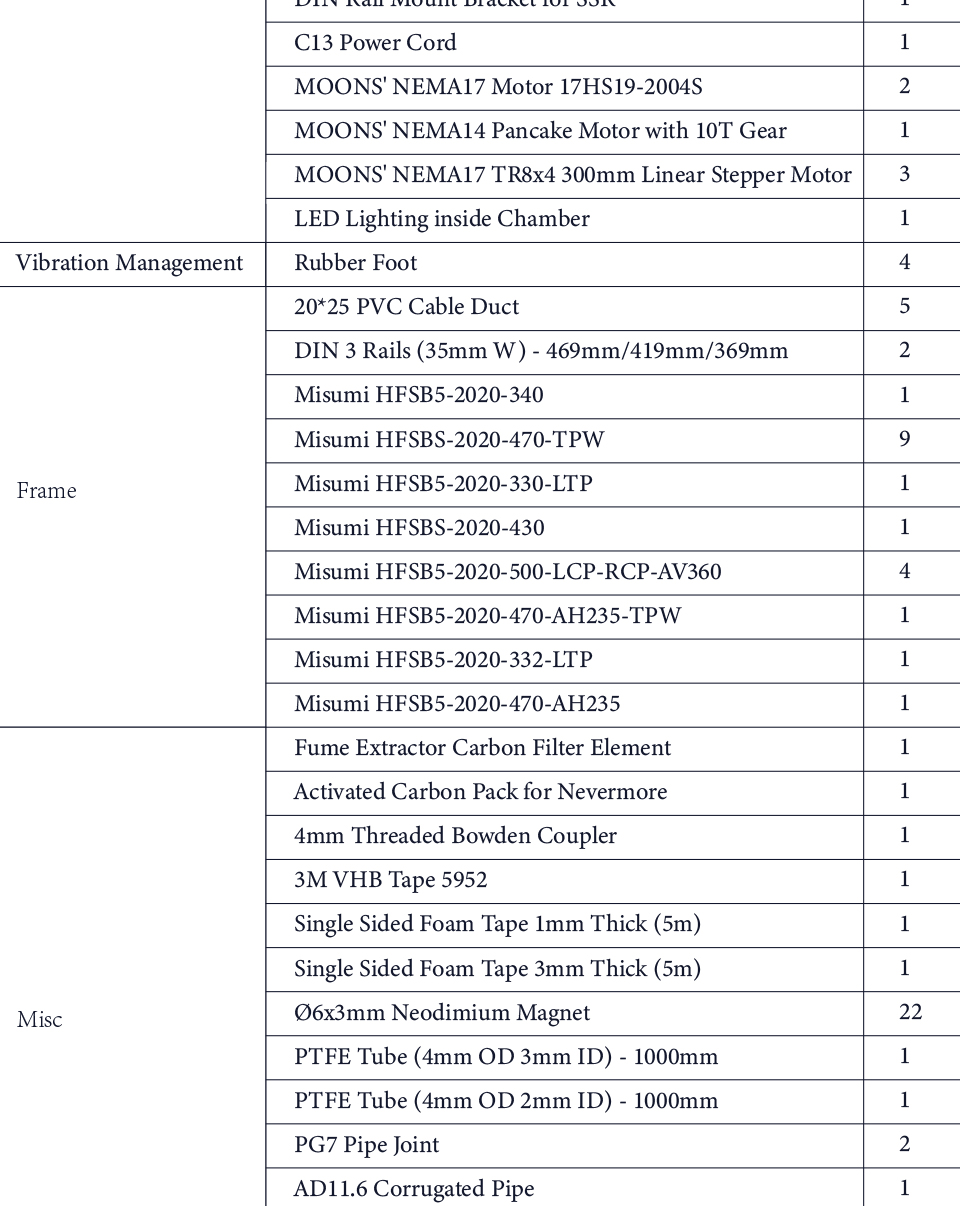

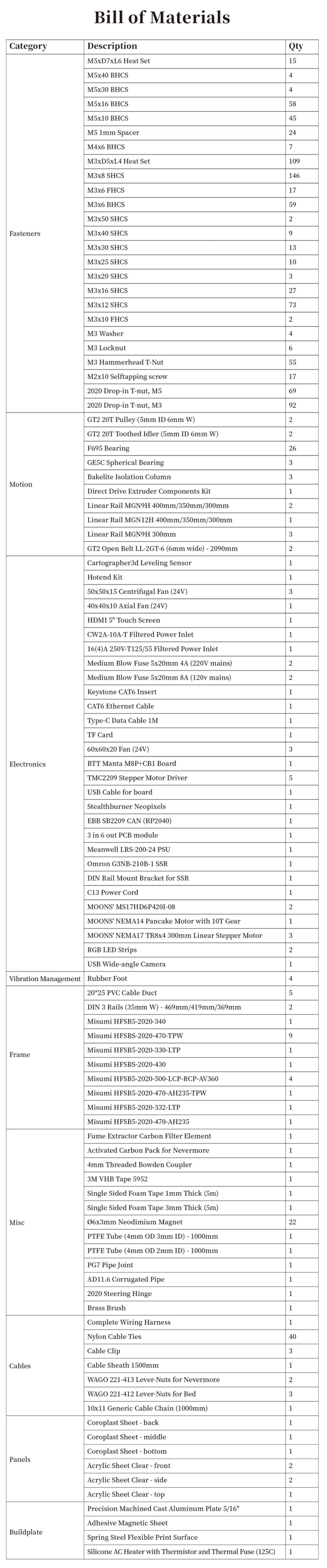

• You can find here Full BOM with a comprehensive list of parts and quantities for Voron trident
• Voron Trident - Assembly manual
• Documents: Wiring Diagram & Other Instruction
