In Stock
$14,950.00 $13,999.00 Sale -6% OFF
  • Brand: CREATBOT
  • Product Code: PEEK-300 GEN V2

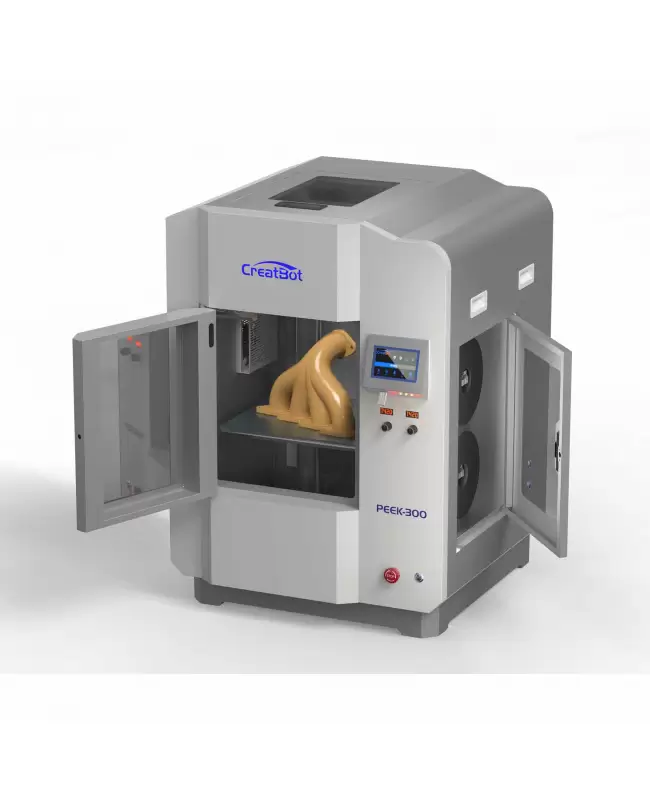

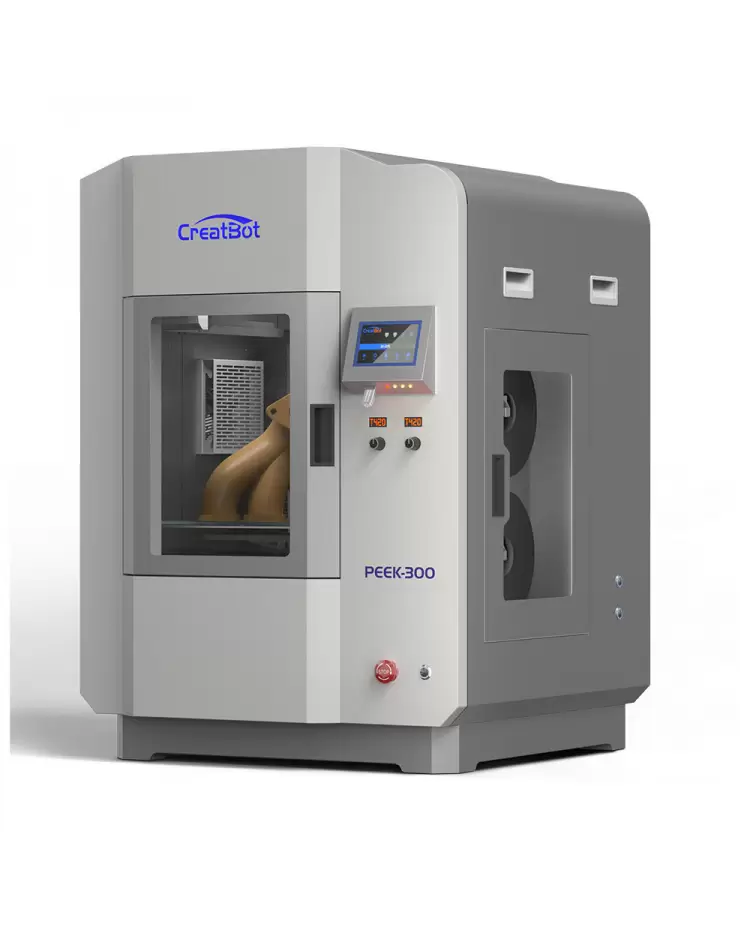

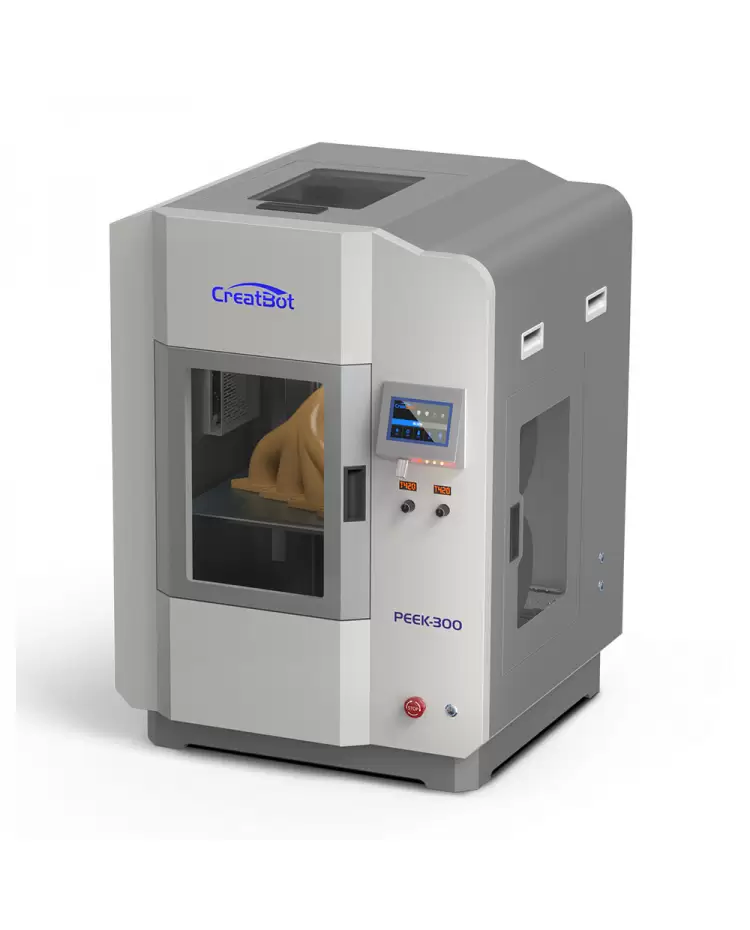

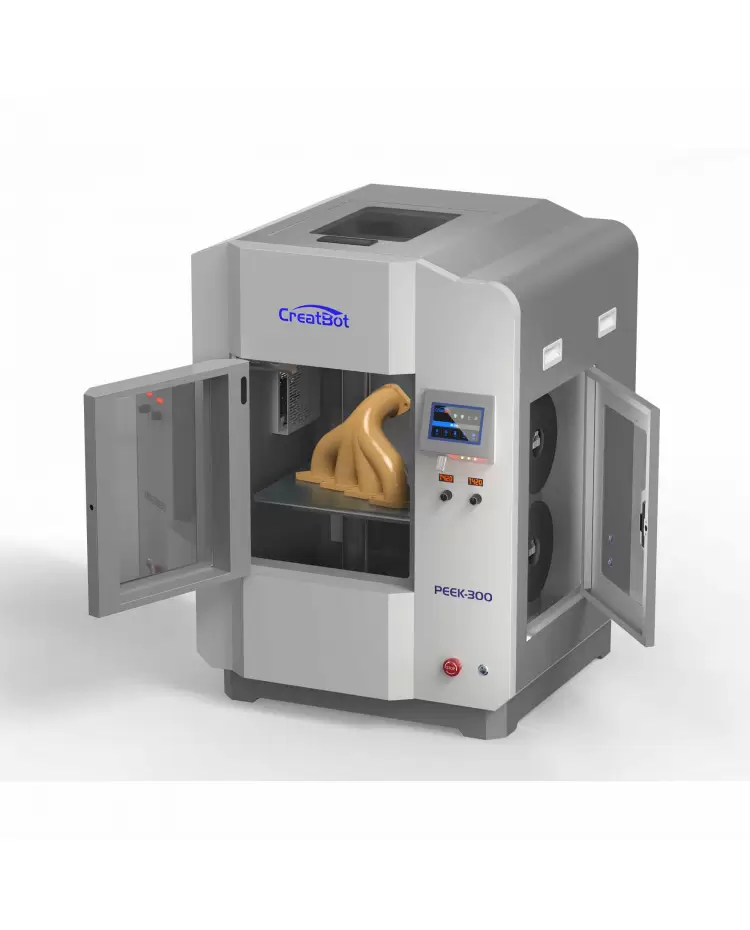

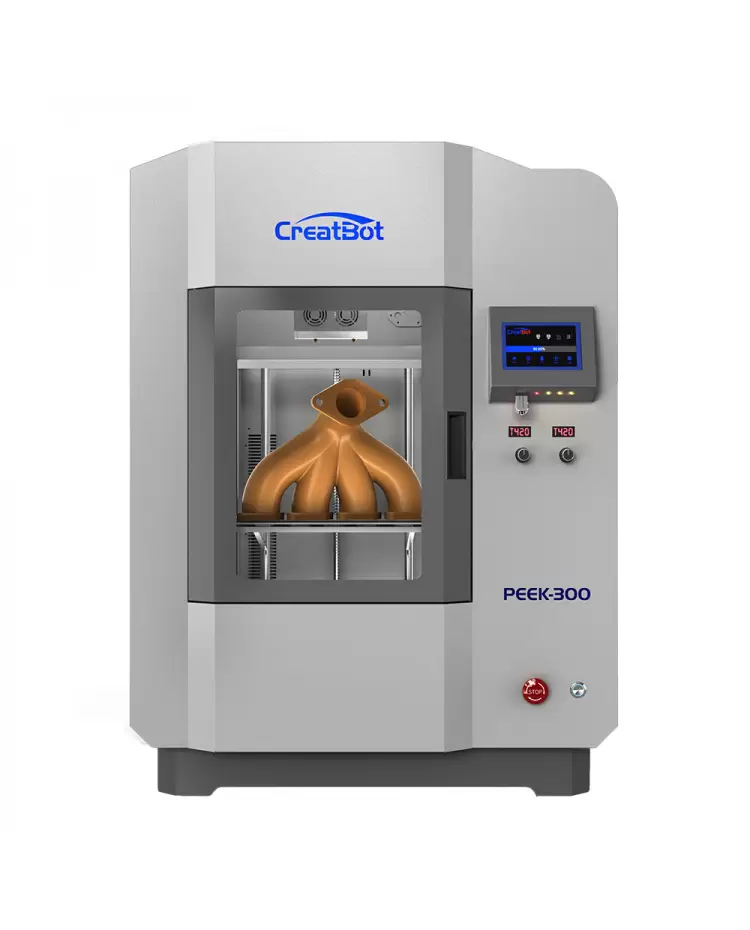

CreatBot PEEK-300 GEN V2 Ultra High-Performance Industrial PEEK ULTEM 3D Printer


Price Match Guarantee: We are the premium online reseller of CreatBot in the USA. We offer the best lowest price in the USA for all the CreatBot 3D Printers. We won't be beaten on price. Tell us if you come across the highest discount with the lowest total than us, we will match 100% of product prices of online and local competitors.

CreatBot PEEK-300 Highlights

  • High-performance industrial printer
  • Compatible with high-temp filaments
  • Triple Heat Isolation
  • Effective liquid cooling system
  • Patented Direct Annealing System

The Creatbot PEEK-300 is an FDM industrial 3D printer designed for printing with professional-grade materials, including PEEK and Ultem. It is equipped with engineering-grade components capable of withstanding high printing temperatures. Specifically, this dual extruder 3D printer sports ultra-high-temperature nozzles (500°C), a hot build chamber, a heated print bed, and high-temperature resistant motors, rails and belts. That’s why it ensures long-lasting, reliable performance over time. Despite its advanced features, it is sold at an affordable price for almost any company and organization.

The Creatbot PEEK-300 boasts a state-of-the-art controlled thermosetting technology and an efficient water cooling system, which relies on both circulating liquid cooling and air pump cooling. It features a triple heat isolation system composed of a double insulation chamber, insulation materials, and vacuum double PC boards. The self-developed patented Direct Annealing System (DAS) lets you control the annealing process on the fly. It minimizes warping and cracking issues, in particular when printing large-size functional parts. The Direct Annealing Temperature ranges from 0 to 400°C. The printer also includes a power-recovery system, a filament run-out detection sensor and an emergency stop switch.

Ideal for advanced manufacturing and research in medical, automotive, aerospace, and military applications, it is supported by industry leaders, such as Volkswagen Group, Bosch, Oxford University and NASA. Continue reading for a deeper review.

Thanks to its patented DAS technology, Creatbot PEEK-300 delivers high-quality prints with smooth surfaces and fine details.

CreatBot PEEK-300

Look how accurate and well-defined the below-pictured model is. It shows clean edges and high dimensional stability.

CreatBot PEEK-300

Print quality

The Creatbot PEEK-300 is a large-scale FDM 3D printer that can print layers at 40 microns, a great resolution for high-performance material. Thanks to a perfect balance between printing temperature and cooling, it lets you produce parts with smooth exterior surfaces and tiny details.

CreatBot PEEK-300

The Creatbot PEEK-300 comes stock with two 0.4mm nozzles, giving you the best balance between speed and detail. The nozzles heat up to 500°C. The printer also supports additional nozzles ranging from 0.3 to 1.0 mm in diameter.

CreatBot PEEK-300

The printer’s body is entirely made of steel. The print head runs on linear rails. This makes printing reliable, fast and precise.


Creatbot PEEK-300 can print with both engineering-grade filaments, high-temperature materials and ultra-performance ones. It can process ABS, PLA, TPU, PETG, PA6, PVDF, TPU, PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP, PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), and other materials.

The printer comes with a dual extruder system with high-temperature hotends (500°C). It features an effective water cooling system for printing with temperature-sensitive materials. By cooling the model down, it reduces warping, stringing and, generally, makes for higher quality prints.

CreatBot PEEK-300

CreatBot PEEK-300 features both a heated bed and a fully enclosed heated chamber. The hot bed heats up to 200 °C reducing the risk of warping when printing large models. The hot chamber reaches up to 120°C. It keeps the printing temperature constant for cracking-free prints.

The Creatbot PEEK-300 is an open platform that can print with any 1.75 mm filament. This gives you wide design flexibility and material choice.

Build volume

CreatBot PEEK-300

The build area of 11.8 x 11.8 x 15.7 inches (300 x 300 x 400 mm) lets you print big parts in one go.

Printer controls

The machine can be operated via the onboard 4.3-inch full-color touch screen with a multi-language interface.

3D models can be easily printed from a USB-tethered computer or via a USB disk.

CreatBot PEEK-300

The printer comes bundled with the multilingual CreatWare 3D printing software. It supports STL, OBJ, Gcode and AMF file types. It runs on Windows (7, 8, 10) and Linux. The printer is also compatible with Simplify3D, Cura and Slic3r software.

What’s in the box

  • Creatbot PEEK-300 3D printer
  • Dual extruder print head
  • Heated bed
  • High-temperature nozzles (0.4mm)
  • Water cooling system
  • Heated build chamber

For some items, package content may change. In case of any questions, please get in touch.


The price of the Creatbot PEEK-300 Gen V2 is $12999, which is reasonable considering its functionality and advanced performance.

CreatBot PEEK-300 CreatBot PEEK-300

Technical specifications


Build Volume 300*300*400 mm
Print Resolution 0.04 mm-0.4 mm
Filament Diameter 1.75 mm
Number of Nozzles Dual Extruder
Print Speed 10-150 mm/s
Nozzle Diameter 0.4 mm (0.3~1.0 mm optional)
Filament Compatibility Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, PVDF, TPU
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP
Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc.


Software Bundle Creatware, Simplify3D, Cura, Slice3r
Operating Systems Win7/8/10, MacOS
Print File Type STL, OBJ, AMF, Gcode

Special Function

Outage Restored Save data when power is off
Filament Detection Pause printing when filament run out
Direct Annealing System (DAS) Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.
Heat insulation Triple heat insulation
Emergency stop switch Support emergency stop
High temperature accessories High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.


Nozzle Max. Temperature 500 ℃
Chamber Temperature 120 ℃
Platform Max. Temperature 200 ℃
Direct Annealing Temperature 0~400 ℃


Cooling Air pump cooling & water cooling
Platform PCB aluminum + PEEK print board
Positioning Precision X Y axis 0.01mm, Z axis 0.0025mm
Extruder Directly Drive
Machine Construction Fully enclosed hot chamber
Bed Leveling Manually/Automatic


Input Power 100~230 V, 1.5 A
Max. Power 3000 W
Output Power 24 V, 15 A
Screen 4.3'' full color touch screen, multi-language
Print Method USB Connectivity/USB Disk

Size & Weight

Machine Size 650*600*750 mm
G.W 100 kg
Packing Size 650*600*750 mm
N.W 100 kg

Specs Comparison With Other Brands


CreatBot PEEK-300

Stratasys F370

Intamsys Funmat Pro410

Apium M220

Place of origin China USA China Germany
Build Volume (mm) 300*300*400 355*254*355 305*305*406 170*170*130
Max Nozzle temperature 500 °C 300 °C 450 °C 540 °C
Max Chamber temperature 120 °C 90 °C 90 °C
Max hot bed temperature 200 °C   160 °C
Temperature around the part is controlled 0-400 °C None None 0-200 °C
Min layer resolution 0.04 mm 0.013 mm 0.05 mm 0.1 mm
Number of extruder 2 2 2 1
Build platform Carbon fiber sheet   Ceramic Glass Medical grade material
Materials PEKK, PEEK, medical PEEK, Carbon-PEEK, ULTEM, PEI, PPSU, PA/CF, PC, PA Alloys, PA6, PA12, ABS, Carbon Fiber, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, TPU 65A,ETC. PLA, ABS, ASA, PC-ABS, TPU 92A PEEK,PEI,PPSU, PA/CF, PC, PC Alloys, PA, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, ETC. Medical PEEK
Machine size 650*600*750 964*711*1 626 720*680*1 470 850*685*675
Weight 120 kg 227 kg (with cabinet) 200 kg (with cabinet) 66 kg
Price Less than $10 000 $59 900 $26 999 €65 000

Printing Technology FDM
Number of Extruders Dual
Layer Resolution 40 Microns
Print Speed 10-150 mm/s
Nozzle Diameter 0.4 mm (0.3~1.0 mm optional)
Max Nozzle Temperature 500C
Max. Heated bed temperature 200C
Rated Power 3000W
Filament Diameter 1.75mm
Material Type Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, PVDF, TPU High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc.
SD Card Reader Yes
USB Port Yes
Display 4.3'' full color touch screen, multi-language
Filament runout detection Yes
Enclosed Build Chamber Yes
Levelling Manually/Automatic
Print Pause & Resume Yes
Supported Software/Slicing Creatware, Simplify3D, Cura, Slice3r
Supported OS Win7/8/10, MacOS
Supported File Formats STL, OBJ, AMF, Gcode
Input Power 100~230 V, 1.5 A
Output Power 24 V, 15 A
Product Dimensions 650*600*750 mm
Package Dimensions 650*600*750 mm
Product Weight 100 Kg
Gross Weight 120 Kg
