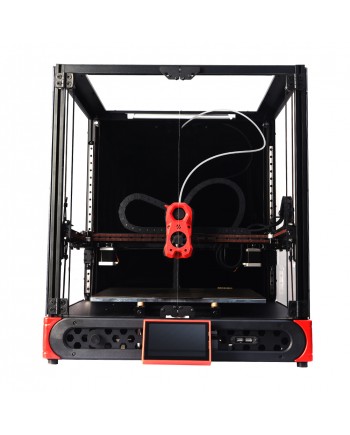

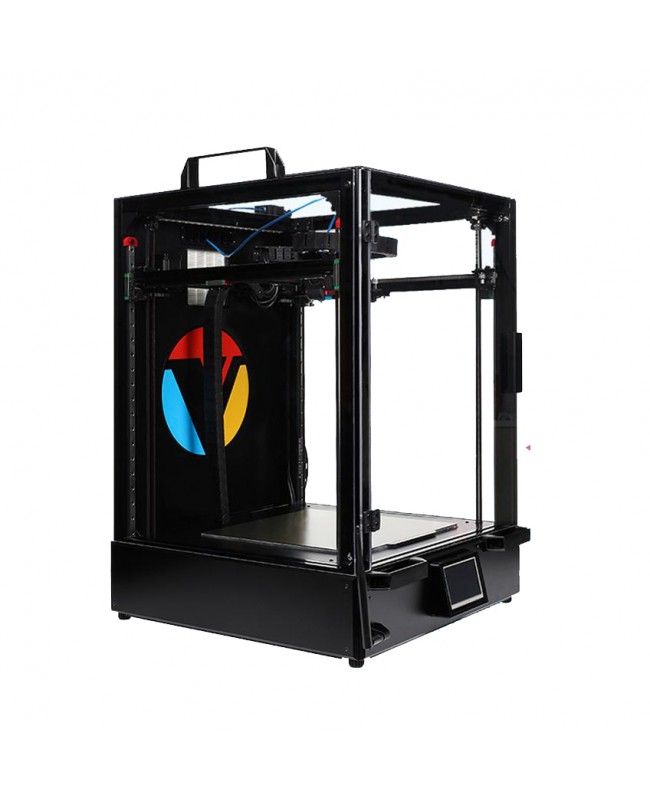

(Formbot) Vivedino Troodon CoreXY Large format Enclosed 3D Printer
Troodon comes fully assembled, easy to use, the best choice for beginners.
(inspired by Voron design)
Main features of Vivedino Troodon
- Core XY Motion System
- Pre-installed with Dual Gear Direct Drive Orbiter V1.5 ExtruderNew!.
- Fully enclosed. Perfect for ABS
- Opt to upgrade the hot end to Phaetus Dragon hot end Standard and High flow
- 300*300*400mm/400*400*500mm Build Size
- 32 Bit Controller with TMC2660 Driver
- will make you guessing if the printer is running
- Linear Guide Rails & Gates Belts
- Used on all axes for stunning prints
- Filament Runout Sensor
- Alert you when the filament has ran out or broken
- Power Loss Recovery
- Power outages cannot hinder your print anymore with the power panic function
- Magnetic Flexible PEI Sheet(Smooth surface)
- superior adhesion and easy removal of the prints. makes it suitable for printing with ABS-type materials
- Auto Bed & Gantry Leveling
- Accurately detects 36 points with BLTouch sensor, supports real-time adjustment and compensation of nozzle height. Accurately detects 4 points to make the gantry parallel to the bed automatically.
- Wirelessly Control via Wifi Module
- Dual gear Extruder.
- KEENOVO Heating Pad with SSR
- 4.3" Touch Screen
- HEPA Air Filtration
- Silently removes the harmful particles from the air. Environmental Friendly
- RGB Status Indicator Light
- Genuine Meanwell Power Supply
- 1 Kg Spool of PLA included
Buyer Protection Policies
100% Secure Payment
We accept PayPal, Credit, Debit card payments(PCI DSS Compliant).
Insured Shipment
High-Quality Express Transport without damage.
1 Year Warranty
Just in case. Of course, we only ship out perfect products.
Lifetime Support
Experiencing trouble? Feel free to create the ticket here!
Shipping Details
Processing(Lead) Time
For USA Orders: Shipping ETA MID to LATE SEP 2021 from the California warehouse(No Sales Tax & No Import Tax)
For Orders outside the USA: We ship by sea/rail + express, which takes 3 to 4 weeks(Free shipping). We bear all shipping cost to your door including import/customs tax.
Proper Testing & Packaging before shipment(100% Quality Control)
Delivery Time to Doorstep (Transit)
Free Fast Shipping, 3 to 5 days via
Documentation
Vivedino Troodon -User guide(English)| PRINTING SPECIFICATIONS | |
| Build Volume | 300x300x400/400x400x500mm |
|---|---|
| Number of Extruders | One, Dual Gear Direct Drive Orbiter V1.5 Extruder |
| Print Speed | 250mm/s |
| Nozzle Diameter | 0.4mm |
| Max Nozzle Temperature | 270C |
| Max. Heated bed temperature | 150C |
| Layer Thickness | 0.05 - 0.3mm |
| FILAMENT/MATERIAL SPECIFICATIONS | |
| Compatible with 3rd party materials? | Yes |
| Filament Diameter | 1.75mm |
| Material Type | PLA,ABS,Wood,HIPS,PETG,etc |
| CONNECTIVITY(INTERFACE) | |
| SD Card Reader | Yes |
| USB Port | Yes |
| Wi-Fi | Yes |
| Display | 4.3" Touch screen |
| FEATURES | |
| Enclosed Metal Frame | Yes |
| Filament runout detection | Yes |
| Filtration | Yes, HEPA Air Filtration |
| Levelling | Auto bed & Gantry leveling with BLTouch |
| Print Pause & Resume | Yes |
| HARDWARE | |
| Controller | 32 bit Mainboard with TMC2660 Stepper drivers |
| SOFTWARE SPECIFICATIONS | |
| Supported Software/Slicing | Cura/S3D/Slic3r/Makerbot Desktop |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 110/220V, 350W |
| DIMENSIONS & WEIGHT | |
| Package Dimensions | 516x643x764mm |
| Gross Weight | 38 Kg |
