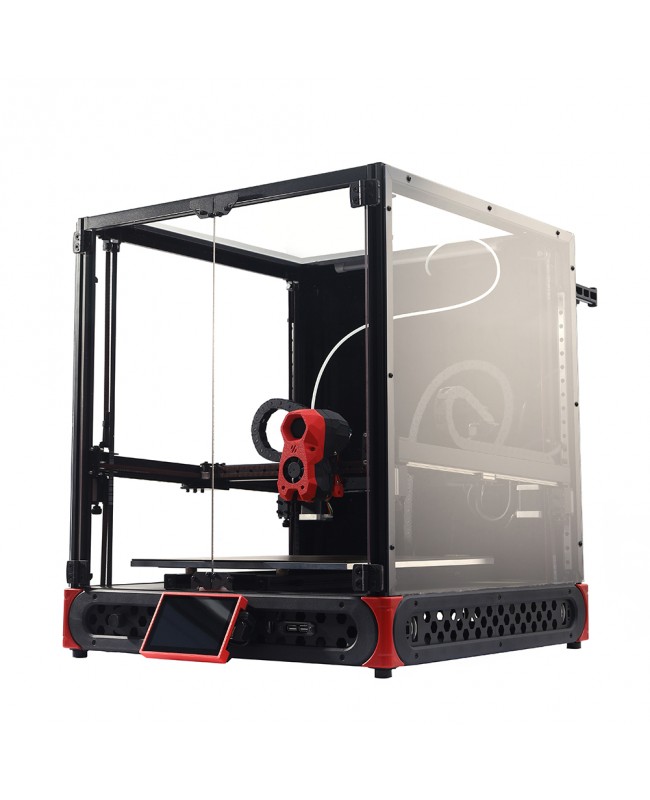

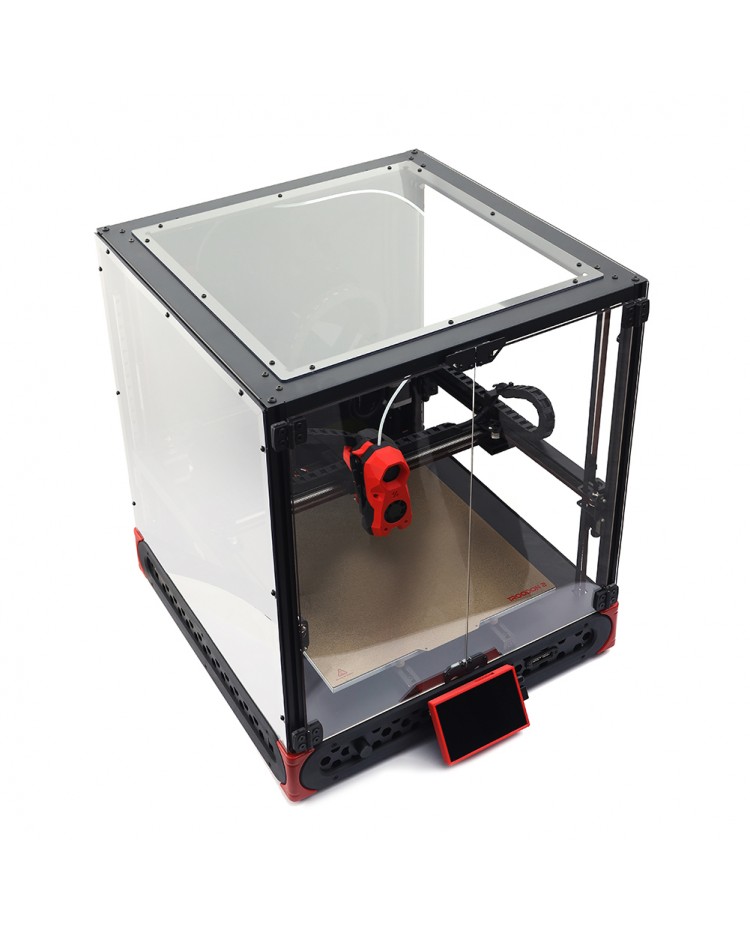

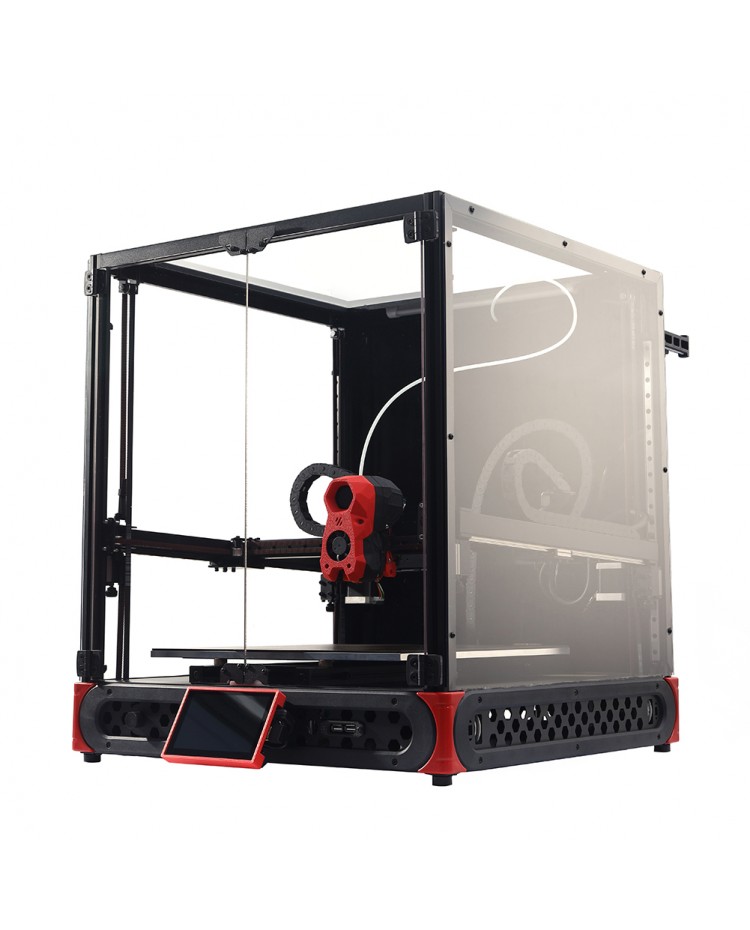

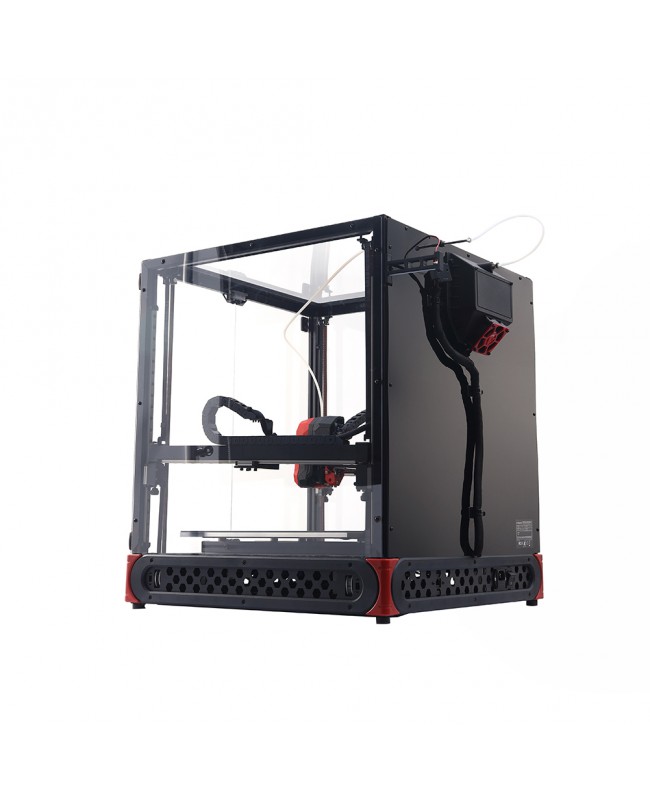

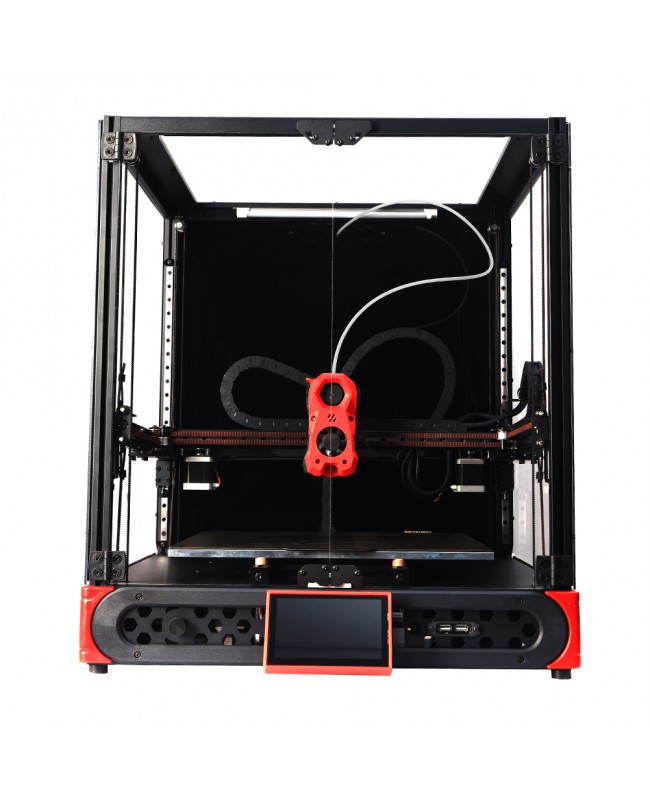

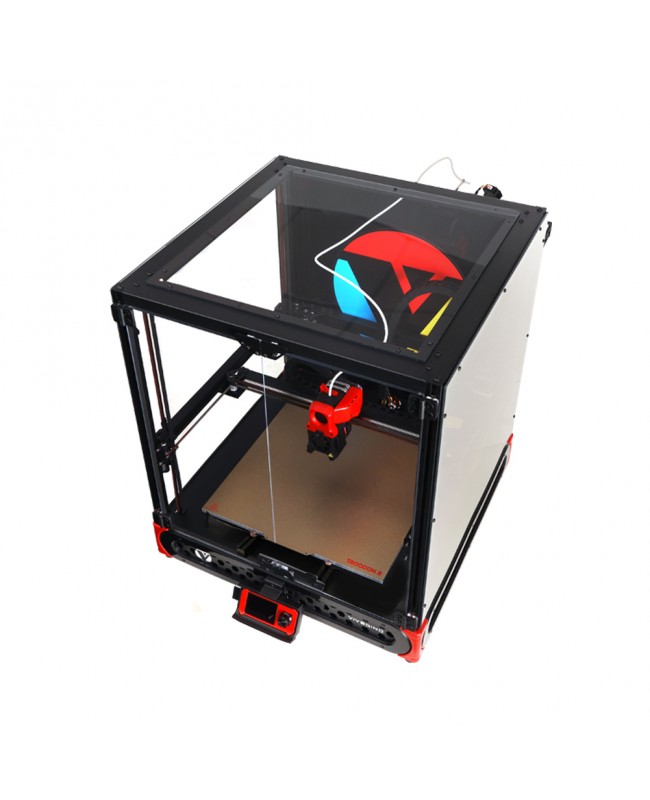

(Vivedino) Formbot Troodon 2.0 Large CoreXY 3D Printer
Troodon 2.0 now ships with stealthburner extruder & Tap Kit.
We are a Formbot authorized premium reseller in the USA & Europe. Free Fast Shipping. Ready to ship same or next business day.
EXTRA $20 OFF USE CODE 'VORON20' ON THE CHECKOUT
Troodon 2.0 is 95% pre-assembled.
Formbot Troodon 2.0 Highlights
- Stealthburner extruder
- Tap Kit.
- Large print size 350x350x330mm
- High printing speed 500mm/s
- High temperature extruder 500C hence supports printing engineering grade materials
- ABL with Omron inductive sensor
- Quickly replaceable modular hotend
- (Babystepping) Auto Z and Auto Nozzle wiping
- Cast Aluminum plate
- Double sided Magnetic PEI Textured/Smooth sheet
- Easy to adhere to the printing surface, easy to remove the prints, flex slightly to pop your print right off.
- Moons' Motor
- Hard Wearing Extrusion Wheel and Nozzle
- Gates Belt
- Meanwell Power Supply
- BTT customized board based on Octopus
- Stainless steel rails
- Hard-wearing cables
- Heat-resistant PC Panels
- WIFI access point
- Air Filter
- Filament Runout sensor

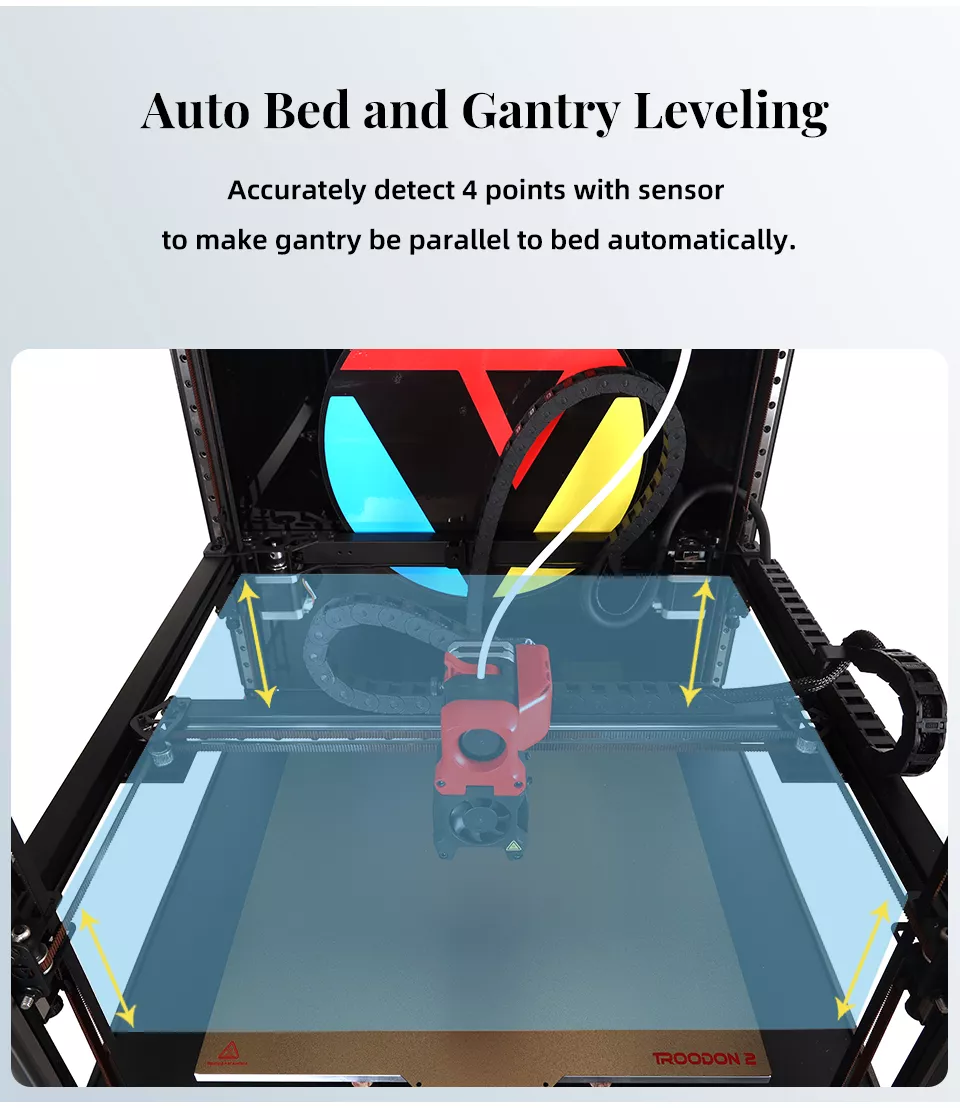

PERFECT FIRST LAYER WITH ABL OMRON INDUCTIVE SENSOR
A bed leveling sensor, such as ABL (Automatic Bed Leveling), allows you to skip the step of physically adjusting your build plate. The Formbot Troodon 2.0 uses an integrated omron inductive sensor to take four reference points of the bed, ensuring your print is perfectly aligned without having to manually level at all.
QUICKLY REPLACEABLE MODULAR HOTEND
Quickly replaceable Modular Hot End allows you to significantly speed up your hot-end swap time, whether you want different nozzles sizes or different hotend to a specific materials.
AUTO Z AND AUTO NOZZLE WIPING
MOONS' MOTOR
HARD-WEARING EXTRUSION WHEEL AND NOZZLE
Extrusion wheel and nozzle are designed for hard-wearing performance, making both practical and economic sense. By the time you’ve printed a single spool of abrasive filament—saving money in replacement costs while also saving time by avoiding constant nozzle changes. Being prepared for new types of filament will ensure that you never run out of things to make with your 3D printer.
Excellent durability & better performance - A hardened tool steel nozzle provides superior abrasion resistance, heat resistance and corrosion resistance. Excellent for printing at high temperatures with abrasive filaments like carbon fiber or metal fill, PC etc.
DOUBLE SIDED MAGNETIC FLEXIBLE PEI SHEET(TEXTURED & SMOOTH SIDE)
Simple Installation
This sheet is made up of 2 parts, a magnetic bottom with adhesive on the back and an interlocking top piece that's textured on one side and smooth on the other. Simply stick it onto your heated bed then place the PEI sheet with texture surface on top right above.
(Vivedino) Formbot Troodon 2.0 Technical specifications
| Manufacturer | Formbot |
| Brand | Formbot |
| Product Model | Troodon 2.0 |
| Printing Technology | FDM |
| Build size | 350x350x330mm |
| Print speed | <500mm/s |
| Nozzle diameter | 0.4mm |
| Filament diameter | 1.75mm |
| Nozzle temp. | Max 500C |
| Bed Temp. | Max 120C |
| Layer thickness | .05-0.3 mm |
| Body structure | Fully-enclosed metal frame |
| Power Supply | 200W |
| Input Voltage | 110V/220V |
| Connection method | SD card/USB/Wifi |
| Slicer software | Cura/Simplify3D/Slic3r etc |
| Machine size | 600x680x610mm |
| Package size | 640x640x460mm |
| Machine weight | 28 kg |
| Package weight | 30 kg |
| Warranty | 1 Year |
Formbot Troodon 2 Available resources:
User guide, Assembly manual and Configuration sample Cura & S3D slicer profiles
